MDF, or Medium Density Fiberboard, is a composite wood product made from wood fibers and resin binder. It's commonly used in furniture, cabinetry, flooring, and decorative applications due to its smooth surface and uniform density.

In this guide, we'll delve into MDF laser cutting, covering all aspects from beginning to end! Additionally, we'll include a case study on laser cutting MDF Candle Holder. Let's embark on this exciting journey together!

mdf laser cutting guide

In this article:

Part 1: The Overview of MDF Laser Cutting?

1.1 What is MDF Laser Cutting?

MDF laser cutting, also known as laser cutting MDF, is a refined method for precisely shaping MDF into various designs, letters, or shapes. Cutting MDF with laser, your creative ideas can be transformed into stunning crafts effortlessly.

1.2 How Does Laser Cut MDF?

Is MDF good for laser cutting? Yes! Laser cutting MDF involves the use of a high-powered laser beam that is focused onto the MDF's surface. The intense heat generated by the laser beam causes the MDF to melt and vaporize along the path of the beam, resulting in a clean and precise cut.

the process of mdf laser cutting with laserpecker4

Since the laser beam is controlled by computer software, even intricate and complex designs can be cut with high accuracy. Compared to other MDF cutting methods, this method produces smooth edges and minimal kerf width, making it perfect for intricate patterns and shapes.

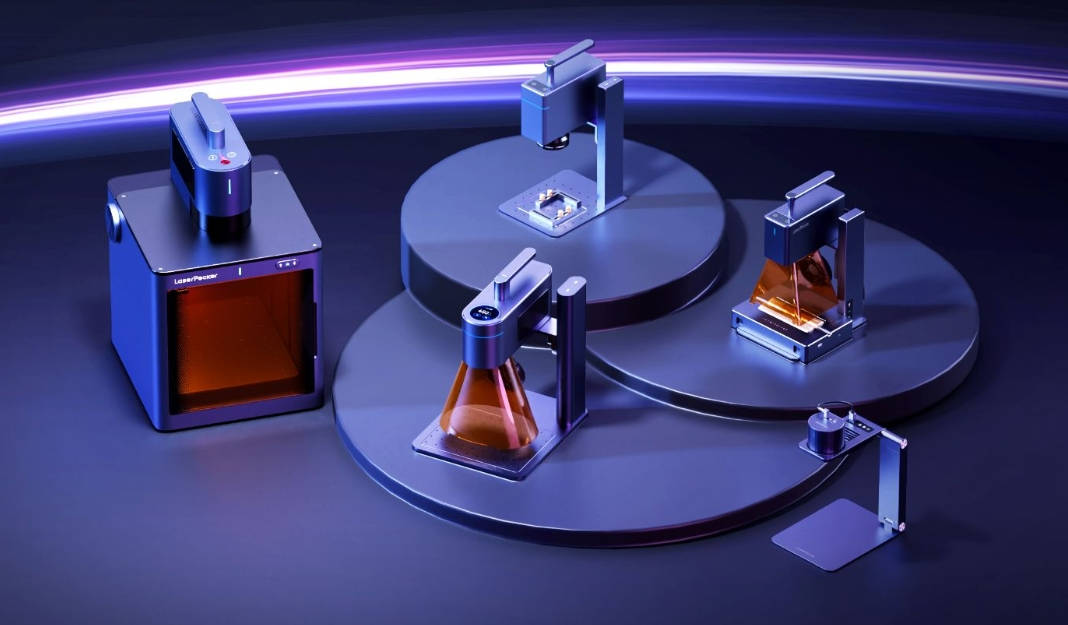

1.3 MDF Laser Cutting Machine

To laser cut MDF, you'll require a laser cutter, which is crucial for streamlining the cutting process and achieving precise results. With various laser cutting machines on the market (like Diode laser engraver, CO2 laser engraver and Fiber laser engraver), many may ask: "Which laser is best for MDF laser cutting?" or "What machine do I need to cut MDF?"

Actually, it depends on your engraving needs. For home or small-scale MDF laser cutting project, diode laser engravers are the best choice. Because these diode laser engraving machines are easy to use and budget-friendly compared with other MDF laser cutting machines.

laser engraving machine

1.4 What Thickness of MDF can Be Laser Cut?

The thickness of Medium Density Fiberboard (MDF) that can be laser cut depends on the power and type of laser cutter being used. In general, MDF with a thickness ranging from 1/8 inch (3mm) to 3/4 inch (19mm) is commonly laser cuttable.

For a 10W diode laser cutter, a 3-9 mm MDF is recommended. If thicker MDF poses challenges, adjusting for multiple passes can help overcome this issue.

💡 Case Study: Laser Cut MDF Candle Holder Within 5 Steps

Preparation checklist for laser cutting MDF candle holder:

  1. Cutting Material: 3mm MDF Board
  2. Cutting Machine: Diode Laser Cutter
  3. Cutting Design: Designs, letters, shapes, etc.

Can you laser cut MDF? Yes! The process is straightforward. So, How long does it take to cut MDF? Don't worry, just follow these 5 simple steps to get your laser cut MDF crafts in a few minutes!

Step 1: Choose Your Material - 3mm MDF Board

Selecting the right material is crucial for the laser cut MDF. Different materials require specific laser settings to ensure precise cutting. In addition, it's important to choose laser-safe MDF to avoid any potential safety hazards.

MDF board

Step 2: Choose the Right Laser Cutting Machine for MDF Cutting

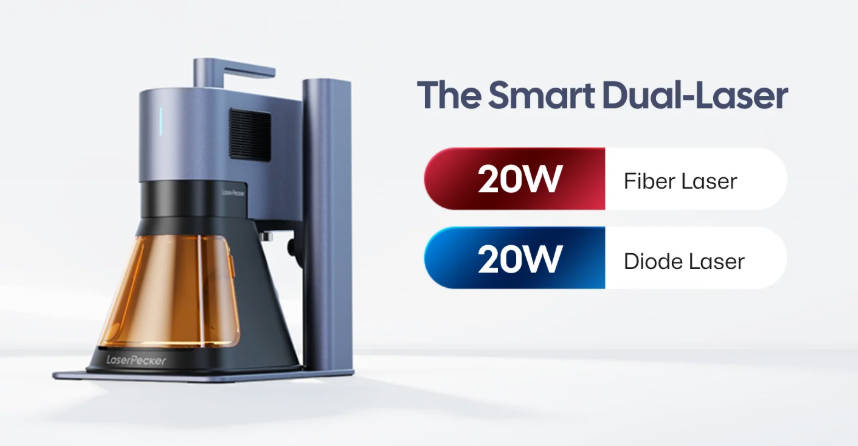

Here, we recommend LaserPecker 4 (LP4) that excels in MDF laser cutting.

Step 3: Prepare Your Cutting Design

Use a free graphic design app/software or third-party graphic design tools like photoshop to create or import the shape or design you want to cut on the MDF sheet's surface. Consider size, shape, and other details.

laserpecker graphic design app software

Step 4: Set up the MDF Laser Cutting Machine

Firstly, Make sure your cutter is powered on, and then connect your laser cutter to your computer or mobile device using the appropriate interface (USB, Bluetooth, etc.)

connect your laserpeckerdevices

Secondly, Open the LaserPecker Design Space and load your design. (formats like JPG/PNG/G-Code/SVG etc are all acceptable)

design for laser cutting

Thirdly, Place the items within the designated working area and check if the laser lens is properly focused. There are two ways to check.

If you choose LaserPecker 4 (LP4), the first method is to use a ruler to measure the distance between the MDF's surface and the machine, with a recommended distance of 15cm or 150mm.

Alternatively, you can achieve the correct focal length by judging whether the two red dots emitted by the machine overlap. This ensures precise focusing for optimal cutting & engraving results.

right focal length of laserpecker4

Fourthly, You need to turn on the "Preview" mode to see if the design fits properly on the MDF surface. If it doesn't, adjust its size and position to match the dimensions of your material.

laser engraving & cutting preview on target material

Finally, Access the software's laser settings to adjust parameters like power, speed, and resolution according to the MDF's properties and design intricacy. You might be wondering, "How much laser power is needed to cut MDF?" Rest assured, I've got you covered!

To get the best result, the recommended laserpecker 4 material settings for cutting MDF is 10 W 450 nm; Resolution: 1k; Power: 100%; Depth: 95%; Pass: 1

Furthermore, with precise control over the power and depth, lasers can cut MDF without scorching the edges. So, if someone asks, "How do you laser cut MDF without burning it?" You know the answer!

When operating a laser engraving and cutting machine with a 450 nm blue laser, it's advisable to wear goggles or use a laser protection cover to protect your eyes and body from potential harm, as the blue laser can pose risks.

To explore other recommended laserpecker engraving and cutting parameters, refer to the settings table that applies to any laserpecker machines, including LP1, LP2, LP3, LP4 and LX1.

material settings for laserpecker machines

Step 5: Start Cutting Your MDF With Laser Now

Double-check everything to avoid mistakes. Then, hit the start button and watch the magic happen. The laser brings your design to life. Keep an eye on it, and you're all set!

After laser cutting, you might want to add patterns or designs on the laser cut MDF candle holder. In such cases, laser engraving the MDF can be beneficial.

Additionally, please be mindful that smoke may be emitted during the MDF laser engraving process. Wearing a mask or employing an air purifier is essential for safety.

laser engraved MDF candle holder

Conclusion

In summary, MDF laser cutting offers versatility and precision, transforming MDF into intricate designs and functional products with clean edges and intricate patterns. It opens up endless possibilities for artistic expression, industrial manufacturing and personal projects.
