This guide provides step-by-step instructions on using the Rotary Extension with your LaserPecker LX1.
#1. Introduction to the Rotary Extension

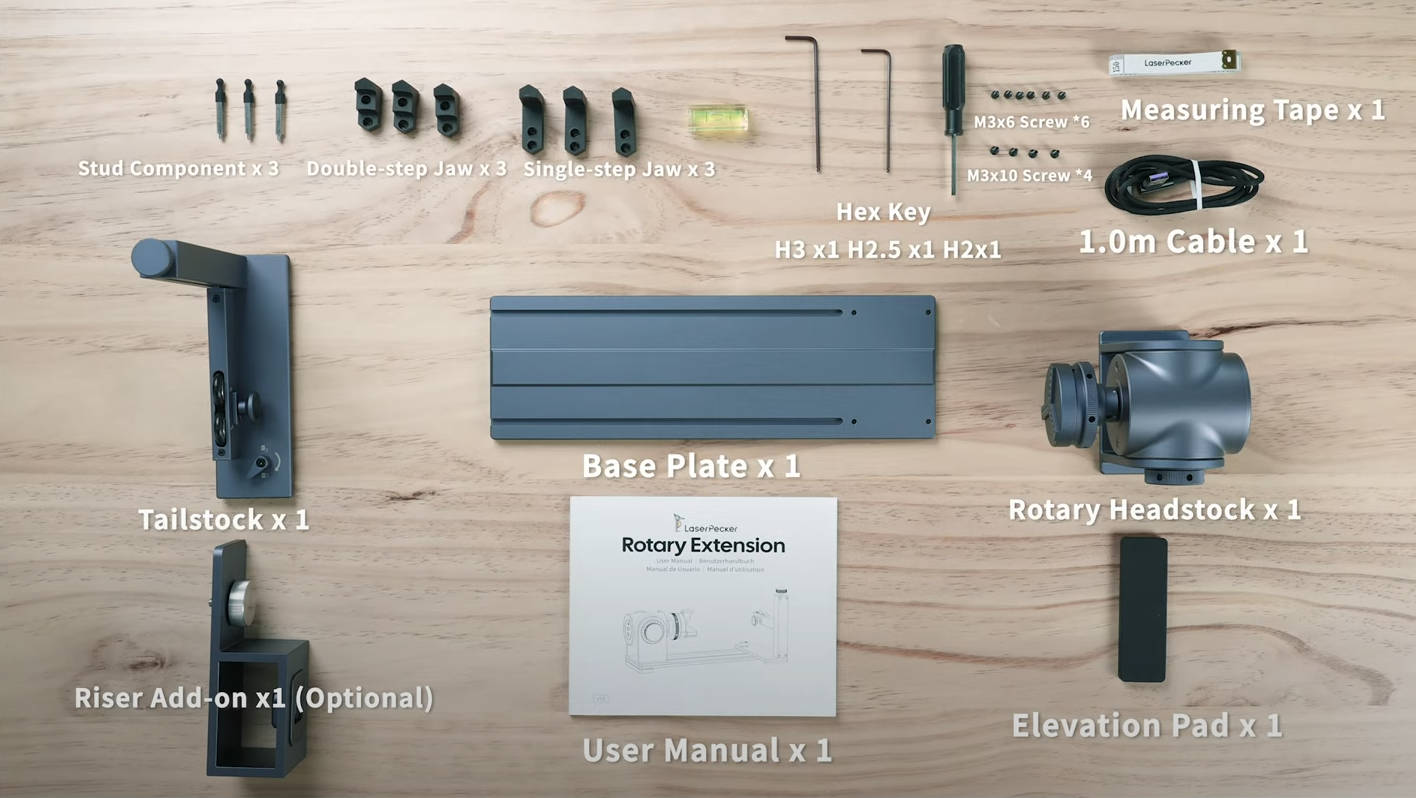

Package Contents:
Check all parts in the Rotary Extension package. If anything is missing, contact our after-sales support via a ticket form.

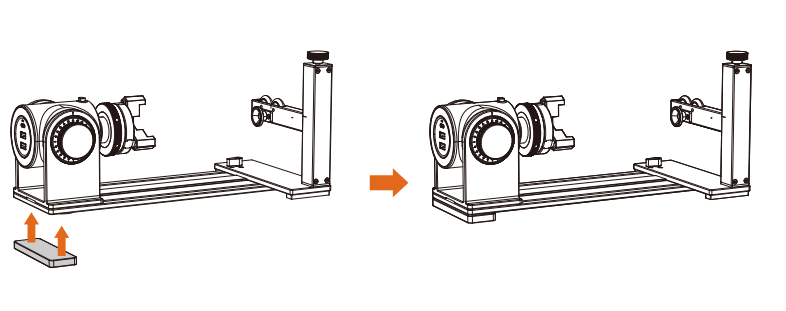

Assembly
For detailed assembly steps and instructions on attaching materials, watch our YouTube tutorial.
(The final result after assembly)

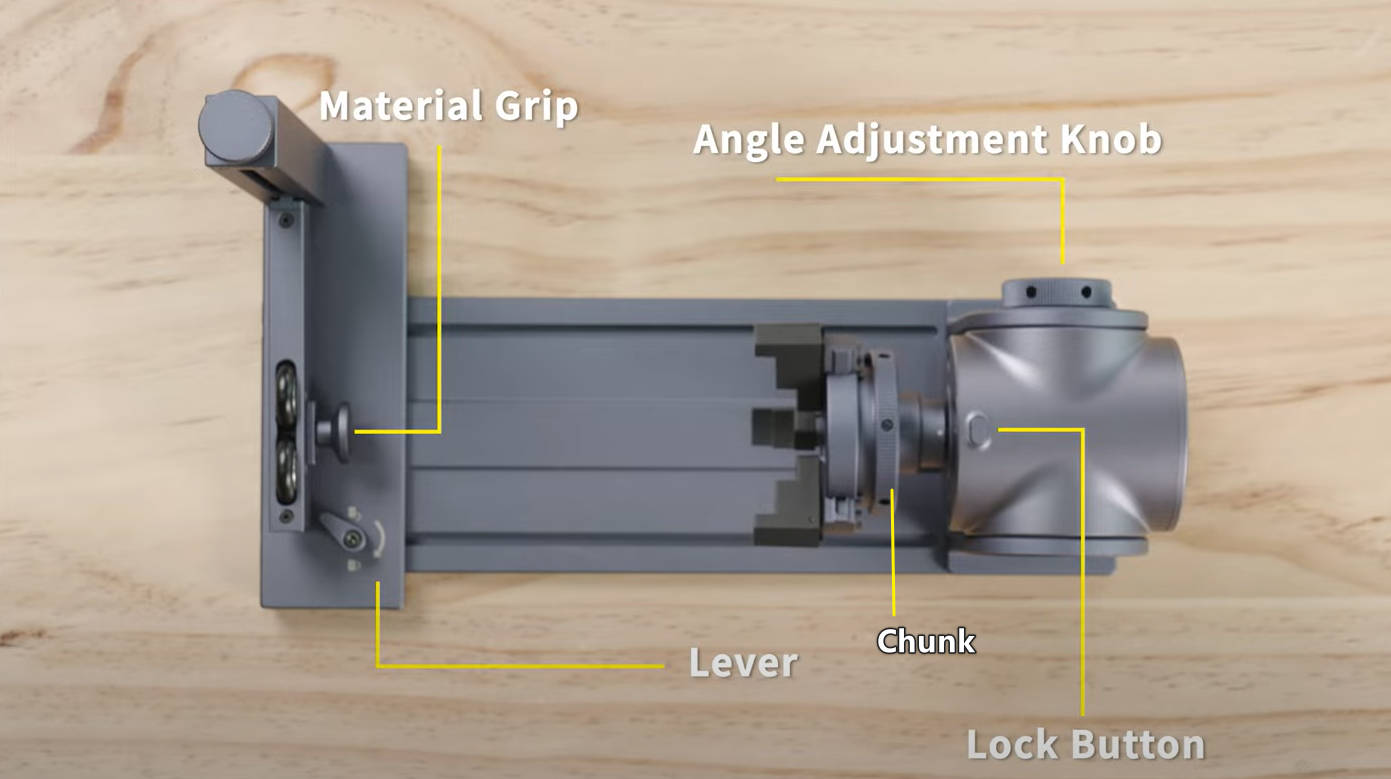

Ports, Buttons & Knob

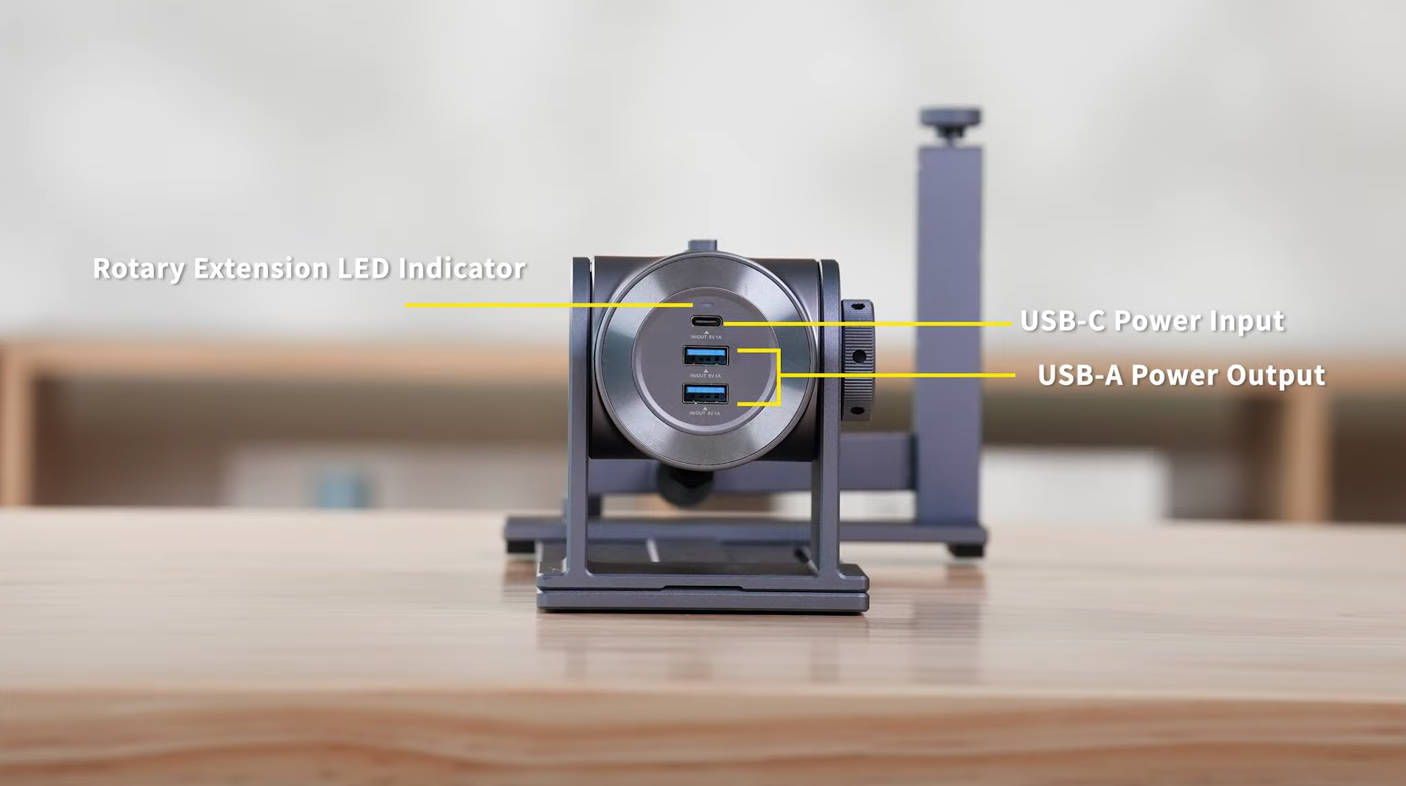

Here are all the ports, buttons, or knobs you need to use with the Rotary Extension.

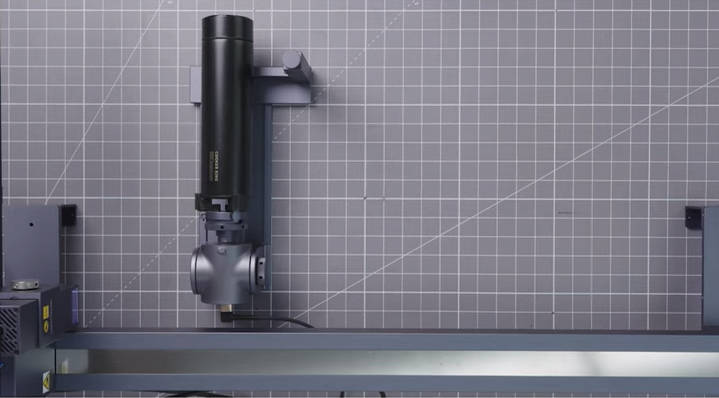

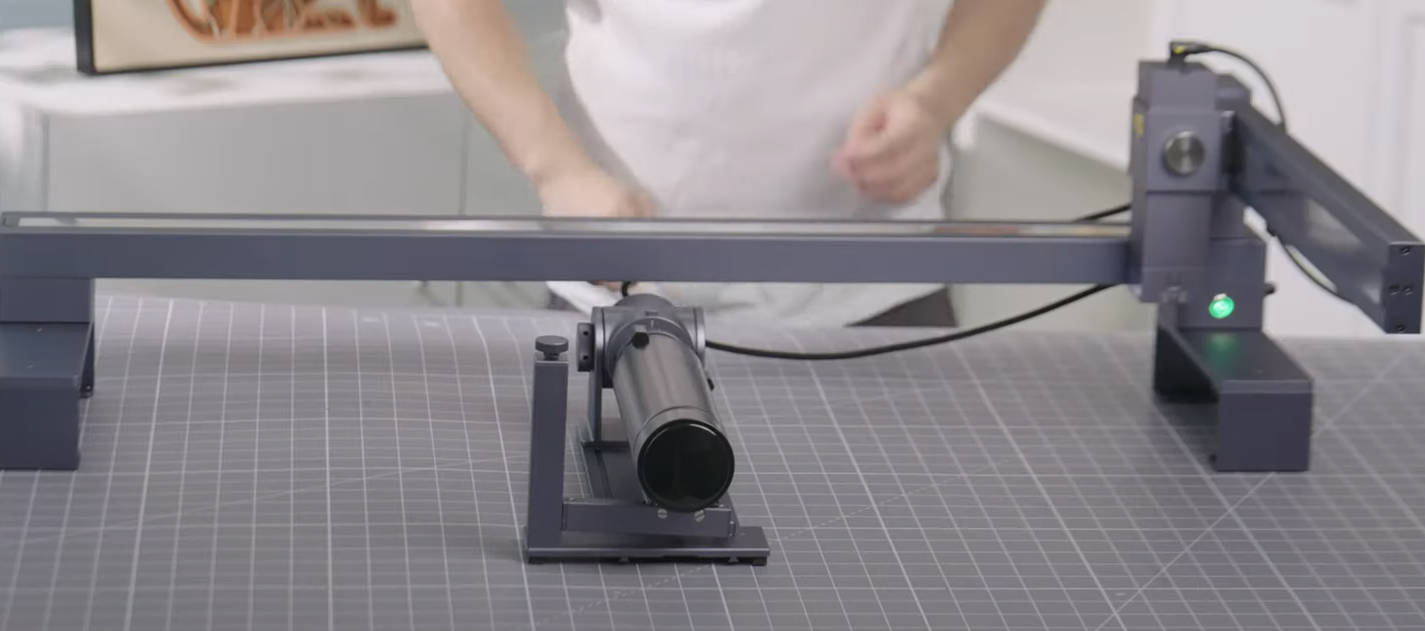

Placement
Ensure the Rotary Extension and LX1 are correctly positioned and connected.

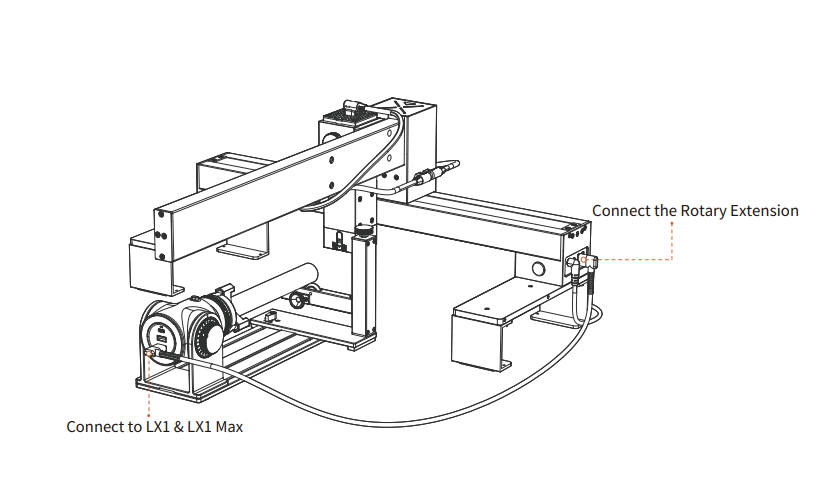

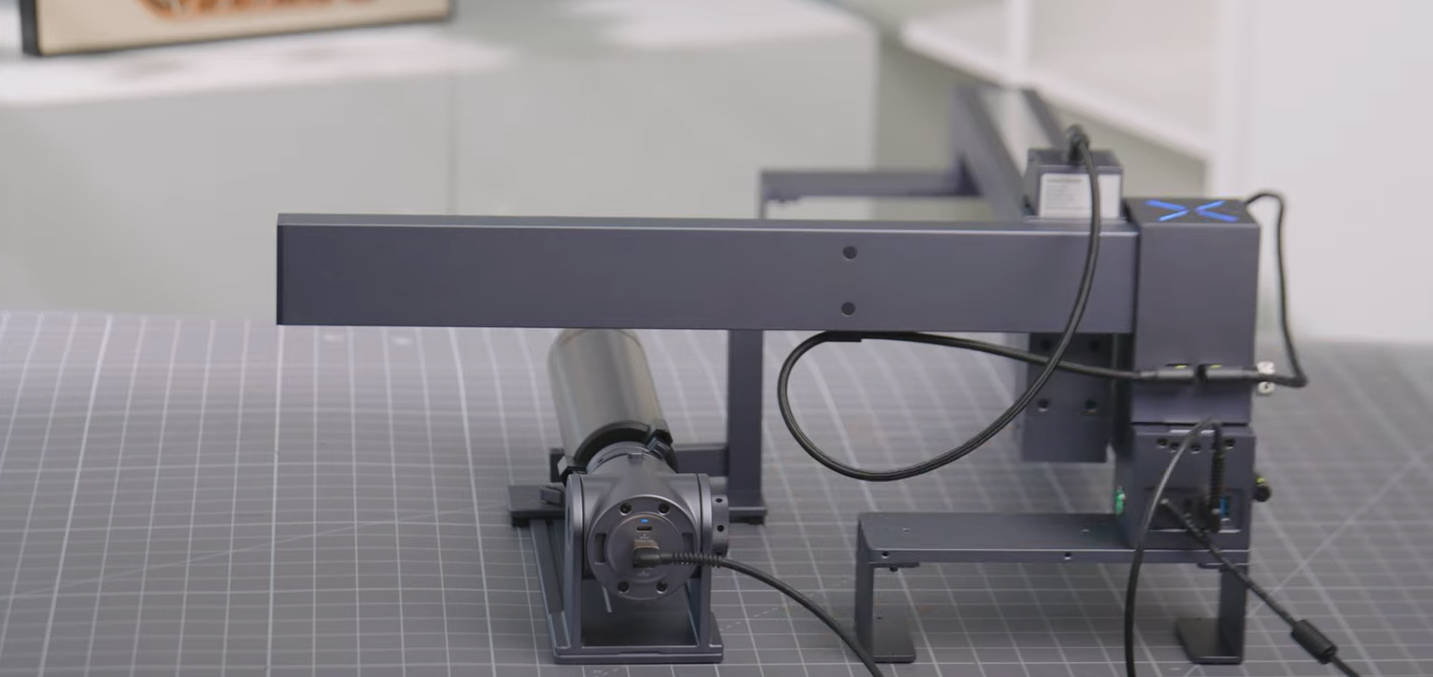

Cable Connection
Use the provided cable to properly connect the Rotary Extension to the LX1.
#2 Start Your First Engraving with LX1 & Rotary Extension
In this section, we will help you start your first engraving with LX1 & Rotary Extension step-by-step.
Step 1: Import Your Design

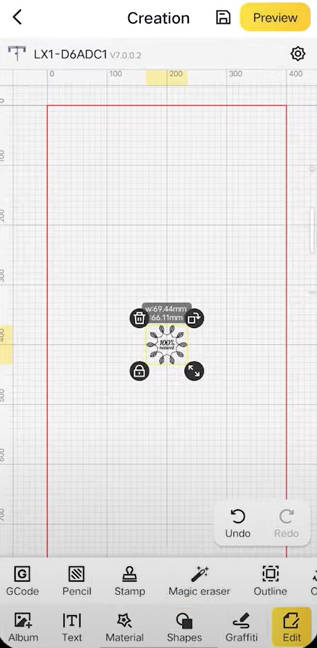

Prepare your design and import it into the LaserPecker Design Space (LDS).
Step 2: Turn on the Rotary Extension

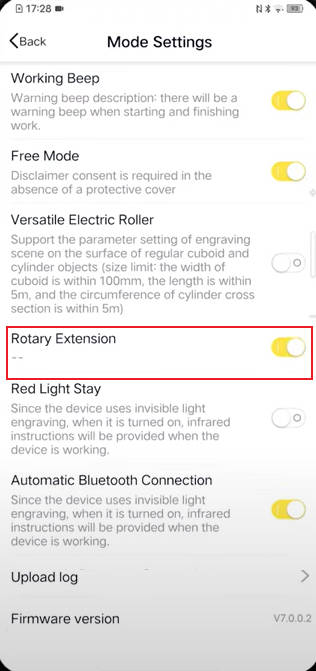

Go to the "Mode Setting" interface and toggle on the "Rotary Extension"
Connect the Rotary Extension to the power supply first, then open LDS and enable the toggle. Otherwise, it won't function properly.
Step 3: Measure and Enter the Diameter

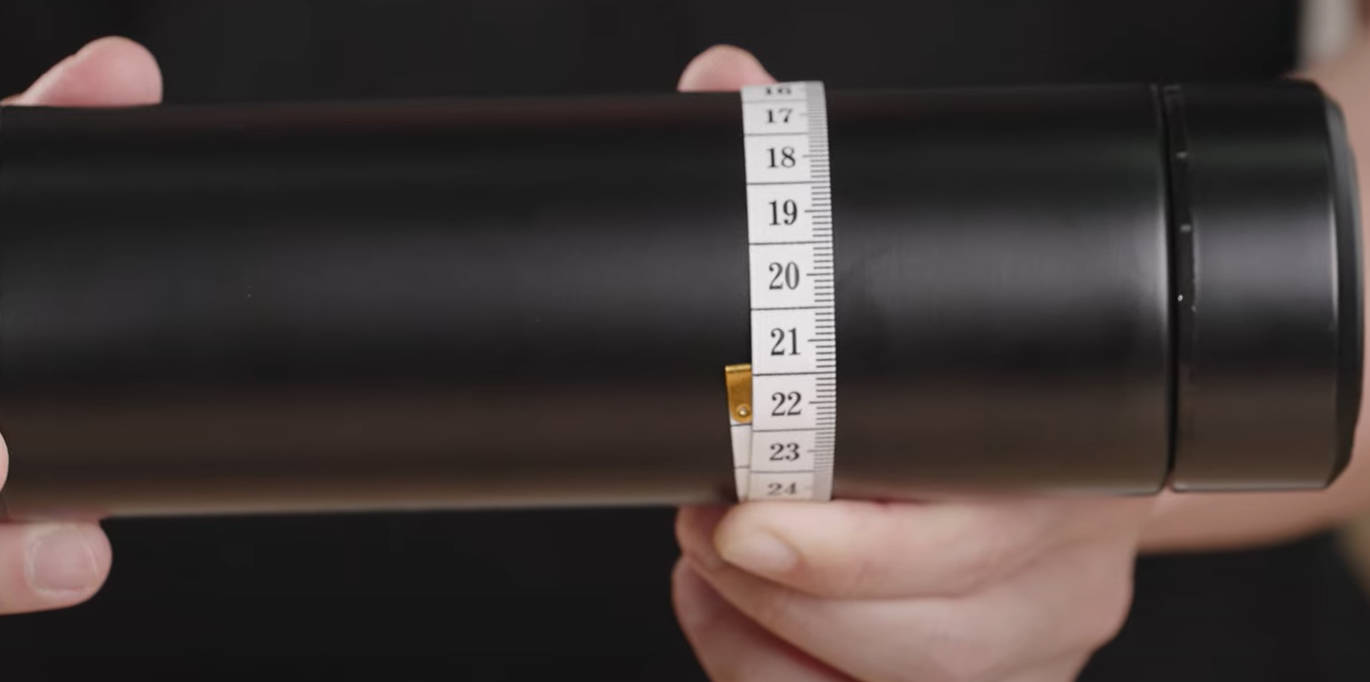

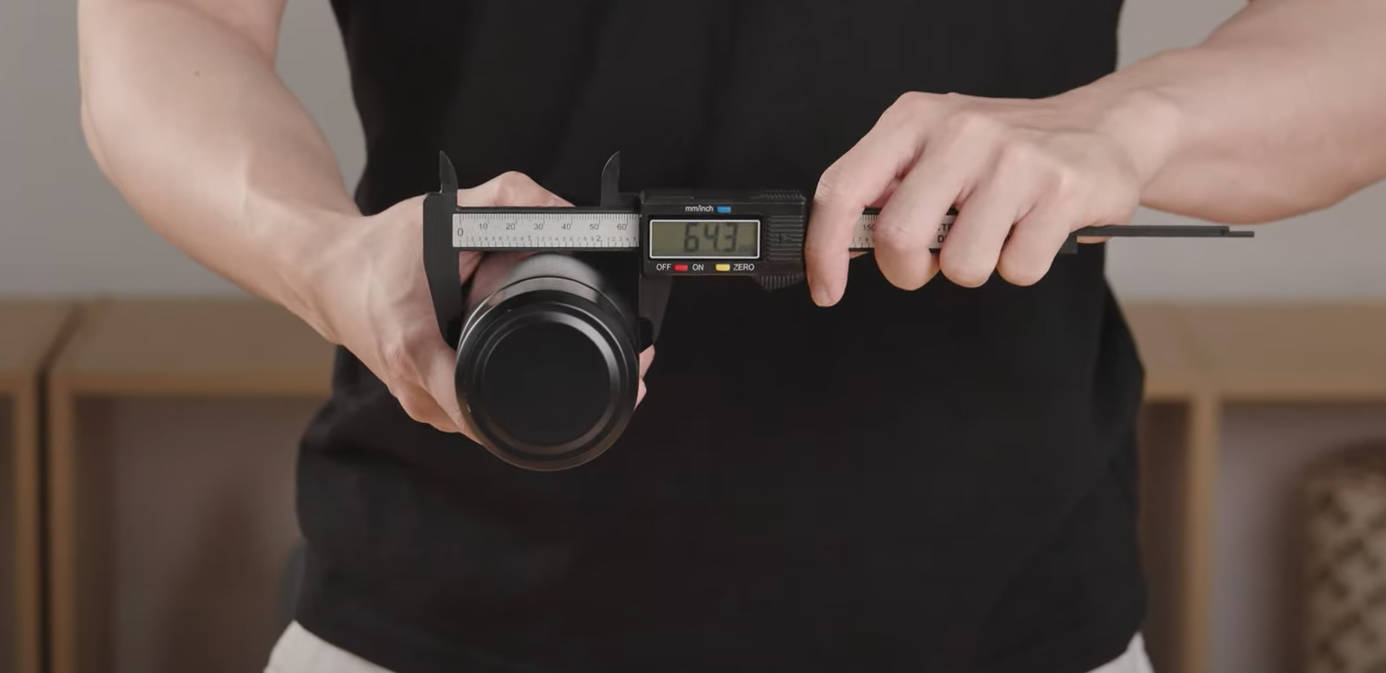

Measure the diameter of the object using a vernier caliper or measuring tape.

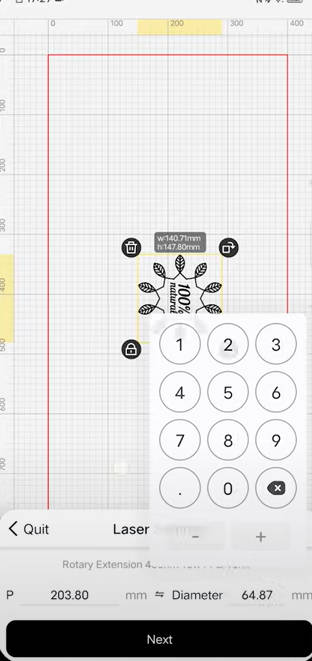

Then, enter the diameter in the Rotary Extension settings.
Step 4: Design adjustment
In this step, adjust the position and orientation of your design to align with the object.

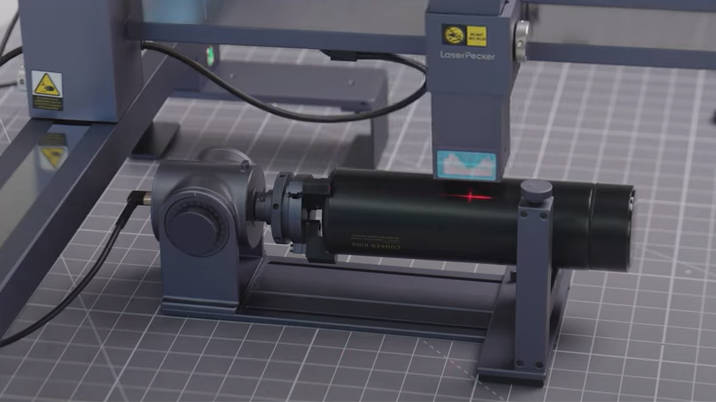

Step 5: Preview
Click "Continue" to rotate the Rotary Extension and preview the engraving area.
Step 6: Final Result

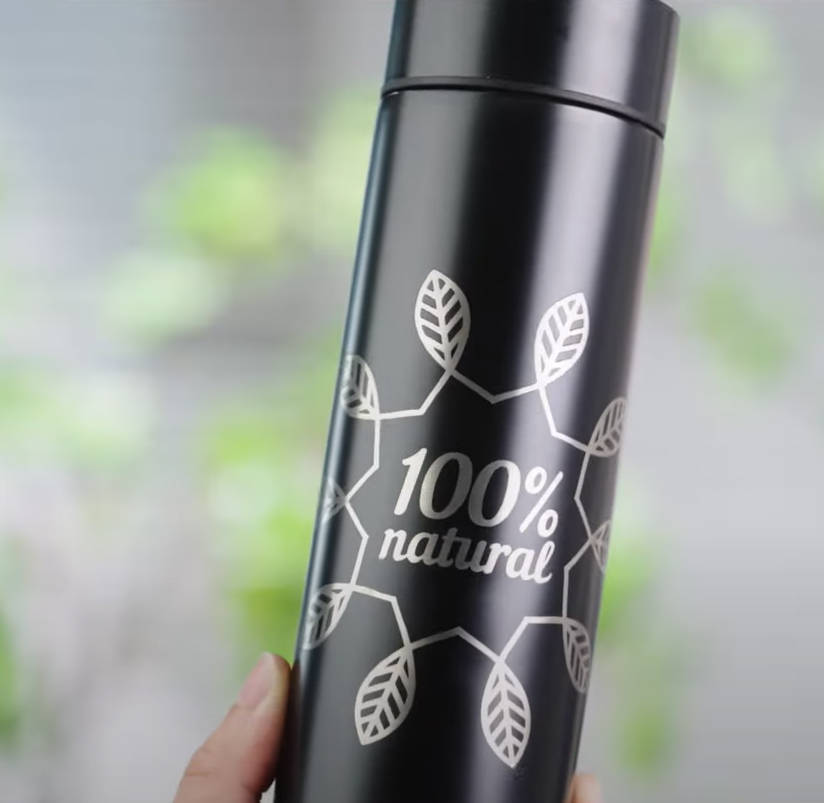

Set engraving parameters and start engraving to see the final results.
