This guide provides step-by-step instructions on using the Slide Extension Multi-file Mode with your LaserPecker LP5 & LP4.

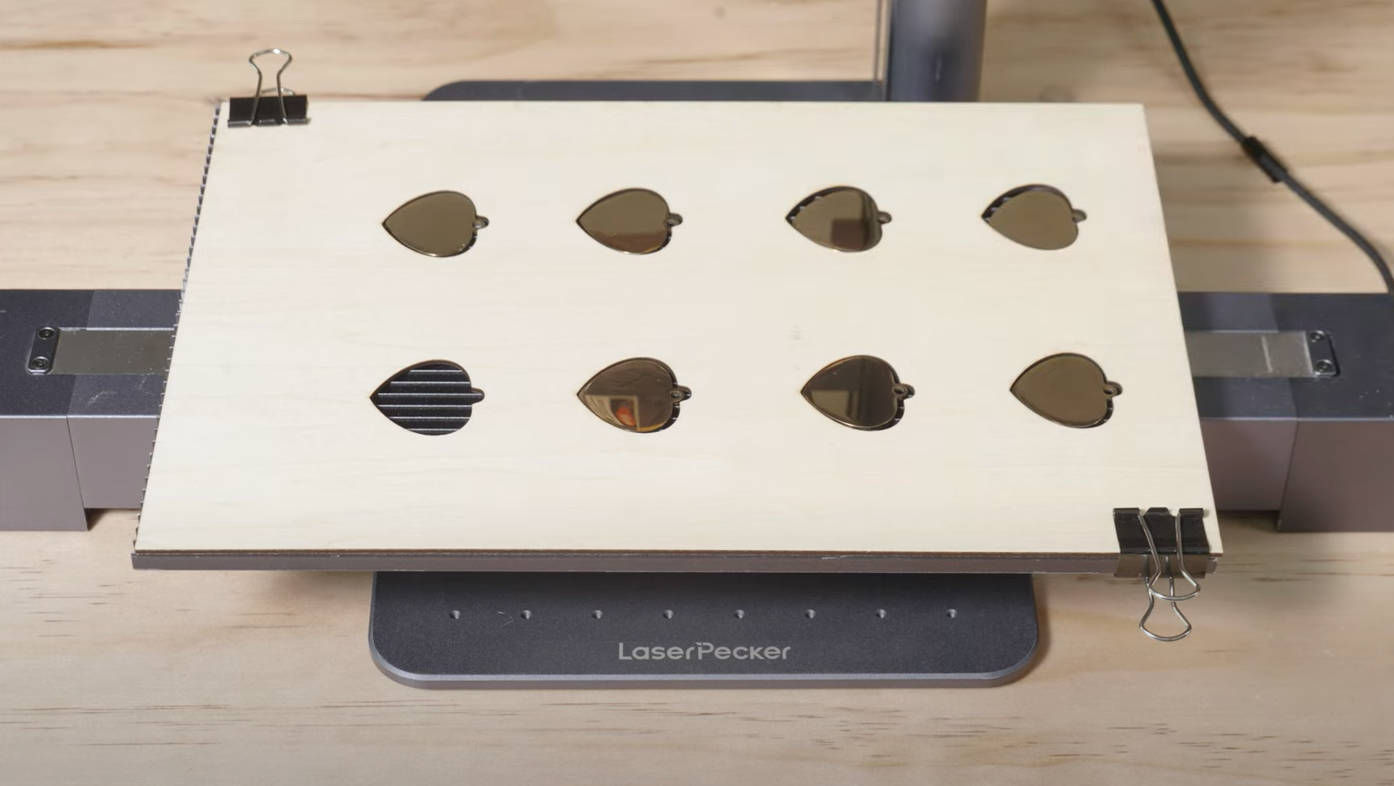

#1 What is the Slide Extension Multi-file Mode
The Multi-file Mode is a feature of the Slide Extension that enables batch engraving of multiple designs in one session.
#2 How to Use Slide Extension Multi-file Mode
For general guidance on Slide Extension assembly, placement, and cable connection, see Use Slide Extension with LaserPecker LP5 & LP4.
Step 1: Toggle on the Slide Extension

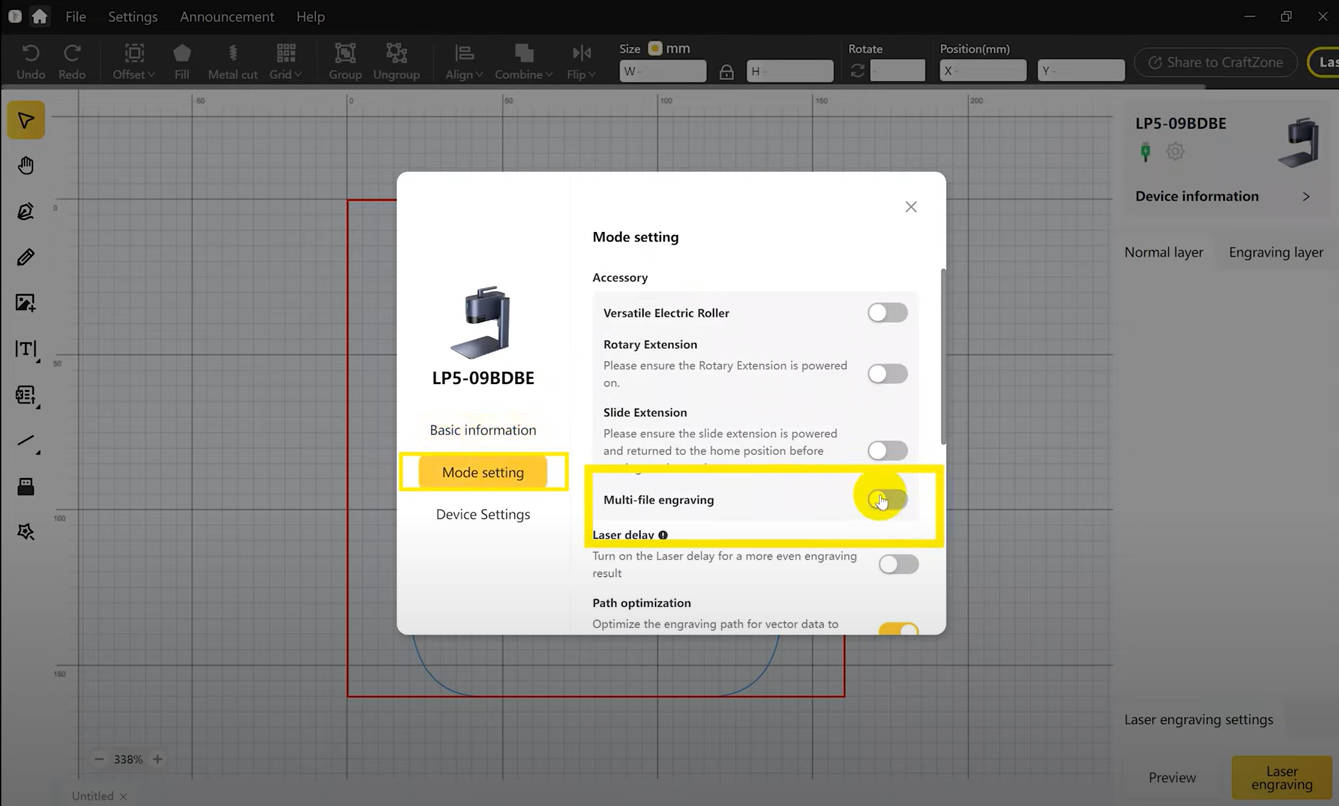

Go to the Mode Setting interface, toggle on Slide Extension, and then enable Multi-file Engraving.
Step 2: Import Your Design
Prepare your design and import it into the LaserPecker Design Space (LDS).
Step 3: Start Multi-file Placement Calibration

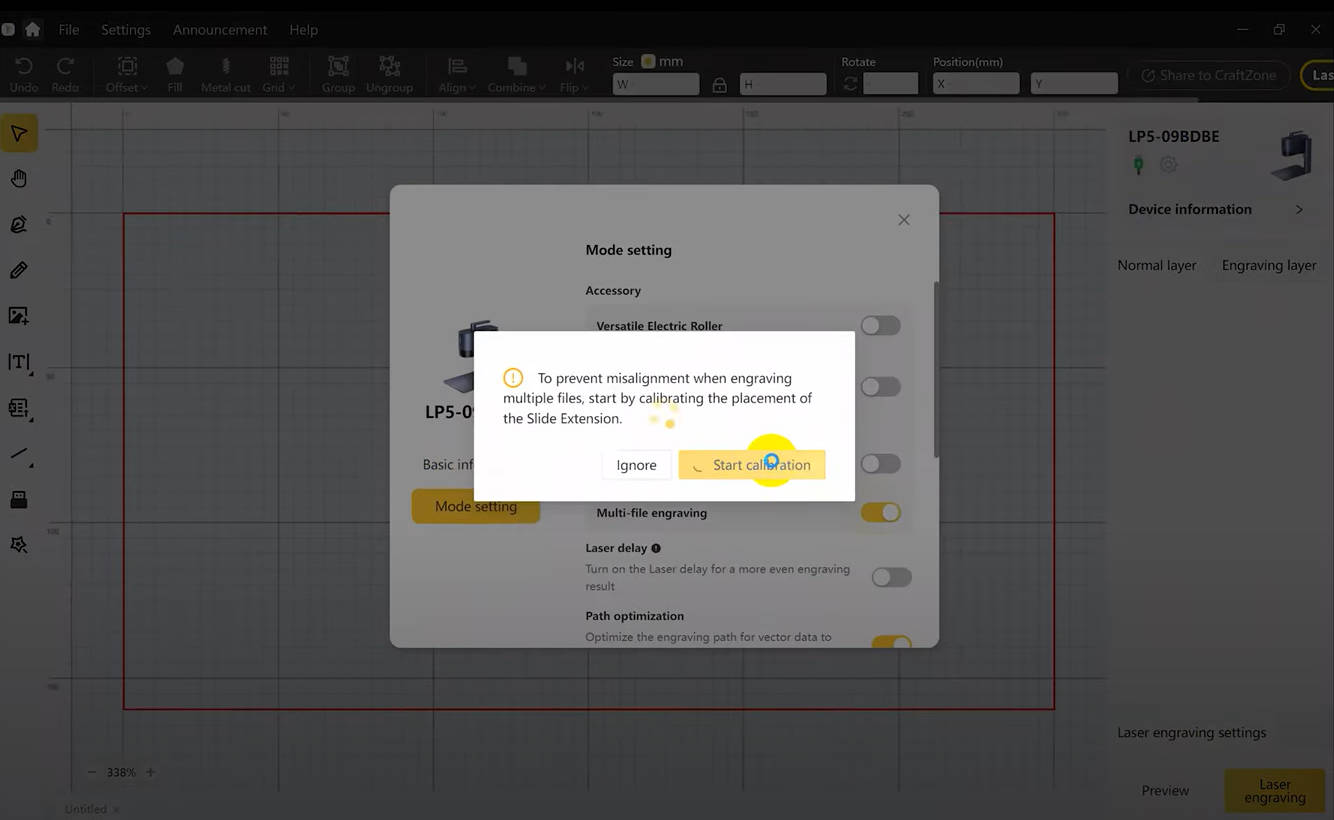

Follow the prompts to start Multi-file Placement Calibration for optimal batch engraving results.
Before Calibration
After Calibration
Step 4: Design adjustment

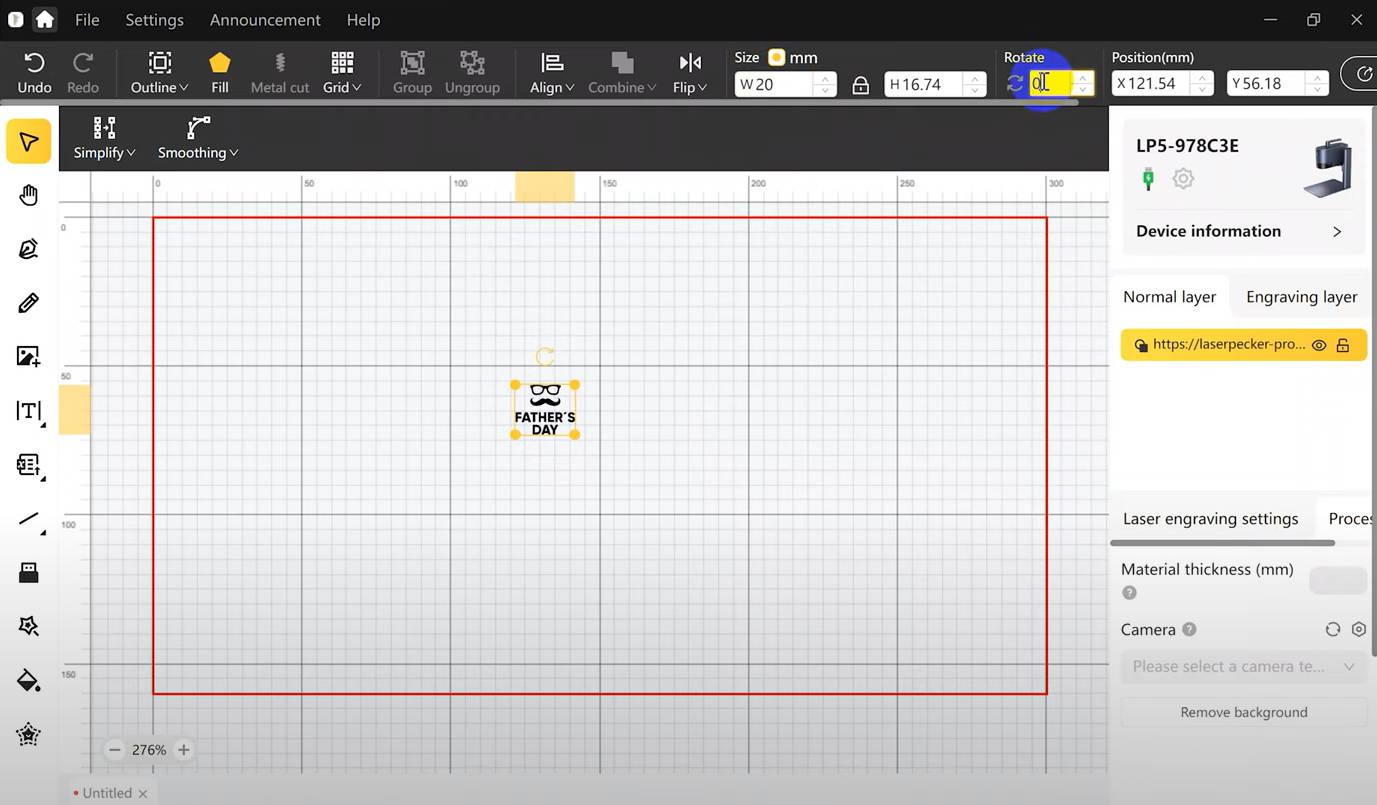

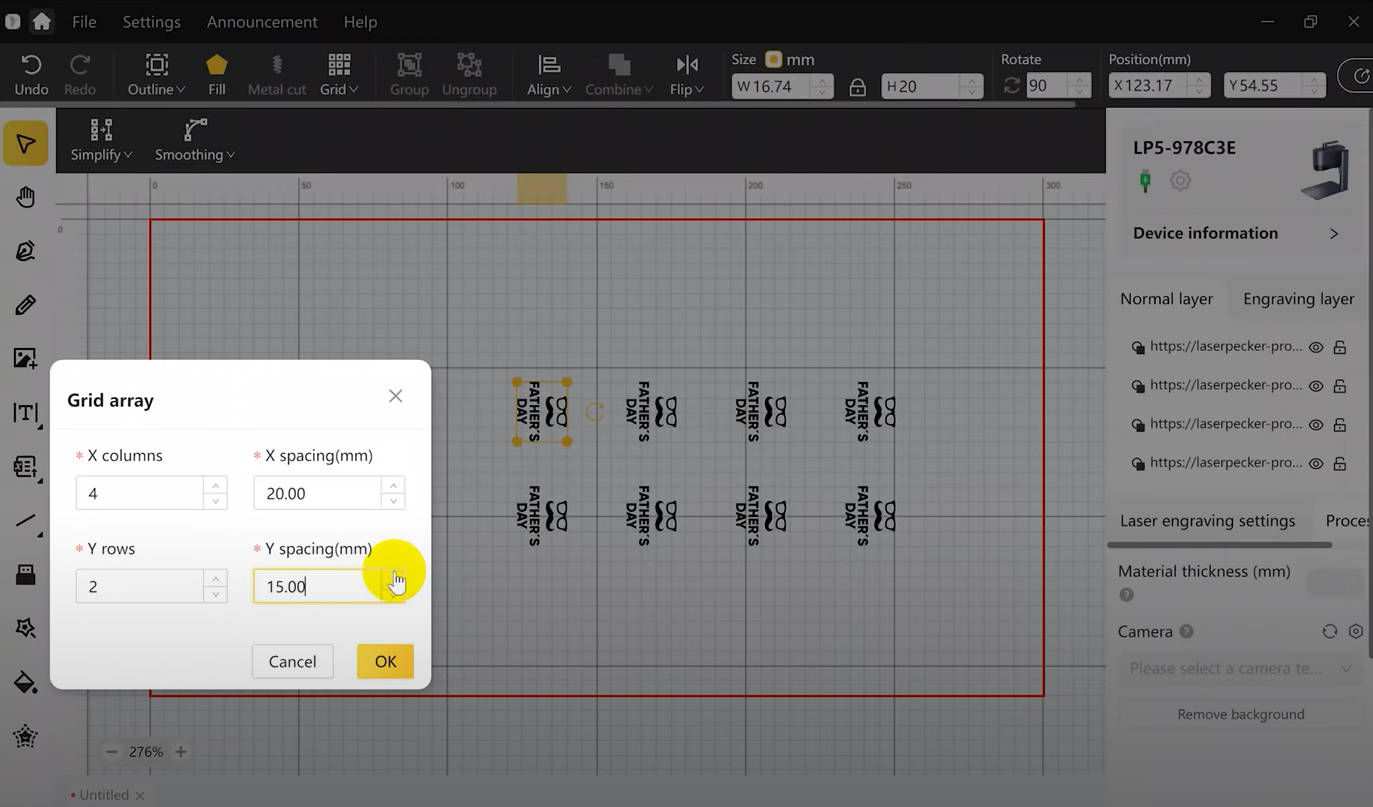

In this step, Select your design and then click 'Grid' in the toolbar then select "Grid array", you can set the desired number of rows and columns, as well as the spacing, to automatically generate sequential serial numbers. Once all set, click "OK".

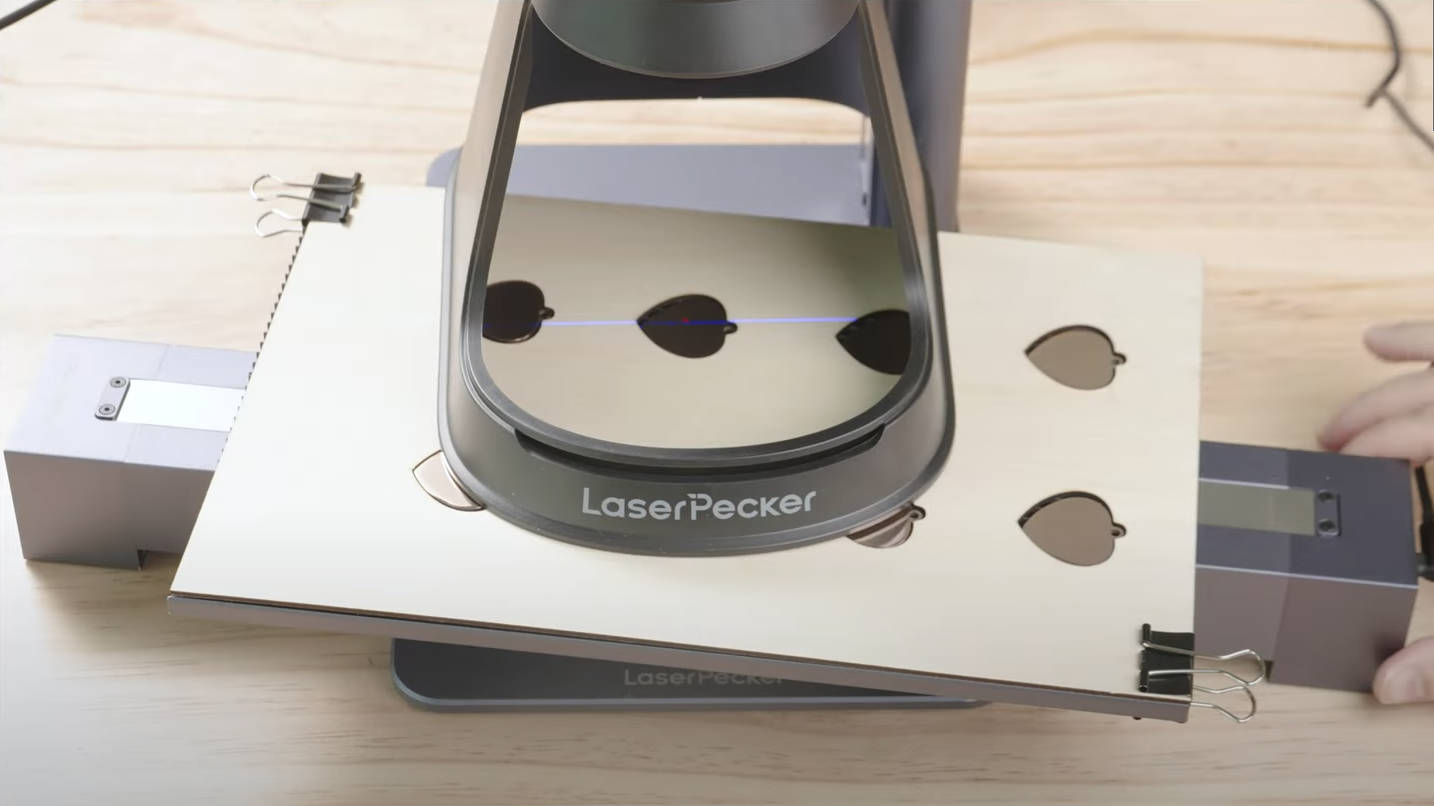

Step 5: Preview

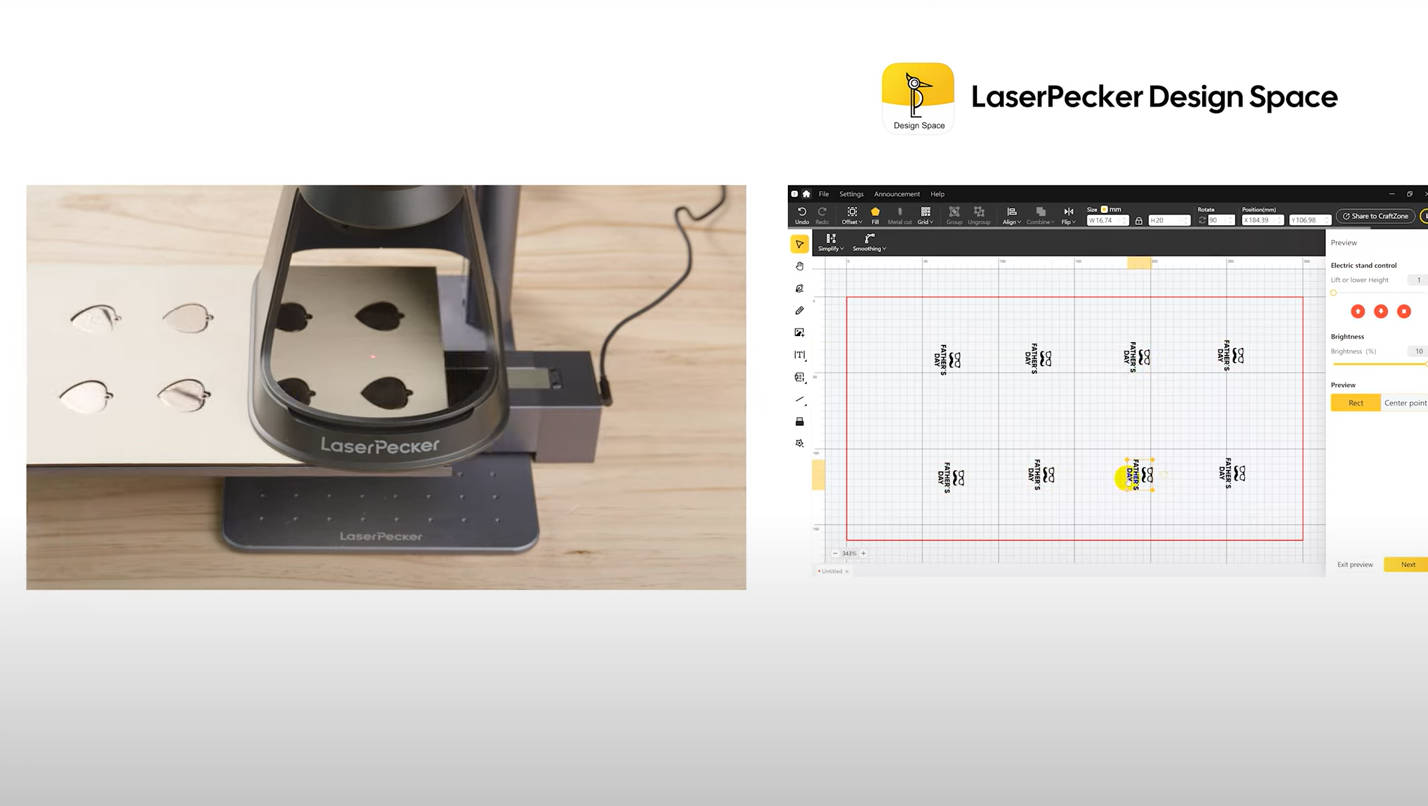

Click “Continue” to rotate the Slide Extension and preview the engraving area.

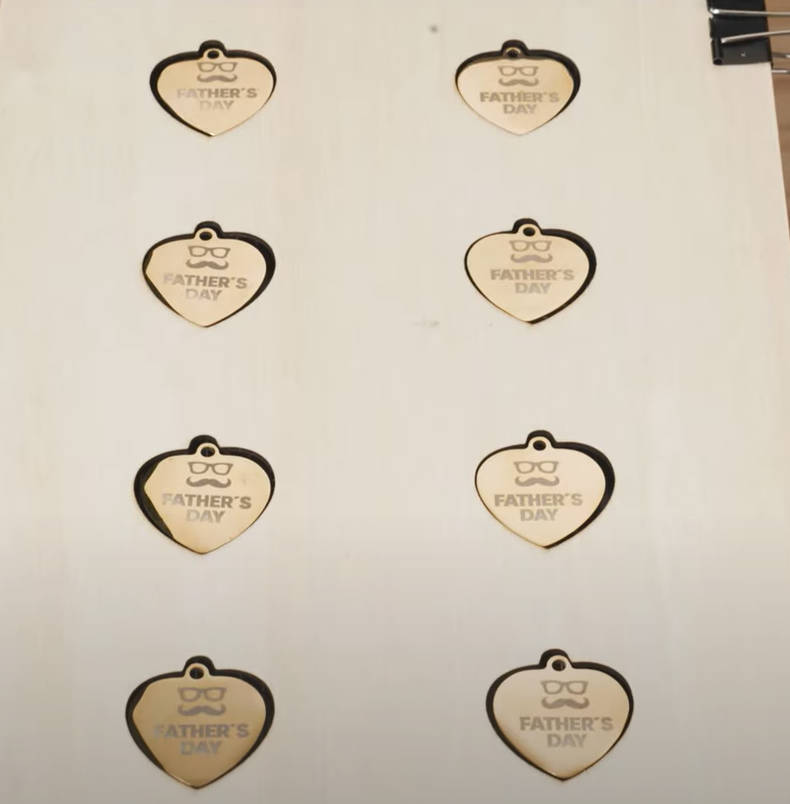

Step 6: Final Result

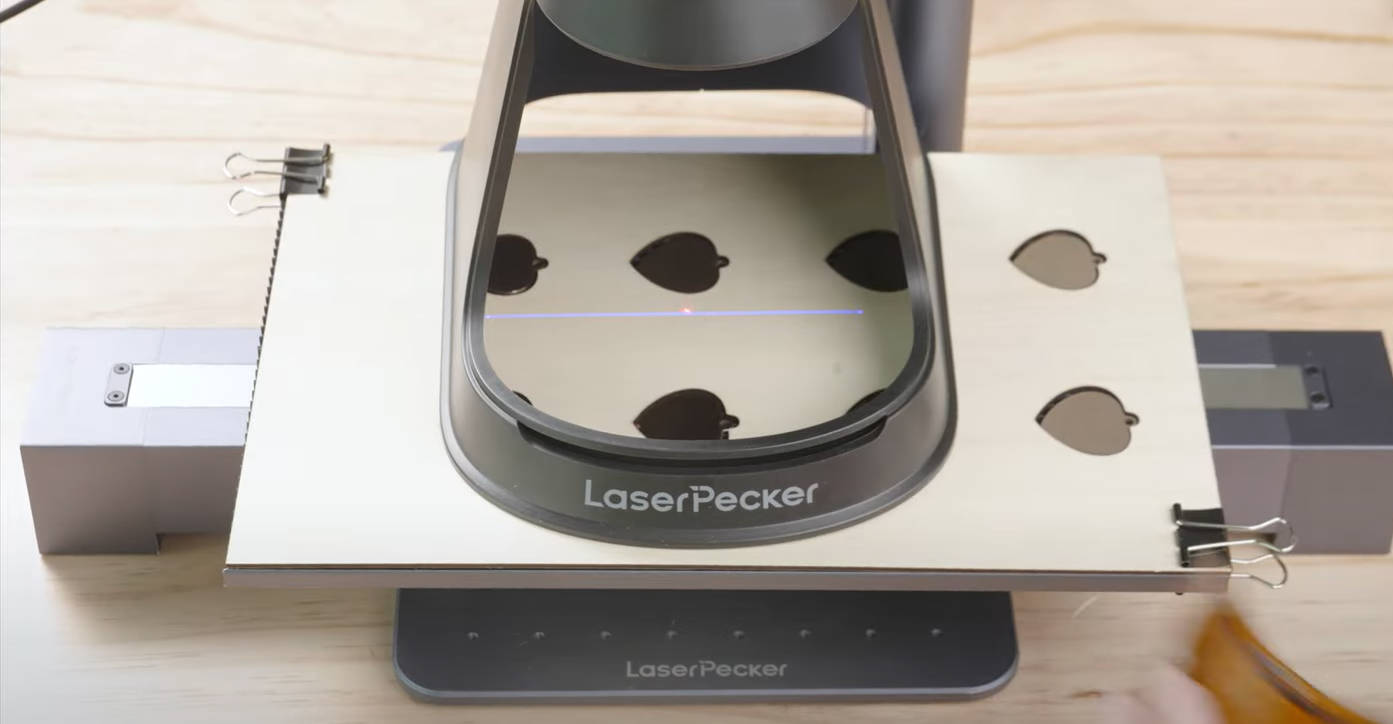

Set engraving parameters and start engraving to see the final results.

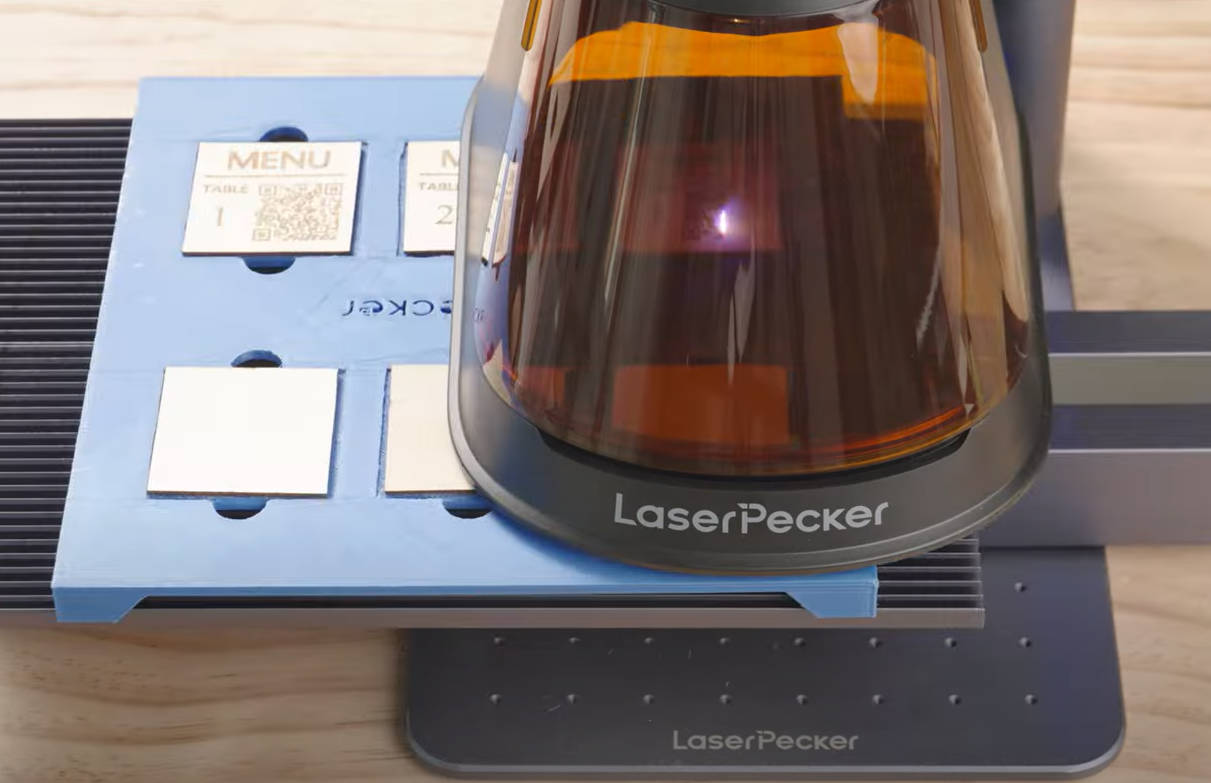

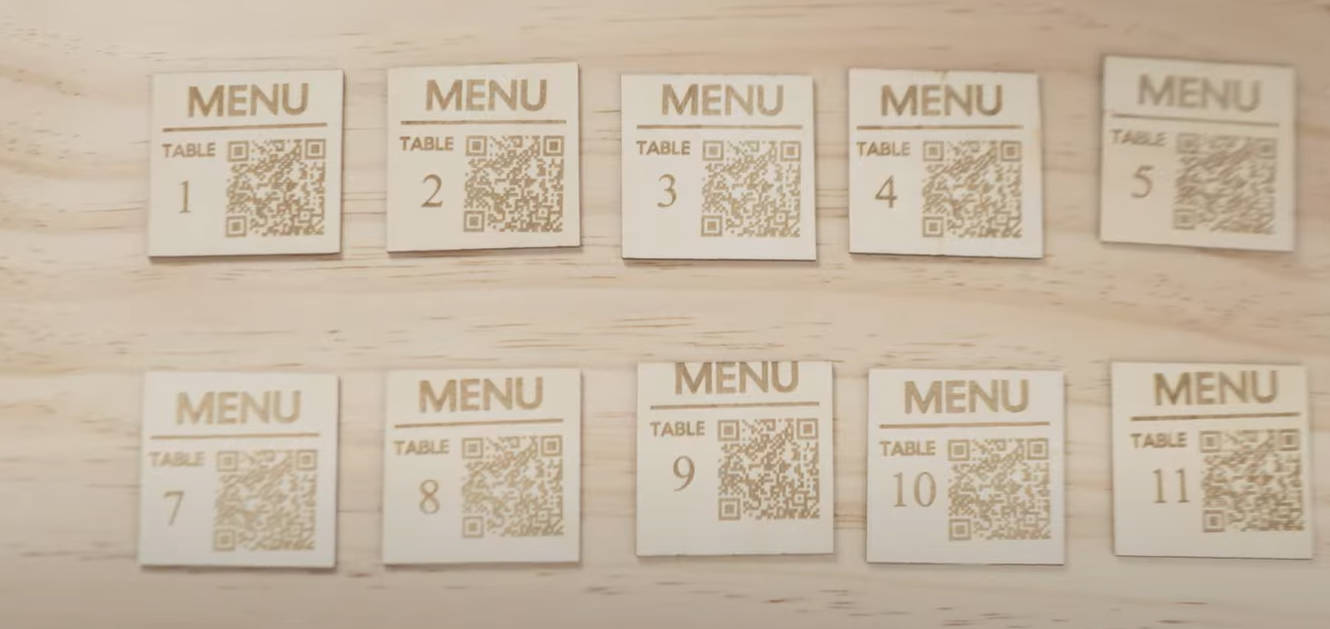

Tip 1: Variable Text Batch Engraving with Slide Extension
With Slide Extension, the batch engraving of the variable text can become easier. For more details, please refer to the YouTube video!

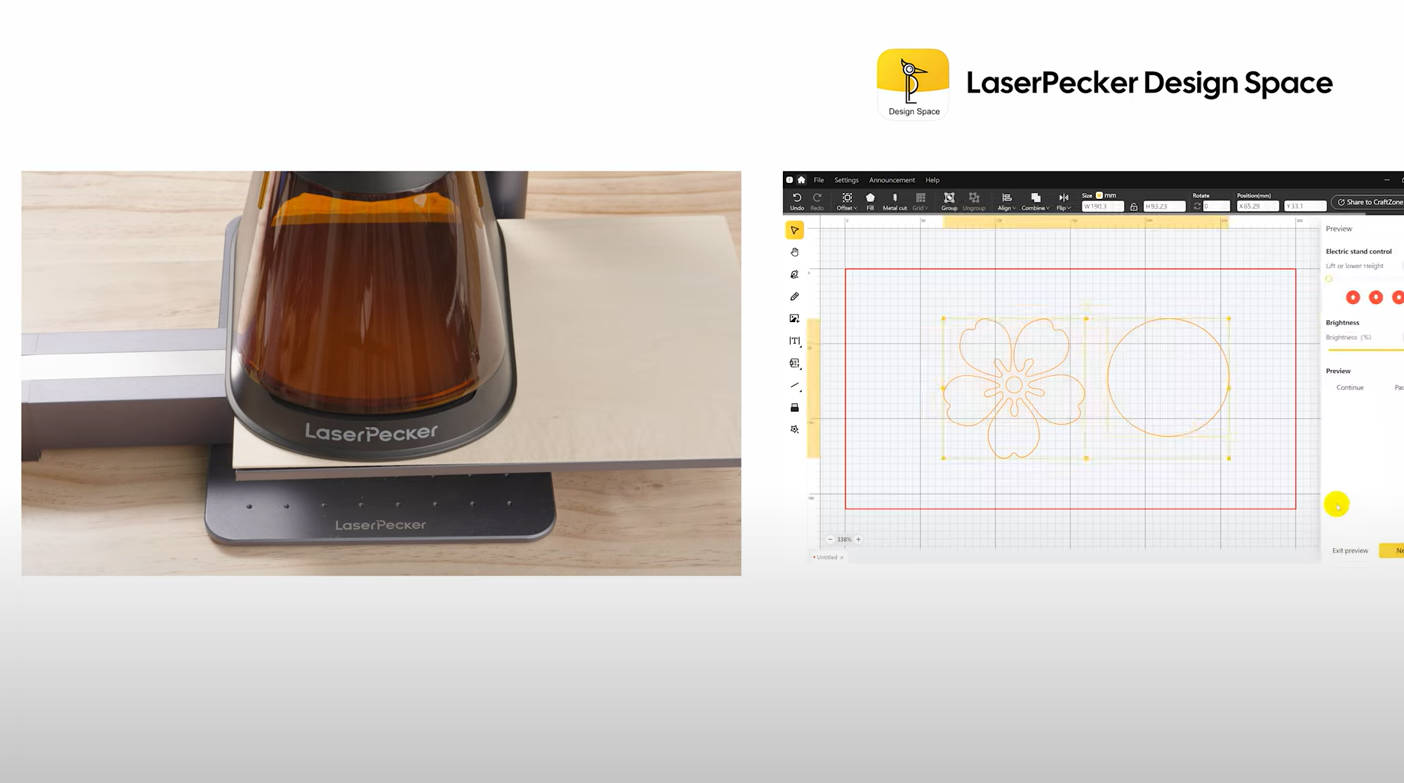

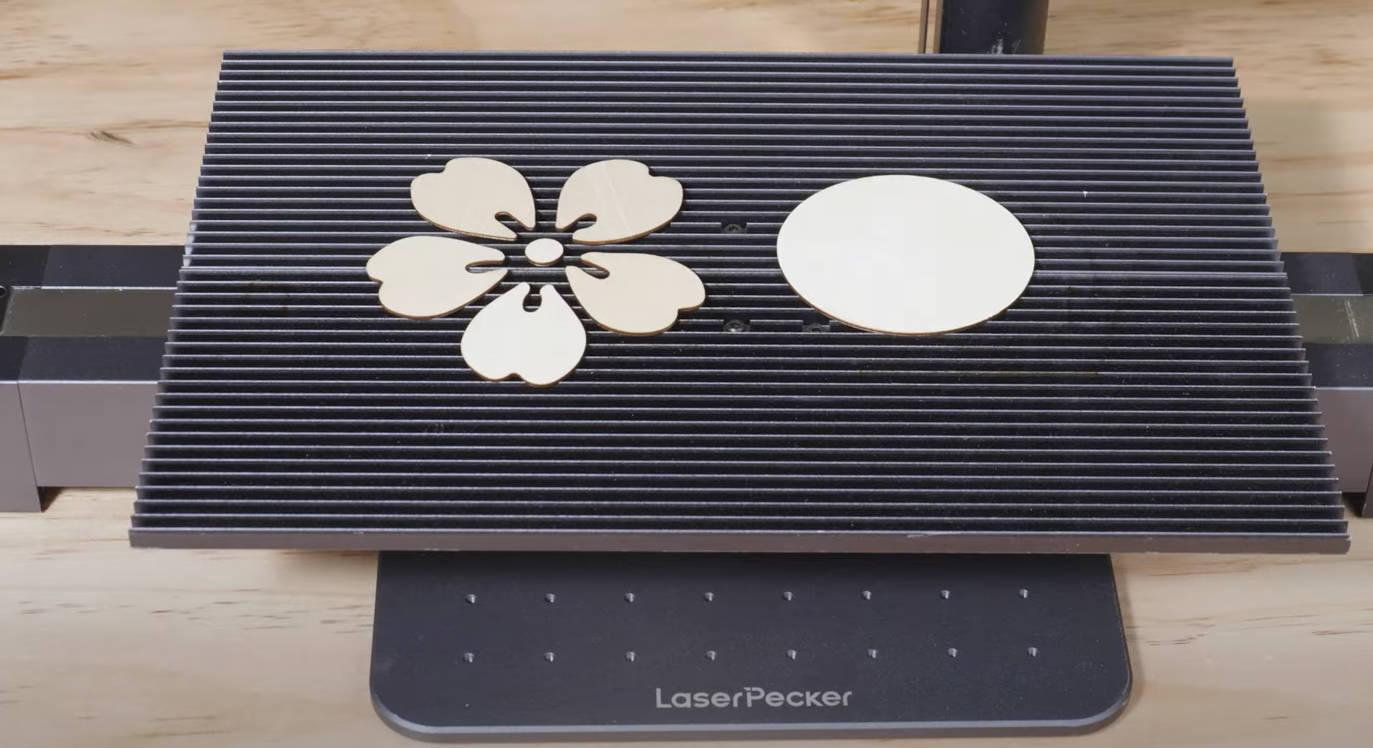

Tip 2: Batch Cutting with Slide Extension
With Slide Extension, the batch cutting of the patterns becomes easier. For more details, please refer to the YouTube video!
