In this article, we'll introduce the indicators and buttons on the LaserPecker Safety Enclosure and explain their functions.
#1 Safety Enclosure Indicator
Blinking Blue: Successfully powered on
Solid Blue: Connected to the laser unit
Blinking red, blue: Firmware updating
If the Safety Enclosure indicator is off, it may be due to:
1. The Safety Enclosure is not powered on;
2. The emergency stop button is activated.
#2 Camera Indicator
Slow blinking white: Camera not connected to the network
Solid White: Camera is connected to the network
Fast blinking white: Camera malfunction

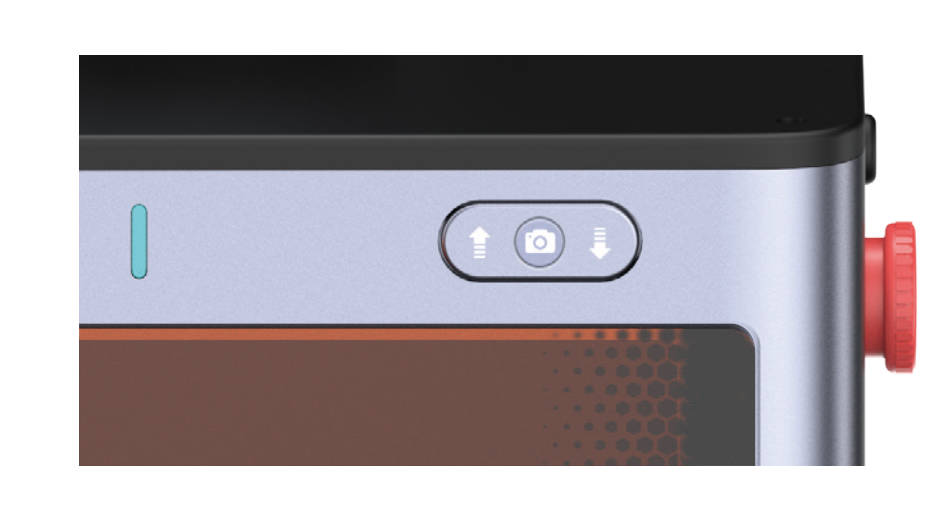

#3 Safety Enclosure Buttons
Up & Down Button
Up Button: A single press raises the base plate by 0.5mm; long press 2 secs for continuous raising.
Down Button: A single press lowers the base plate by 0.5mm; Long press 2 secs for continuous lowering.
Camera Button
Long press for 3 secs to reconfigure the network; double press to restart the camera.

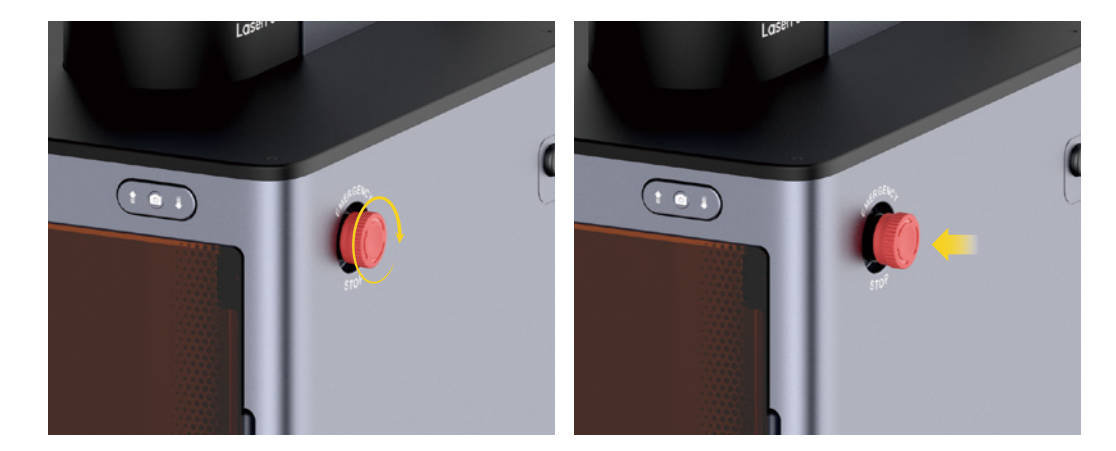

Emergency Stop Button
If errors or machine faults occur during material processing, press the emergency stop button to disconnect and stop the processing. Turn the scram button to reset.
