LP4 - No Laser during Preview or Engraving

  • Updated

If there is no laser for your LaserPecker 4 (LP4) during Preview or Engraving. Follow the instructions below before contacting the LaserPecker Support Team. Always follow standard safety protocols when testing even when no laser beam is apparent.

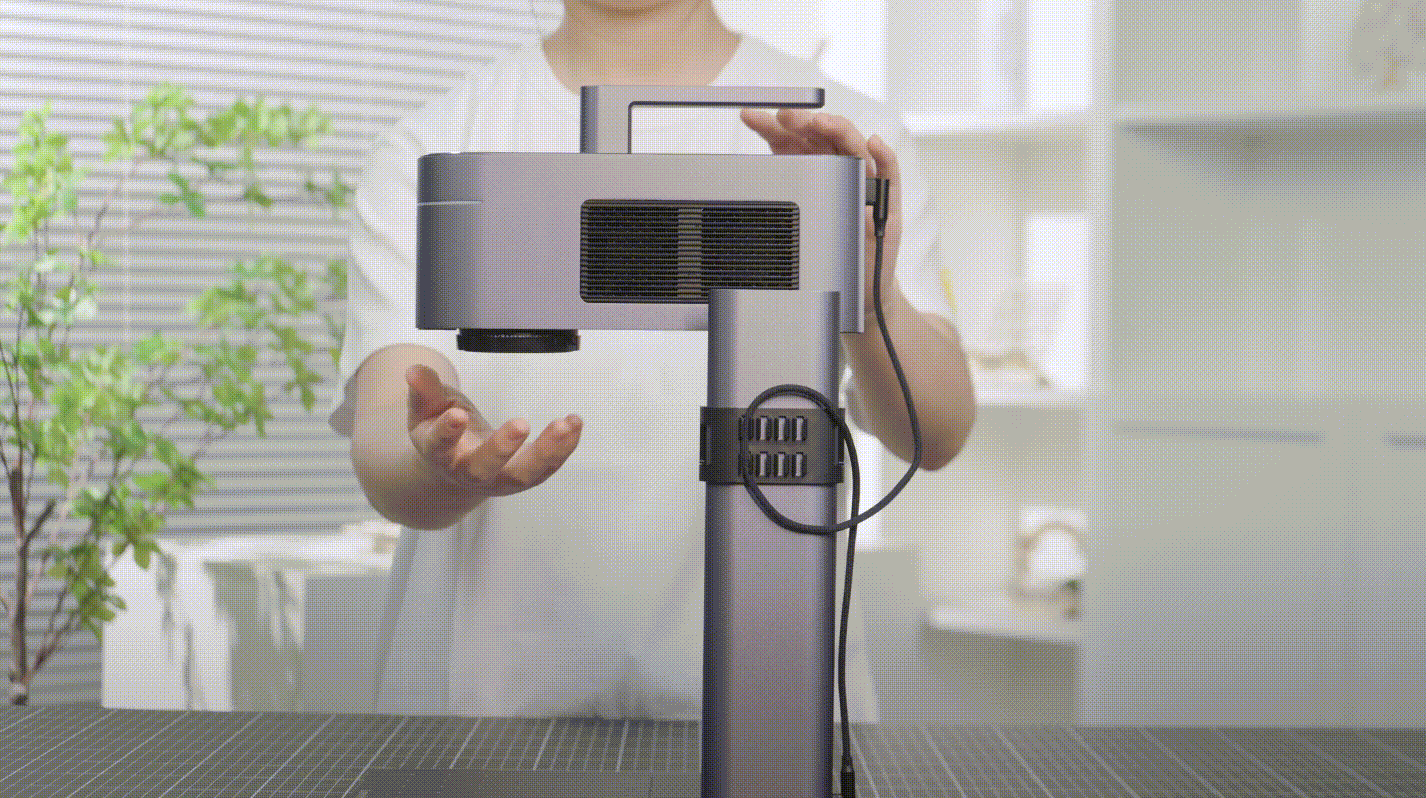

1. Check the Lens

A plastic cover is used to protect the lens while in transit. Make sure to remove it before attempting to use your LP4.

check the plastic cover

check the plastic cover

2. Check the Focal Distance

Improper focus may result in insufficient energy for engraving. Although the LP4's standard focal distance is 150 mm, the optimal focal distance for each unit's lens may vary slightly. To achieve optional engraving results, it is reccomended that you test your LP4 to find the exact focal distance. Set the focal distance to 150 mm and adjust the height +/- to precisely dial in the distance for your machine.

Click here for more information about LP4 Laser focusing

3. Check the Laser Source

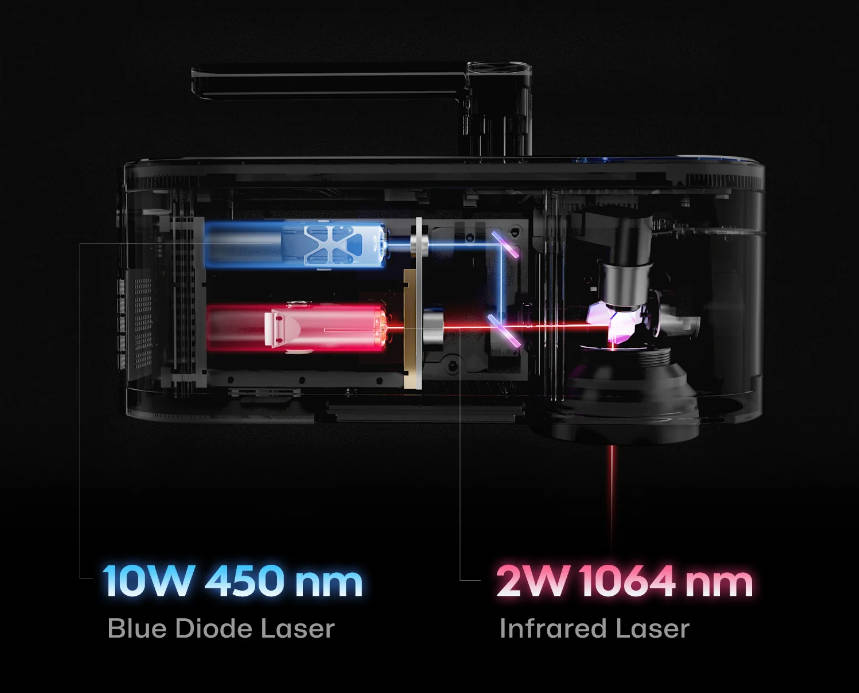

The LP4 is equipped with a 450nm Blue Diode and a 1064nm Infrared laser. Select the appropriate laser for the material that you are working with by sliding left or right on the unit's built in screen and from the LDS App and LDS Software settings menu. Make sure the type of laser selected is the same.

check laser source

450nm Blue Diode Laser:

After switching to "Preview" mode during normal operation, a straight blue beam should be emitted onto the working surface. If there is no visible laser output after checking steps 1 and 2 above, please contact the LaserPecker Technical Support Team - support@laserpecker.com.

1064nm Infrareds Laser:

The beam is invisible during engraving and suitable for engraving metals and plastics. Please make sure the material to be engraved is applicable. If engraving still doesn't work even on applicable materials, consider increasing engraving parameters before retrying.

Additional Information:

The 450nm Blue Diode Laser is for organic materials including wood, paper, bamboo, food, genuine leather, etc., but it will not affect metals or plastics.

Click here to jump to the relevant 450nm Blue Diode Laser information in the tutorial video.

The 1064nm Infrared Laser is for various metals and plastics, but it will not affect organic materials as listed above.

Click here to jump to the relevant 1064nm Infrared Laser information in the tutorial video.

After-Sales Technical Support

If your problem persists after following the above steps, please contact the LaserPecker Technical Support team via support@laserpecker.com for further assistance.
