What kind of users is LX1 for?
Laserpecker LX1 is an extraordinarily portable cantilever laser engraver that meets the majority needs of DIY users. It allows users to focus on their works on various materials, which is the ideal choice for geeks, DIY enthusiasts, experienced laser engraving lovers, small business owners, designers, and artists.
Software Compatibility
The official software LaserPecker Design Space is recommended, while the third-party software Lightburn is compatible with LX1 as well.
LaserPecker download:
https://www.laserpecker.net/pages/software
LightBurn download:
https://lightburnsoftware.com/pages/trial-version-try-before-you-buy
What's special about LX1?
LX1 is capable of engraving and cutting on a large area. It supports different laser modules to expand its engraving and cutting capabilities and adapt to wider creation scenarios.
Know more about LX1
https://www.youtube.com/watch?v=xqdlJr7j66Q
LX1 Specifications
|
LX1 |
Laser Module |
LX1-10W (Blue Laser) |
LX1-20W (Blue Laser) |
LX1-2W1064 (Fiber laser) |
Artist Module |
|
Laser System
|
Laser Power |
10W |
20W |
2W |
/ |
|
Laser Spot |
0.08*0.08mm |
0.08*0.08mm |
0.03*0.03mm |
0.3-5mm |
|
|
Focal Length |
40mm |
40mm |
40mm |
/ |
|
|
Wavelength |
450nm |
450nm |
1064nm |
/ |
|
|
Module Weight |
548g |
618g |
702g |
436g |
|
|
Processing Speed |
200mm/s |
||||
|
Motherboard |
Voltage Input |
DC (24V 5A) AC (100-240V 50-60HZ) |
|||
|
Machine Power |
≤120W |
||||
|
Software
|
Computer OS |
iOS 9.0 +, Android 7.0 +, MacOS 10+, Windows 10+ |
|||
|
Control Software |
APP: Laserpecker Design Space PC: Laserpecker Design Space, LightBurn latest version |
||||
|
Image Format |
APP: JPG, PNG, G-code, SVG PC: G-code, JPG, PNG, BMP, SVG, DXF |
||||
|
Working Dimension |
Working Area |
400*420mm |
400*400mm |
||
|
Max. Workpiece Height |
0~120mm |
||||
|
Connection |
Standard |
Bluetooth5.0, USB |
|||
|
Weight |
Product Weight |
5kg |
|||
|
Size |
Product Size (L * W * H) |
LX1 Machine Unfolding: 578*558*196mm (22.7*21.9*7.7 inch) LX1 Machine Folding: 578*94.8*196mm (22.7*3.7*7.7 inch) |
|||
Machine comparison
Want to know the differences between LX1 and other machines? Check out the machine comparison page below to find all the detailed information you need~
https://www.laserpecker.net/pages/machine-comparison
Accessories Introduction
LX1 works well with a specialized engraving plate, protective cover, versatile electric roller, and rotary extension.
Engraving Plate
The engraving plate can be used to put engraving materials, and accelerate the air circulation during engraving or cutting for better results. It is convenient for users to locate and process the dimensions while protecting your worktable.

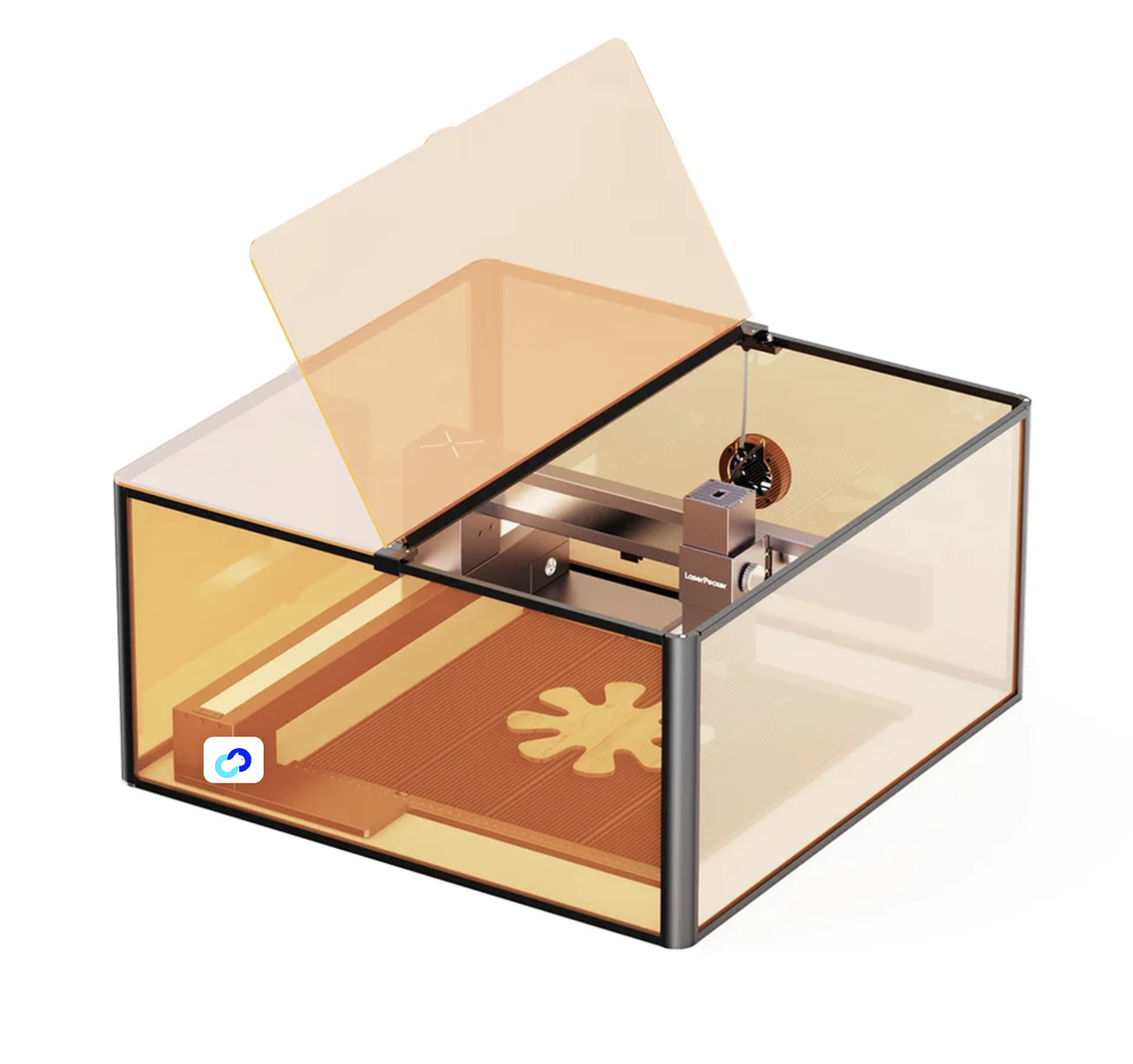

Protective Cover
-
Working environment protection: As the laser engraver produces smoke during operation, it is necessary to use a protective cover to contain the smoke and ensure air ventilation for a safe and pleasant working environment.
-
Eye protection: Laser cutting generates glare, which can cause injury to your eyes when looked at directly.
-
It is affordable, easy to assemble and maintain, portable and safe.
|
Product |
Laserpecker LX1 Protective Cover |
|
Compatibility |
can be used with an air purifier |
|
Fan Size |
D=80mm |
|
Size |
647*632*395mm |
|
Weight |
6.45kg |
|
Material |
Acrylic & Aluminum Alloy |
|
Filtered Wavelength
|
(450nm/1064nm standard on instructions) Filterable wavelength: 190nm-550nm, 800nm-1100nm 355nm ultraviolet light, 450nm blue light, 532nm green light, and 1064nm red light |
|
Optical Density |
99.99% |
|
Certification |
FCC, IC, CE, RHOS, PSE, UKCA, CP65 |
|
Implementing Standards |
GB4943.1-2011
|
Versatile Electric Roller
Users can engrave regular cylindrical objects, or expand the engraving range with the versatile electric roller.
Rotary Extension
The rotary extension supports multiple engraving modes for different curved objects. LX1 can then engrave on circular, sphere, and cylindrical objects, or perform vertical and tilted engraving with the rotary extension.
|
Product |
Rotary Extension |
|
Size |
308*108*99mm |
|
Weight |
1.7kg |
|
Compatibility |
L4/LX1/LX1 MAX |
|
Chuck diameter range |
52mm-80mm |
|
Engraving maximum diameter |
200mm |
|
Engraving diameter range (Single -step Jaw) |
66mm-145mm |
|
Engraving diameter range (Double-step Jaw) |
0mm-128mm |
|
Engraving diameter range (Stud Component) |
13mm- 78mm |
|
Software |
APP: Laserpecker Design Space PC: Laserpecker Design Space |
|
Precise control |
0.014° |
|
Preview speed |
/ |
|
Idling movement speed |
140.625 degrees per second |
|
Fastest engraving speed |
V = 360/200/128/0.00012 = 117.1875 degrees per second |
|
Slowest engraving speed |
V = 360/200/128/0.00125 = 11.25 degrees per second |
More Information
Learn more details on the product page:
https://www.laserpecker.net/collections/lx-accessories
On what materials can LX1 work?
See below:
|
Module |
Cutting materials |
Engraving materials |
|
10w 450nm |
paper/8mm-thick wood/leather/MDF/felt/some 8mm-thick dark and opaque acrylic
|
acquired metal/anodized metal/304 stainless steel/bamboo/leather/food/paper/fabric/photosensitive stamp/plastic/acrylic/tinted glass/glazed ceramics, etc. |
|
20w 450nm |
paper/10mm-thick wood/leather/MDF/felt/some 15mm-thick dark and opaque acrylic
|
lacquered metal/anodized metal/304 stainless steel/bamboo/leather/food/paper/fabric/photosensitive stamp/plastic/acrylic/tinted glass/glazed ceramics, etc. |
|
2w 1064nm |
/ |
metal/plastic/leather and any material with paint coating |
|
Artist |
/ |
/ |
Machine Maintenance
Lubricate the machine when it gets laggy.

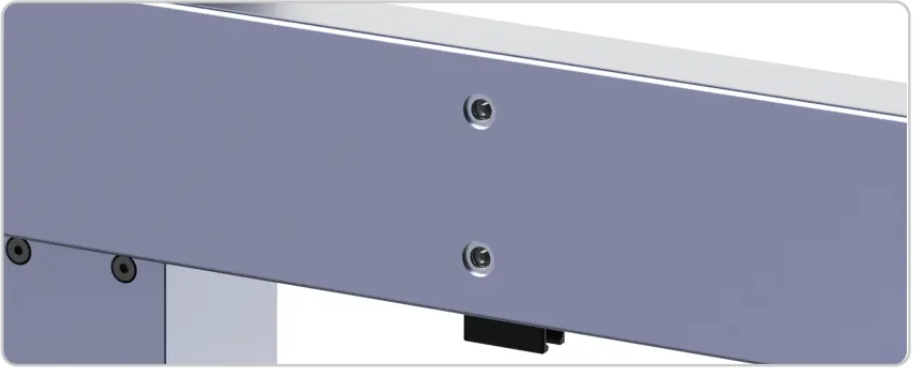

The grease fittings are on the back of the X-axis and the bottom of the Y-axis. Move the laser head to the grease fitting, and add two to three drops of lubricant (refill once every 3 months is recommended).
Contact Us
Send an email to support@laserpecker.com for assistance.
