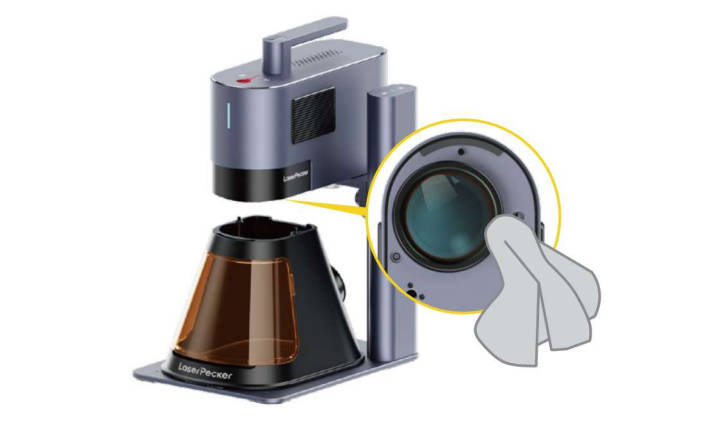

Field Lens Maintenance
If laser power attenuation occurs, for example, engraved patterns are shallow or uneven, the Field Lens may get dirty. Clean it with a lint-free cloth moistened with alcohol.

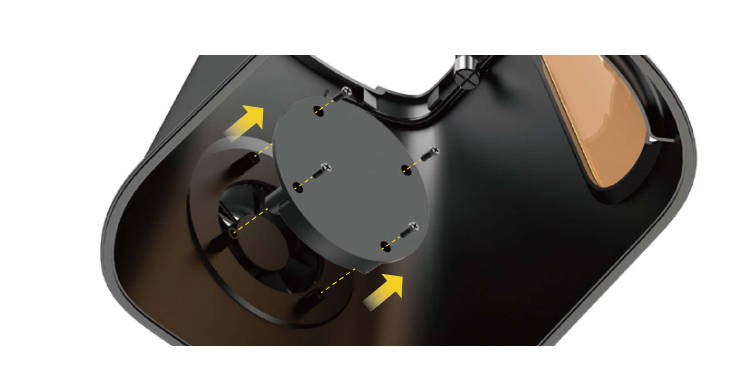

Conical Protective Cover Exhaust Fan Cleaning
If smoke runs out of the protective cover, the exhaust fan and smoke outlet may be blocked due to dust. Unscrew the fan from the cover using a screwdriver and clean them to ensure proper smoke exhaust.

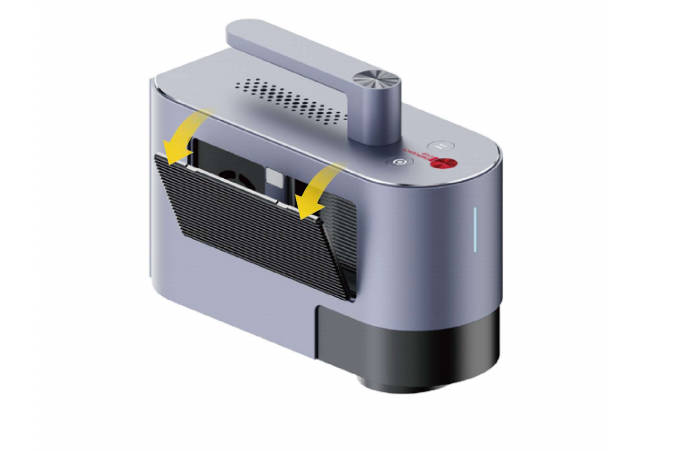

Dust Filter Cleaning
Remove the cover on the left side of the Laser Unit to clean the dust filter if there is dust buildup.
*The filter on the right side of the Laser unit is an air intake filter and cannot be removed

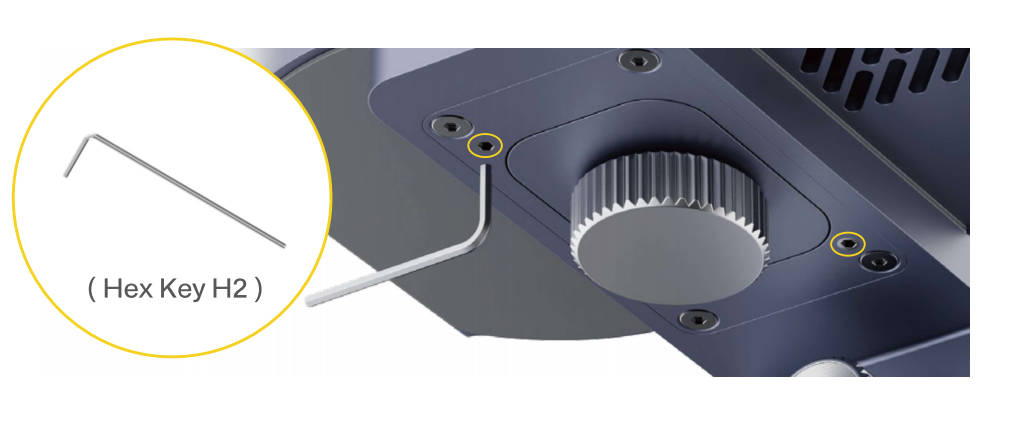

Laser Unit Leveling
It is recommended to level the Laser Unit before use. If it is not level, the Laser Unit can be adjusted to a level state by using the H2 hex key to adjust the two leveling screws on the cantilever arm.
