This guide provides step-by-step instructions on using the Rotary Extension with your LaserPecker LP5.
#1. Introduction to the Rotary Extension
Package Contents:

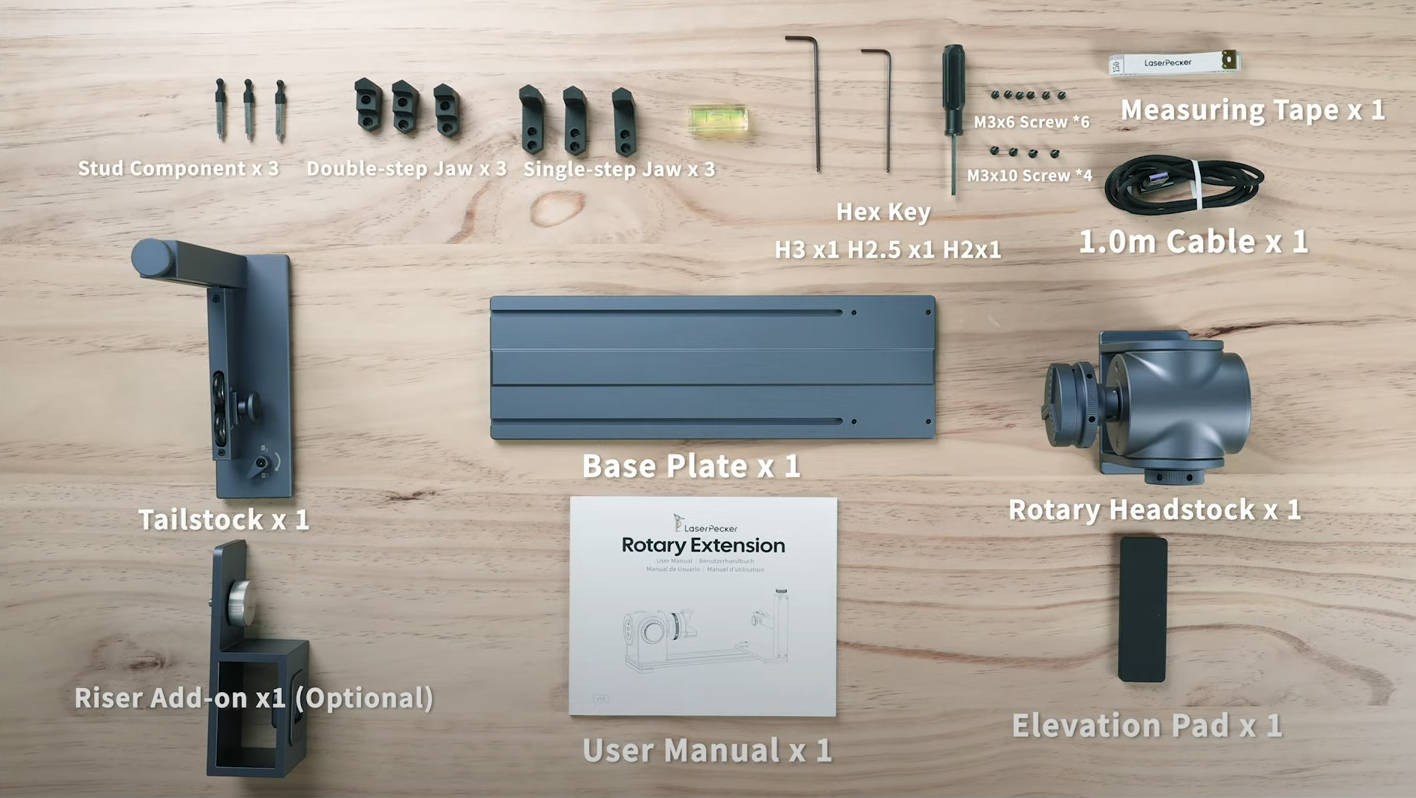

Check all parts in the Rotary Extension package. If anything is missing, contact our after-sales support via a ticket form.
Assembly
For detailed assembly steps, refer to the Rotary Extension User Manual or watch our YouTube tutorial.

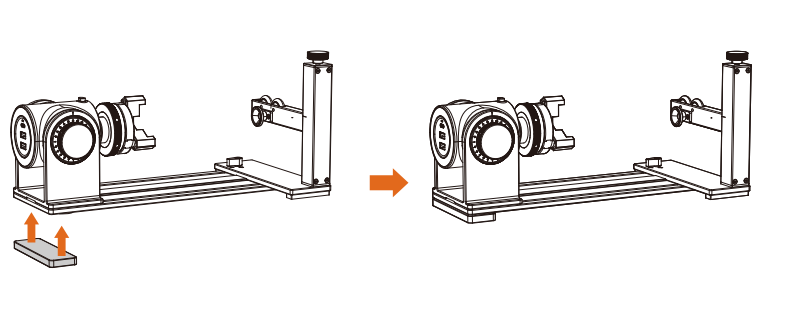

(The final result after assembly)
Ports, Buttons & Knob

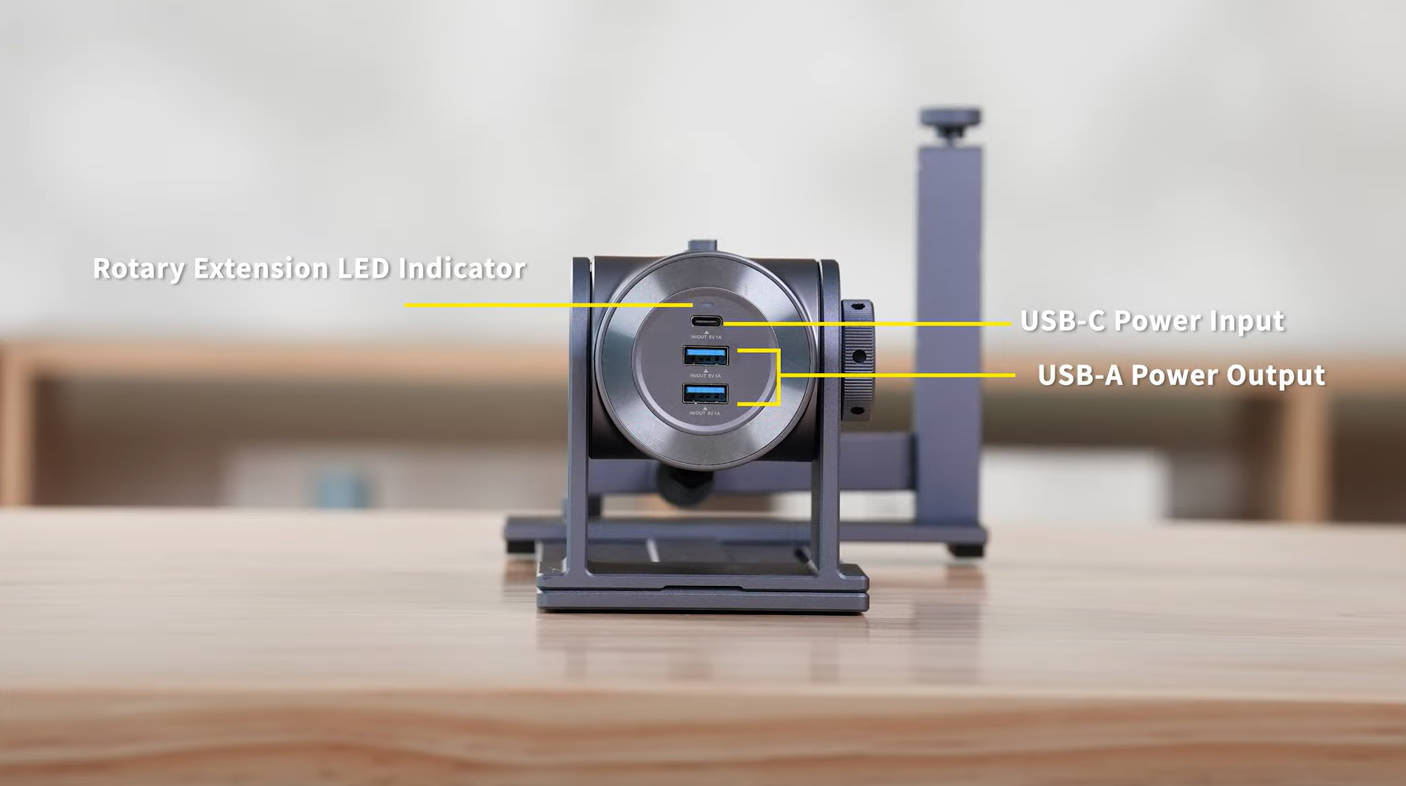

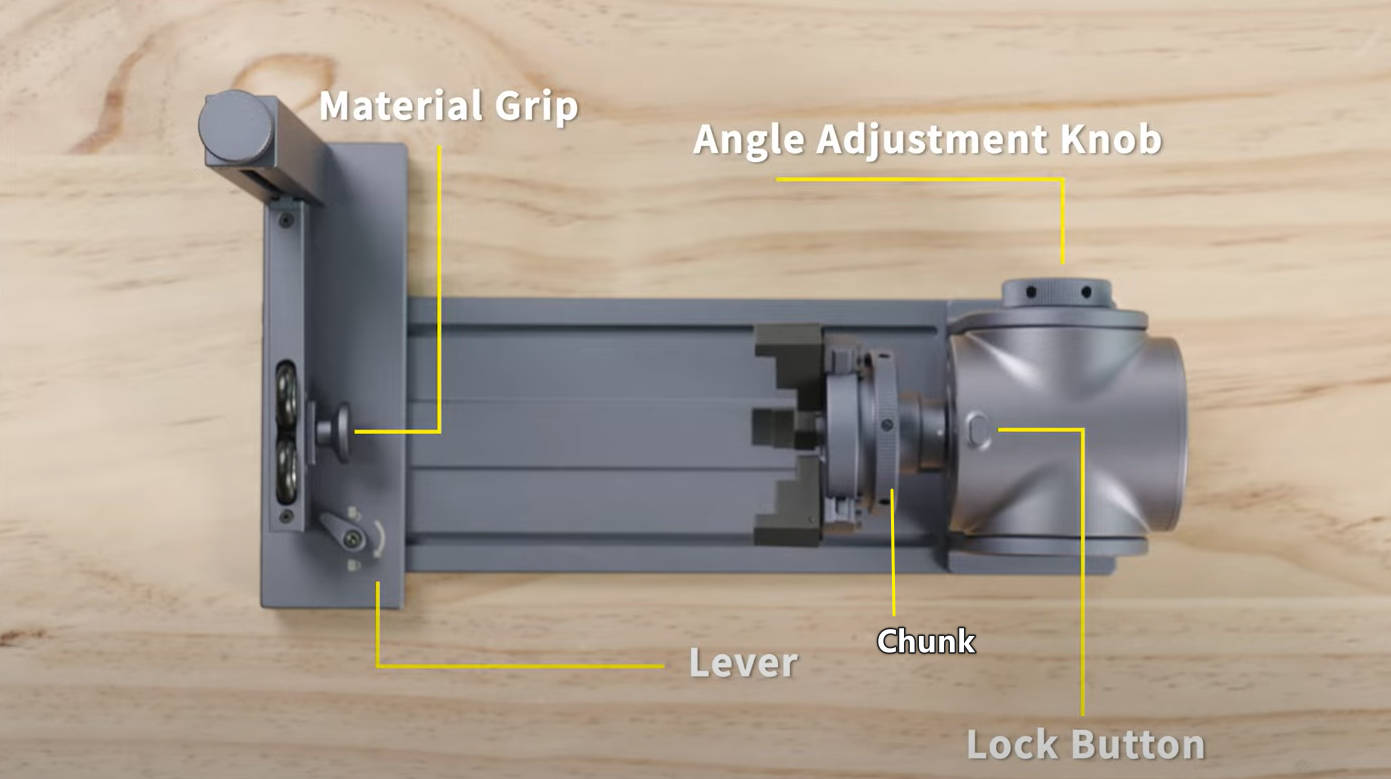

Here are all the ports, buttons, or knobs you need to use with the Rotary Extension.
Placement

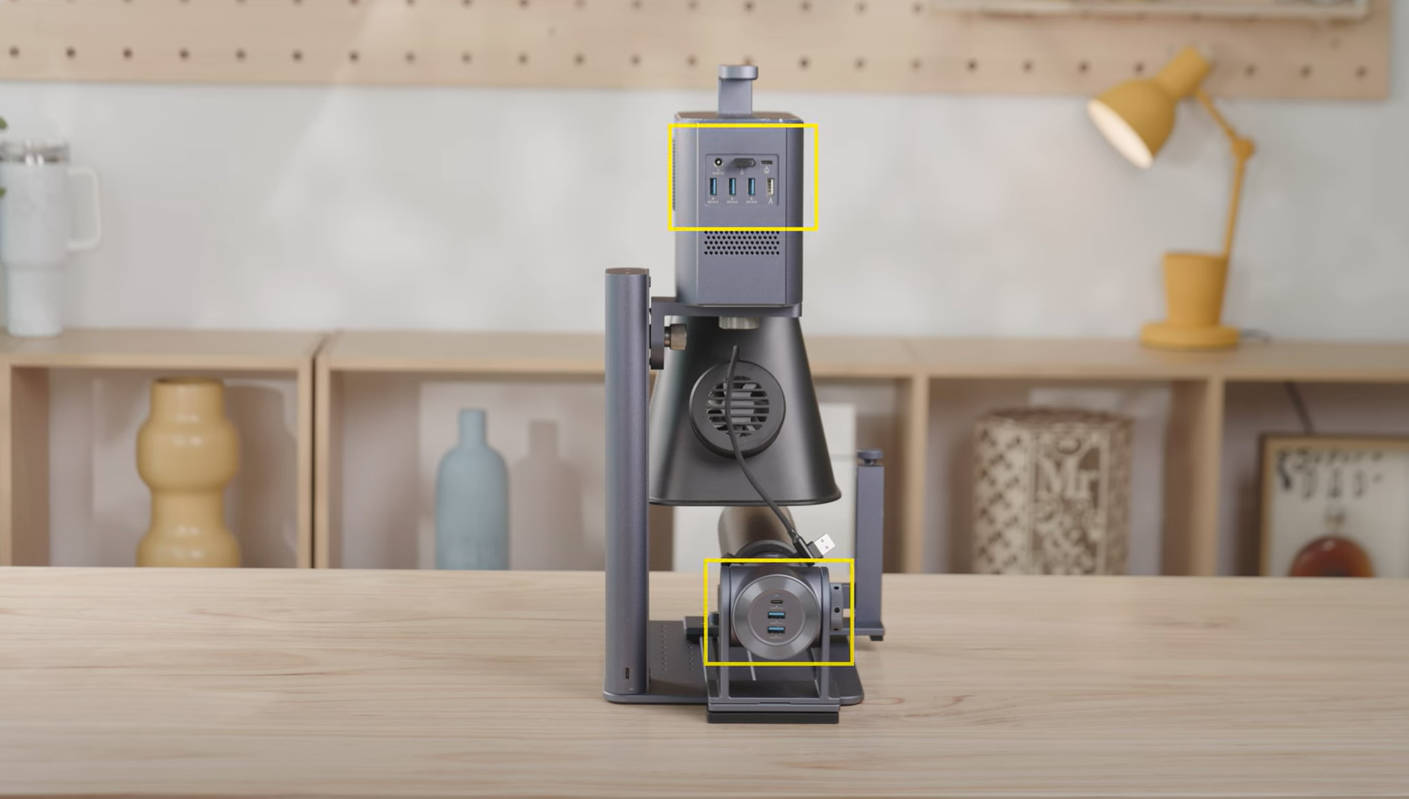

Ensure the Rotary Extension and LP5 are correctly positioned and connected.
Cable Connection

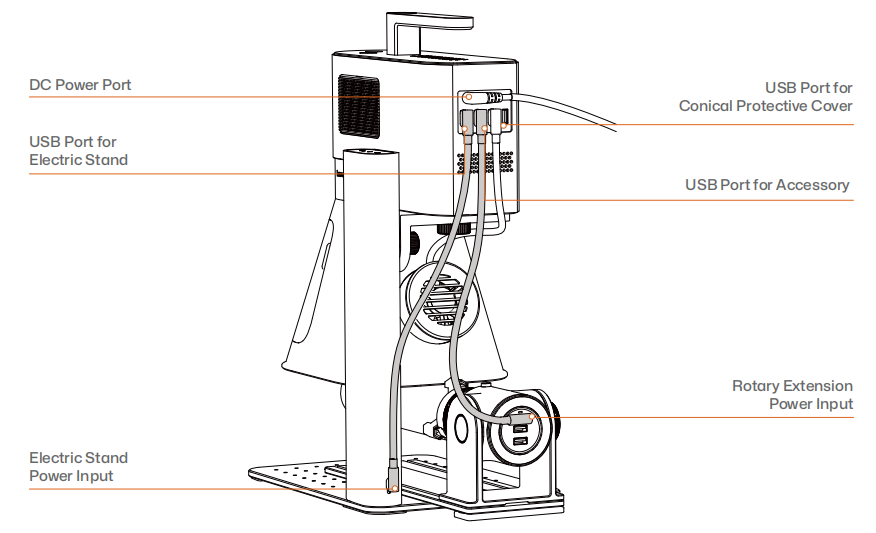

Use the provided cable to properly connect the Rotary Extension to the LP5.
#2 Start Your First Engraving with LP5 & Rotary Extension
In this section, we will help you start your first engraving with LP5 & Rotary Extension step-by-step.
Step 1: Import Your Design
Prepare your design and import it into the LaserPecker Design Space (LDS).
Step 2: Turn on the Rotary Extension

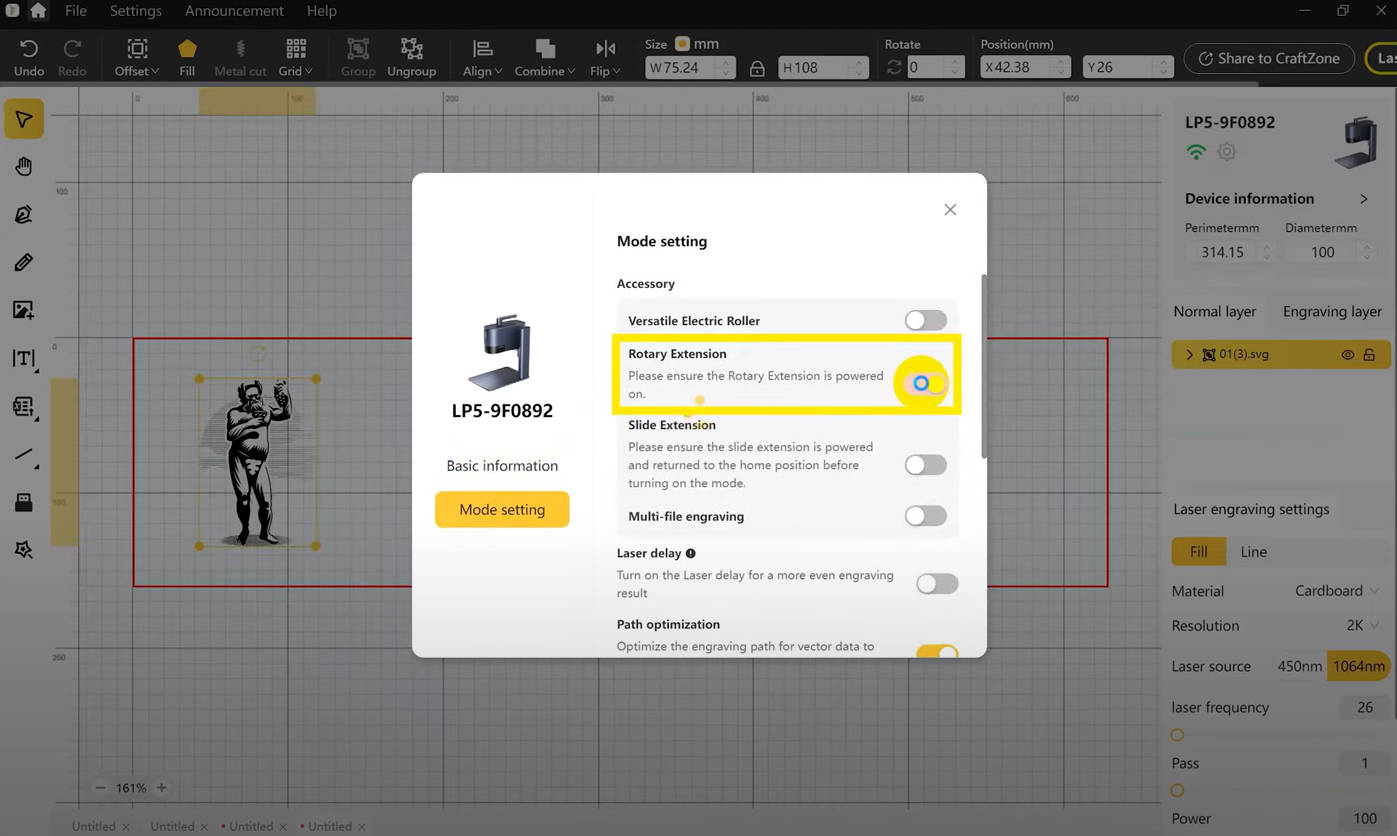

Go to the “Mode Setting” interface and toggle on the “Rotary Extension”
Connect the Rotary Extension to the power supply first, then open LDS and enable the toggle. Otherwise, it won't function properly.

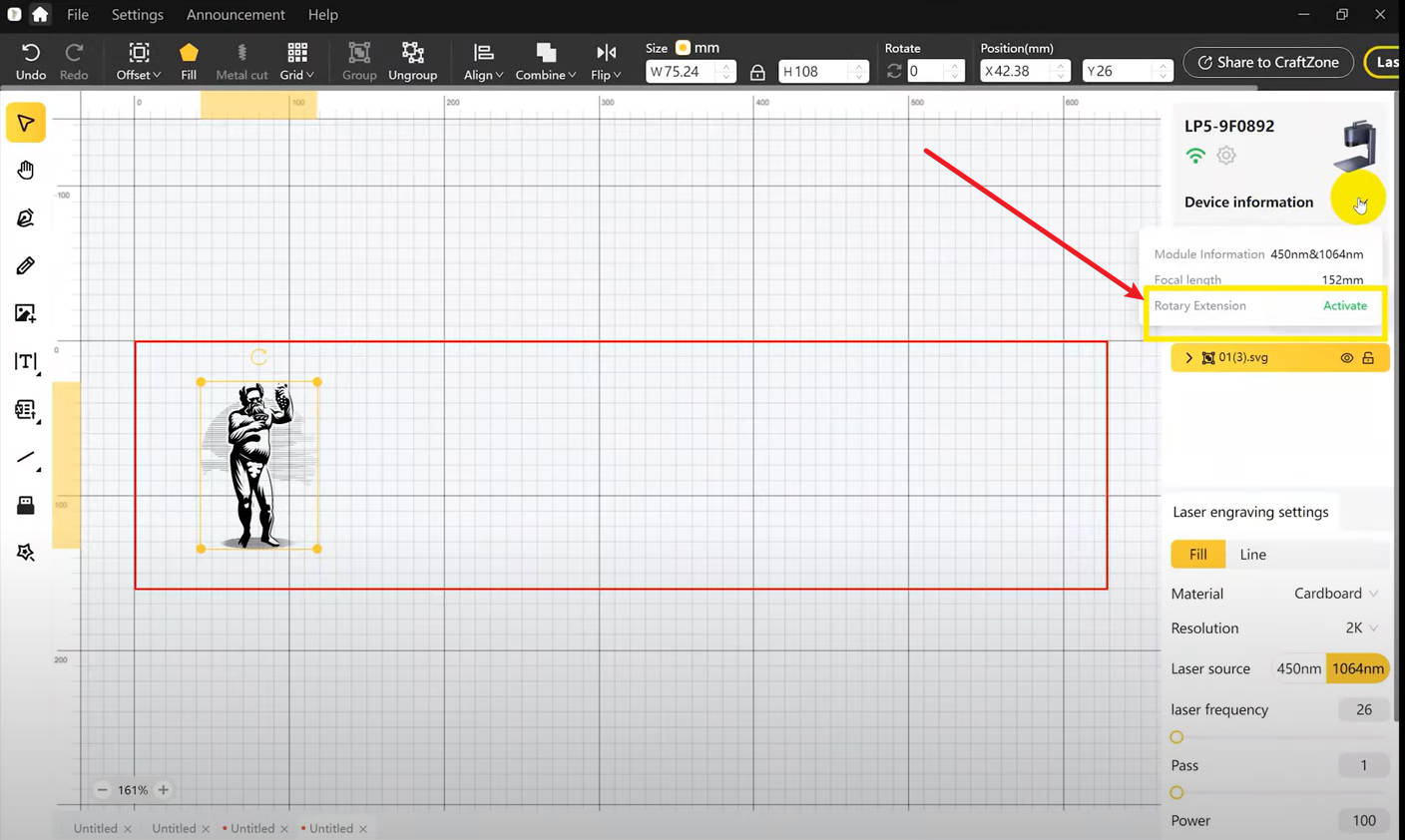

Check “Device Information” in LDS to confirm the activation
Step 3: Measure and Enter the Diameter

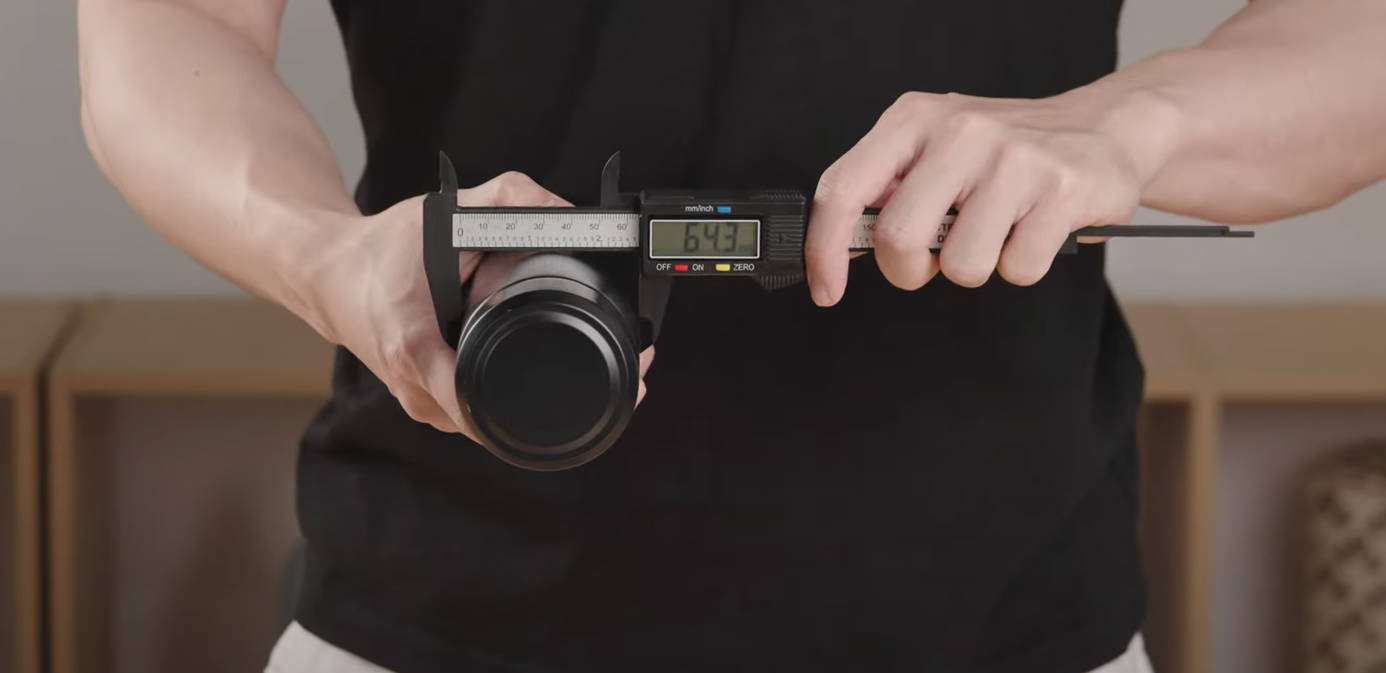

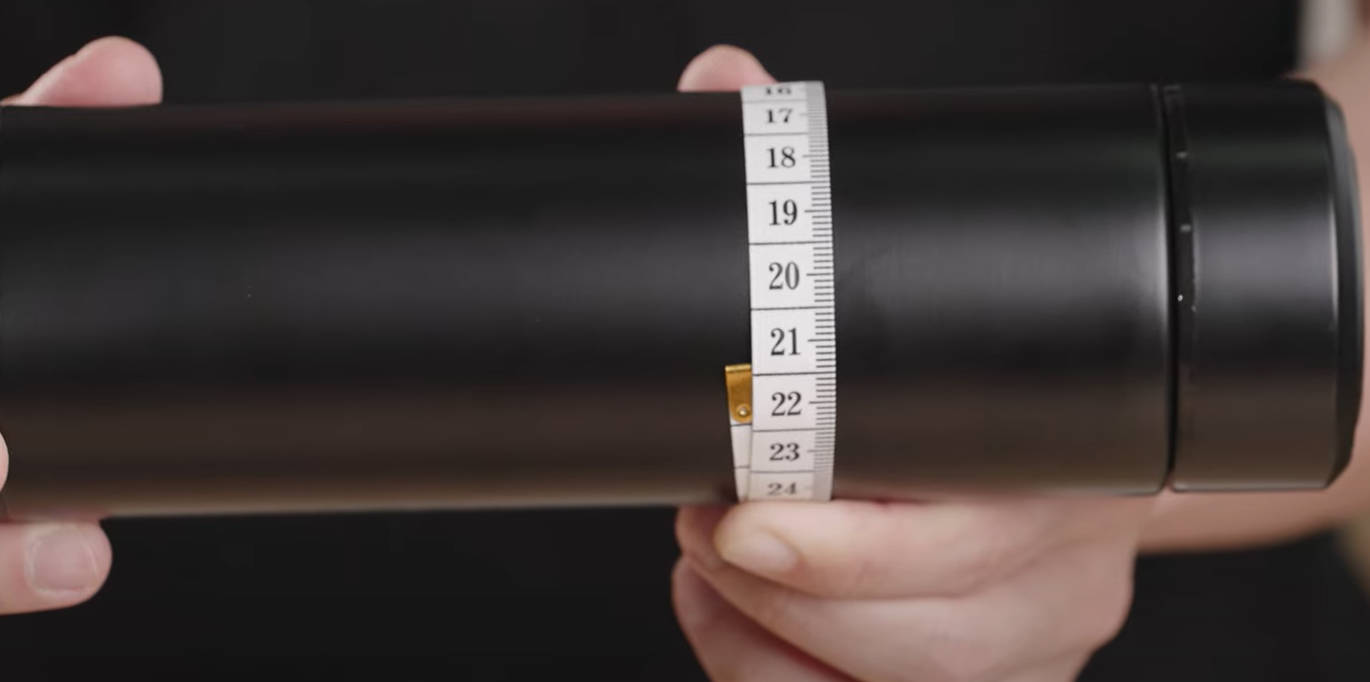

Measure the diameter of the object using a vernier caliper or measuring tape.

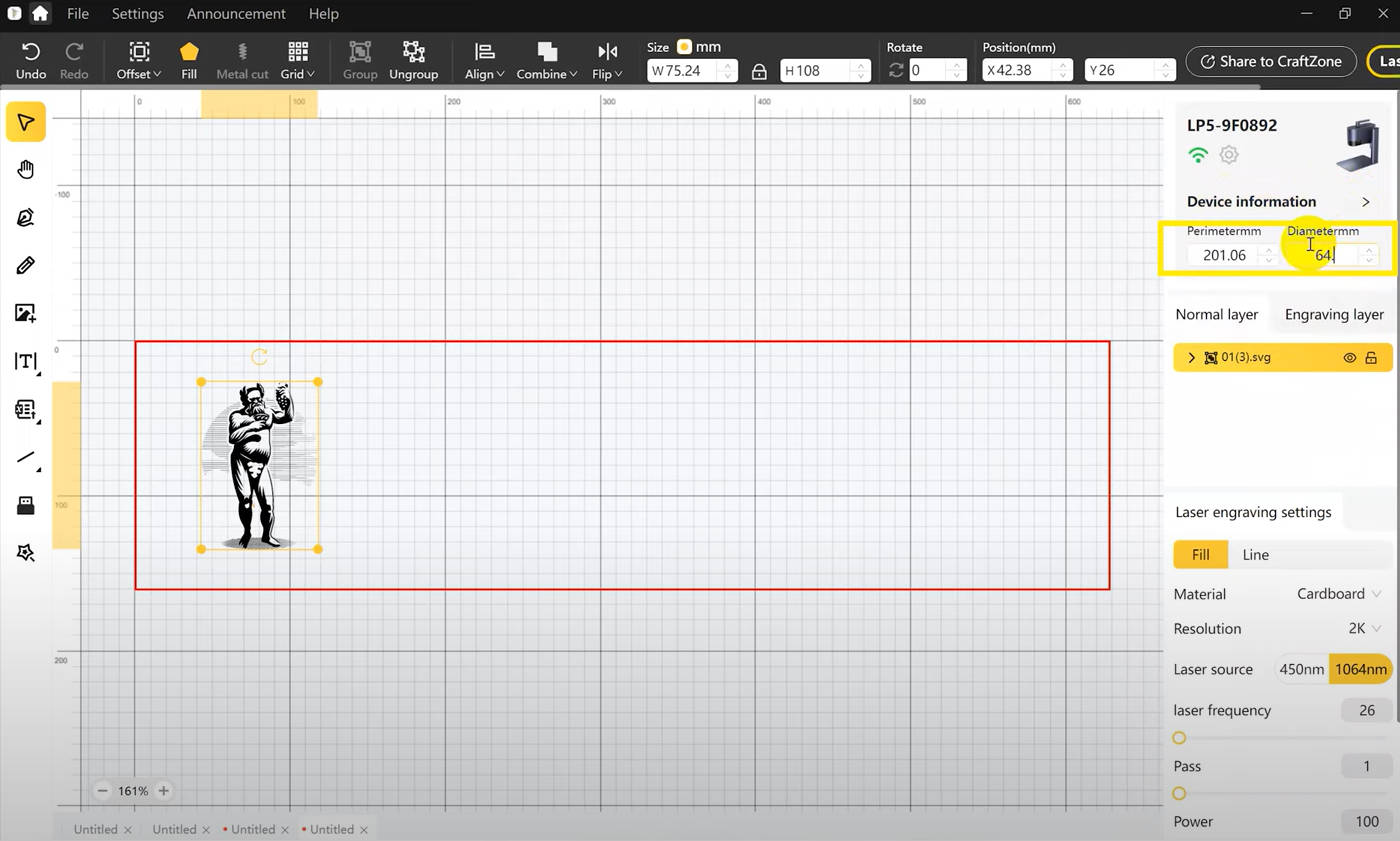

Then, enter the diameter in the Rotary Extension settings.
Step 4: Design adjustment

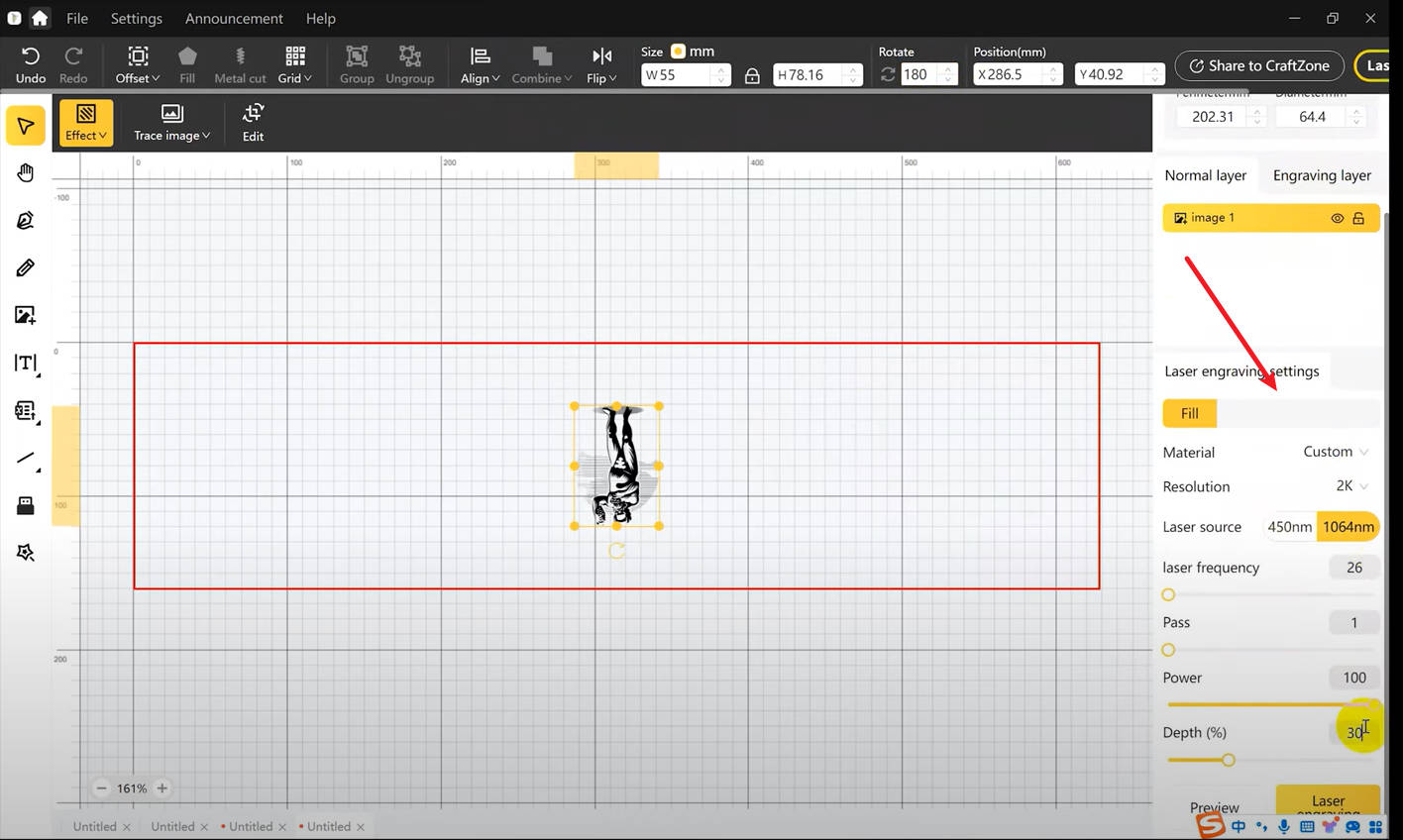

In this step, adjust the position and orientation of your design to align with the object. Refer to the image below for guidance.
Step 5: Preview
Click “Continue” to rotate the Rotary Extension and preview the engraving area.
Step 6: Final Result
Set engraving parameters and start engraving to see the final results.
Tip: Reverse Engraving
For objects with handles, use reverse engraving for better results.
