This guide provides step-by-step instructions on using the Slide Extension with your LaserPecker LP5.
#1. Introduction to the Slide Extension
Package list:
Check all parts in the Slide Extension package. If anything is missing, contact our after-sales support via a ticket form.

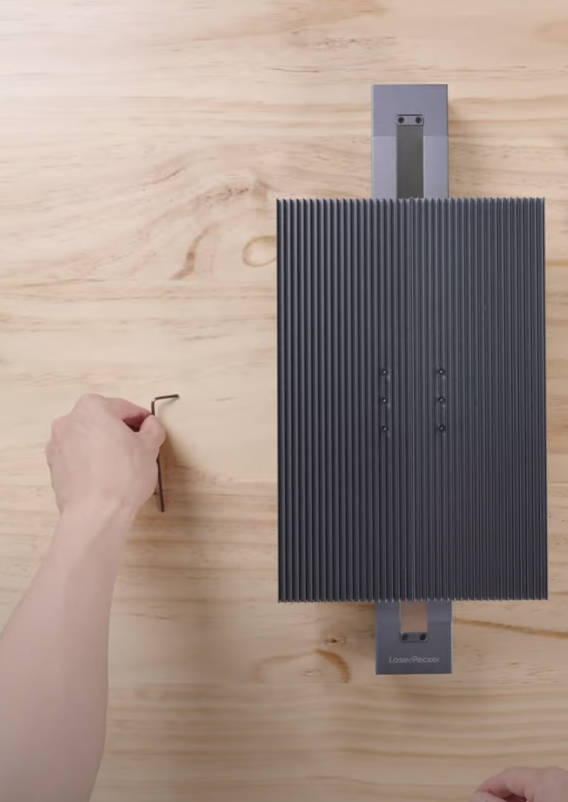

For detailed assembly steps, refer to the Slide Extension User Manual or watch our YouTube tutorial.
(The final result after assembly)
Ports:

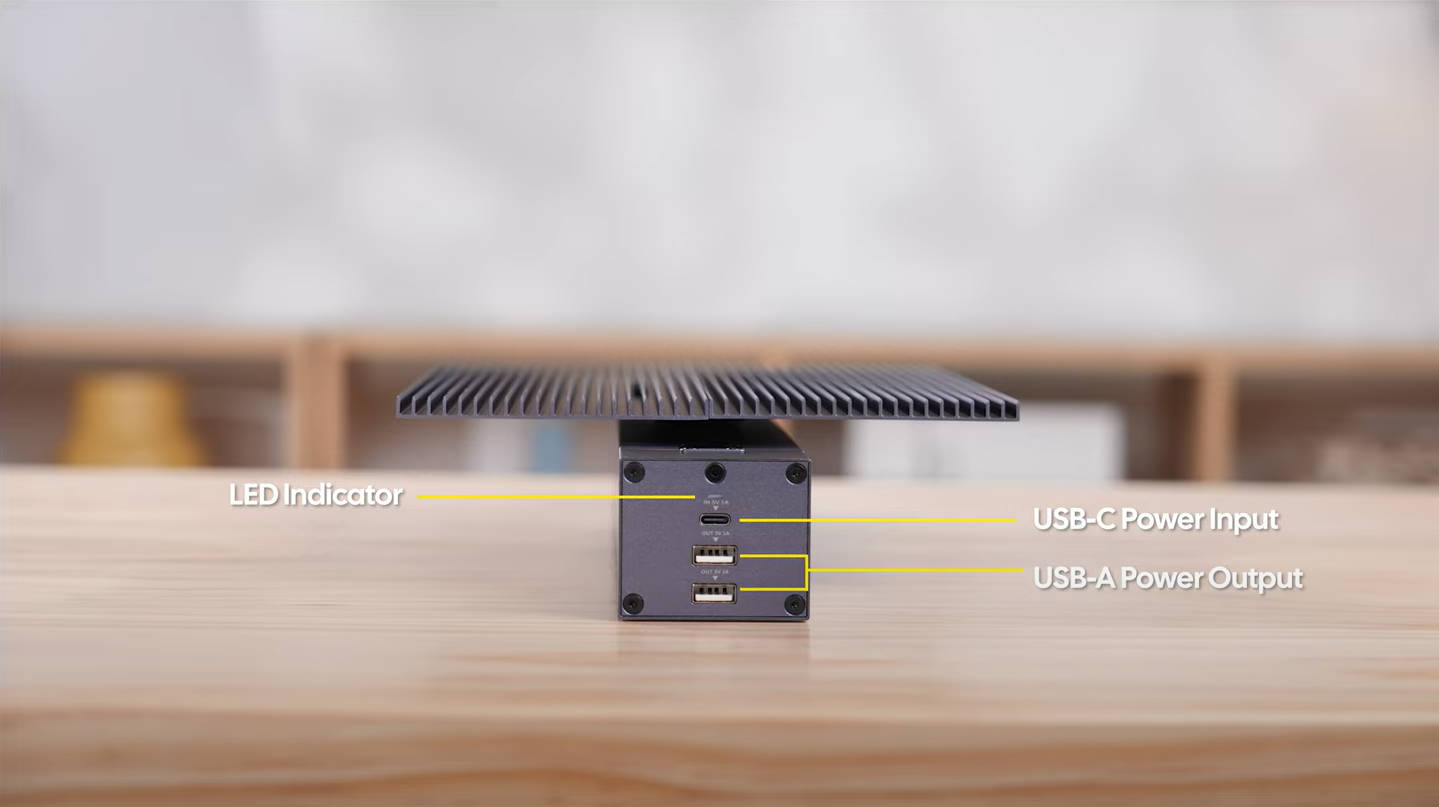

Here are all the ports you'll need to use with the Slide Extension.
Placement:

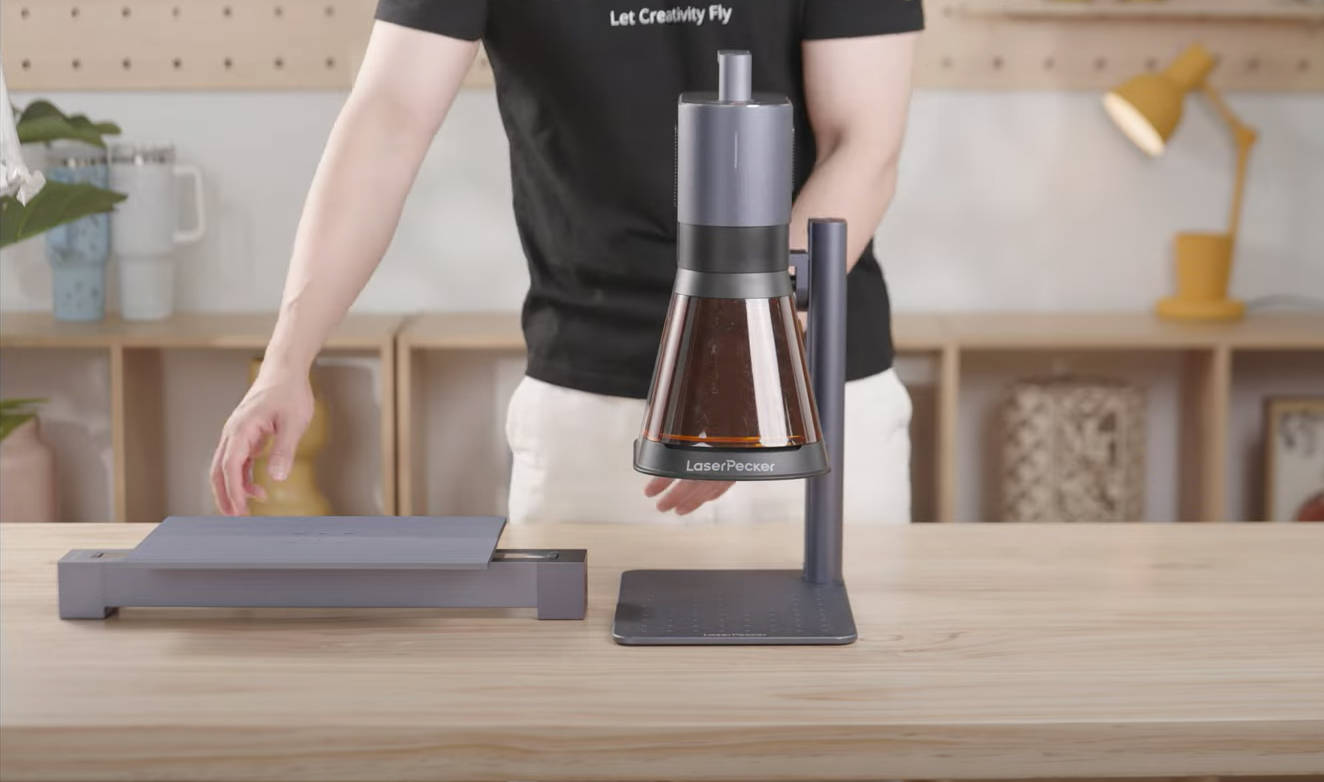

Ensure the Slide Extension and LP5 are correctly positioned and connected.

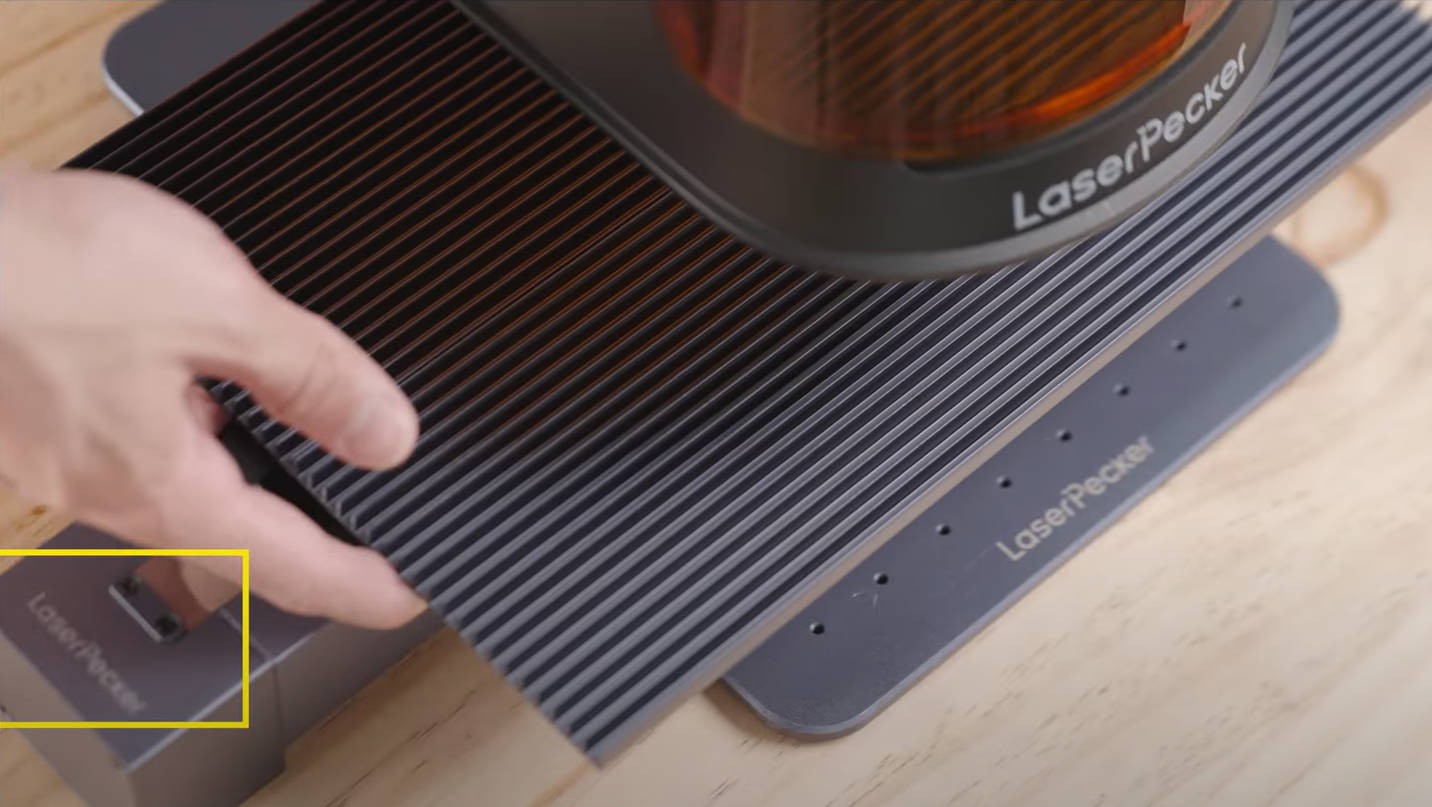

The side with the LaserPecker label should be placed on the left side

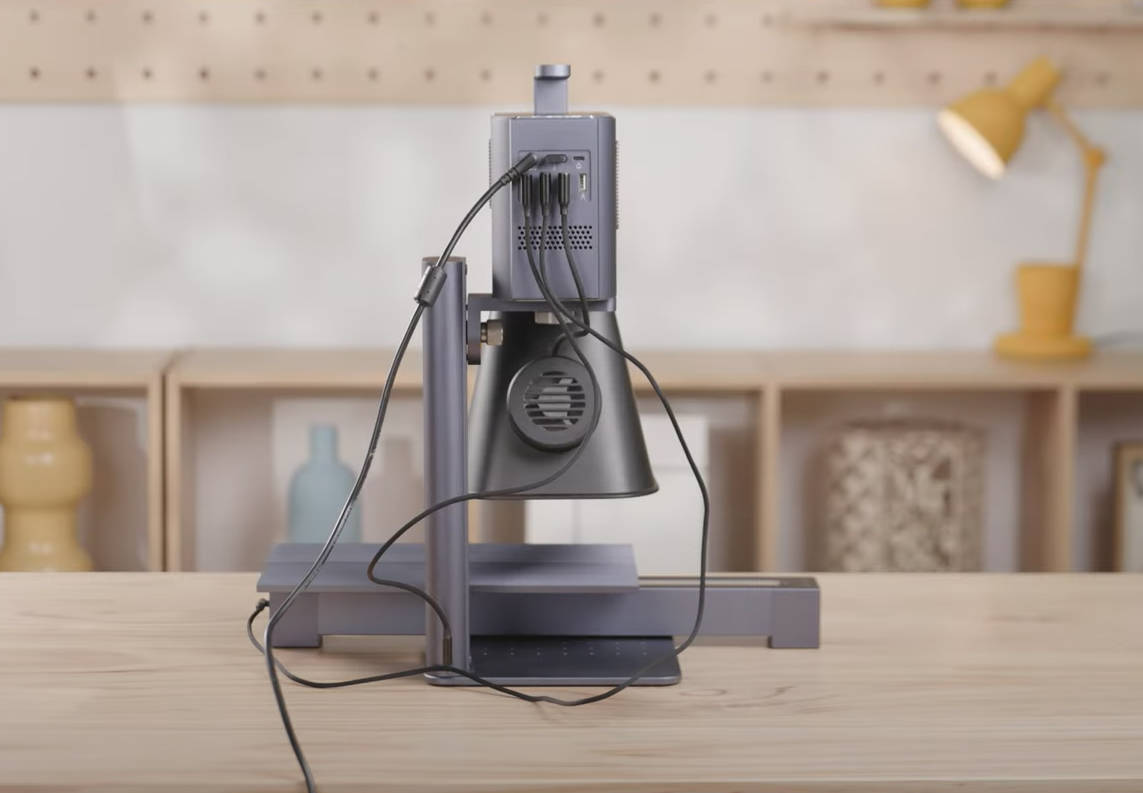

Cable Connection:
Use the provided cable to properly connect the Rotary Extension to the LP5.
#2 Start Your First Engraving with LP5 & Slide Extension
In this section, we will help you start your first engraving with LP5 & Slide Extension step-by-step.
Step 1: Import Your Design

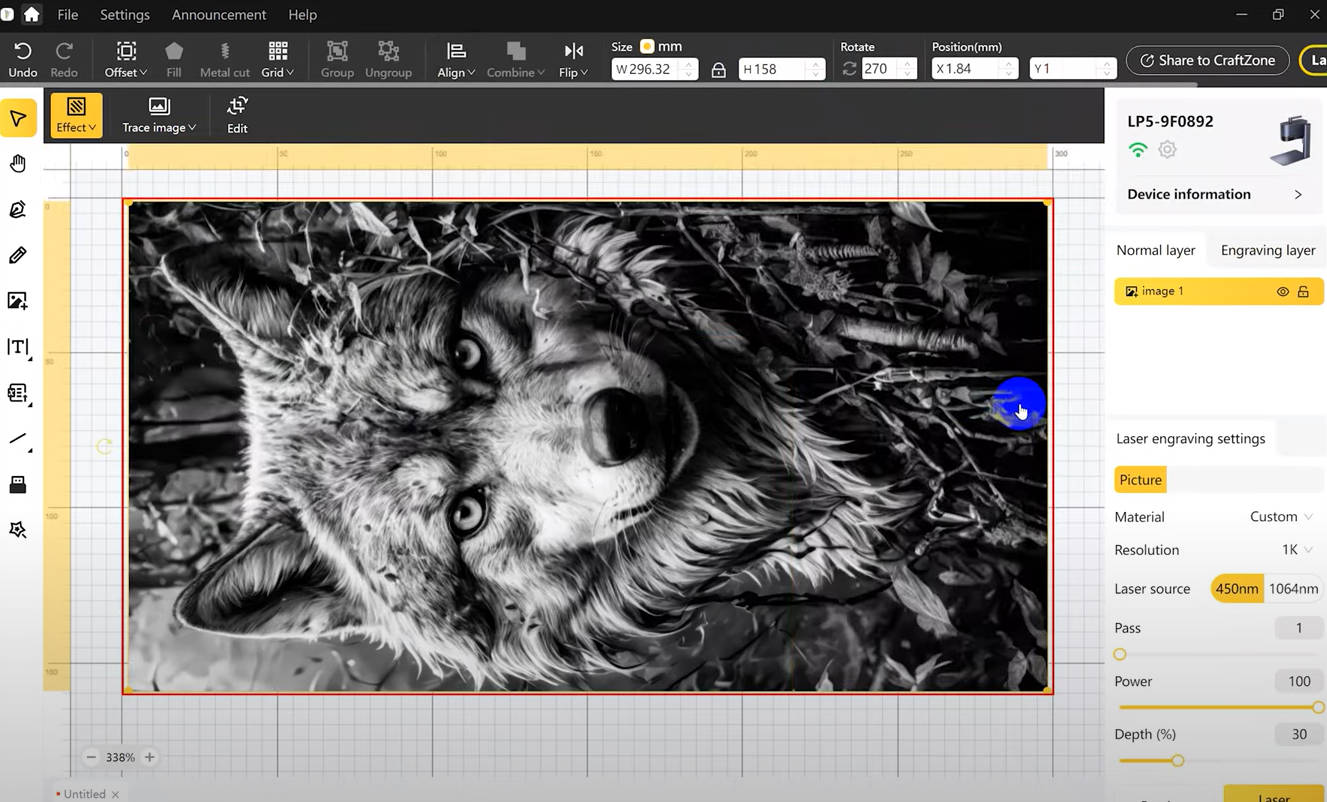

Prepare your design and import it into the LaserPecker Design Space (LDS).
Step 2: Turn on the Slide Extension
Go to the “Mode Setting” interface and toggle on the “Slide Extension”
Connect the Slide Extension to the power supply first, then open LDS and enable the toggle. Otherwise, it won't function properly.
Step 3: Design adjustment

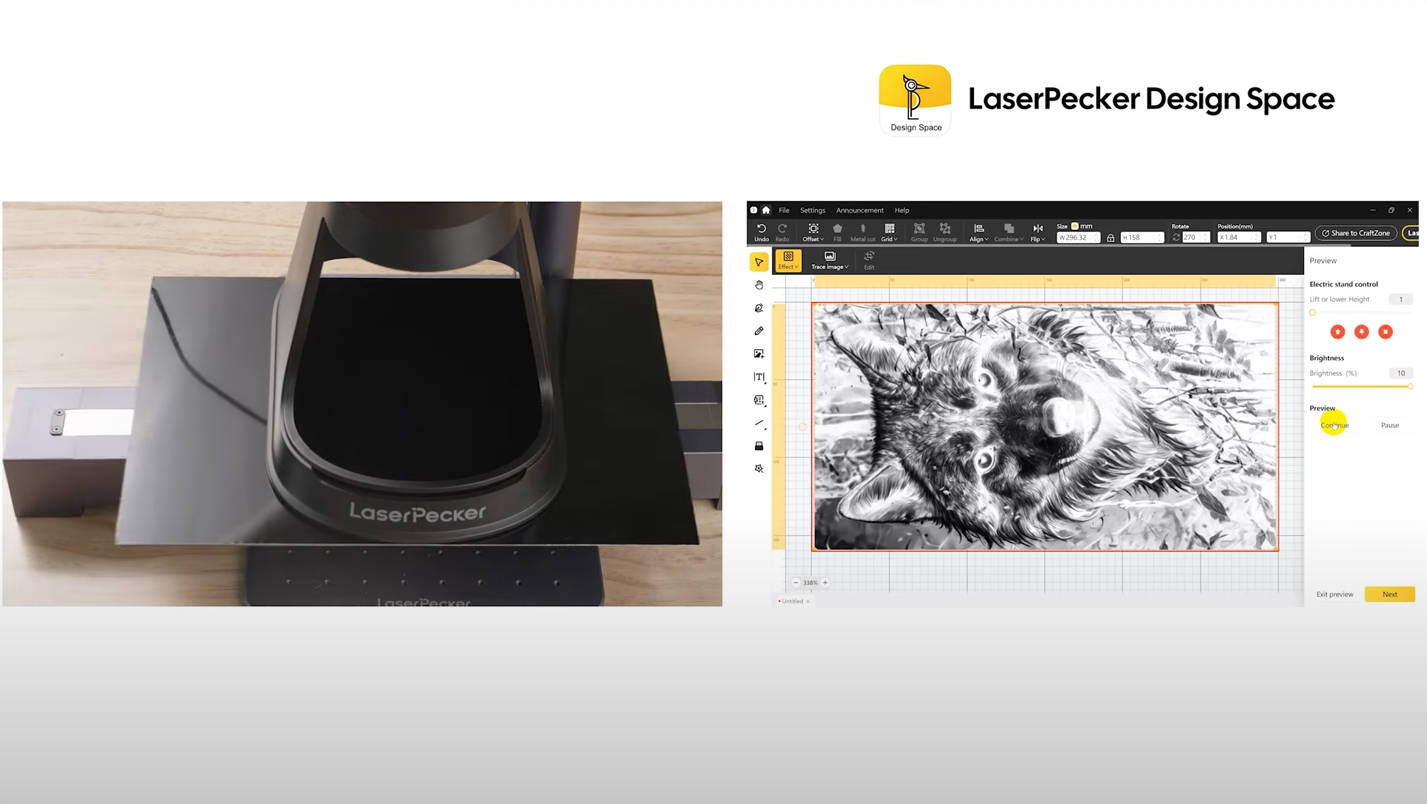

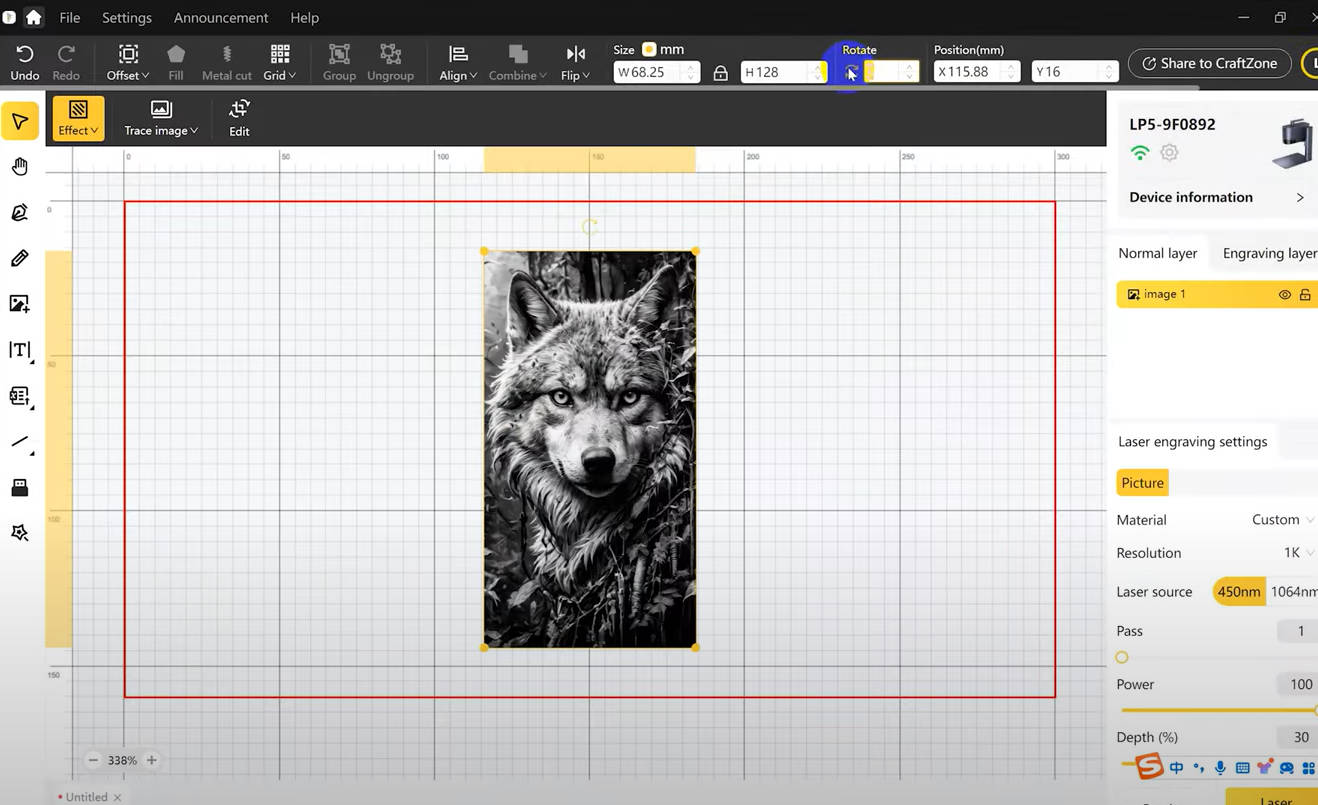

In this step, adjust the position and orientation of your design to align with the object. Refer to the image below for guidance.
Step 4: Preview
Click "Continue" to rotate the Slide Extension and preview the engraving area.

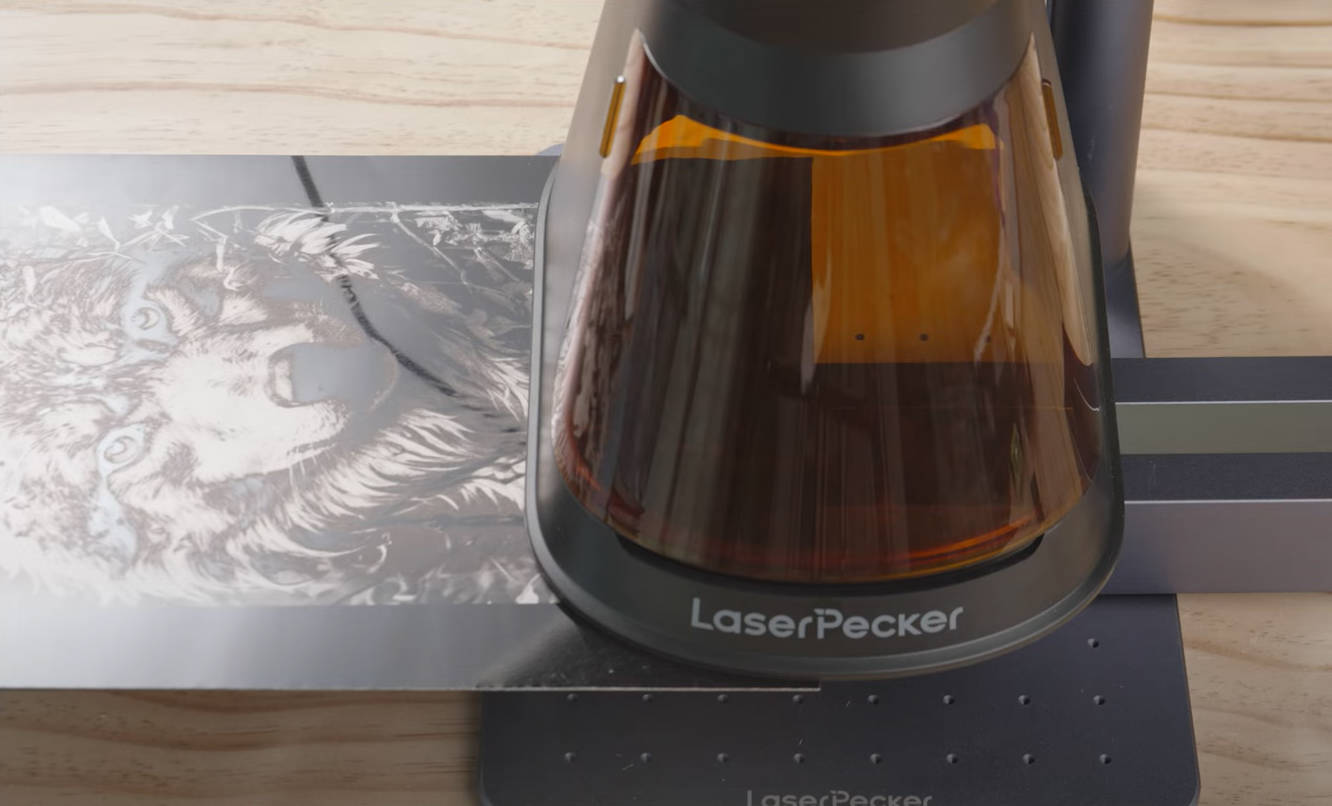

Step 5: Final Result
Set engraving parameters and start engraving to see the final results.
