This guide provides clear and easy steps to use the Versatile Electric Roller with your LaserPecker LP3.
Step 1 Connect the Devices

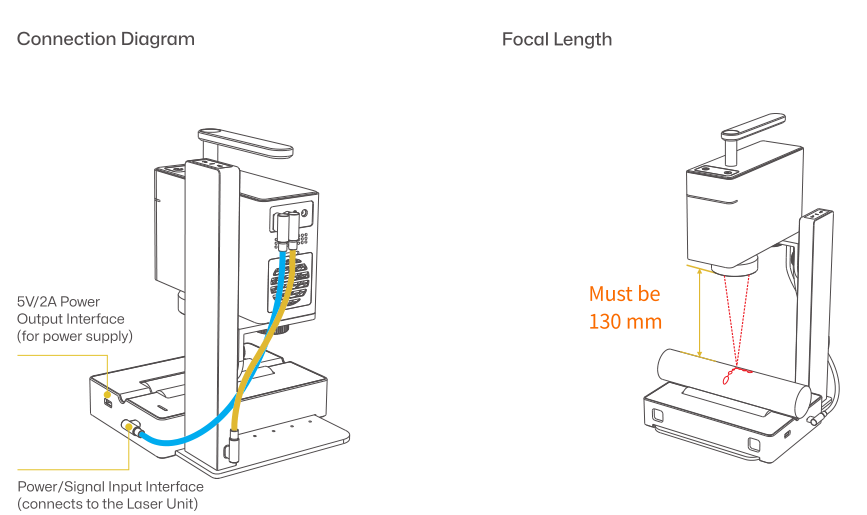

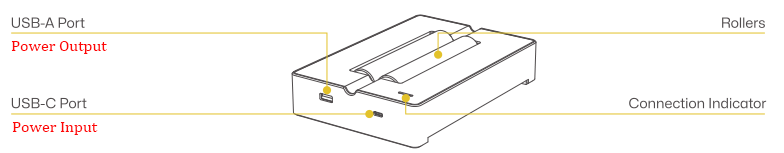

Connect the Versatile Electric Roller according to the User Manual.
Ensure the Versatile Electric Roller and LP3 are correctly positioned and connected.
Step 2 Select Engraving Mode

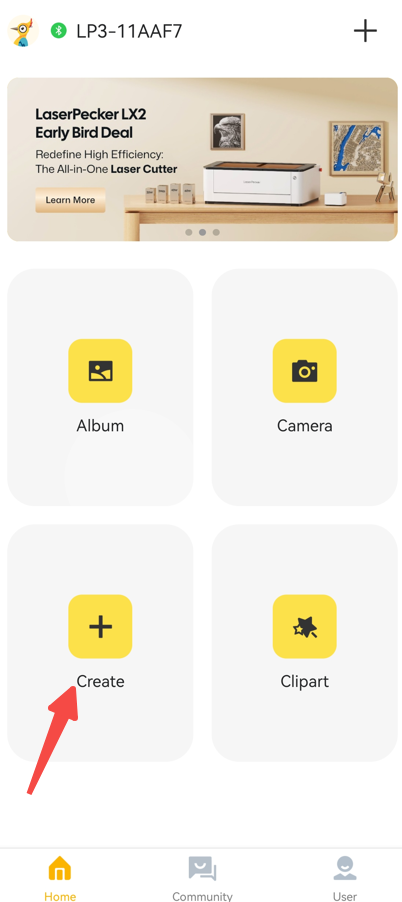

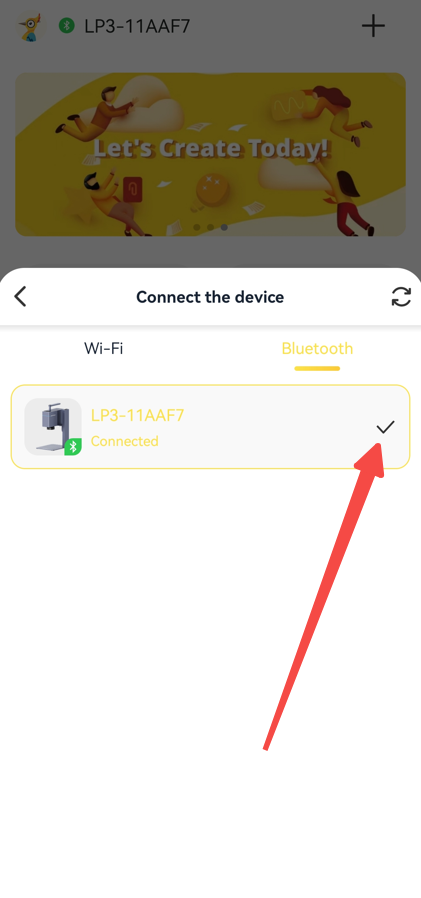

- Connect your LP3 to the LaserPecker Design Space App and click the "Create" to access the canvas.

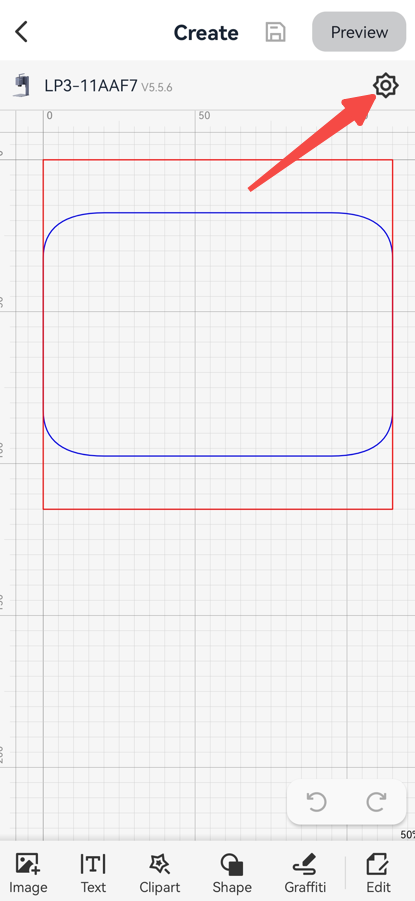

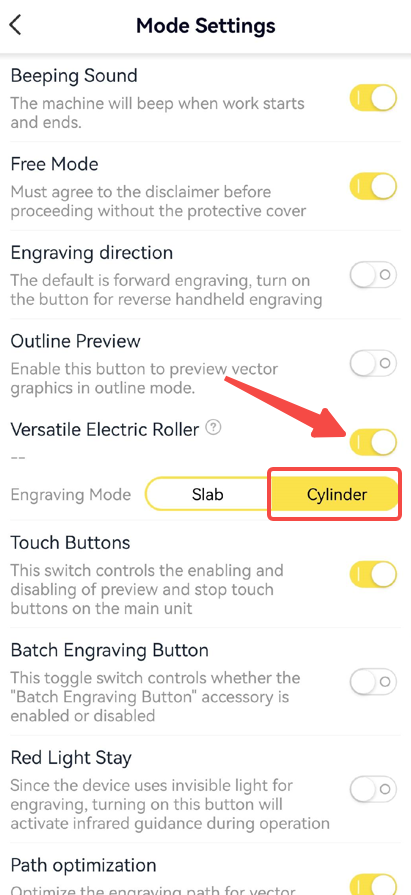

- Tap the ⚙ icon in the upper-right corner of the canvas to open the Mode Settings page, enable the “Versatile Electric Roller” option, and choose Cylinder Mode.
Step 3 Prepare Your Design

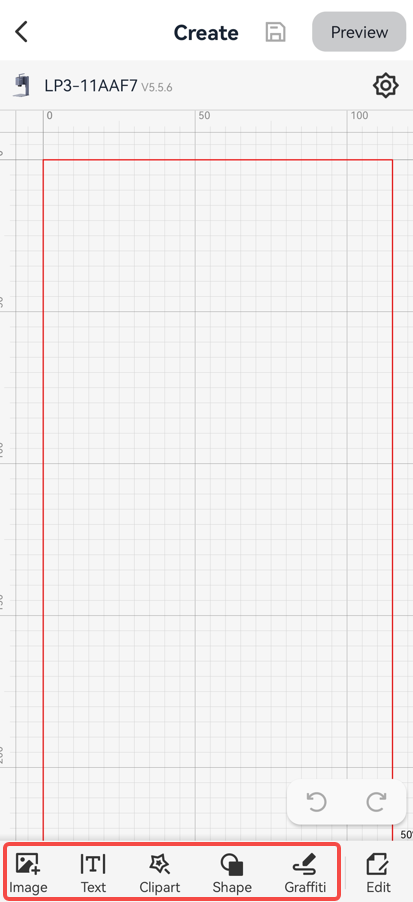

- Import the image, text, or pattern to be engraved from the toolbar on the bottom-left side of the canvas.

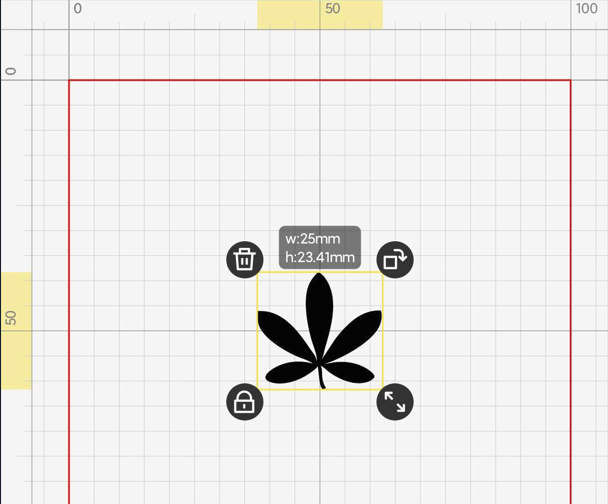

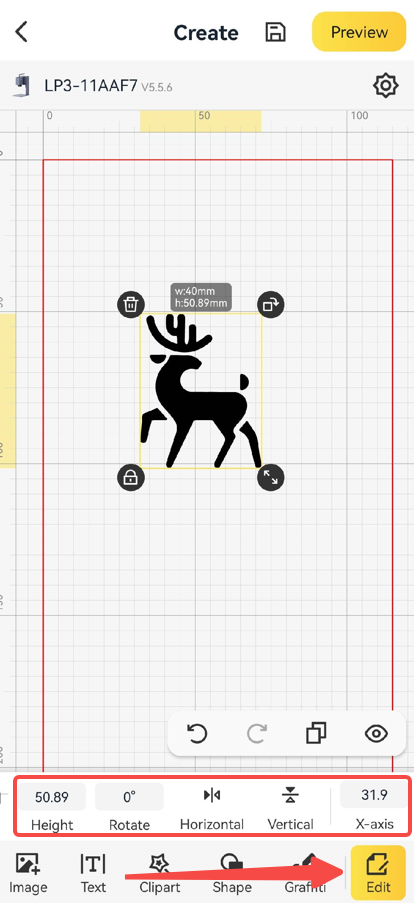

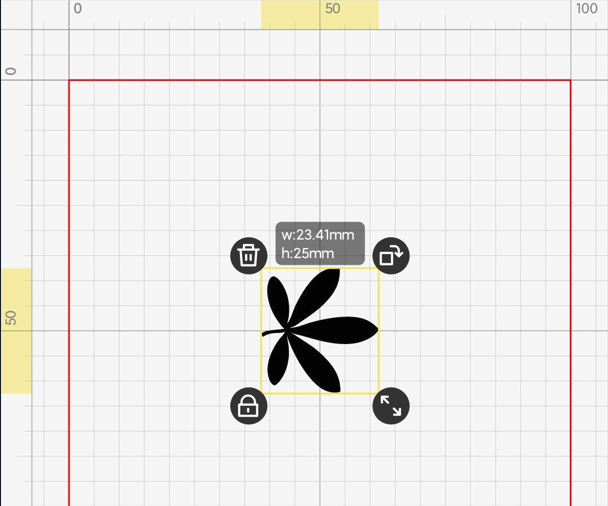

- Swipe the editing bar to the left and adjust the file’s size and position as needed.

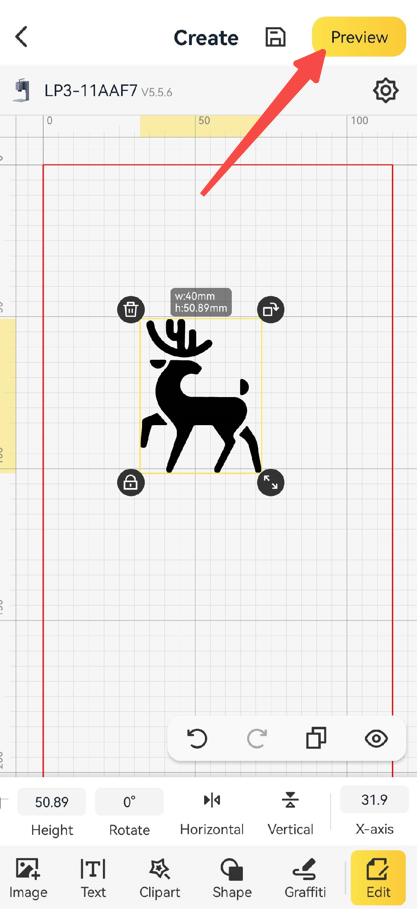

- Tap the "Preview" button in the top right corner of the canvas to start the focal distance adjustment.
Step 4 Adjust Focus (Large-Radius Objects)

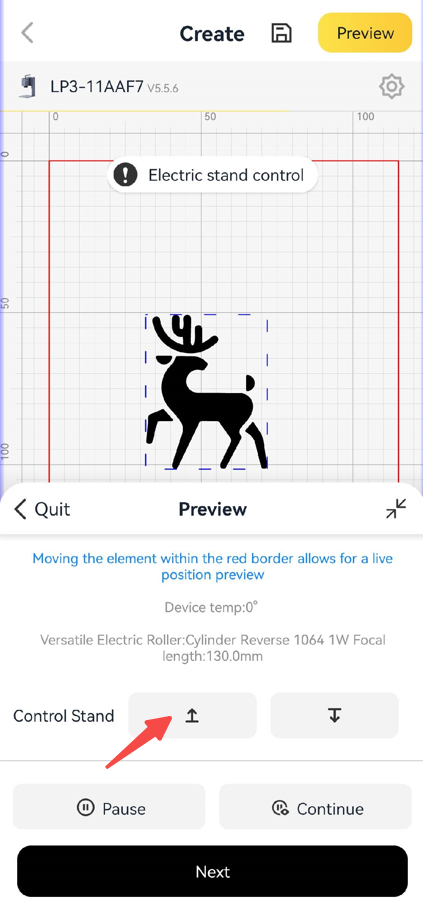

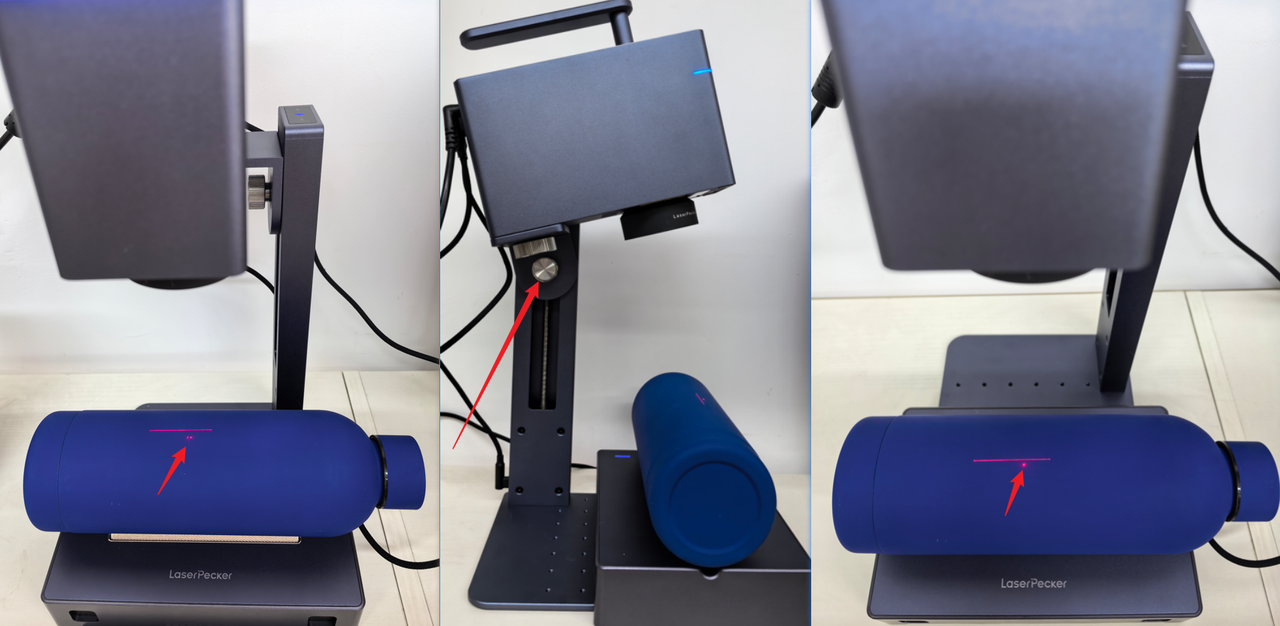

If the two red dots do not overlap even when the Electric Stand is raised to its highest position, follow the steps below:
(1) It is recommended that the two red dots and the straight line be on the same horizontal plane.
(2) Loosen the knob on the Electric Stand by turning it counterclockwise.
(3) Lift and adjust the angle of the Laser Unit as needed, then turn the knob clockwise to lock it in place.
(4) Adjust the Electric Stand vertically, and move the Versatile Electric Roller placement slightly forward if necessary.
(5) Fine-tune the height of the Electric Stand, the angle of the Laser Unit, and the Versatile Electric Roller position until the two focusing red dots fully overlap.

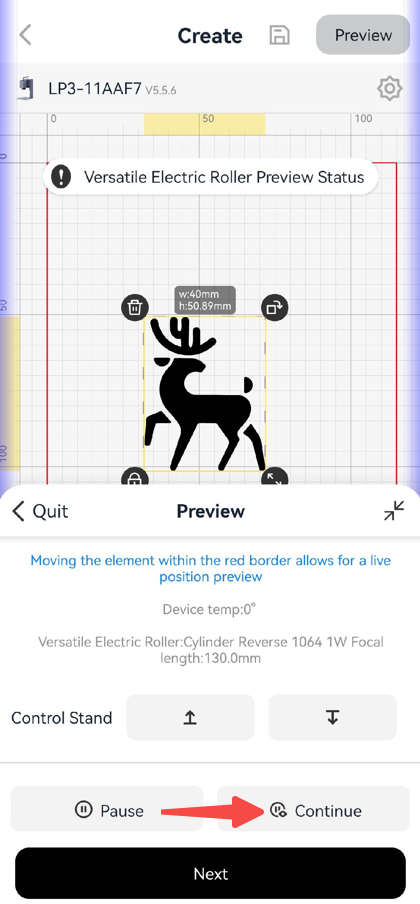

After completing the focal adjustment, click the "Continue" to start the preview. In Cylinder Mode, the preview range will appear as a straight line, accompanied by the movement of the Versatile Electric Roller.
Step 5 Start Engraving
- Once the preview is complete, set the resolution, enter the file name, and click the "Send file" button.

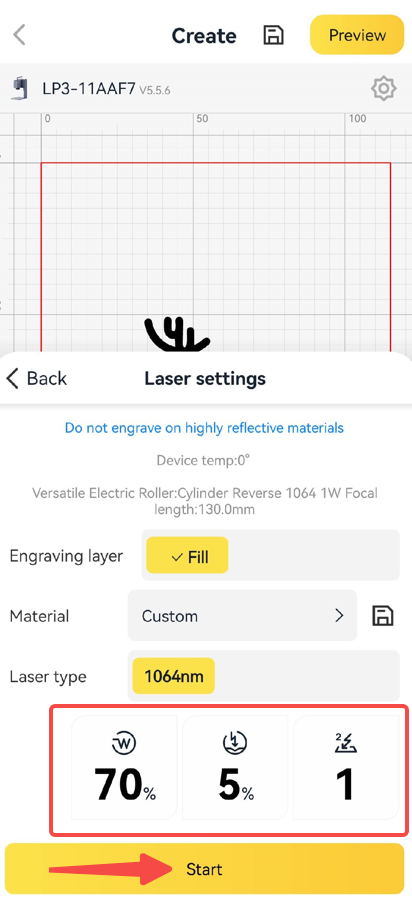

- After sending the file, set the engraving parameters as needed, then tap the "Start" button to start engraving.
Tips

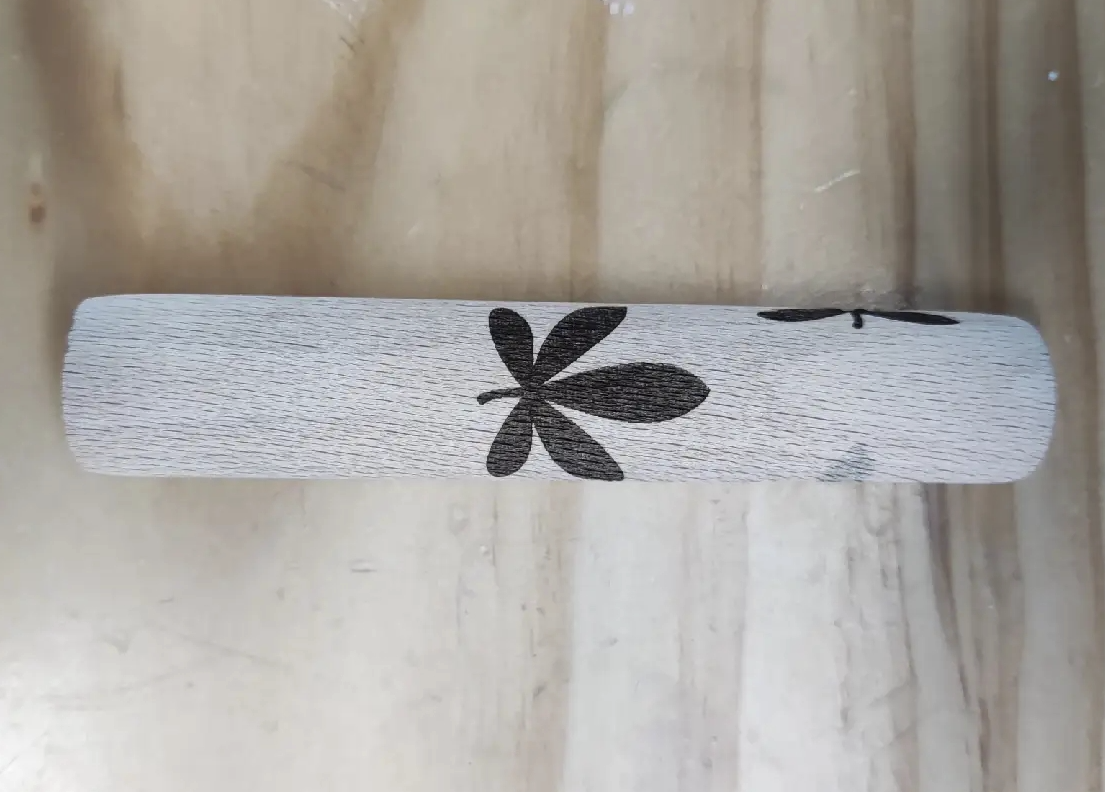

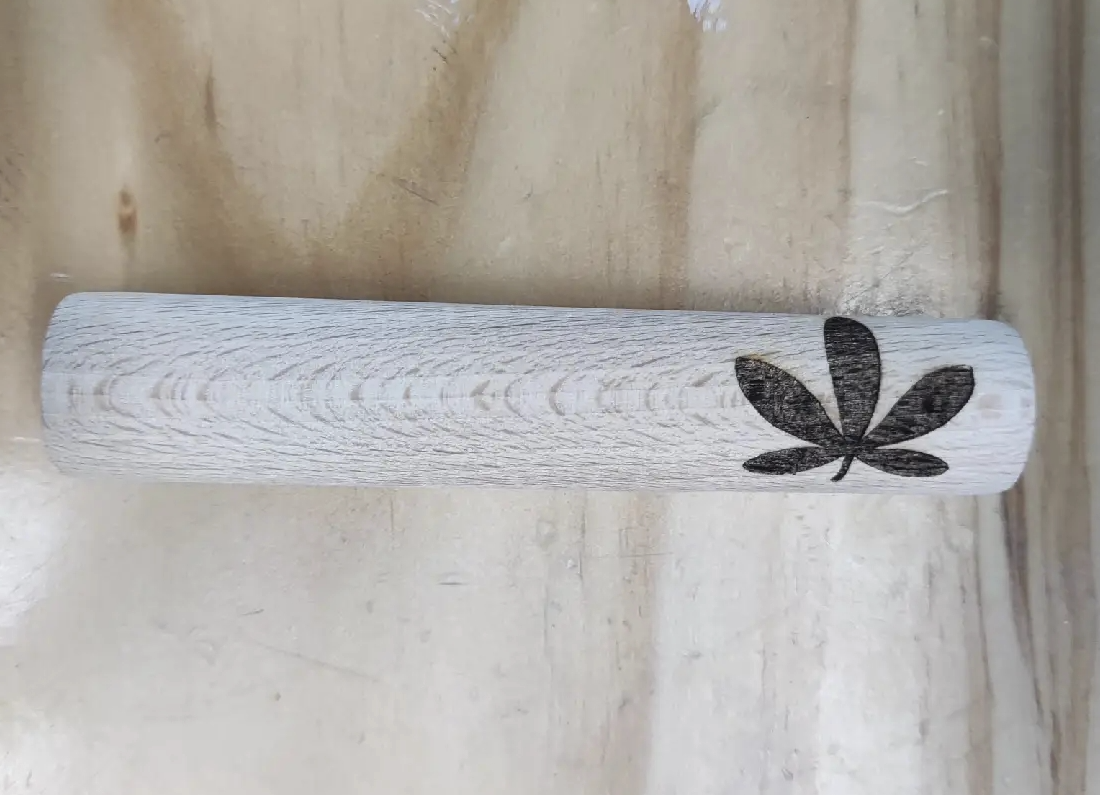

- The placement direction of cylindrical objects affects the final engraving result. For directional items, such as cups, ensure that the cup opening faces to the right.
- Adjusting the rotation angle of the design allows the engraving on the cylindrical object to be positioned horizontally or vertically.

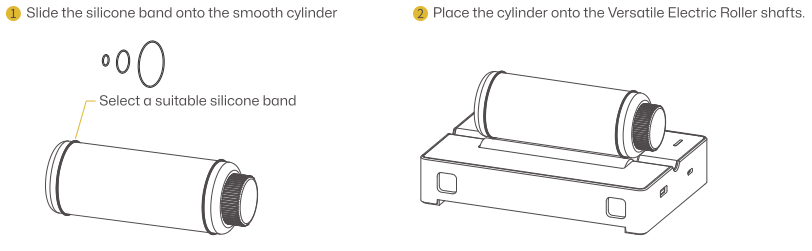

- Use the included black Silicone Bands when engraving smooth cylindrical objects.
