Warning
Always perform maintenance and cleaning when the device is powered off.

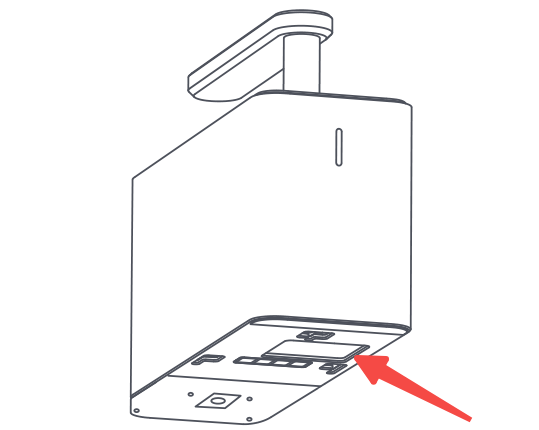

1. Laser Output Lens Maintenance
If laser power attenuation occurs (e.g., shallow or uneven engraving), the laser output lens may be dirty. Clean gently with a lint-free cloth moistened with alcohol.

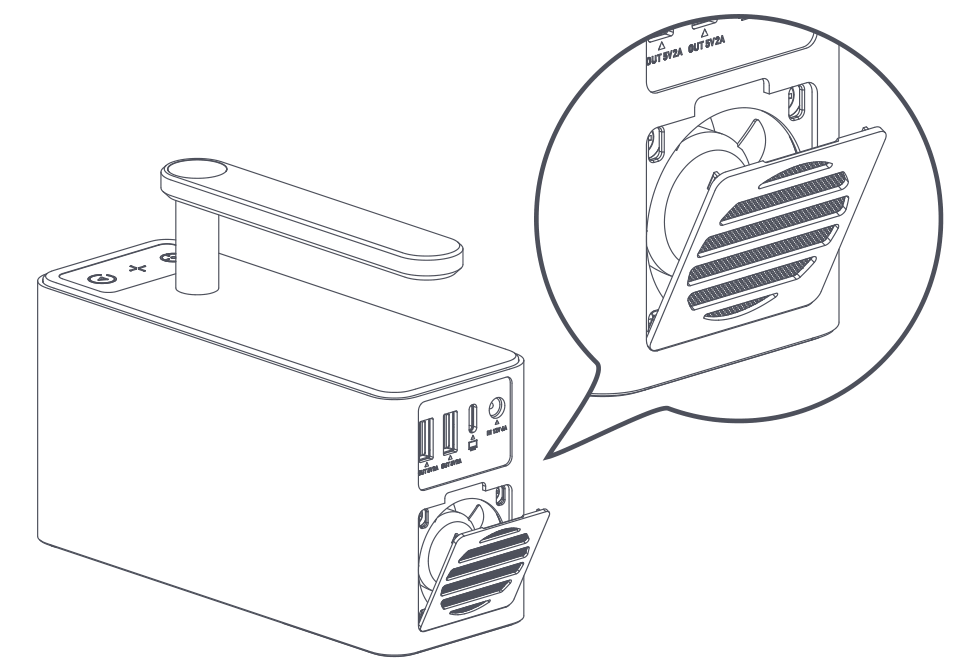

2. Dust Filter Cleaning
Remove the cover on the back side of the Laser Unit to access the dust filter. Clean it if dust has accumulated.

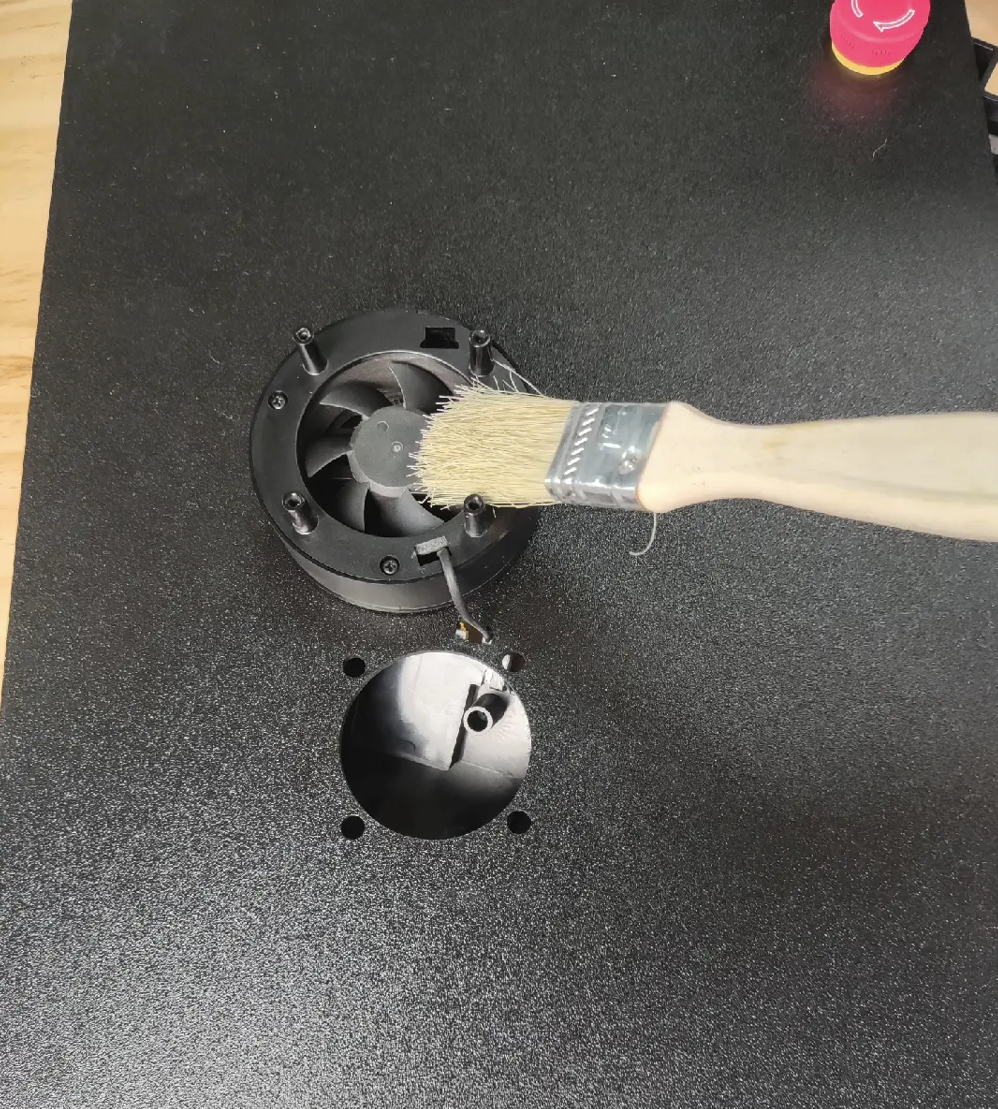

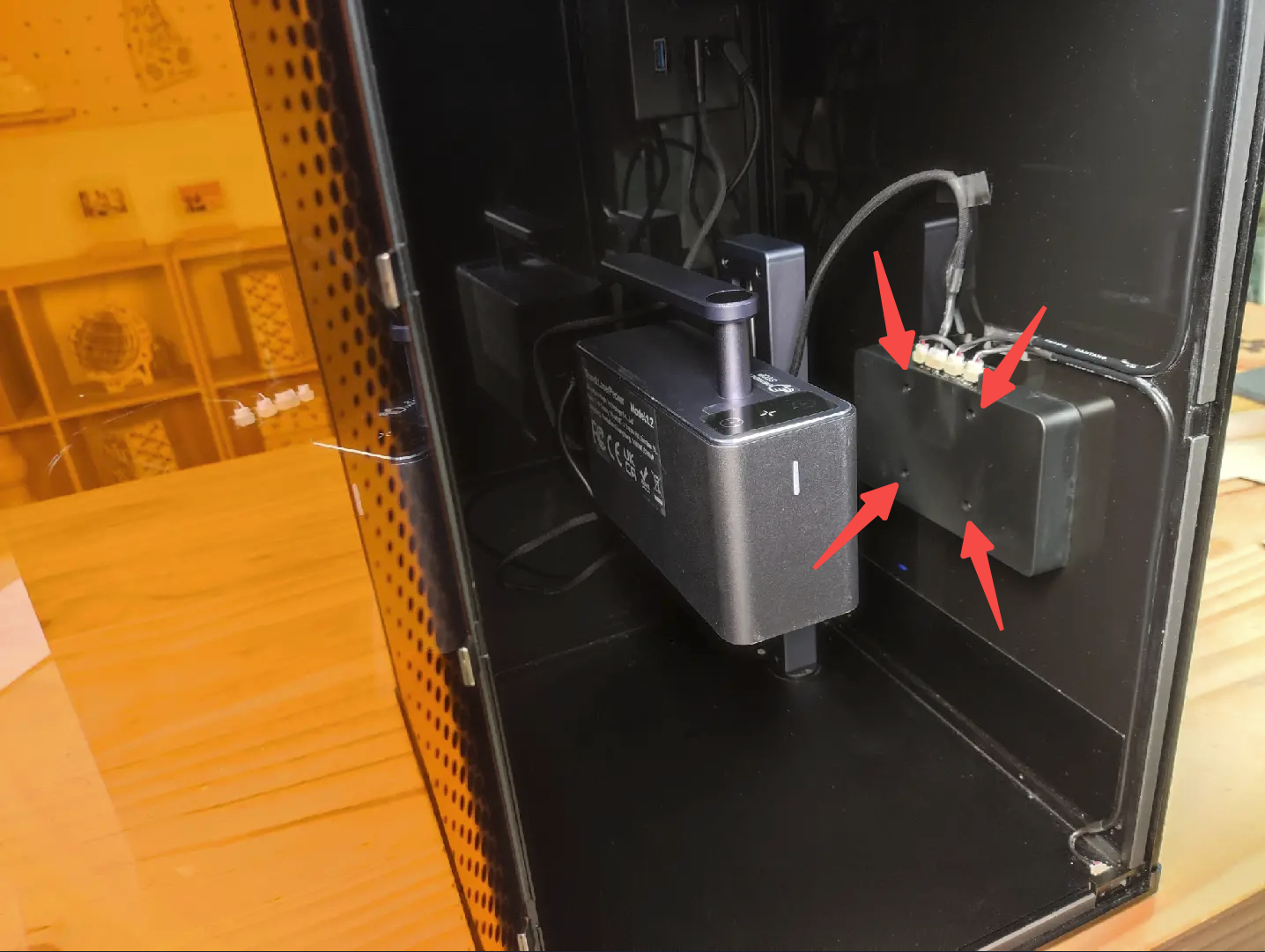

3. Standard Enclosure Exhaust Fan Cleaning

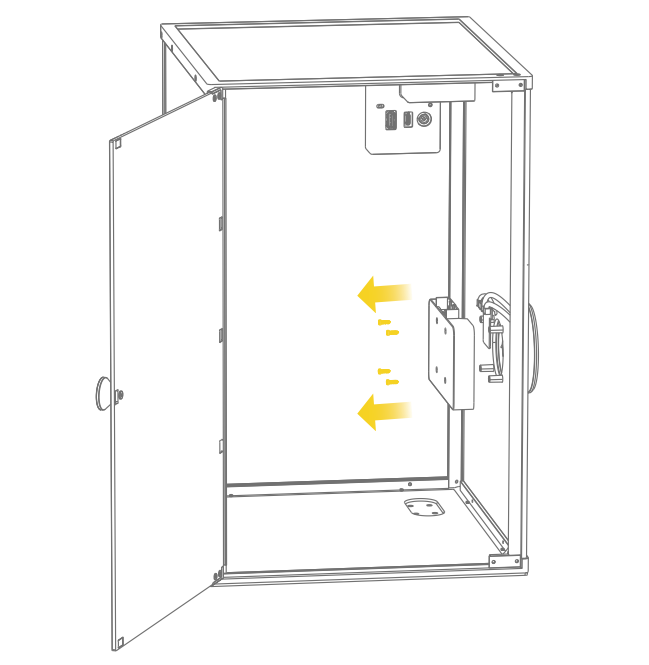

Dust can block the exhaust fan and smoke vents over time. Use a Phillips screwdriver to detach the fan from the Standard Enclosure and clean it to maintain proper smoke exhaust.

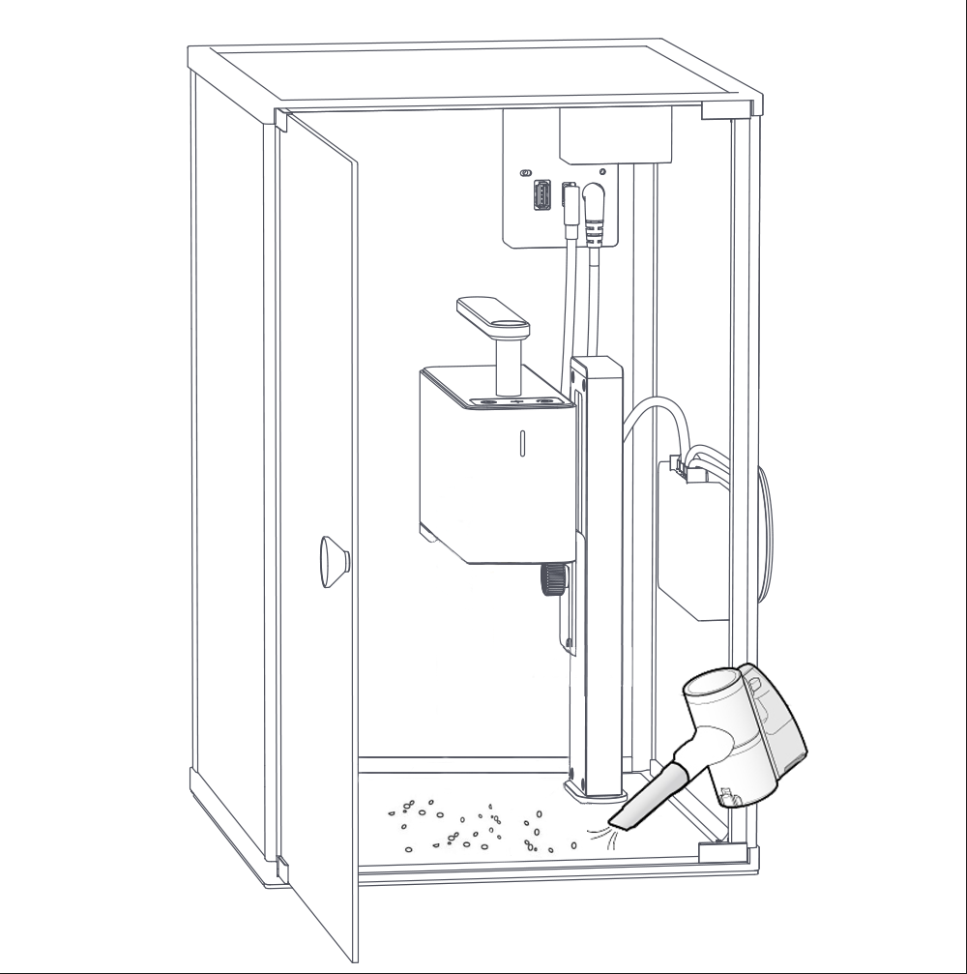

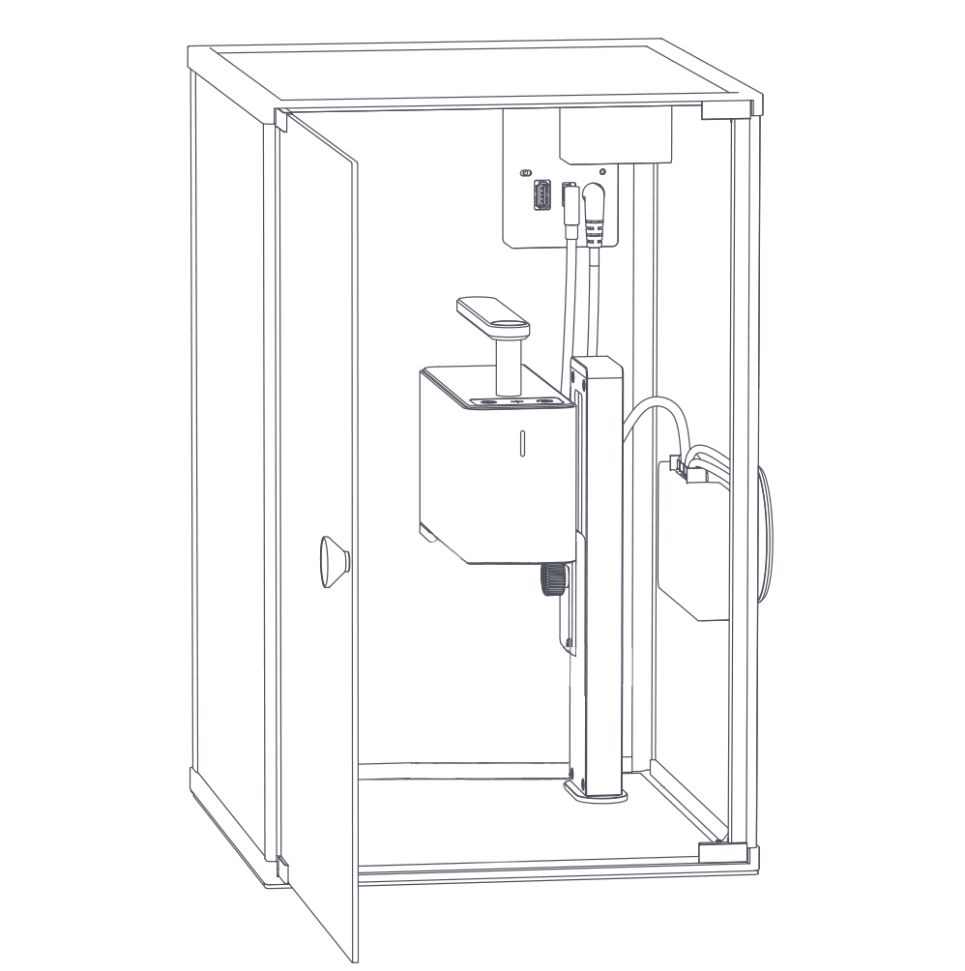

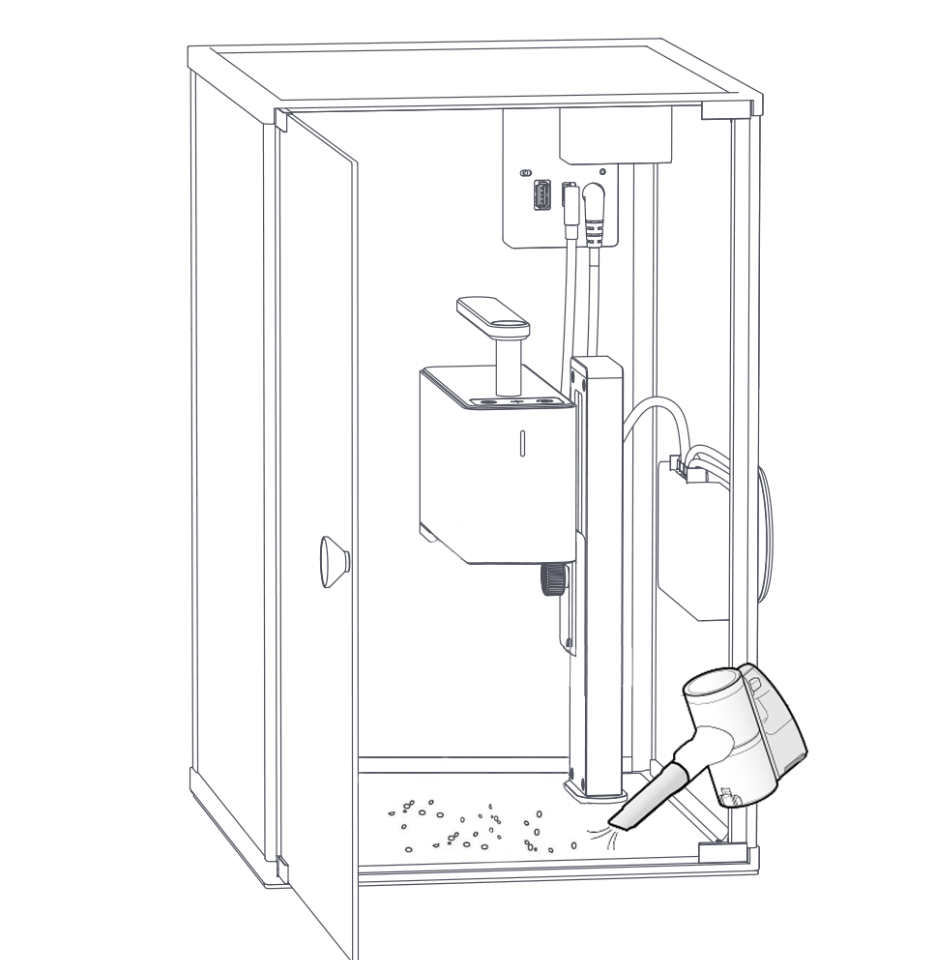

4. Standard Enclosure Baseplate Cleaning
Use a handheld vacuum cleaner or soft brush to remove dust and residue from the work area and other parts.

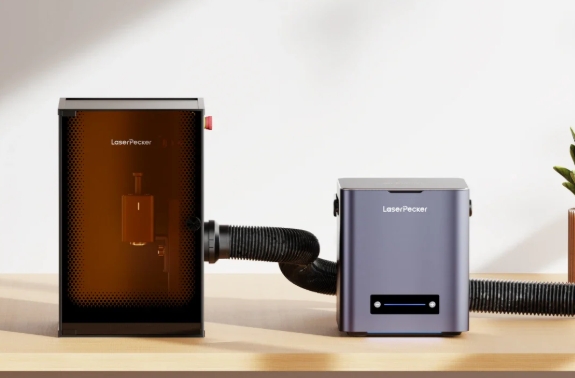

5. Smoke Reduction Tips

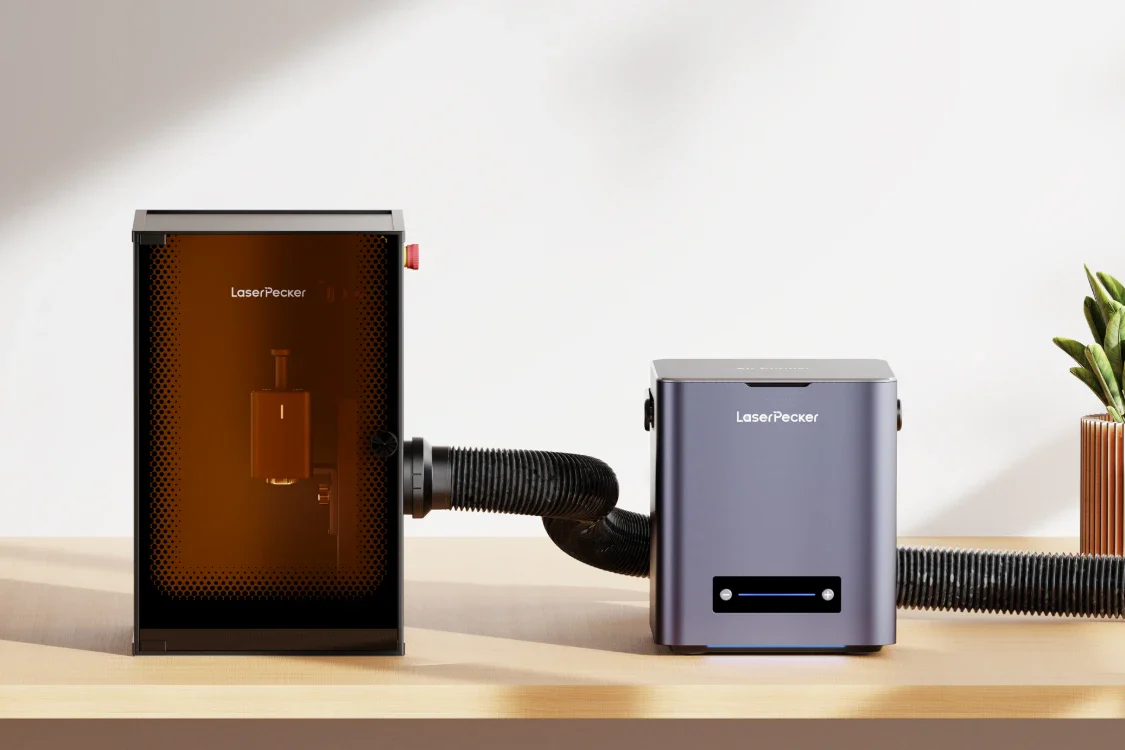

To maintain a cleaner environment and reduce smoke, use the LaserPecker Air Purifier, which removes nearly all smoke during engraving.
