The LX2's smart camera can automatically recognize official LaserPecker materials and recommend processing parameters on the settings page, making your engraving work more efficient. This article will show you how to use the Identify Material QR Code feature.
1. Step-by-Step Guide

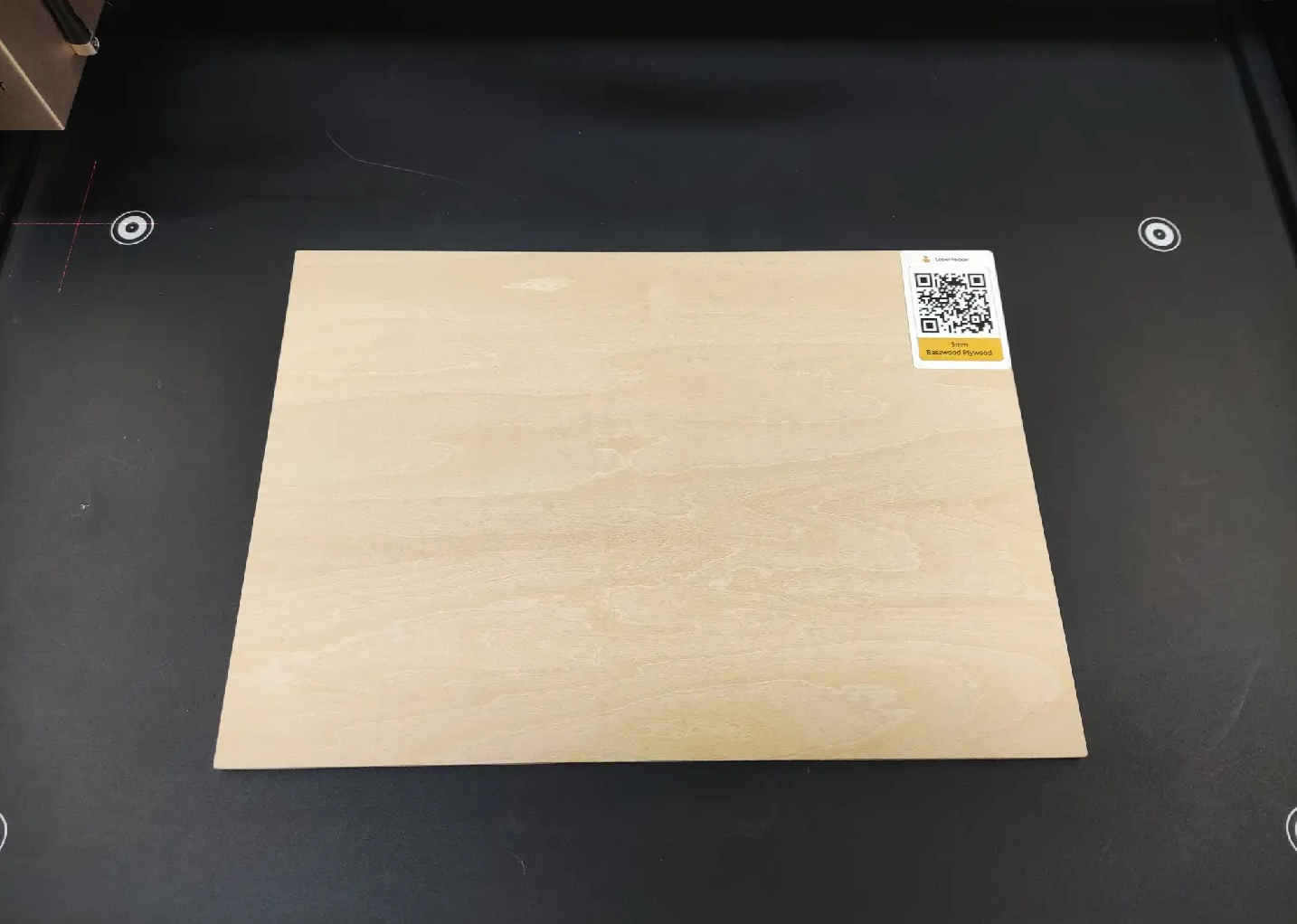

Step 1
Place a material with a LaserPecker QR code on the machine's Base Plate.

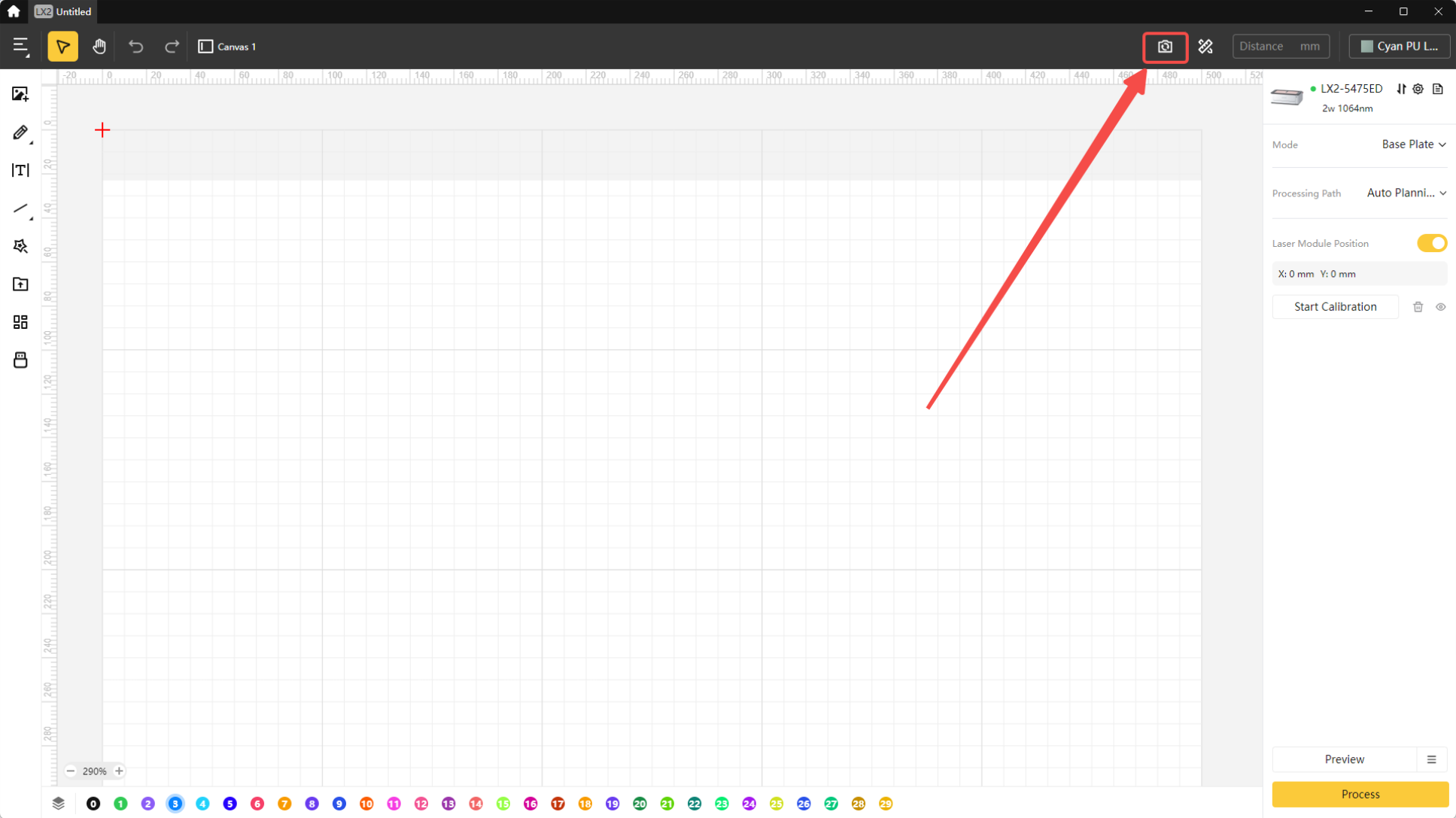

Step 2
Close the cover and refresh the camera's background. If you've enabled the Auto Refresh Background function, this step will happen automatically after you close the cover.

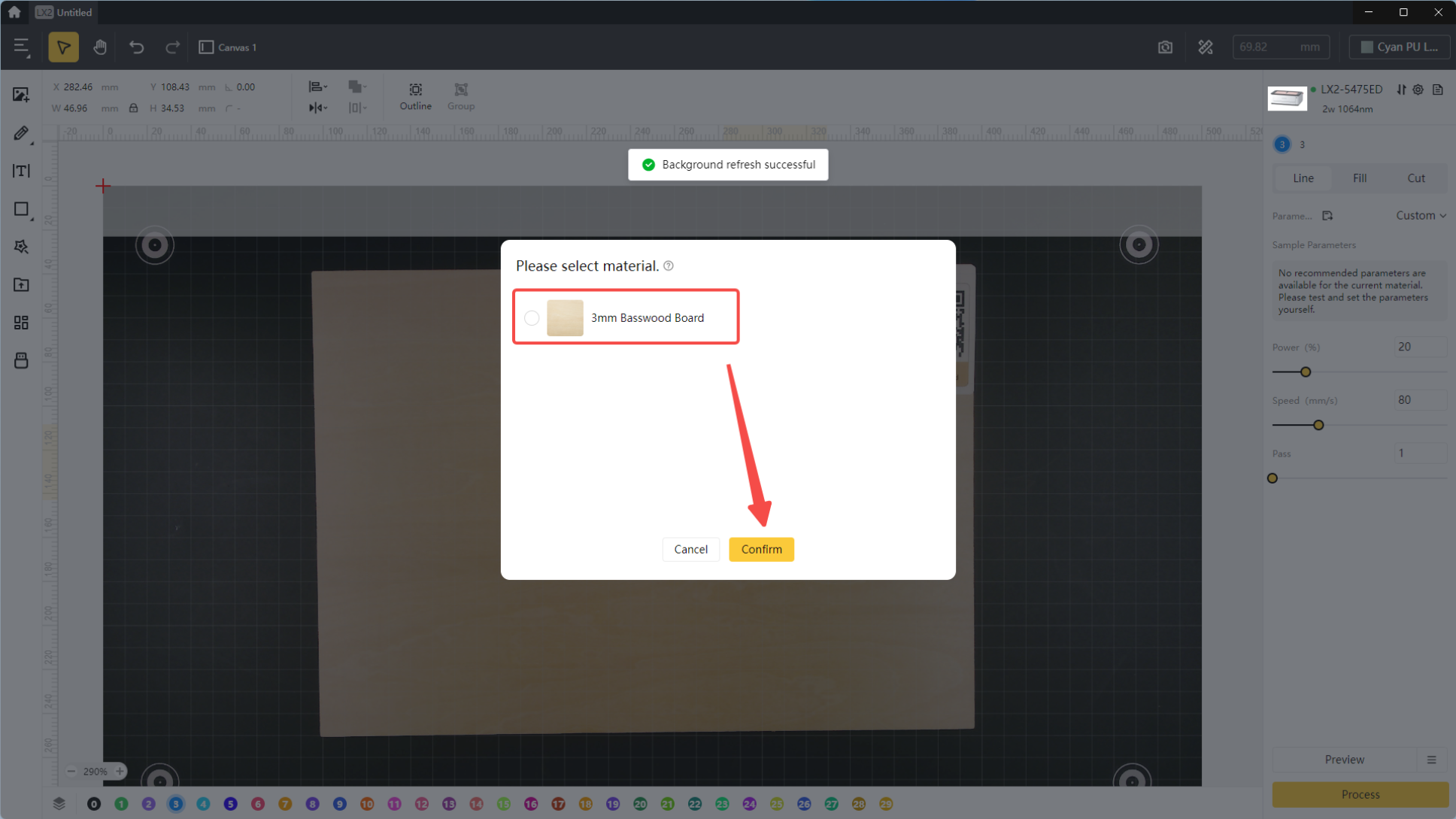

Step 3
Once the material is successfully recognized, the software will display the detected material type. Simply select the material and click Confirm.

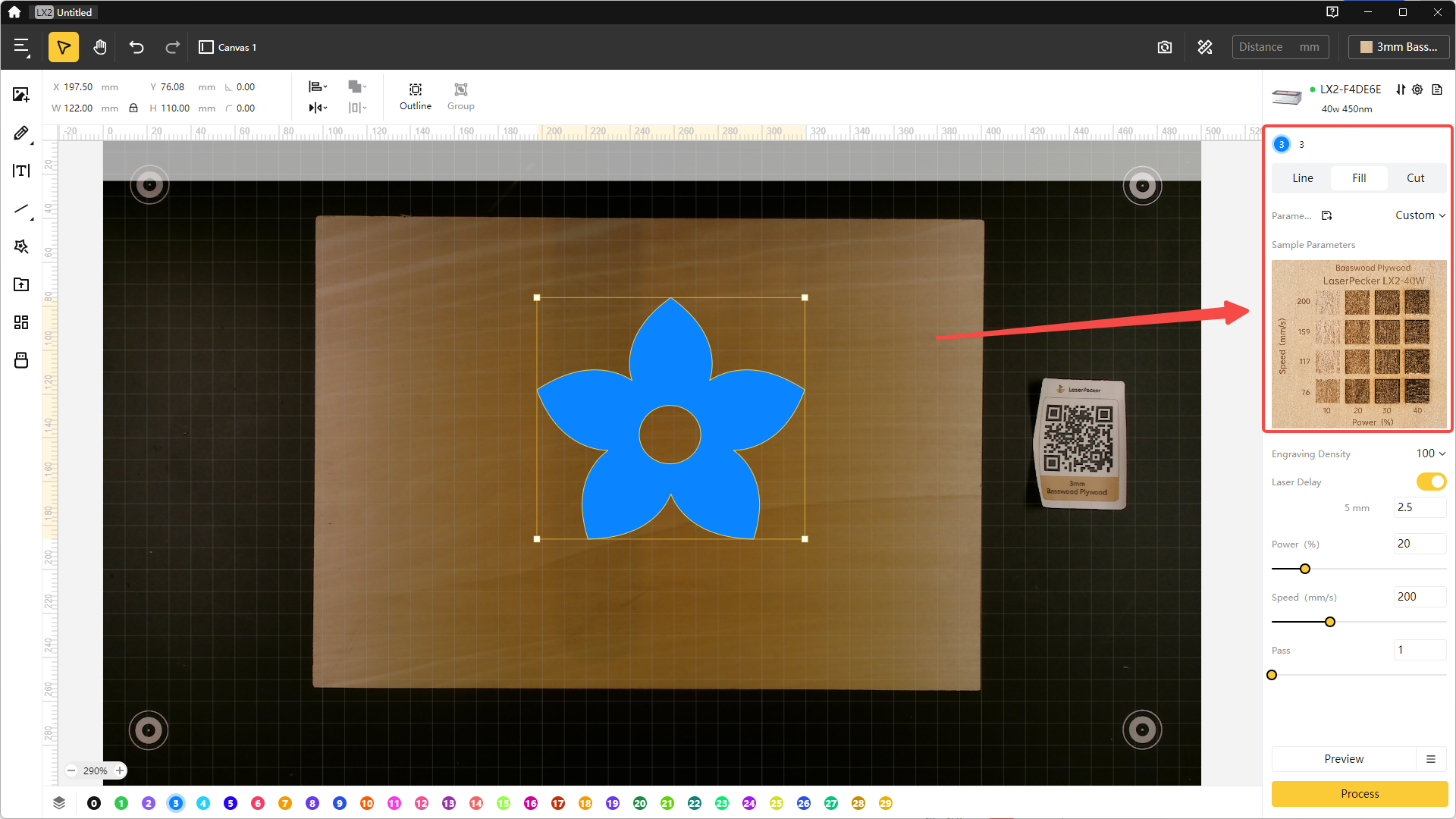

Step 4
After importing and selecting the design, you can choose a Sample Parameters provided by the software as a reference on the right side panel.
2. Turn On or Off the Identify Material QR Code Feature
By default, the Identify Material QR Code feature is enabled. If you need to disable it, you can follow these steps:

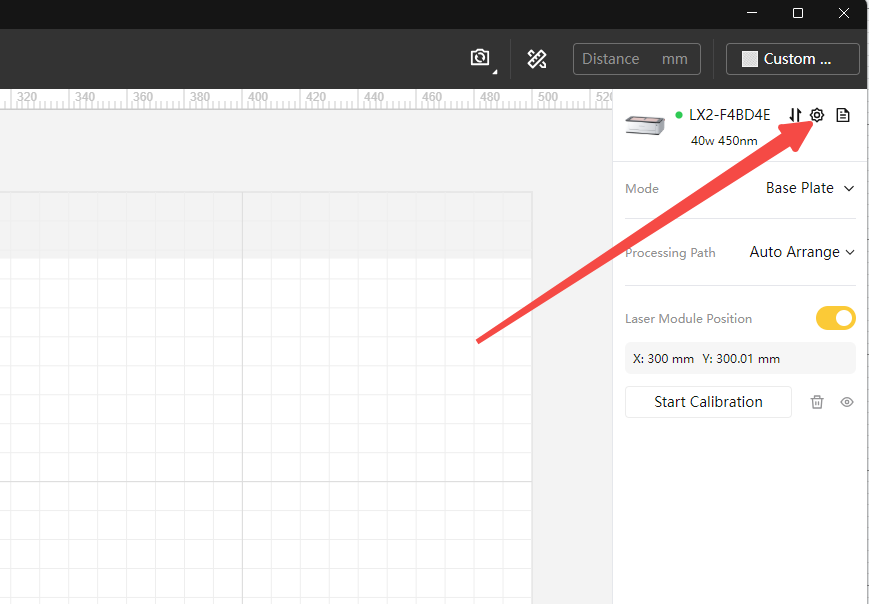

Step 1
Connect to your machine. Open the Device Settings interface.

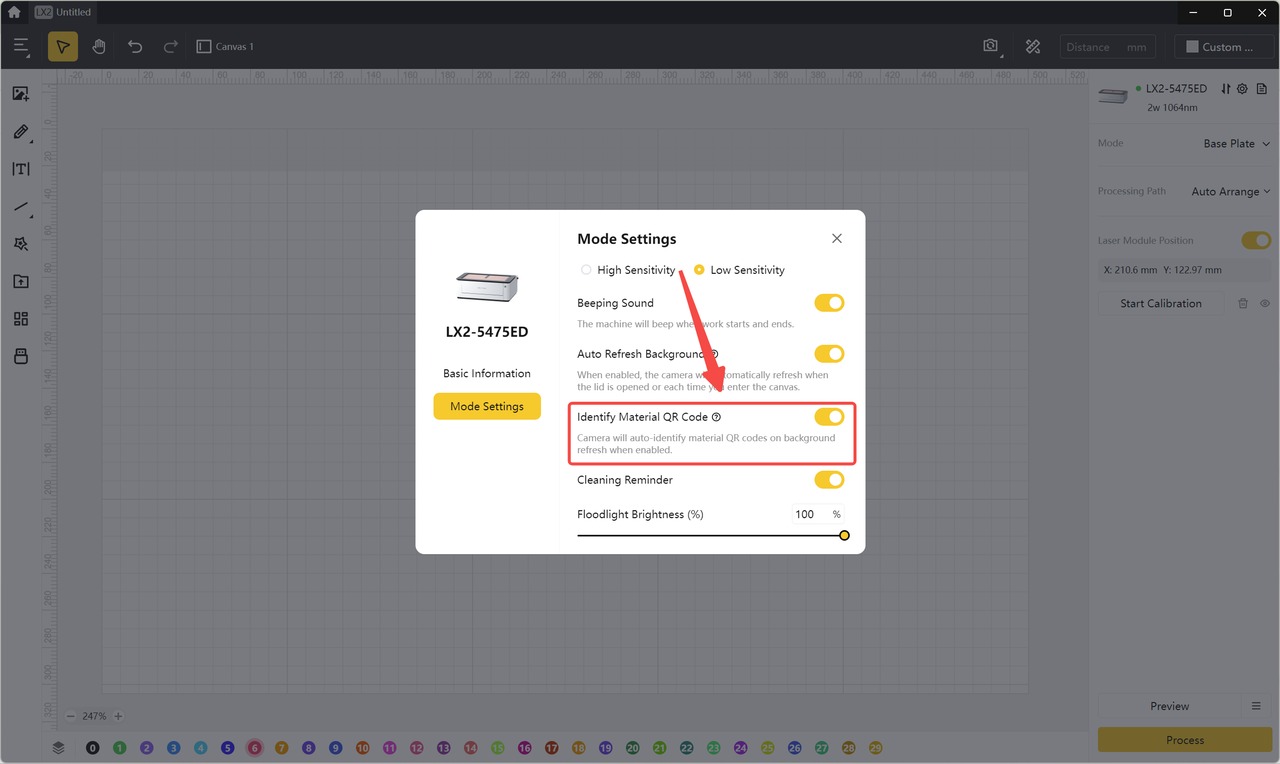

Step 2
Select Mode Settings, and you can turn the Identify Material QR Code function on or off as needed.
