This article introduces the primary safety protection features of the LaserPecker LP2 Plus.

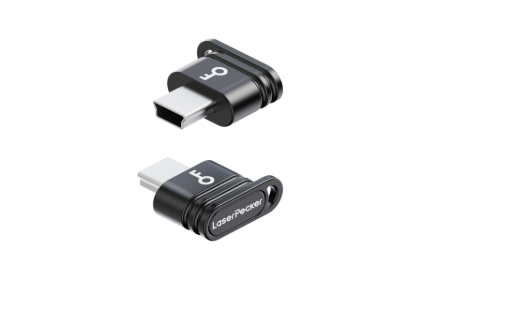

1. What Is Security Key?
The security key is a physical device that controls access to the machine’s laser functions. This design helps prevent unauthorized use by untrained individuals (such as children).
If the security key is not inserted correctly, all laser emission functions of the LP2 Plus are automatically disabled.
Each LP2 Plus comes with two security keys. When you receive your LaserPecker LP2 Plus, make sure both keys are included in the package.

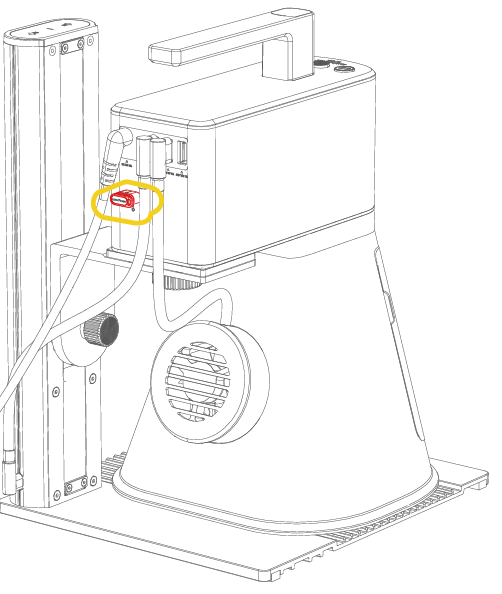

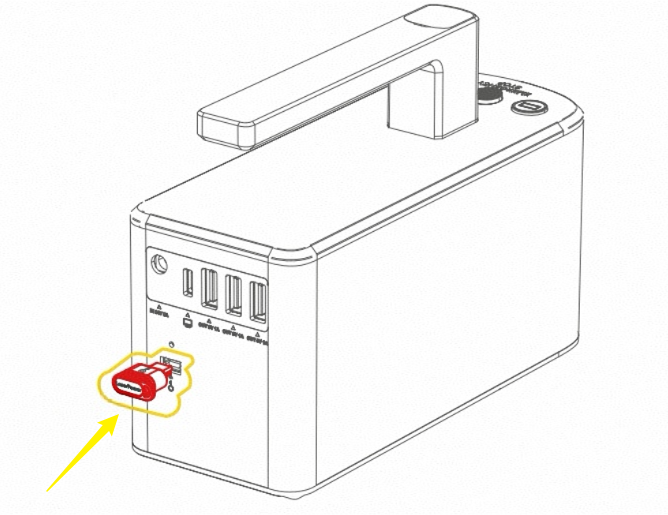

(1) Insertion of the Security Key
To activate the laser, insert the security key into the dedicated port on the back of the device (marked with the safety lock icon 🗝). When a valid key is detected, the laser emission function is unlocked and the device returns to normal operation.

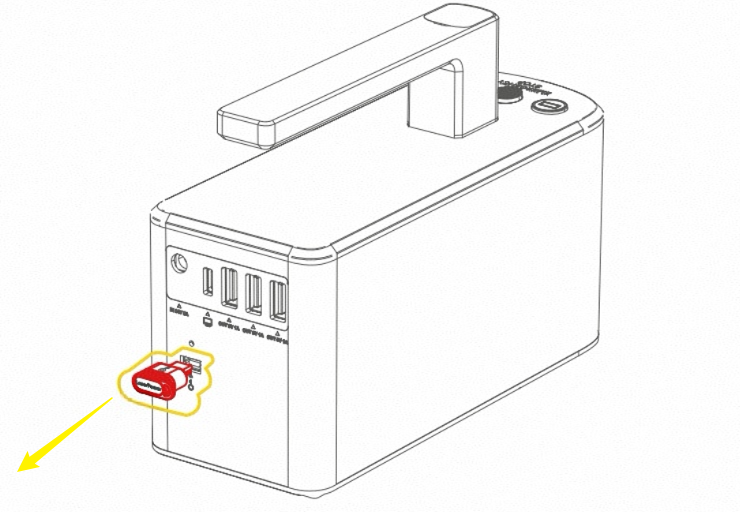

(2) Removal of the Security Key
Remove the security key to lock the laser and its related functions.
2. Emergency Stop Button
The emergency stop button is an important safety feature of the LP2 Plus laser machine. In the event of an emergency, this button is designed to swiftly cut off all working and connection control states of the laser machine. This helps protect both the operator and the machine in the event of an emergency.

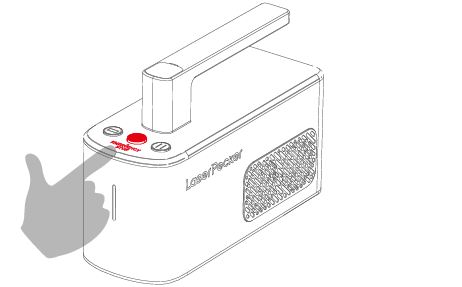

(1) Trigger Emergency Mode
If an emergency occurs, press the emergency stop button to immediately stop the machine’s operation. In the emergency stop state, the laser unit indicator light will turn red and stay on.
(2) Exit the Emergency Mode
After addressing the emergency, press the emergency stop button again to return it to its normal state. The indicator will change from red to blue. Once exiting the emergency stop mode, open the software and resume regular use.
