This article provides a complete guide for assembling, connecting, and using your LP2 Plus with the Standard Enclosure. Follow the steps carefully to ensure safe installation and proper operation of your device. Each section includes clear instructions to help you get started quickly and efficiently.
Step 1: Unboxing & Installation

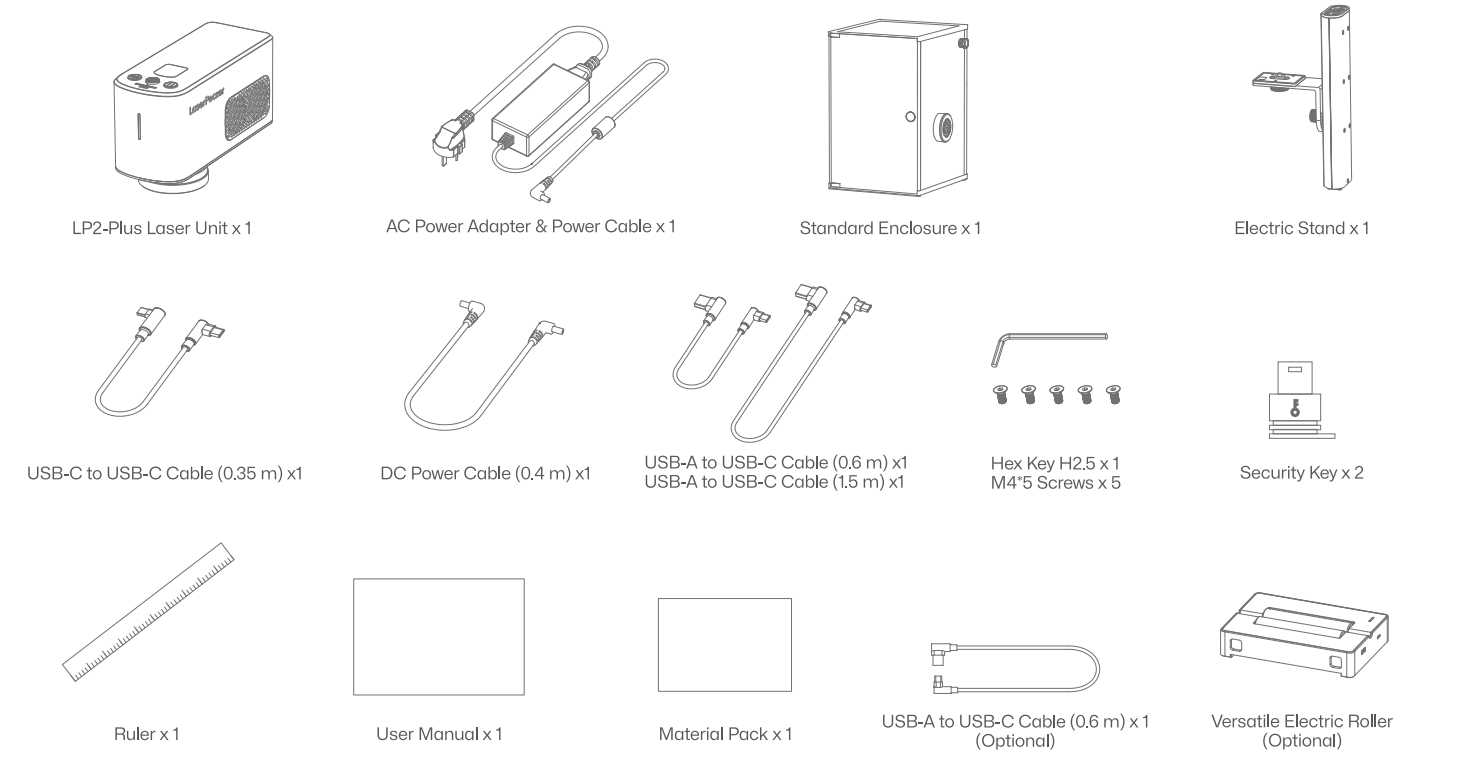

Package List
If your device is not the LP2 Plus Safeguard, follow these steps to install it into the Standard Enclosure:

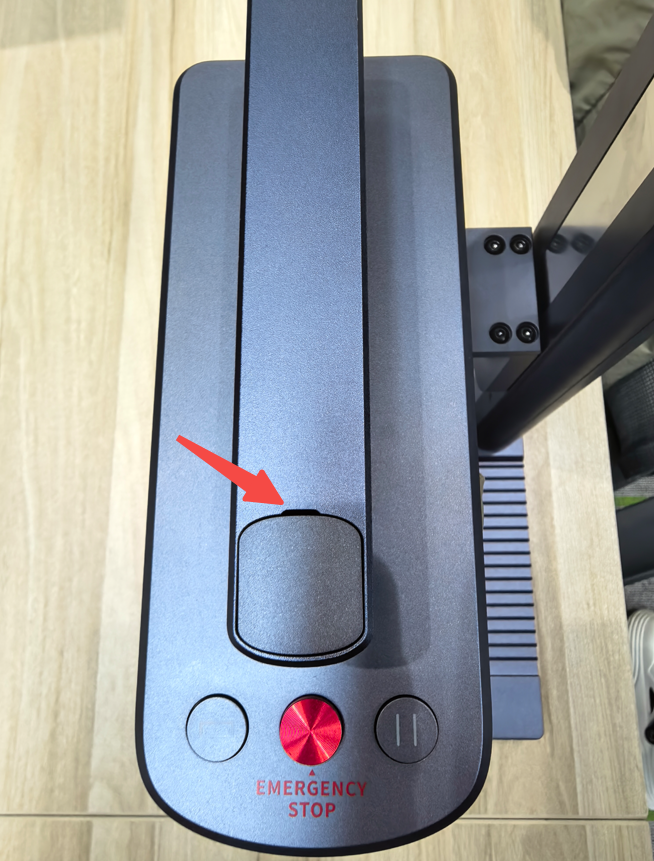

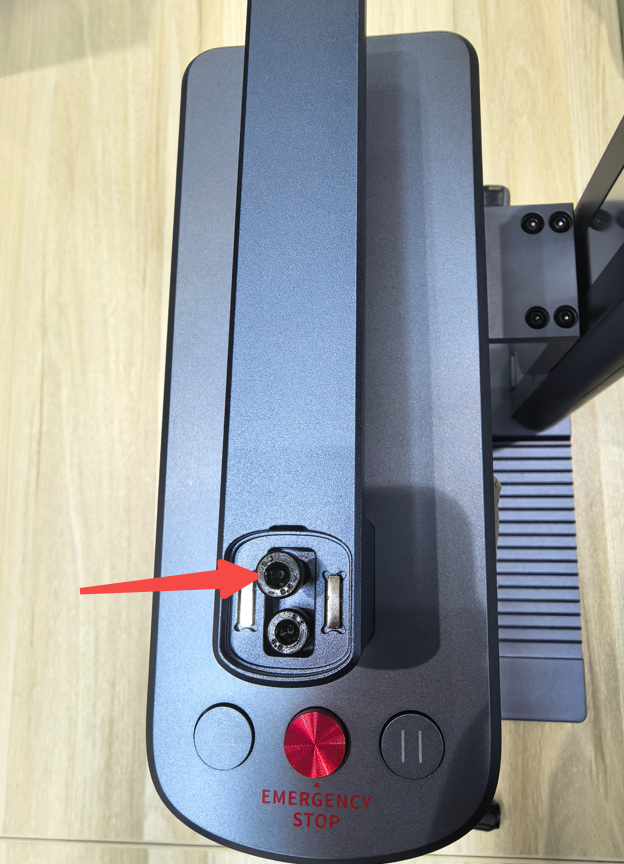

(1) Gently remove the dust cap from the handle.

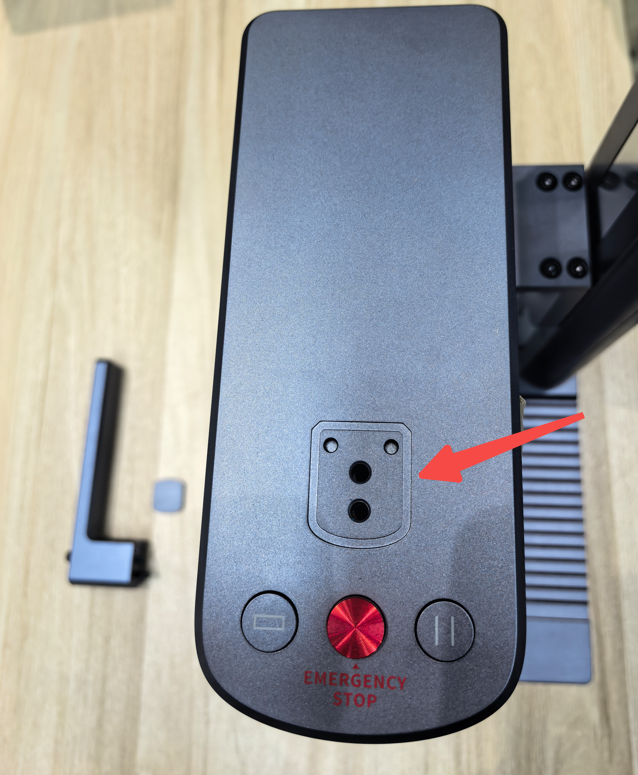

(2) Use a 2.5 mm hex key to remove the two screws securing the handle.
(3) Install the machine inside the Standard Enclosure as described above.
Step 2: Component Overview
LP2 Plus

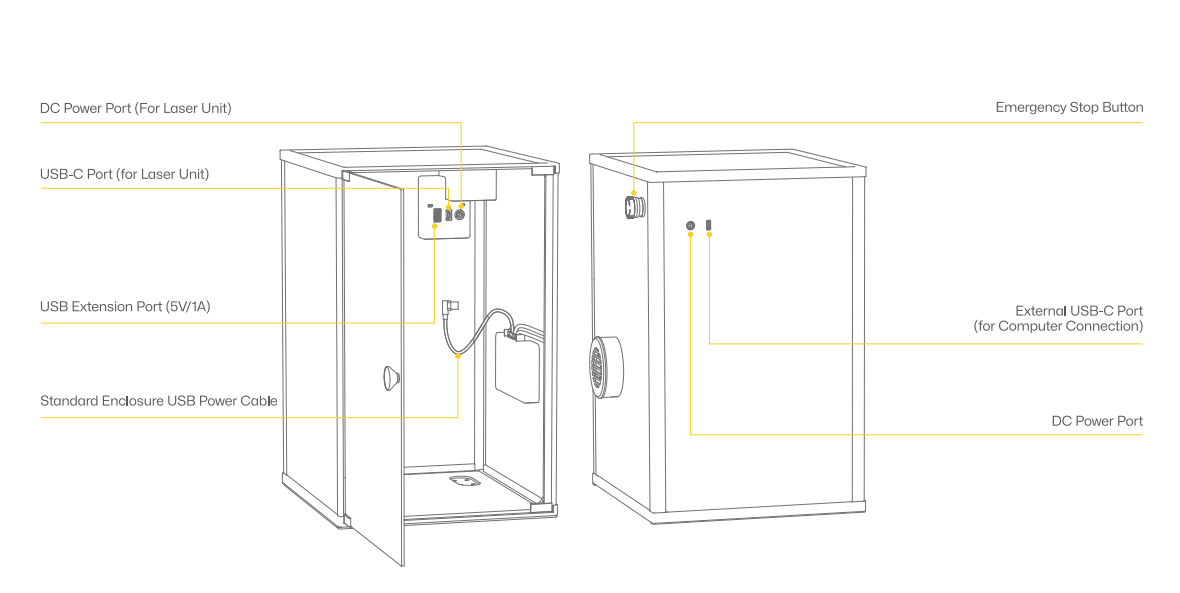

Standard Enclosure
Step 3: Quick Assembly

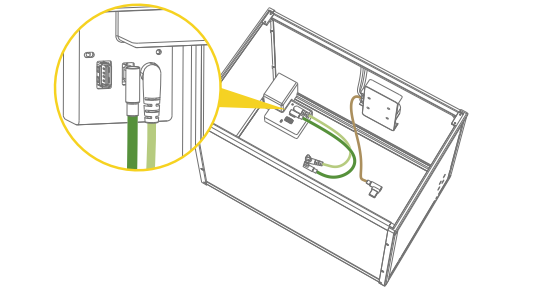

(1) Lay the Standard Enclosure on its back, then connect the two cables:

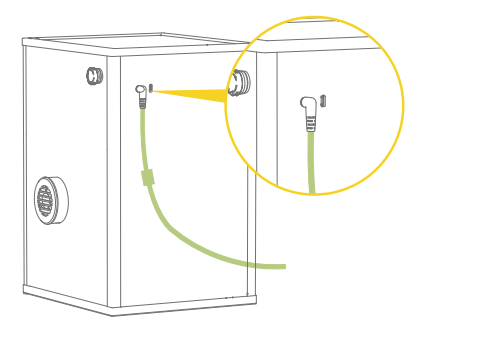

- 0.35m USB-C to USB-C cable → USB-C port on the Standard Enclosure
- 0.4m DC power cable → DC power port on the Standard Enclosure

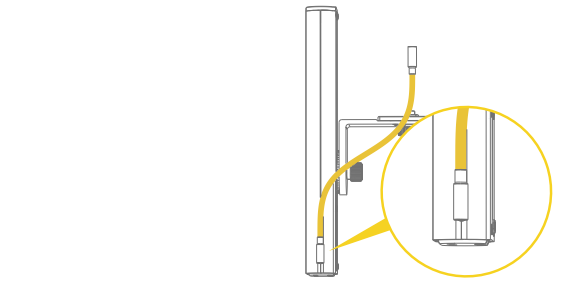

(2) Connect the USB-C end of the 0.6m USB-A to USB-C cable to the power input port on the Electric Stand.

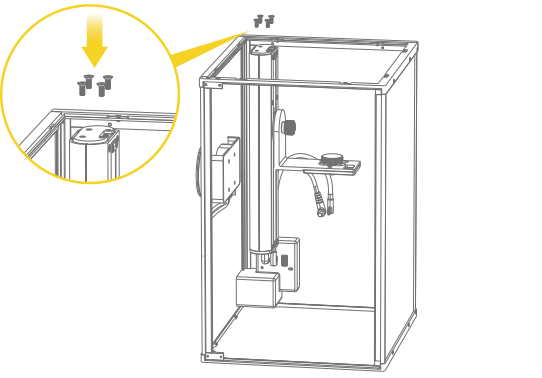

(3) Flip the Standard Enclosure upside down. Secure the Electric Stand to the Base Plate with four M4*5 screws using the H2.5 hex key.

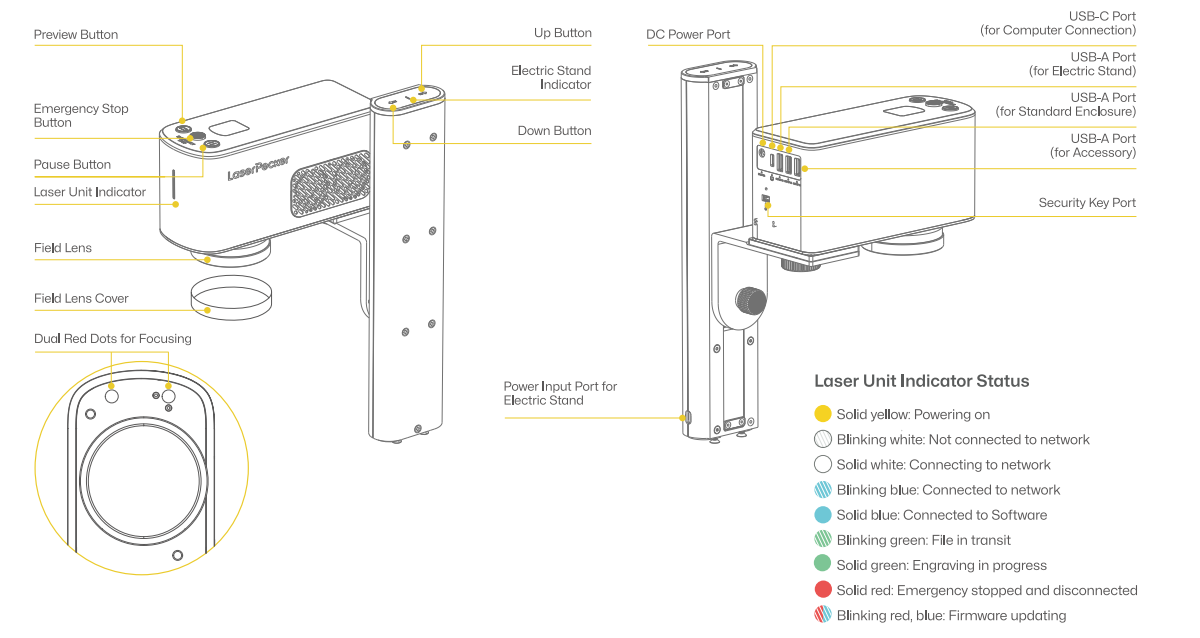

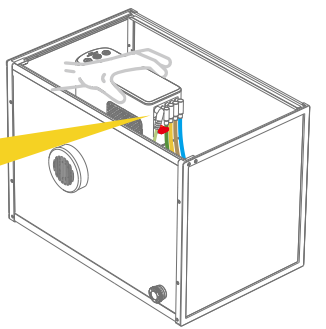

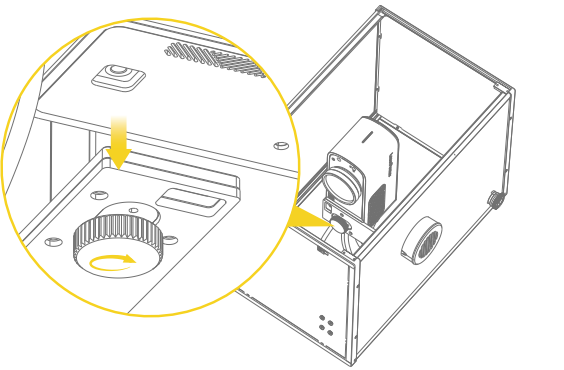

(4) Place the Standard Enclosure as shown in the figure. Hold the Laser Unit and connect it step by step:
- 0.4m DC power cable → first power input port
- 0.35m USB-C to USB-C data cable → second port
- USB-A end of 0.6m USB-A to USB-C power cable → third port
- USB-A end of Standard Enclosure fan power cable → fourth port
- USB-A end of 0.6m USB-A to USB-C third-axis data cable → fifth port (optional)
- Insert the security key into the dedicated port marked with a lock icon 🗝

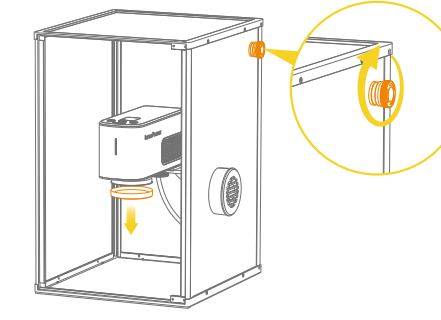

(5) Tighten the fixing knob counterclockwise until securely attached.

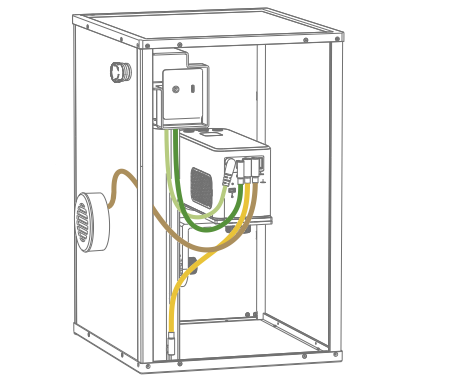

(6) Position the Standard Enclosure as shown in the figure. Check all connection cables according to the diagram.
(7) Connect the AC power cable to the adapter, then plug into the AC input port on the back of the Standard Enclosure. After checking that all connections are secure, switch on the power.
(8) Turn the emergency stop button clockwise to unlock it and remove the lens cover from the Laser Unit.
Step 4: Software Connection
Wi-Fi Connection for First-time Setup or Network Change
When connecting to Wi-Fi for the first time, the machine must be configured for Wi-Fi.
Before proceeding, ensure the following:
• The mobile phone is connected to a 2.4GHz Wi-Fi network.
• The LP2 Plus Laser Unit is powered on, and the indicator light is flashing white.

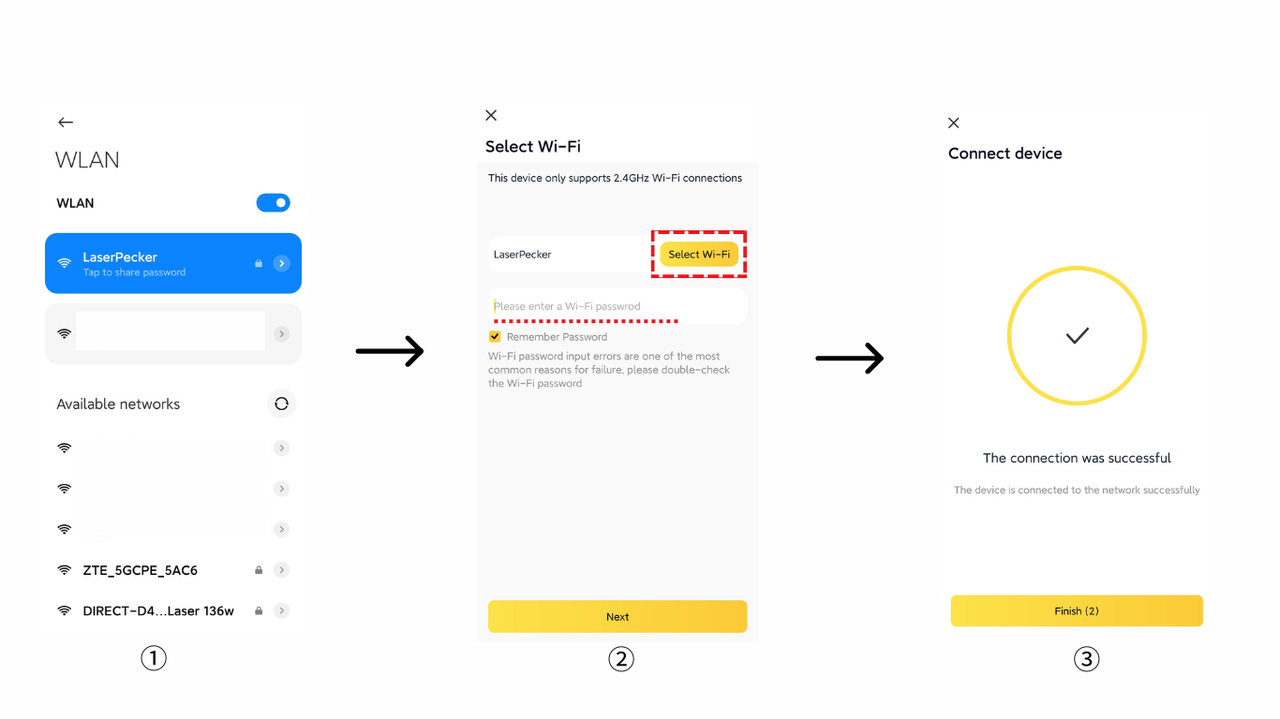

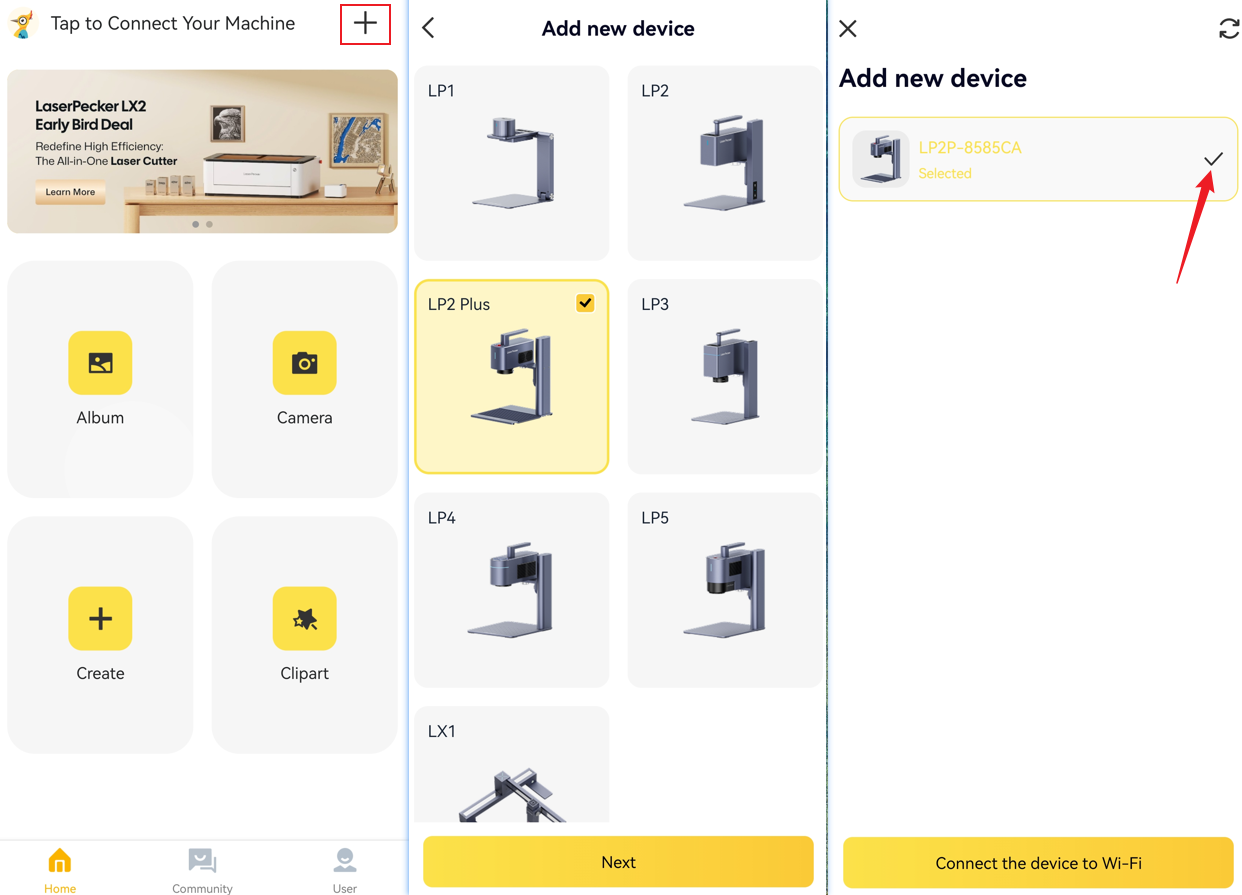

Open the LaserPecker Design Space App and tap the "+" button in the top-right corner. Select the machine model "LP2 PLUS" and tap "Connect the device to Wi-Fi".
Follow the instructions to select a Wi-Fi network (ensure both the machine and your phone are connected to the same 2.4 GHz network).

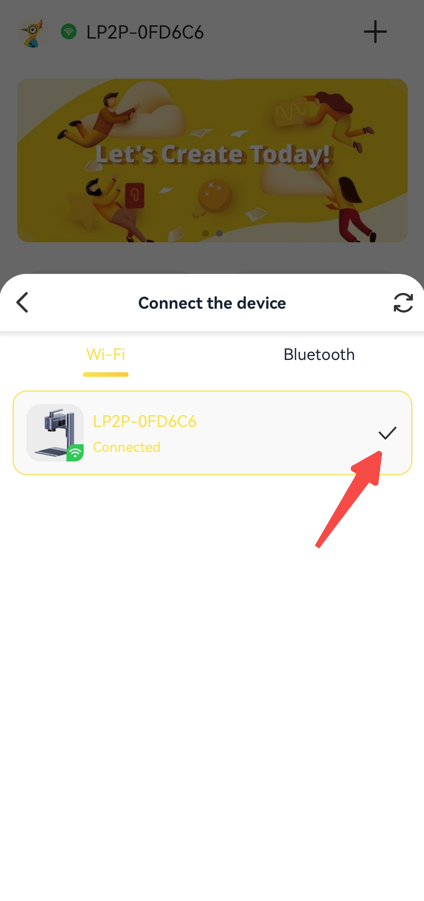

When entering the password, it is recommended to enable "Show Password" to verify accuracy. Then, tap the "Next" button and wait for the device to complete the network configuration. When the blue indicator light on the Laser Unit remains solid, the device is successfully connected to the mobile phone.
If the network configuration fails, check the following:
• Ensure the mobile phone and the application are connected to the same 2.4GHz Wi-Fi network.
• Ensure the Wi-Fi password is correct (case-sensitive, including special characters).
Step 5: Using the Device
(1) Connect LP2 Plus to the LaserPecker Design Space App.

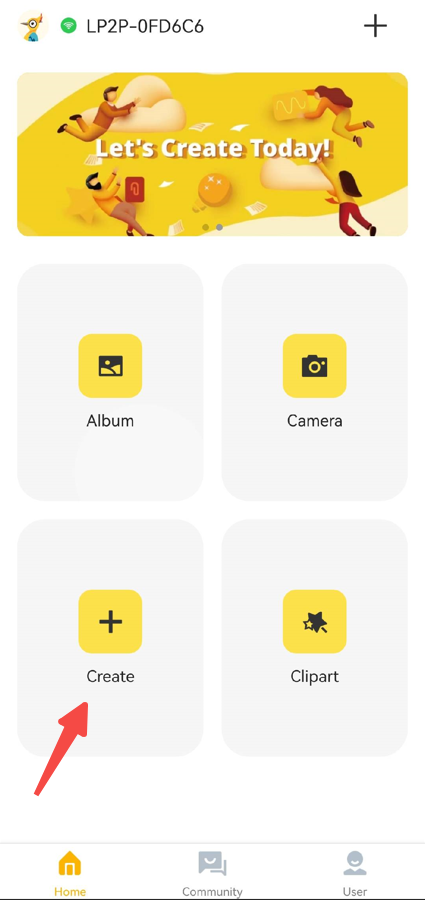

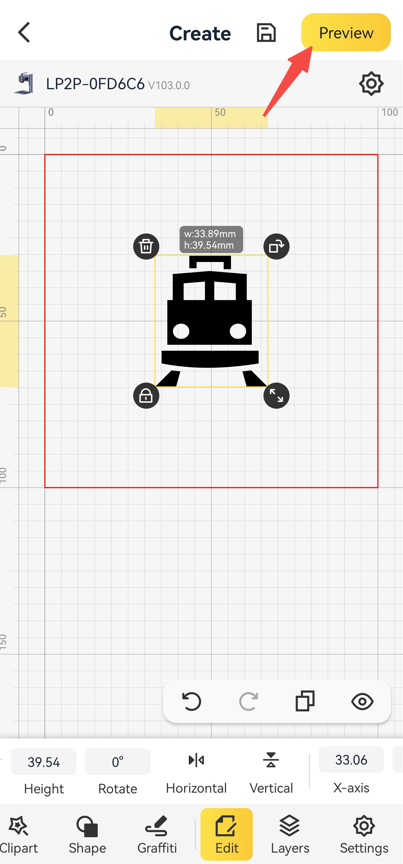

(2) Tap "Create" to access the canvas.
(3) Import the image, text, or pattern to be engraved from the toolbar on the bottom of the canvas.

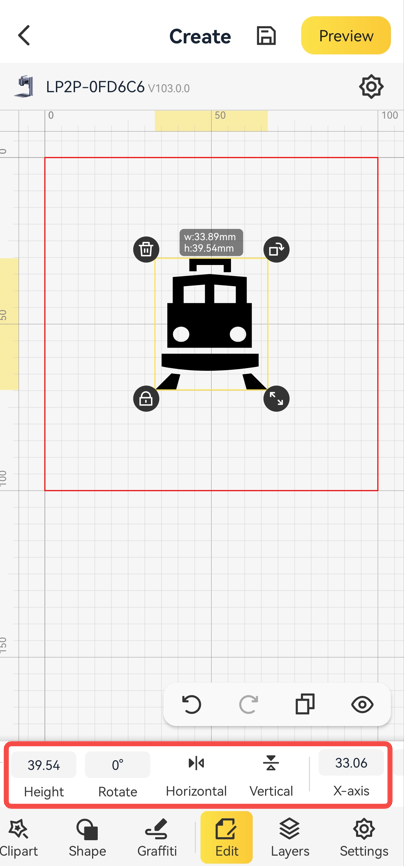

(4) Swipe the editing bar to the left and adjust the file’s size and position as needed.

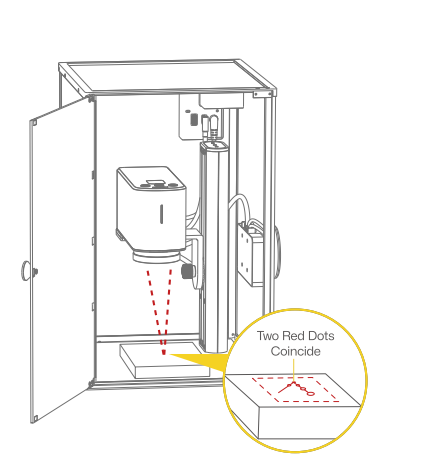

(5) Place the engraving material onto the base plate of the Standard Enclosure.

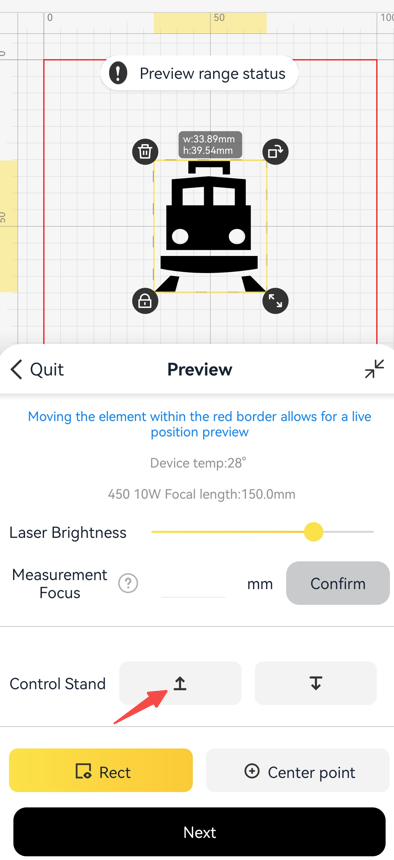

(6) Tap "Preview" to start focal distance adjustment.

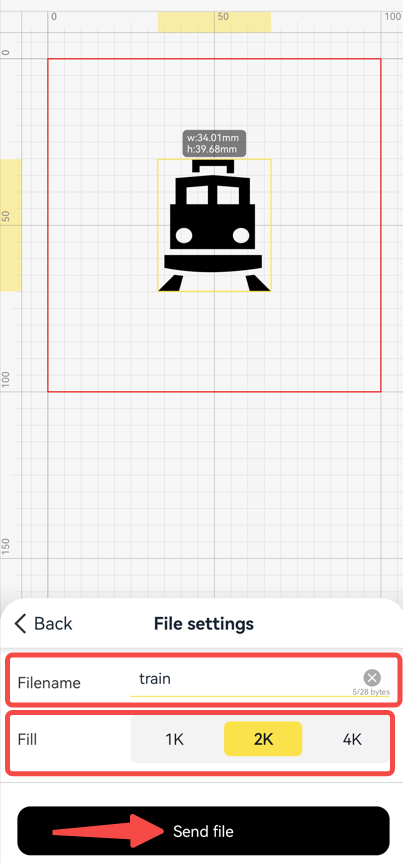

(7) Set resolution, edit file name, and tap "Send file".

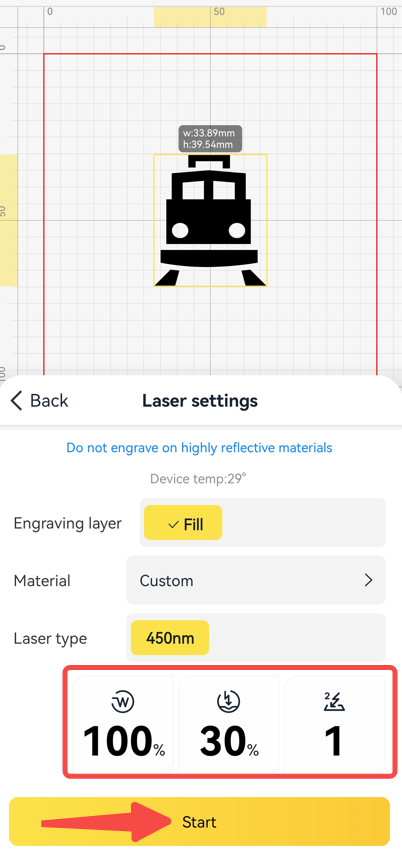

(8) Set engraving parameters and tap "Start" to begin engraving.
