The LP2 Plus Laser Unit features three buttons, each with distinct functions:
1. Pause & Sleep Button
- Feature 1: Pause
A single press pauses engraving. For safety reasons, if you need to resume engraving, please restore it through the software. - Feature 2: Sleep Mode
Long press for 3 seconds to enter sleep mode. Long press again for 3 seconds to exit sleep mode.

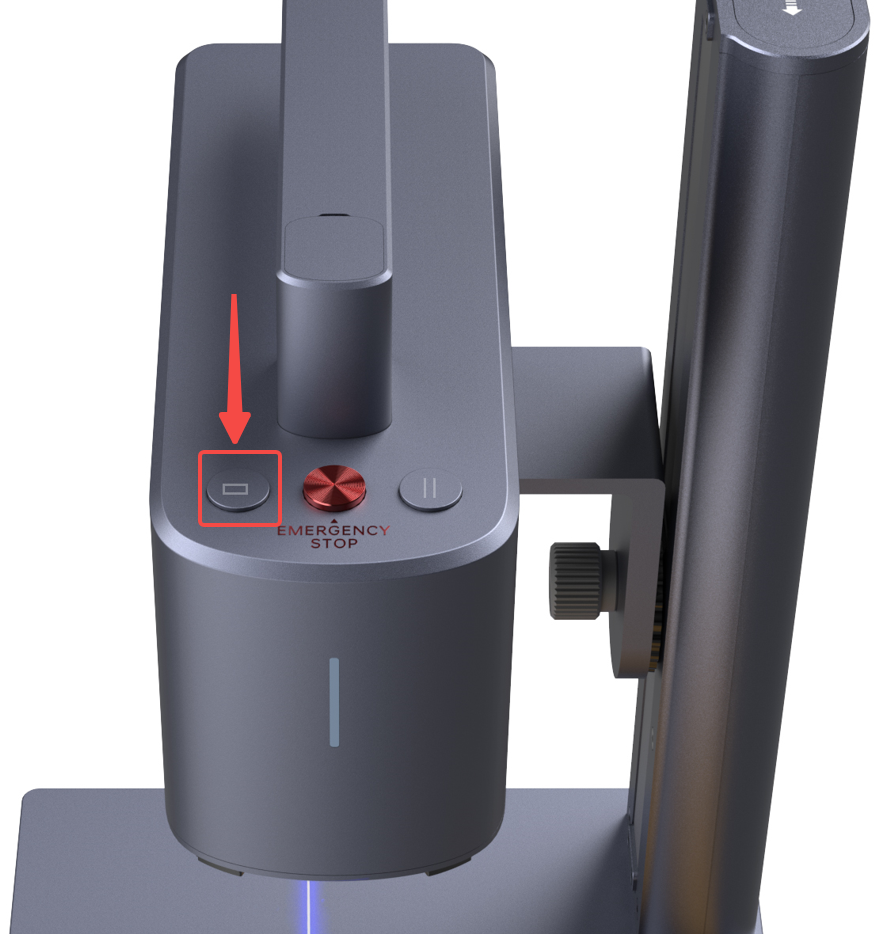

2. Preview & AP Connection Button
- Feature 1: Preview Mode
A single press starts the preview. Press again to exit preview mode. - Feature 2: AP Mode
Long press for 3 seconds to enter AP mode (status light turns purple). Long press again for 3 seconds to exit AP mode.

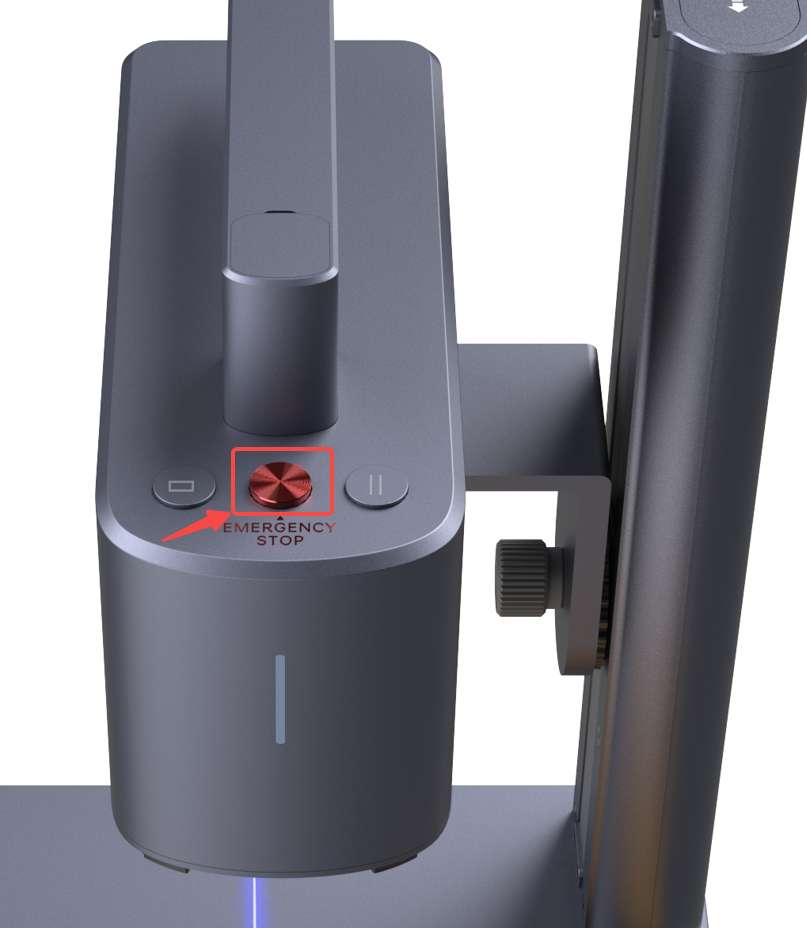

3. Emergency Stop Button
- Press the Emergency Stop Button to immediately stop the machine and cut off the internal power of the laser (status light turns red).
- Press again to restore the machine to normal state. However, this resets the machine, interrupting any ongoing engraving progress.
