This guide provides easy steps to use the Versatile Electric Roller with your LaserPecker LP2 Plus.
Introduction to the Versatile Electric Roller

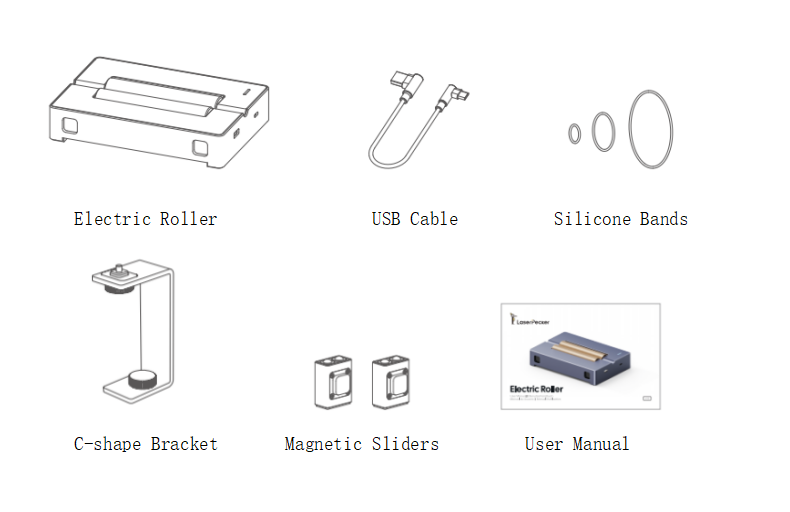

Package Contents:

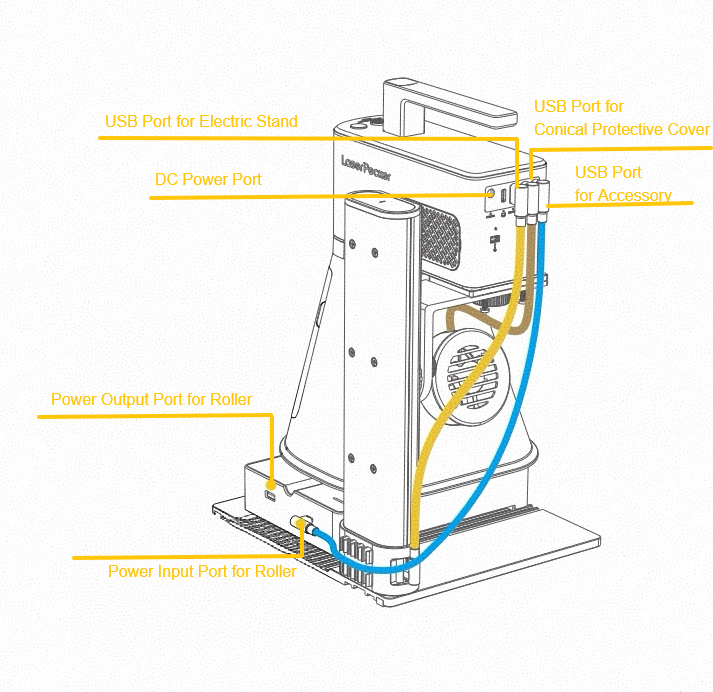

Placement and Ports of the Versatile Electric Roller:
Connect the Versatile Electric Roller according to the User Manual.

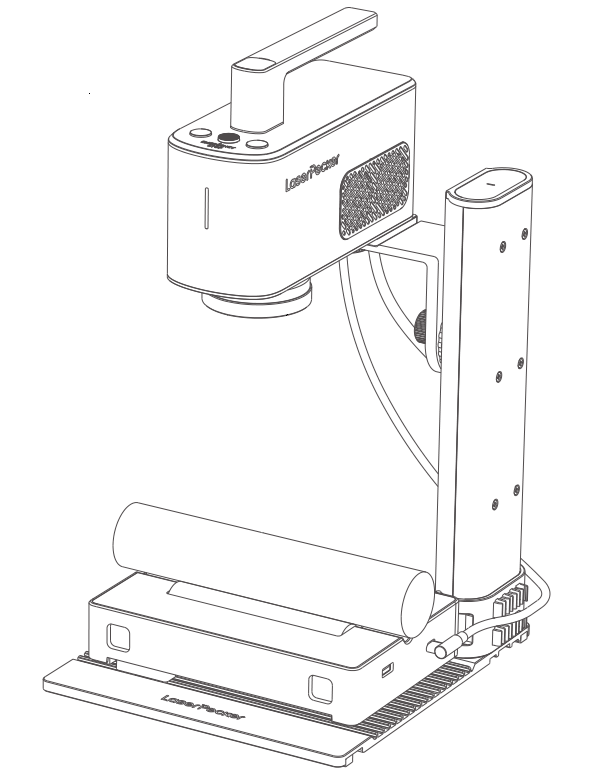

Ensure the Versatile Electric Roller and LP2 Plus are correctly positioned and connected.(Cylinder Mode)
Engraving Modes
The Versatile Electric Roller supports three engraving modes for different object types:

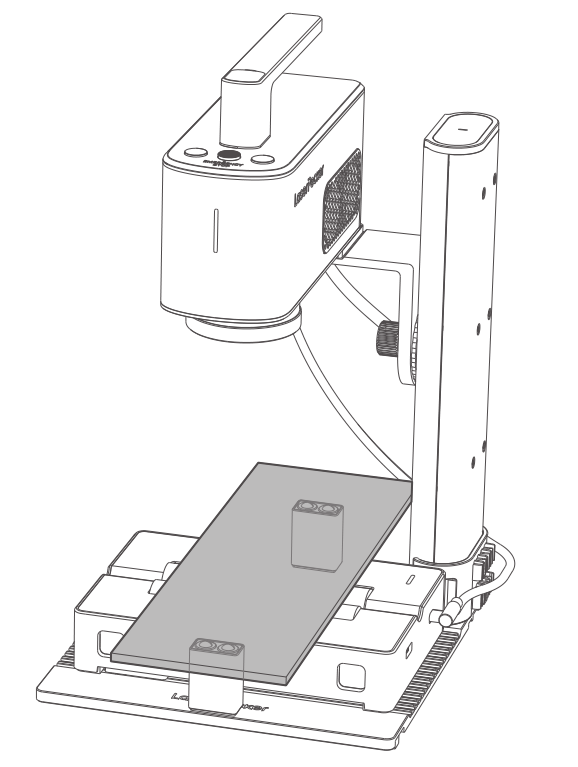

Slab Mode
Ideal for flat, long objects. Select "Slab" in the app, set focal distance to 150mm, preview the area, adjust power, depth, size, then start engraving.
Cylinder Mode
Works for cylindrical objects. Choose "Cylinder" in the app, set focal distance to 150mm, preview, adjust settings, then start engraving.
Trolley Mode
Perfect for heavy, long objects. Select "Trolley" in the app, set focal distance to 150mm, preview, adjust, then start engraving.

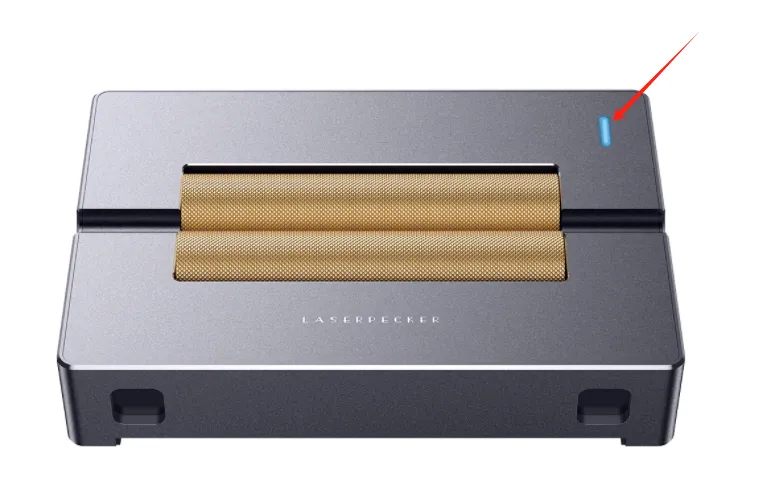

After turning on the power, check whether the indicator light is on.
Getting Started with the Versatile Electric Roller
Follow these steps to properly set up and use your LaserPecker LP2 Plus with the Versatile Electric Roller.
Step 1. Connecting Software

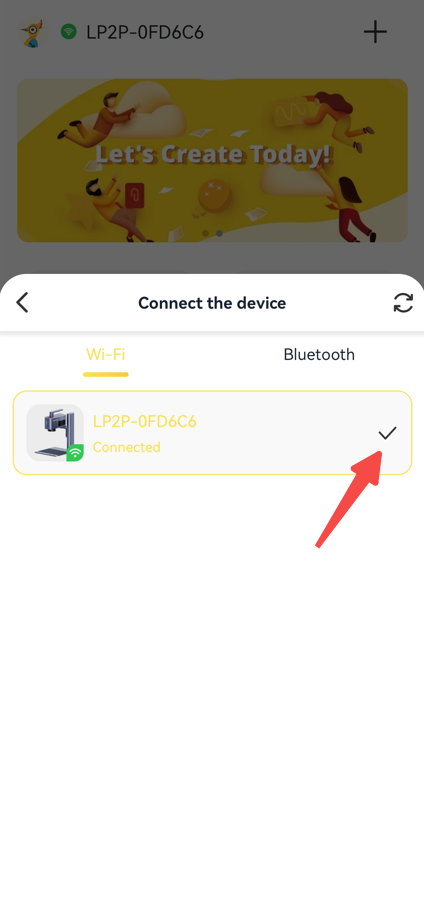

- Connect your LP2 Plus to the LaserPecker Design Space App.

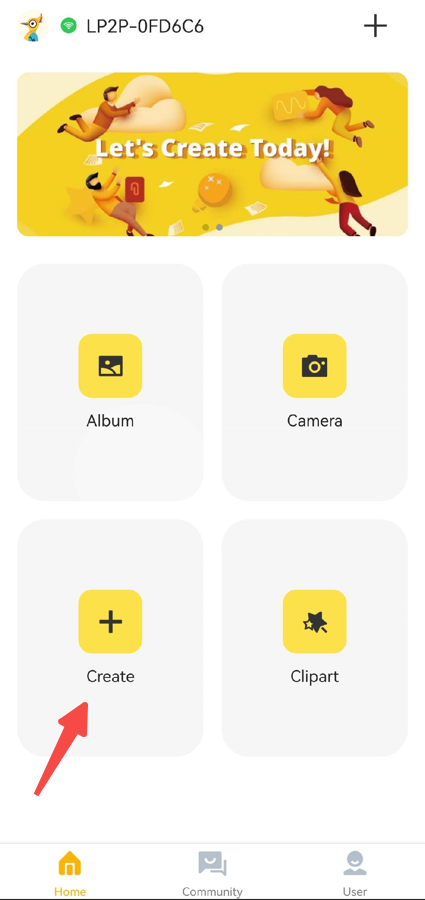

- Tap the "Create" button to access the canvas.
Step 2. Turn on the Versatile Electric Roller

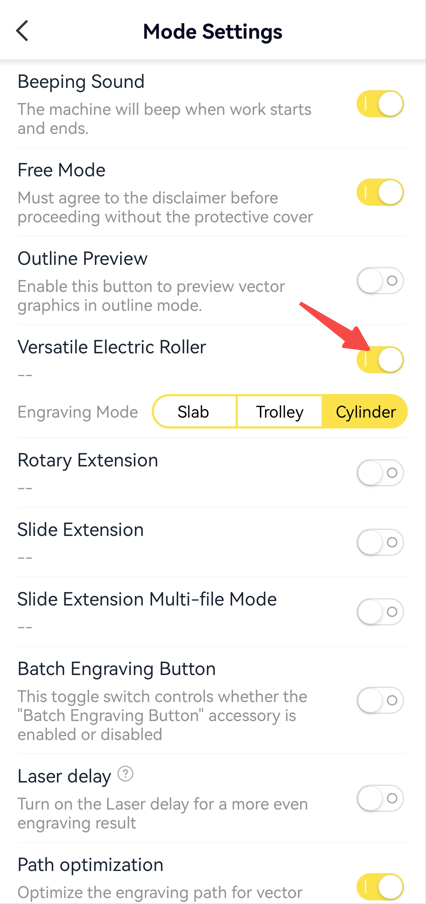

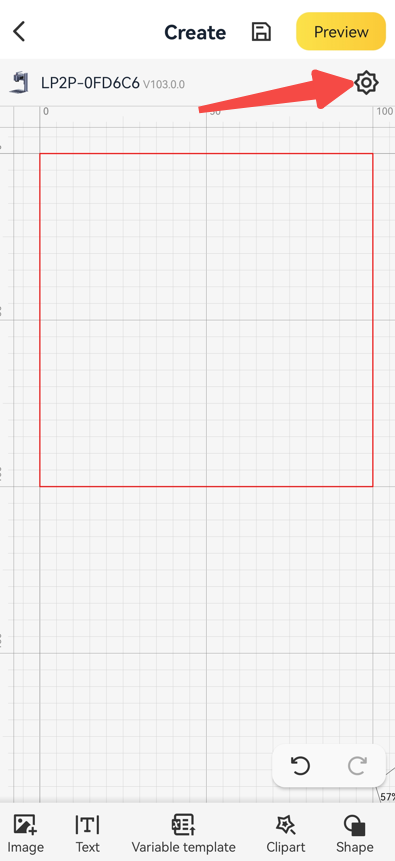

Tap the ⚙ button in the top right corner of the canvas to open the Mode Settings page, then enable the "Versatile Electric Roller" feature and select the Cylinder Mode, Slab Mode, or Trolley Mode as needed.
Step 3. Import Your Design

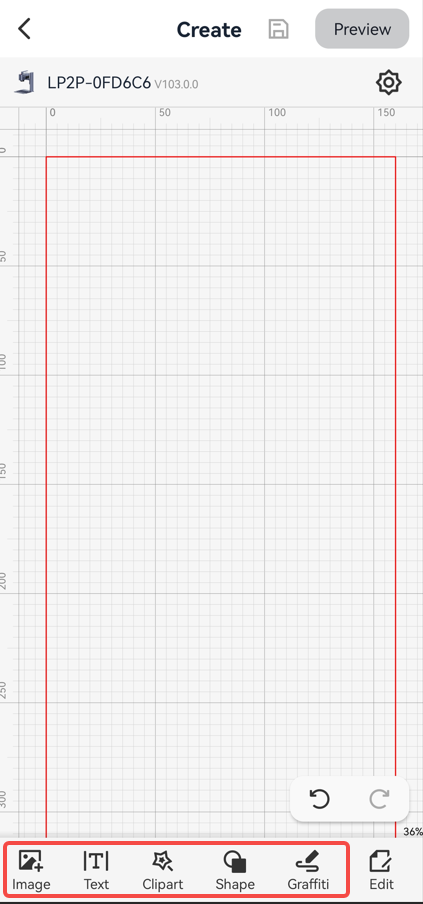

- Import the image, text, or pattern to be engraved from the toolbar on the bottom-left side of the canvas.

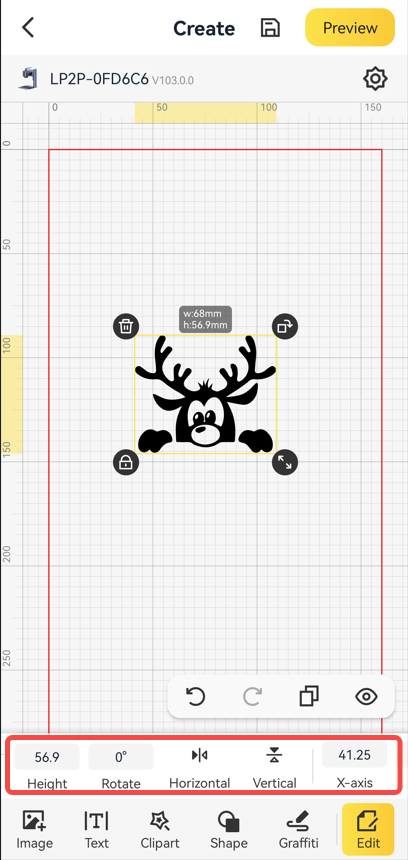

- Swipe the editing bar to the left and adjust the file’s size and position as needed.
Step 4. Preview

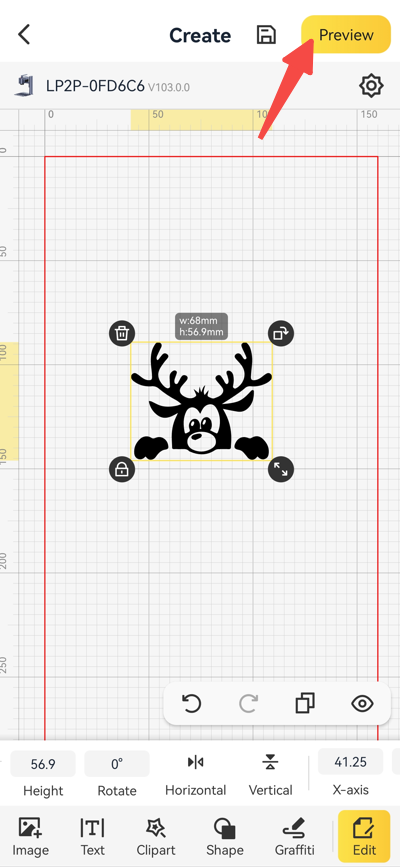

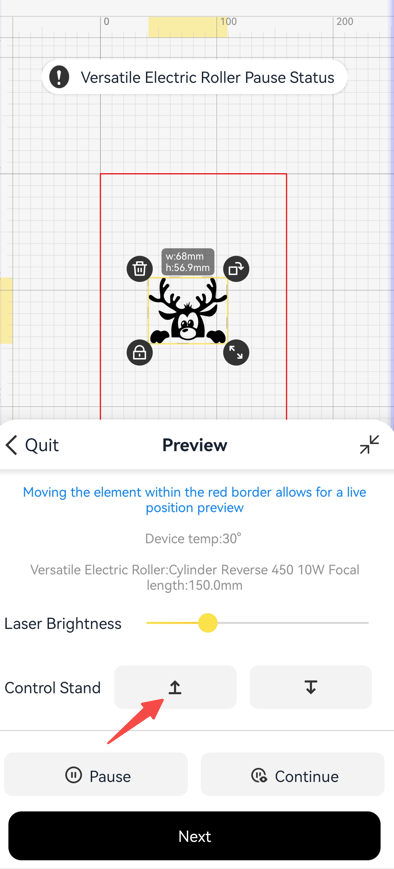

- Tap the "Preview" button in the top right corner of the canvas to start the focal distance adjustment.

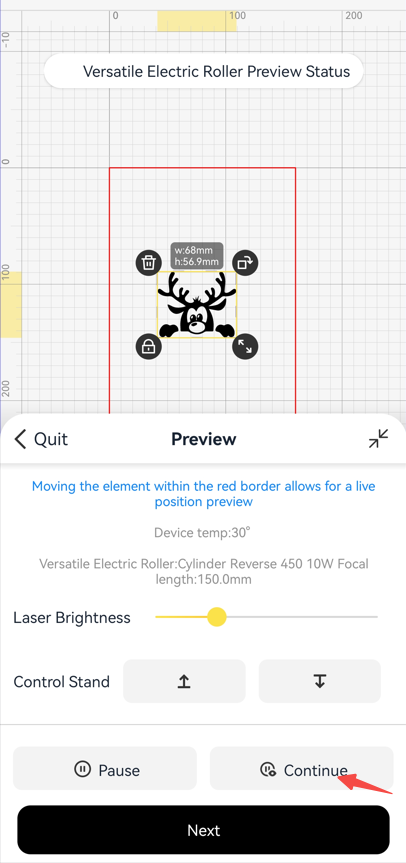

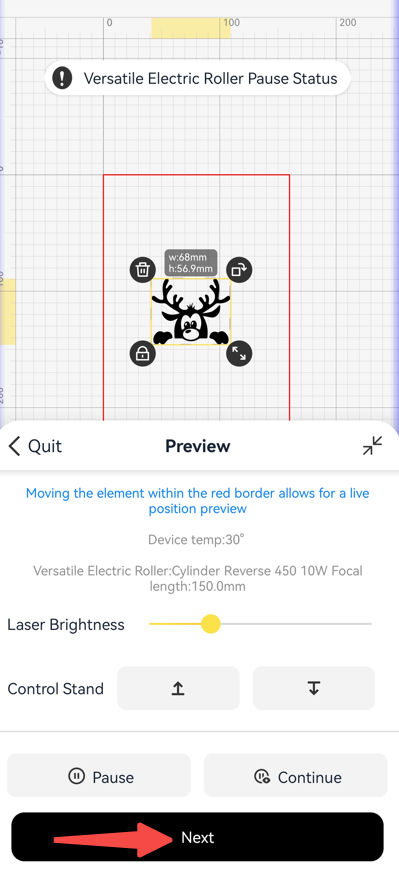

- After completing the focal adjustment, click the "Continue" button to start the preview. In Cylinder Mode, the preview range will appear as a straight line, accompanied by the movement of the Versatile Electric Roller.
Step 5. Start Engraving

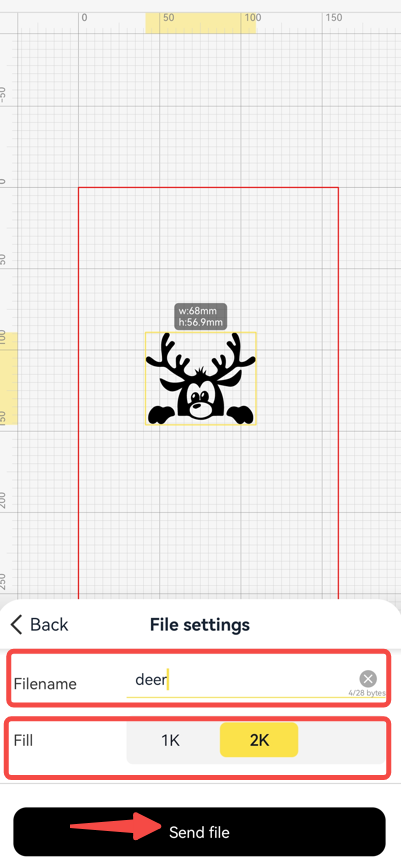

- Once the preview is complete, set the resolution, edit the file name, and click the "Send file" function.

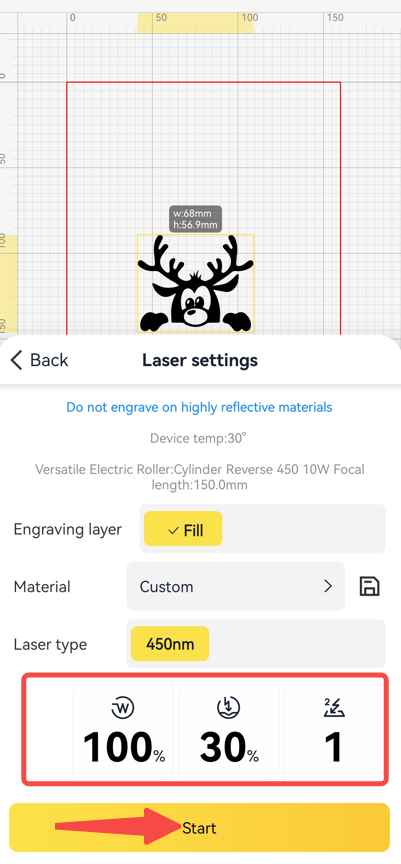

- After sending the file, set the engraving parameters as needed, then tap the "Start" button to start engraving.
Other Tips
- Placement direction of cylindrical objects affects the final result. If the object has directionality, such as a cup, make sure the cup’s opening is positioned to the right.
- Adjusting the rotation angle of the design allows the engraving pattern on the cylindrical object to be oriented either horizontally or vertically.

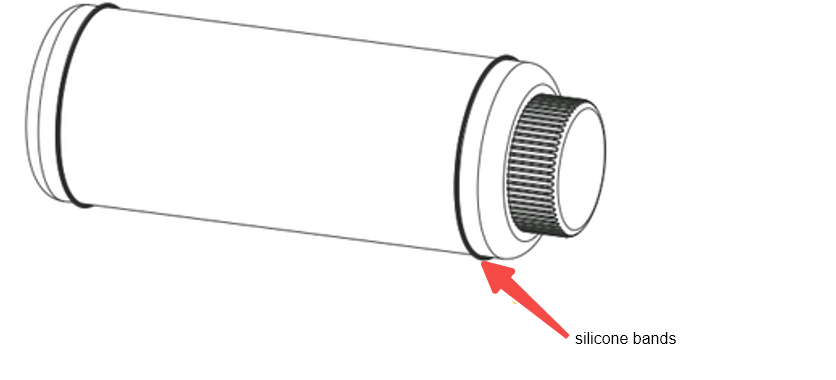

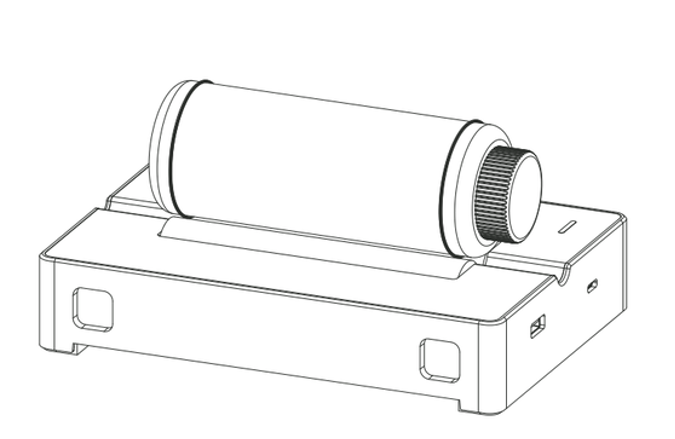

- If the surface of the cylindrical object is too smooth, use the included black silicone bands during engraving.
