Please choose a room with open space and good ventilation, and make sure the floor/desk is flat and solid to place the machine. Unbox the LaserPecker LX2 package. Have two people lift the LaserPecker LX2 out of the box. Open the top lid of the machine and take out the items in the package. If any items are missing or damaged, please contact customer support at support@laserpecker.com for after-sales support.
LaserPecker LX2 Package List

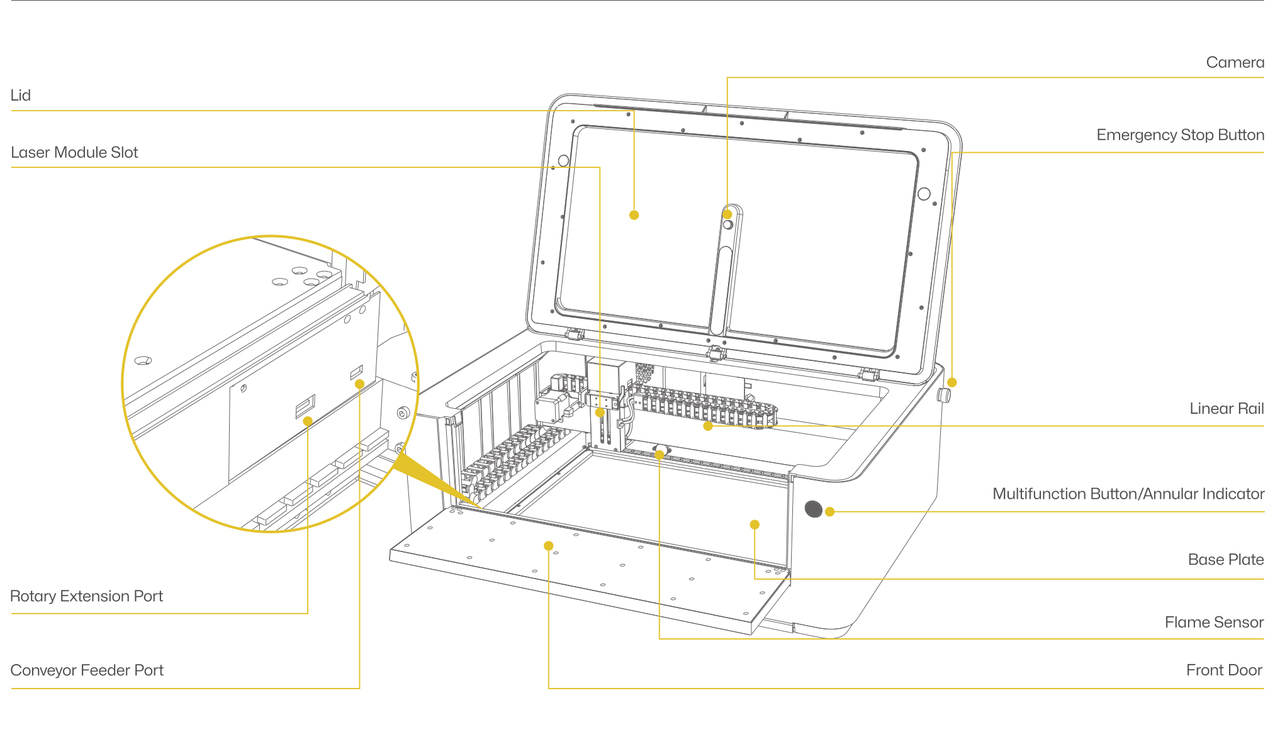

Component Introduction
Button Functions and Definitions
| Buzzer | Annular Indicator | Machine Status | Button Operation |
|---|---|---|---|
| / | Blinking White | Standby | / |
| / | Blinking Blue | Network Configured, Not Connected to Software | / |
| / | Solid Blue | Standby, Connected to Software | / |
| / | Blinking White | Auto-Focusing | Long Press to Exit |
| / | Blinking White | Measuring Curved Surface | Long Press to Exit |
| / | Blinking White | Material Positioning | Short Press to Mark; Long Press to Exit |
| / | Solid Purple | Previewing | Long Press to Exit |
| / | Solid Green | Ready to Start | Short Press to Start; Long Press to Cancel |
| Beeps once | Solid Green | Booting | / |
| Beeps once | Blinking White | Configuring Network | Long Press Button for 5s to Enter Network Configuration Mode |
| Beeps once | Breathing RGB | Processing | Short Press to Pause; Long Press to Cancel |
| Beeps once | Blinking Red & Blue | Firmware Upgrading | / |
| Beeps once | Blinking Purple | Processing Paused | Short Press to Resume; Long Press to Stop |
| Beeps once | Blinking Purple | Device Error (Machine Tilted During Engraving) | / |
| Beeps three times | Blinking Red | Firmware Startup Failed | Reboot After Power Off for 3 Seconds |
| Continuous beep | Blinking Yellow | Laser Module Not Properly Connected / Lid Not Fully Closed | / |
| Continuous beep | Blinking Red | Flame Detected | Short Press to Cancel Alarm |
1. Preparation before Use
1.1 Install the Laser Module

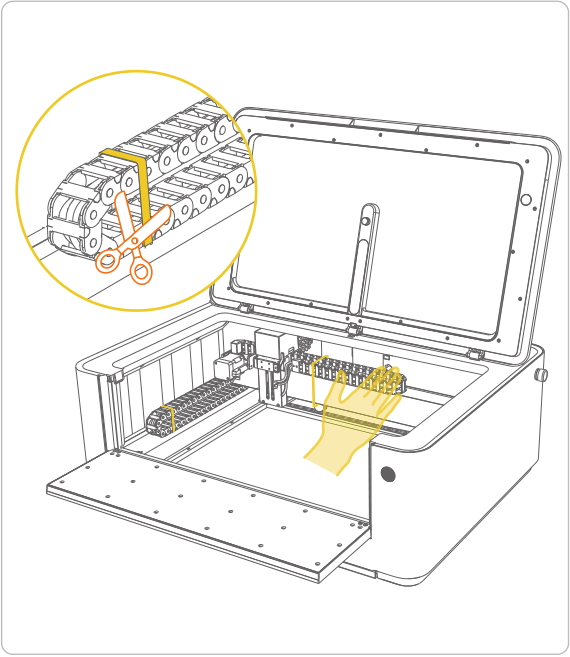

(1) Open the lid and front door. Cut all cable ties on both sides and slightly pull the beam outward to make space for installing the Laser Module.

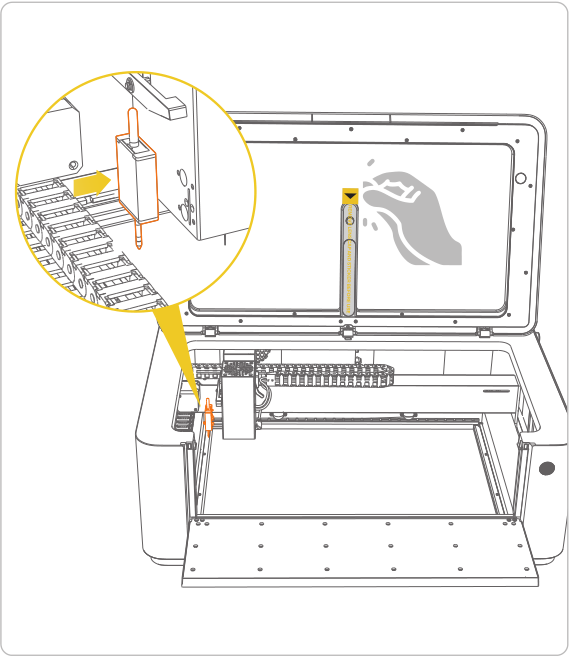

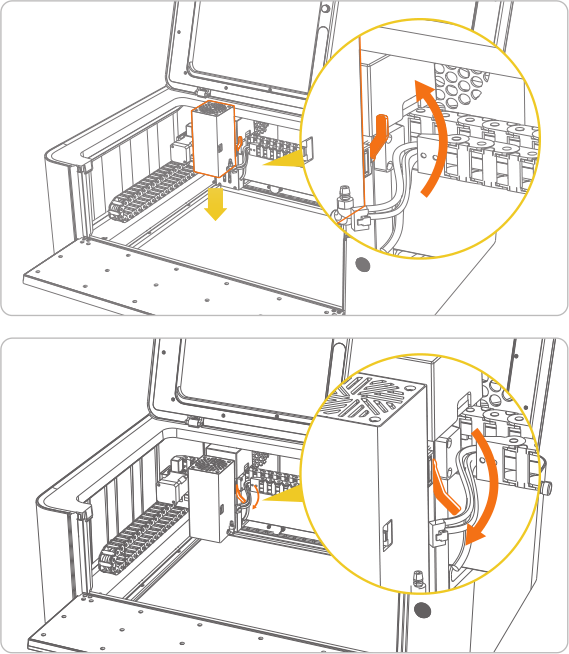

(2) Before assembly, ensure the right-side handle is positioned at the top. Place the Laser Module into the Laser Module slot. Then press down the right-side handle to lock the module in place.

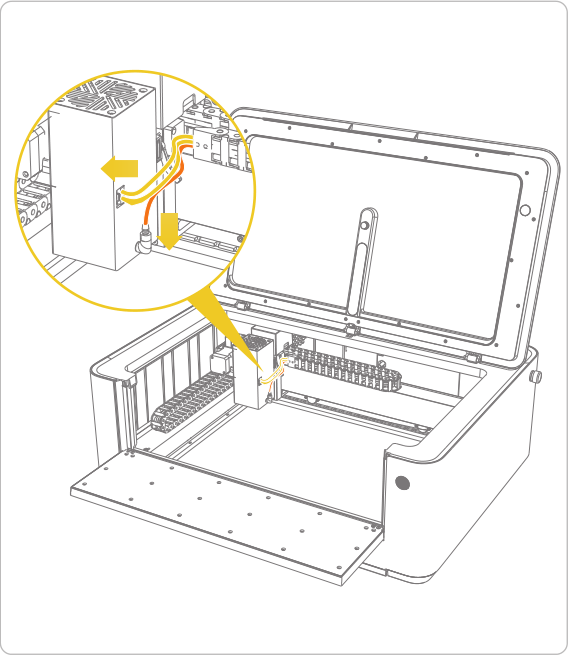

(3) Connect the power cable and air tube to the Laser Module.
(4) Attach the Distance Sensor (in Toolbox) onto the Laser Module. Be sure to remove the protective film from the camera.
1.2 Install the Exhaust Pipe

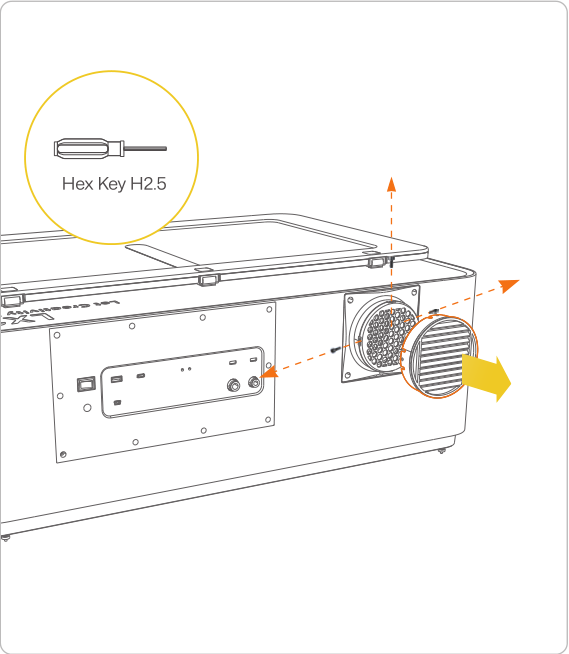

(1) Use the hex key H2.5 to unscrew the 3 screws of the louver on the back of the machine. Then remove the louver by sliding it left or right.

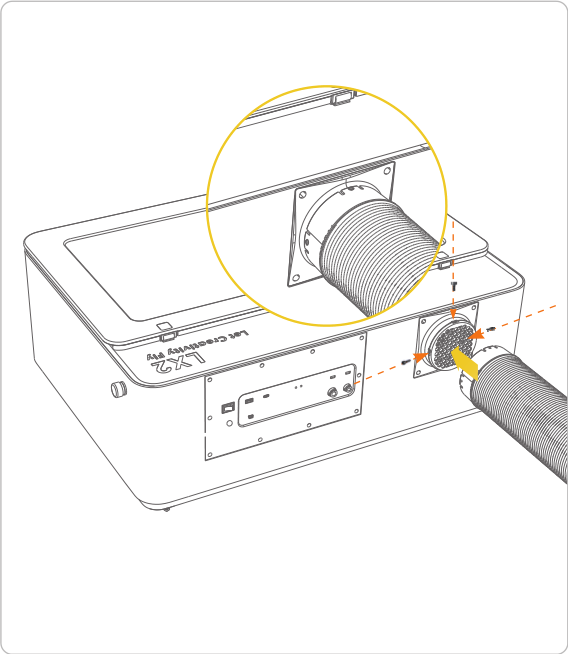

(2) Attach the smoke exhaust pipe to the smoke outlet, and secure back the 3 screws.
1.3 Connect the Power Supply

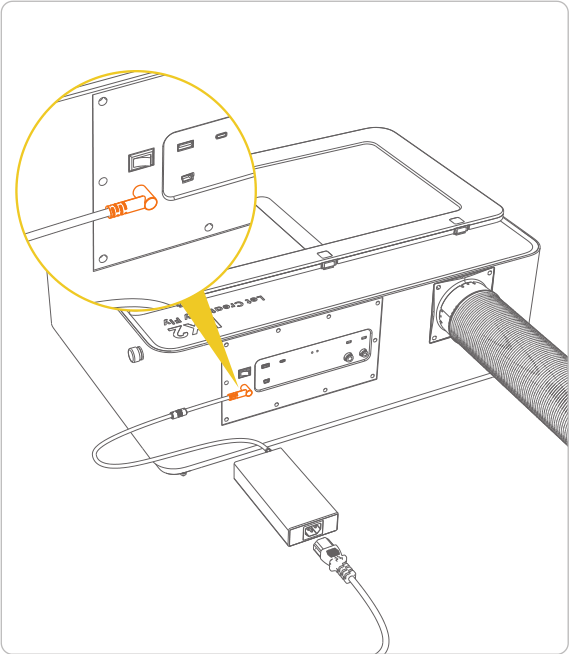

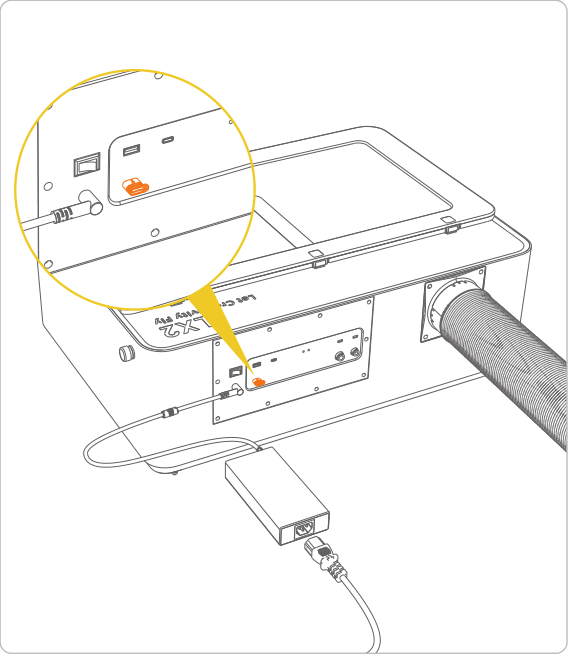

Connect the power cable to the AC power adapter, then insert it into the DC power port.
1.4 Insert the Security Key
Take one of the security keys from the toolbox and insert it into the key interface on the back of the machine.
1.5 Install the Slats (Skip this step if you are not performing cutting operations.)
When cutting materials like wood boards, use the slats to improve airflow, resulting in better cutting performance.

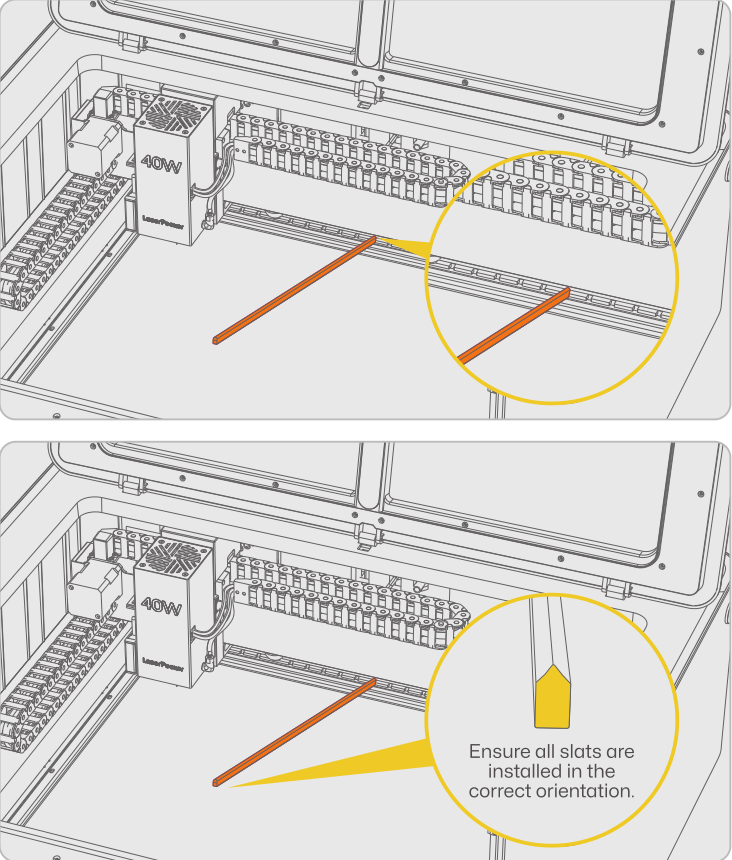

(1) Take the slats out of the packaging. Insert them into the slots on the front and rear frames inside the machine.
(2) The spacing between the slats can be adjusted based on your needs. The standard LX2 package includes 4 slats. (If more slats are needed, additional ones can be purchased separately.)
1.6 Turn on Power

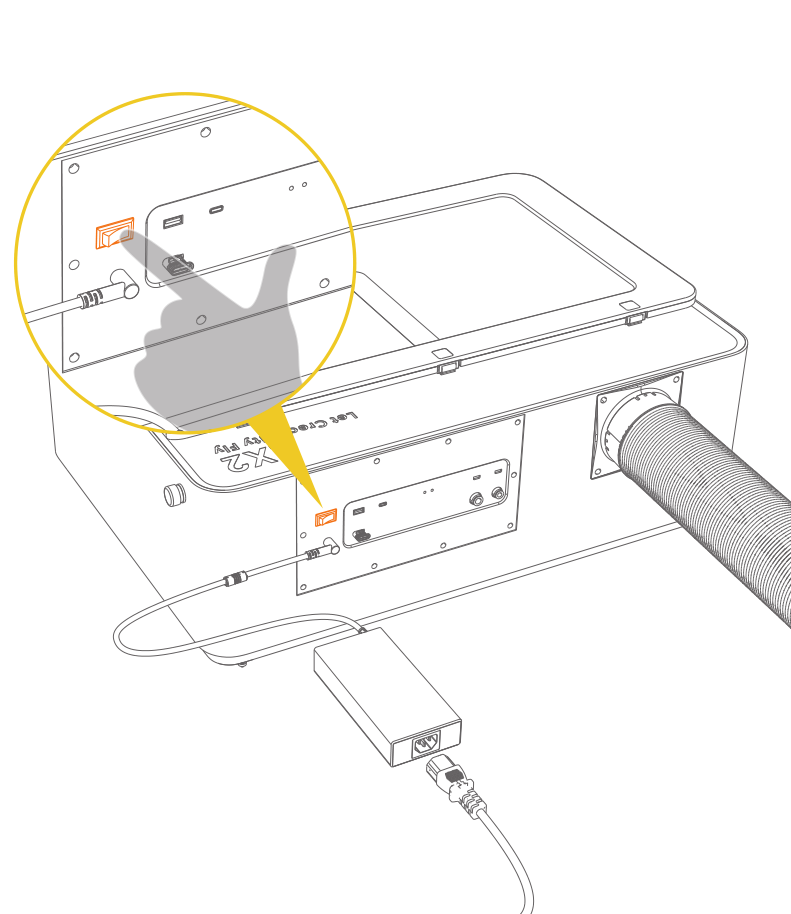

(1) Turn on the LX2 power switch.

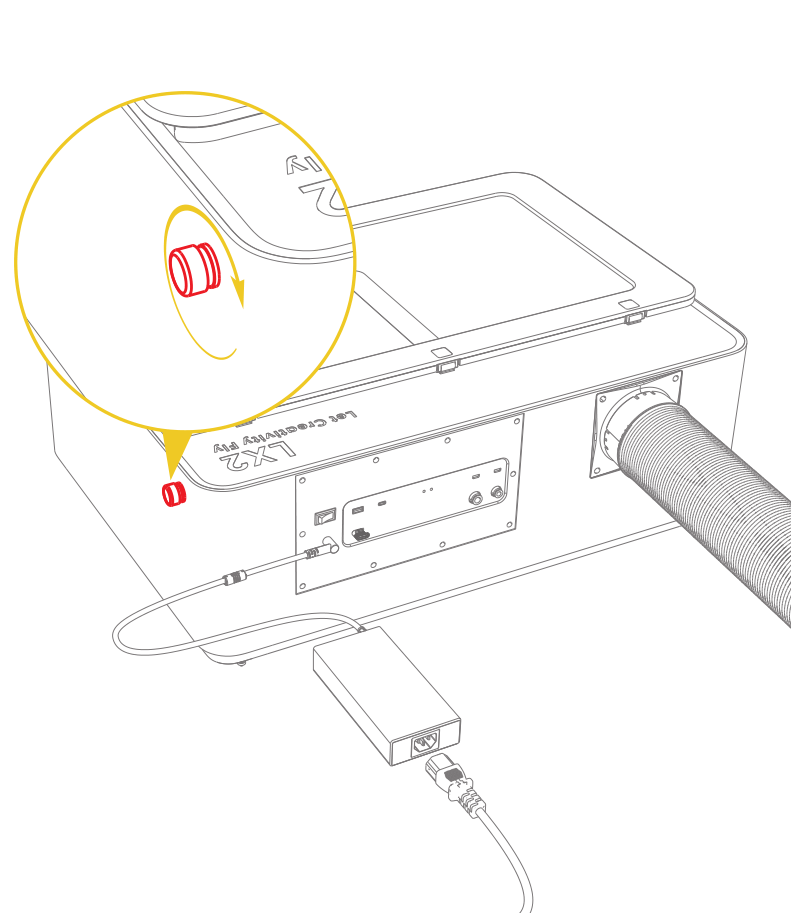

(2) Before use, make sure to release the Emergency Stop Button by turning it clockwise.
2. Connect to PC Software
2.1 Connect via the USB-A to USB-C Cable (1.5 m)
(1) Connect the USB-A end to the computer and the other end to the USB port at the back of the LaserPecker LX2.

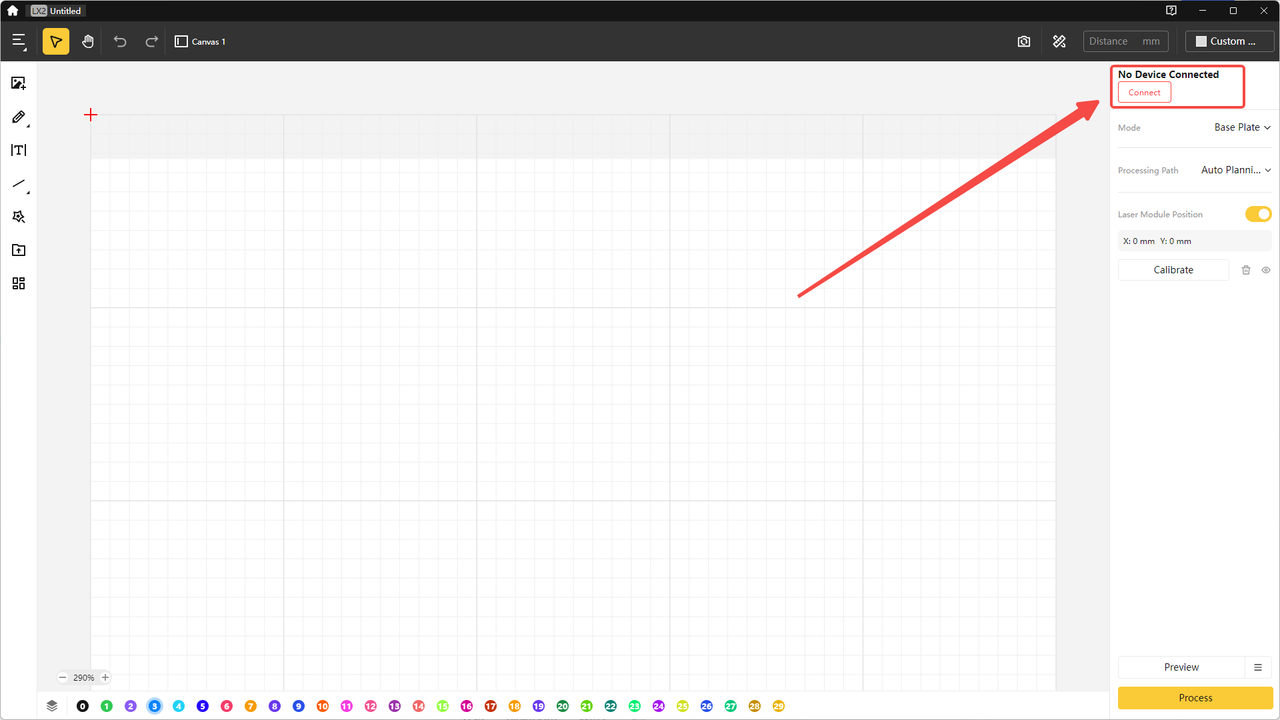

(2) Open the LDS software, click "Connect" in the upper right corner, click "USB", and select the identified COM7 (COM7 is an example, and the COM ports of different machines are different).
2.2 Connect to PC Software through Wi-Fi (First-time Wi-Fi setup or changing the network)
(1) Before setting up the Wi-Fi connection, you must first connect the machine to the computer using the USB-A to USB-C Cable (1.5 m). This USB connection allows you to configure the Wi-Fi settings on the machine.

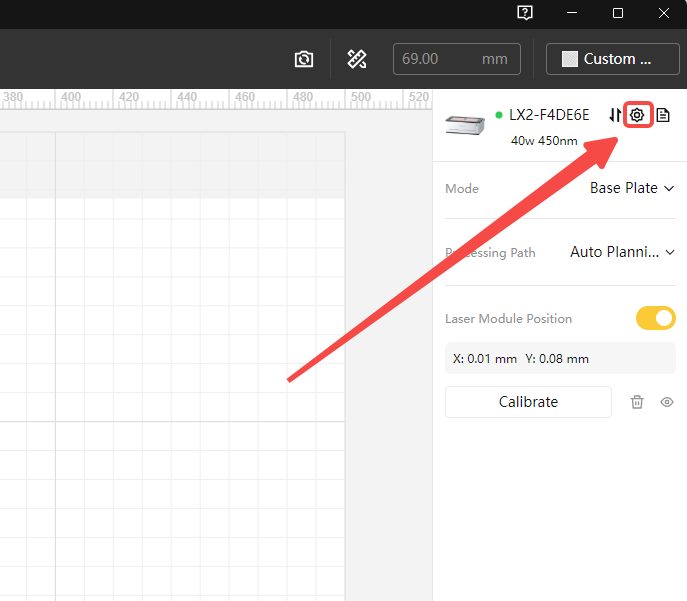

(2) After connection, enter the machine setting page on the upper right corner in the software.

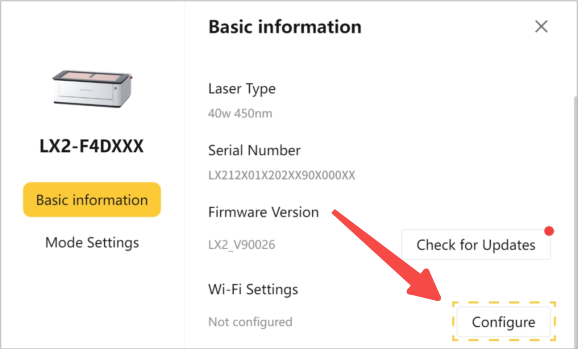

(3) Select "Wi-Fi Settings" and click "Configure" to configure the Wi-Fi network for the machine.

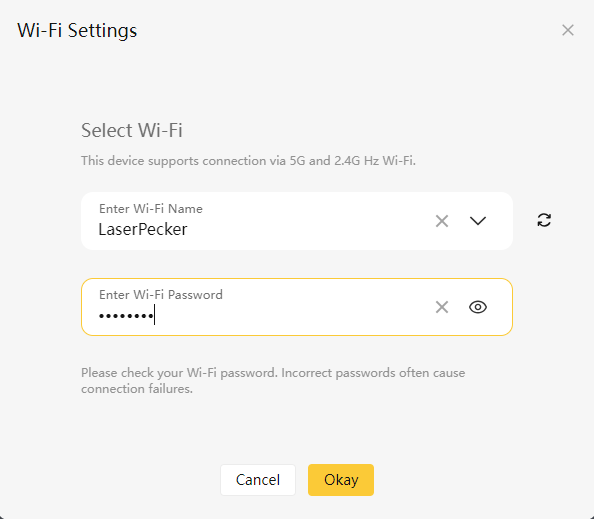

(4) Choose a Wi-Fi network (LaserPecker LX2 supports connection via both 2.4G and 5G Wi-Fi) and enter the Wi-Fi password (for accuracy, it is recommended to enable password preview). Verify that the Wi-Fi name and password are correct, then click the Confirm button and wait for the successful configuration of the Wi-Fi connection.

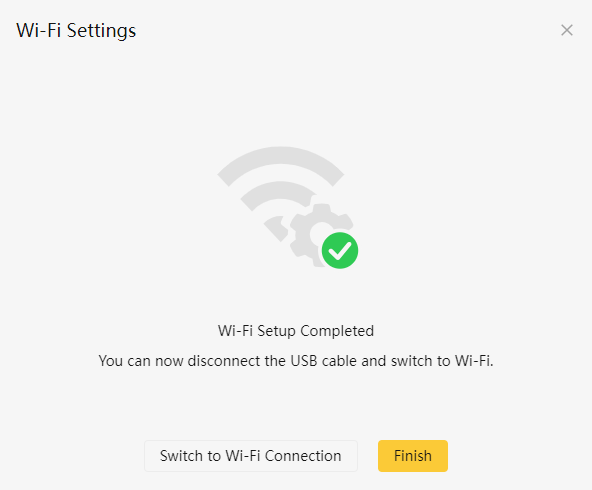

(5) When the Wi-Fi is successfully configured, please click the "Switch to Wi-Fi Connection" button.

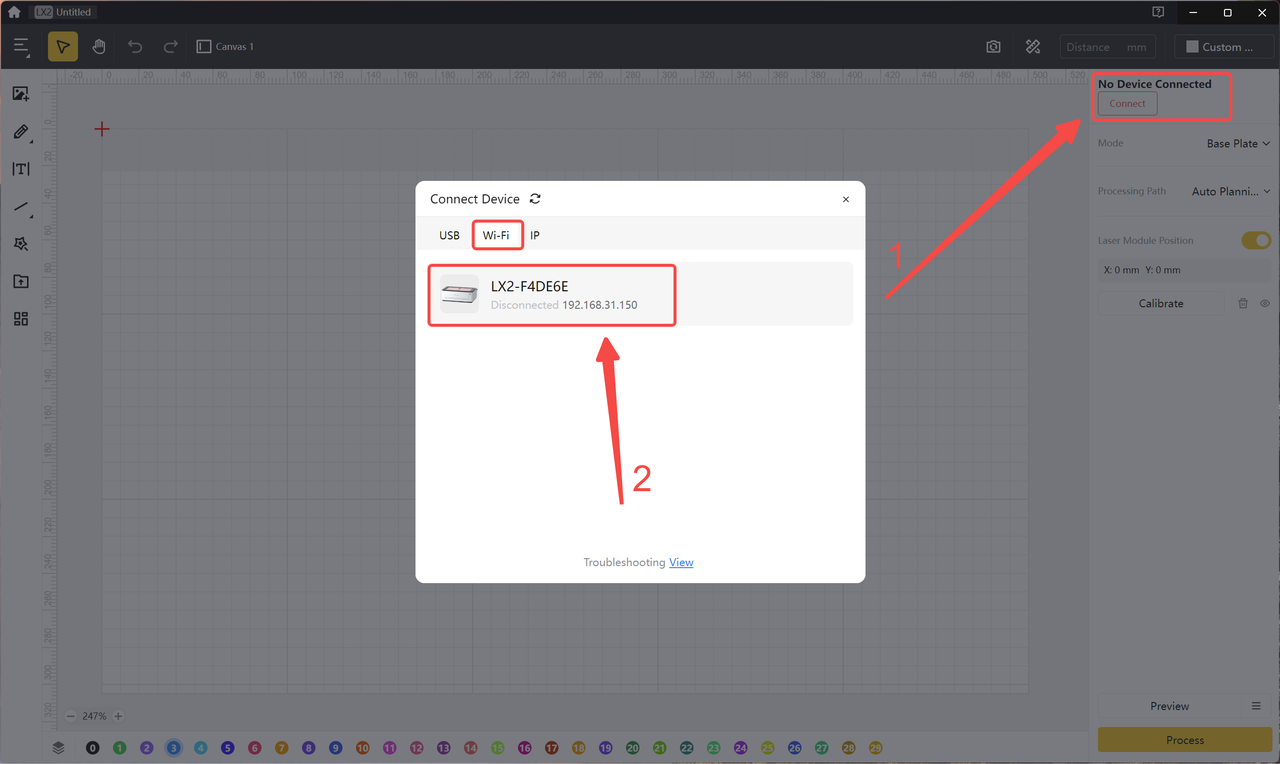

(6) Click "Connect the Device" in the upper right corner, then click "Wi-Fi" and choose your LX2 machine to connect.
1. Both the machine and the computer must be under the same WiFi network.
2. These steps are for the first-time Wi-Fi network setup or changing the Wi-Fi network. If you have configured the Wi-Fi network, go straight to Step (6).
3. Technical Specifications
| Product Model | LX2 |
| Size | 780 x 609 x 281 mm (30.7 x 24.0 x 11.1 inches) |
| Net Weight | 22.5 kg (49.6 lbs, without Laser Module) |
| Working Area | 500 x 305 mm (19.7 × 12.0 inches) |
| Supported File Formats | PC Software: G-code / JPG / JPEG / PNG / SVG / BMP / DXF / TIF Mobile App: G-code / JPG / JPEG / PNG / SVG / BMP |
| Supported OS | iOS 13.0+, Android 7.0+, MacOS 10.15+, Windows 10+ |
| Supported Software | Laserpecker Design Space, Compatible with Lightburn |
| Input Power | DC (24V, 10A) |
| Connection Method | Wi-Fi, USB, IP |
| Operating Temperature Range | 0–35 °C (32–95 °F) |
| Operating Humidity Range | 5%–85% RH (Non-condensing) |
| Safety Certifications | CE, ROHS, FCC, FDA, PSE, UKCA, TELEC |
4. LaserPecker LX2 User Manual
| Language | File |
|---|---|
| English | LX2 User Manual.pdf |
| Spanish | Manual de Usuario del LX2.pdf |
| French | Manuel d'utilisation du LX2.pdf |
| German | LX2 Benutzerhandbuch.pdf |
| Japanese | LX2 取扱説明書.pdf |
| Korean | LX2 사용자 설명서.pdf |
