The standard material processing height for the LaserPecker LX2 machine is 45mm. To engrave materials taller than 45mm, you can install the Riser Base (sold separately) to extend the maximum processing thickness to 150mm.
1. Package List

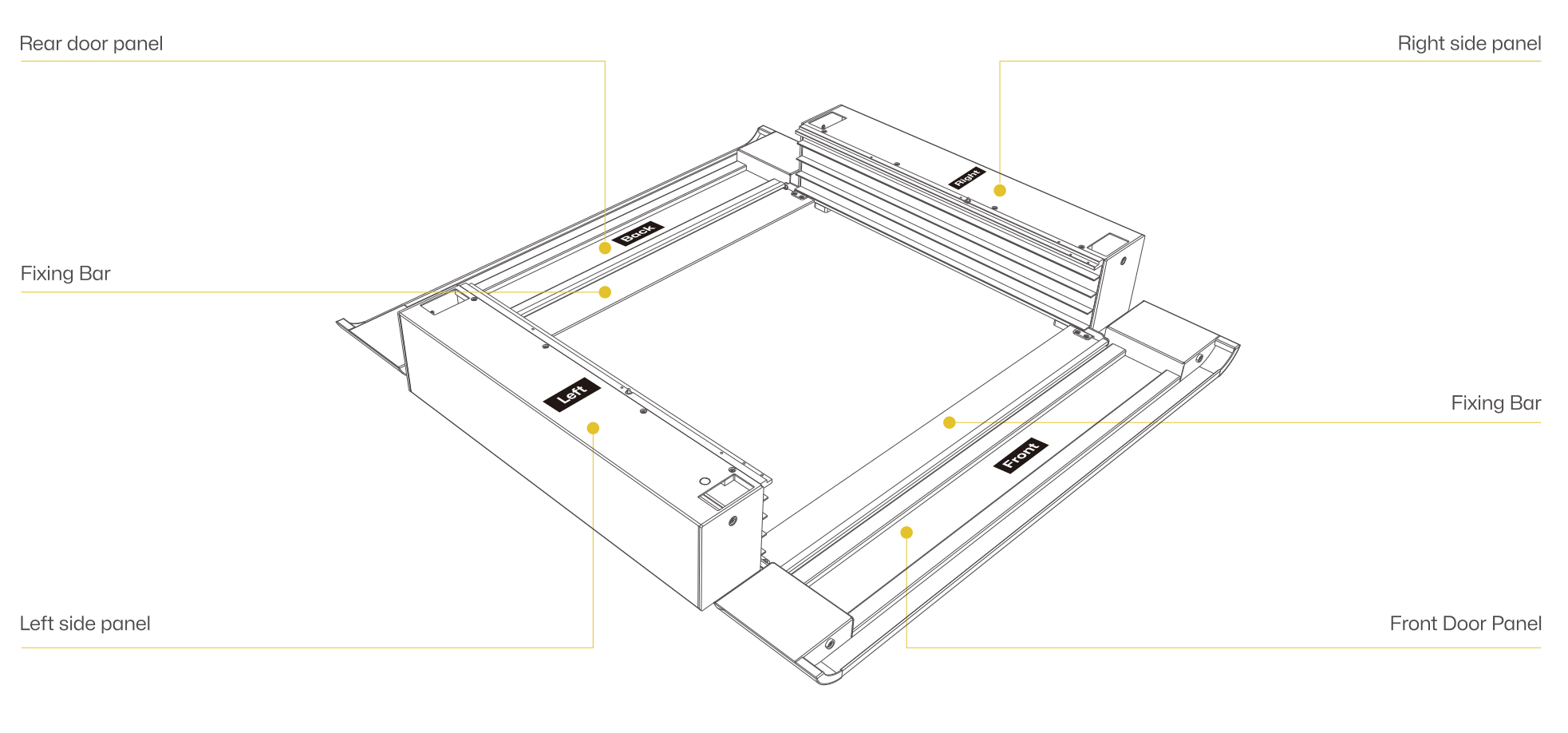

2. Component Introduction
3. Quick Assembly
Step 1

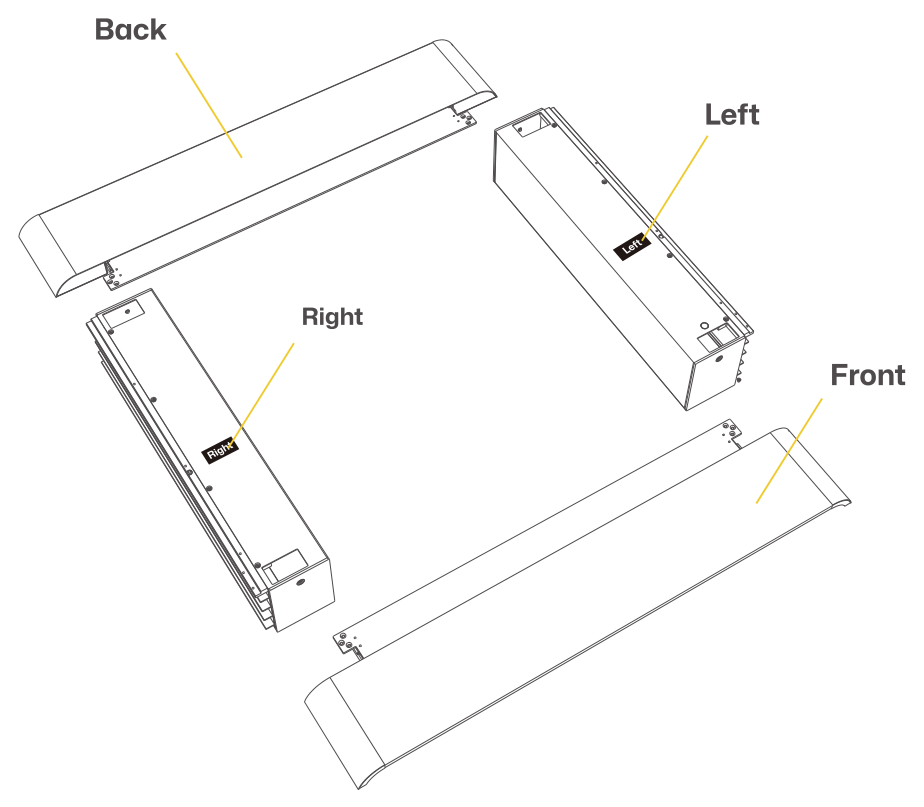

Place the front and rear panels, as well as the left and righit side panels according to the image. (Make sure each panel is oriented correctly.)
Step 2

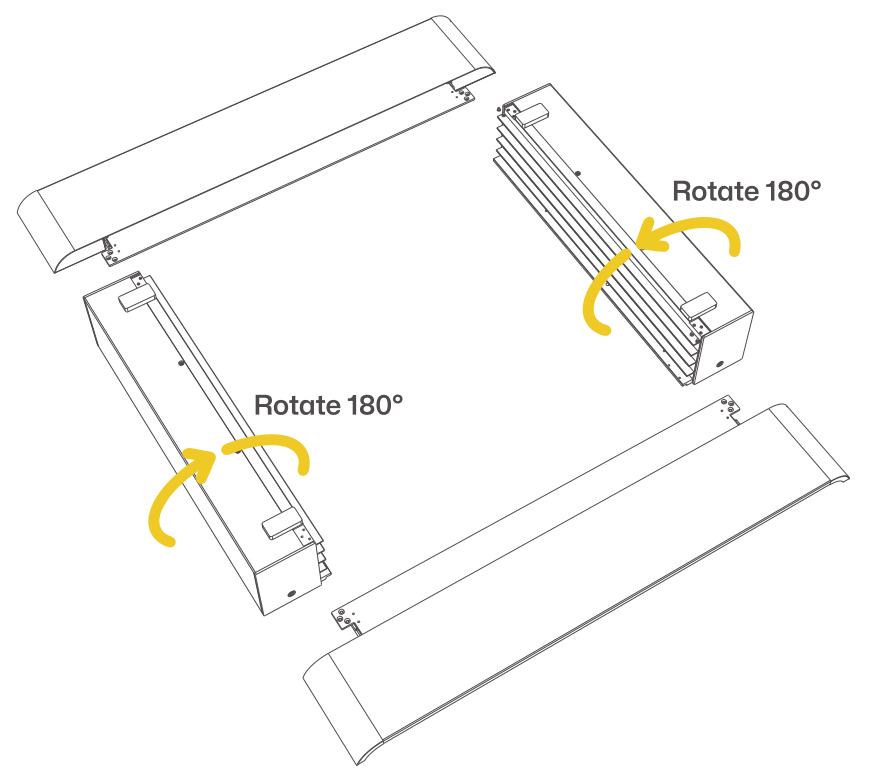

Flip the left and right side panels as shown in the image.
Step 3

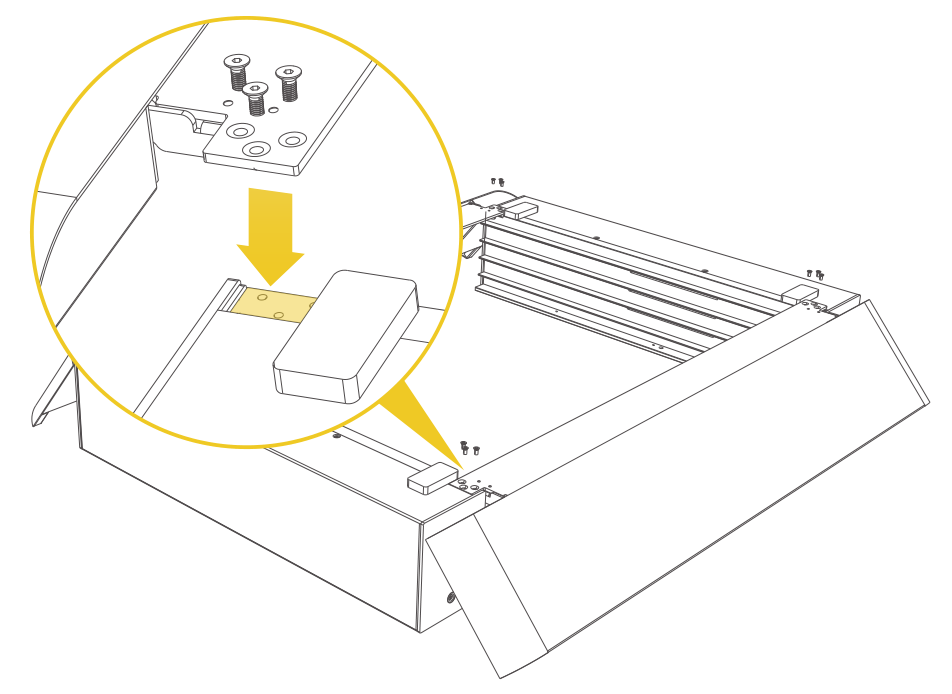

Align the front and rear panels with the slots on the side panels, then secure them using the H2.0 hex key to fix all twelve M3*6 screws.
Step 4

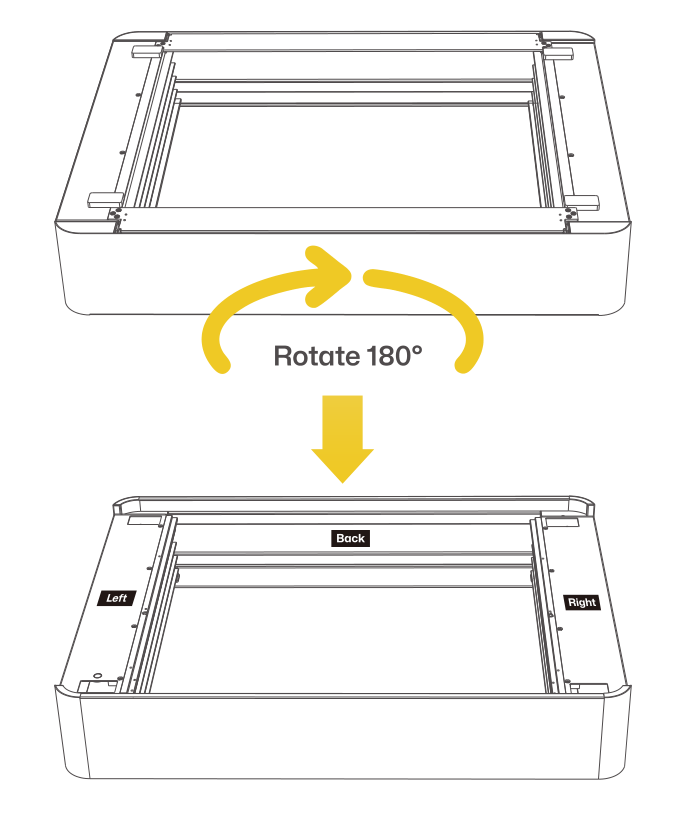

Flip the entire Riser Base 180° from left to right to completethe assembly. (Ensure the final assembly matches the image.)
Step 5

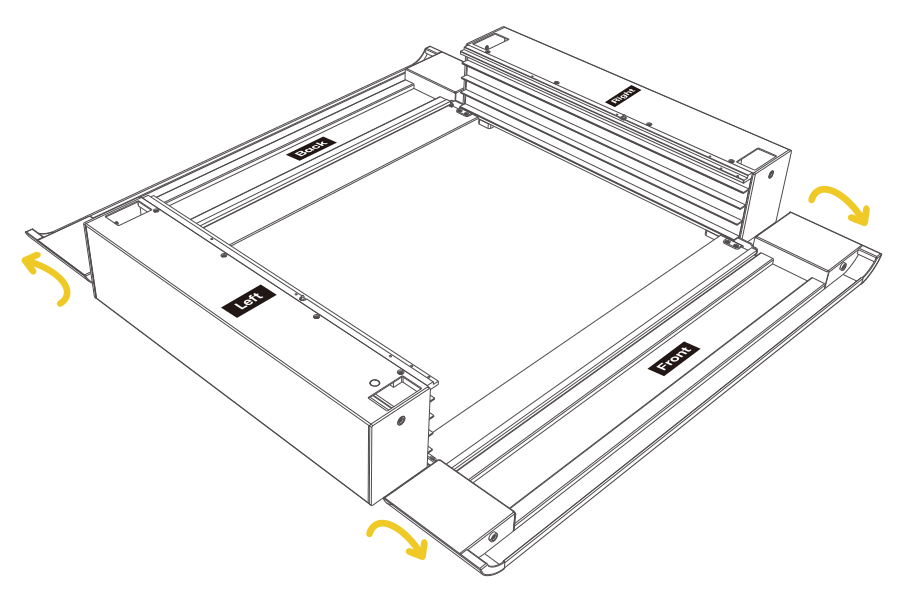

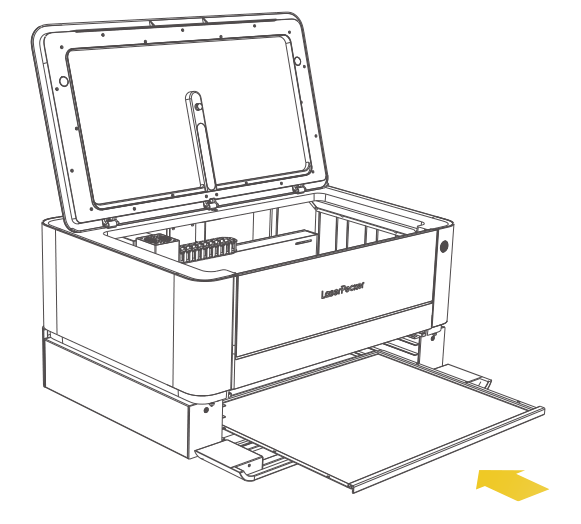

Open the front and rear doors of the Riser Base.
Step 6

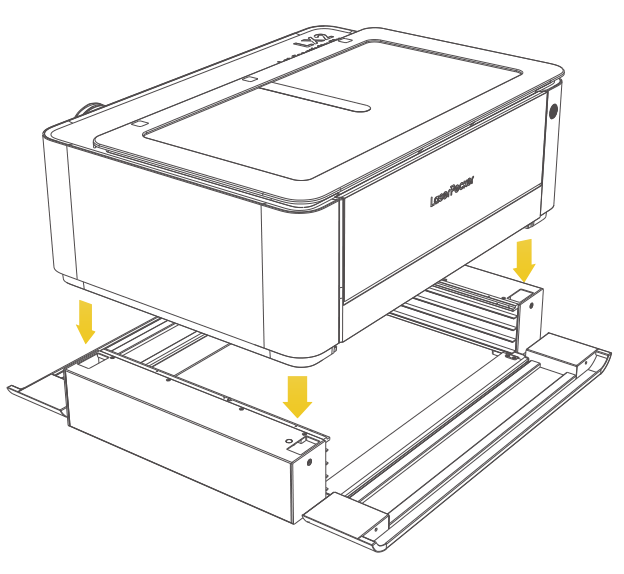

Place the LX2 onto the Riser Base. (Mind your hands during the process)
Step 7

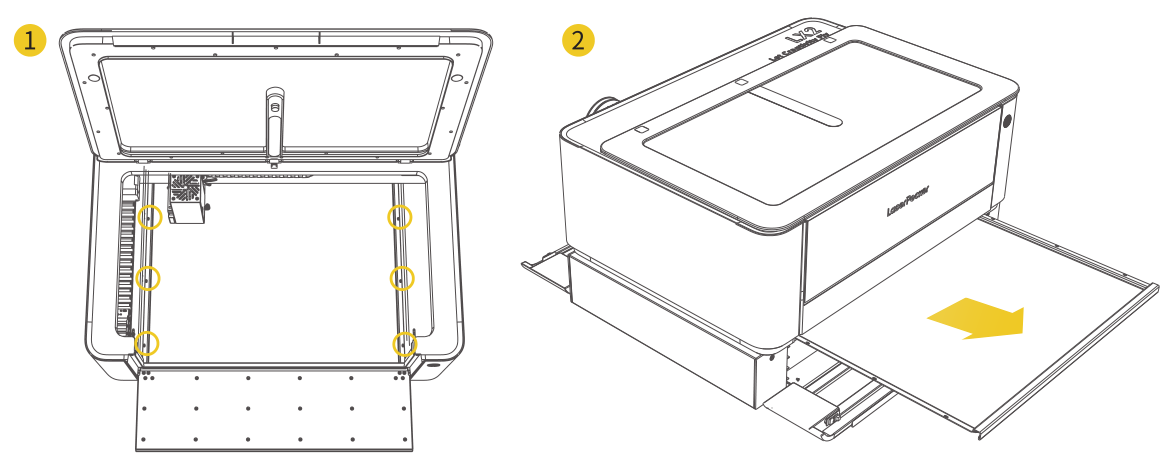

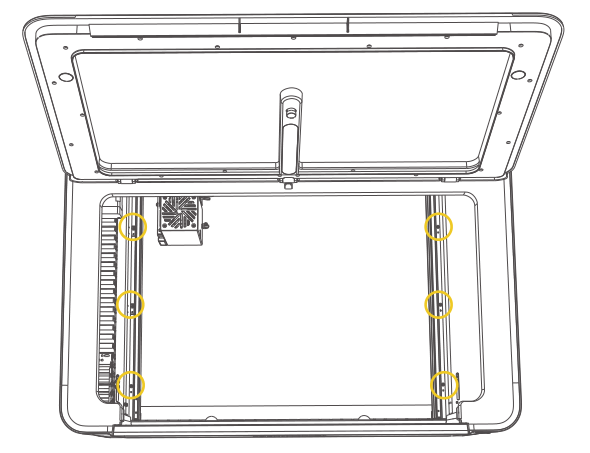

Then, using the H2.5 hex key (included in the LX2 toolbox), remove the six M3*6 screws securing the Base Plate of the LX2. Once removed, pull the Base Plate out from the bottom of the unit.
Step 8

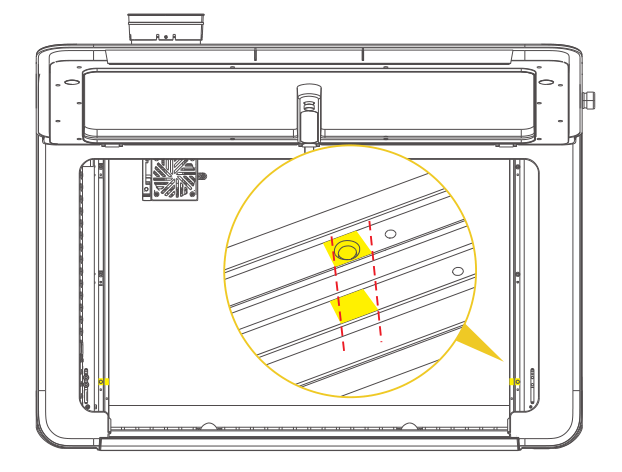

Ensure the left and right frames are aligned, and white alignment blocks are correctly positioned.
Step 9
Use the H2.0 hex key to tighten the six M3*12 screws.
Step 10
Insert the Base Plate into the appropriate slot according to material thickness.
4. Processing Range with the Riser Base
The Riser Base divides the material processing range into four levels, each supporting a different material thickness, up to a maximum height of 150mm. You can place the Base Plate on the suitable layer for objects of different heights. The compatible range for each level is as follows:
| Raise level | Supported Material Height | Height Level |
|---|---|---|
| Level 1 | 16.5 - 76.5 mm | |
| Level 2 | 41 - 101 mm | |
| Level 3 | 65.5 - 125.5 mm | |
| Level 4 | 90 - 150 mm |
5. Processing with the Riser Base
After installing the Riser Base, please follow the guidelines below to ensure optimal processing results:
Step 1
Keep the processing mode set to "Base Plate" Processing Mode.
Step 2
After placing the material on the Base Plate, refresh the camera background and use the "Auto Measure" function to complete the focus measurement.
Step 3

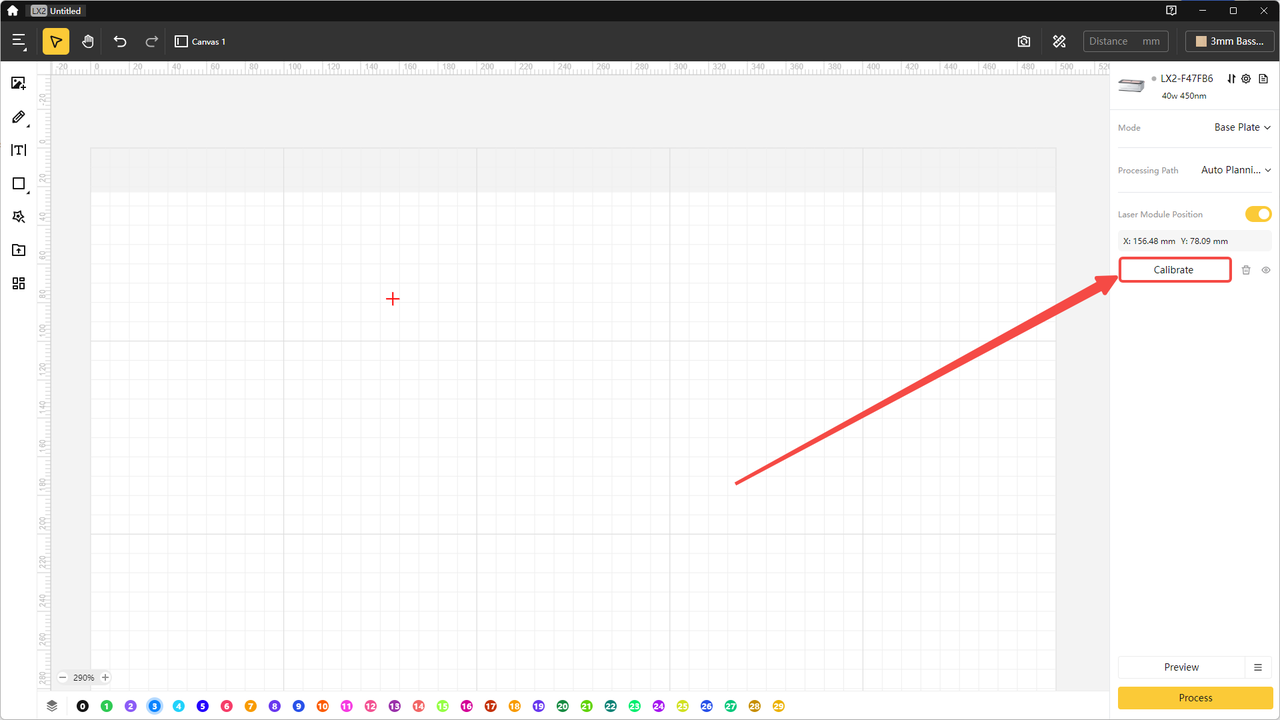

To achieve precise alignment of the material and engraving design, we strongly recommend using the Crosshair "Calibration" Function.
When the Base Plate is installed on different layer of the Riser Base, it can introduce visual parallax, reducing the accuracy of the "Camera Positioning" Function. The crosshair "Calibration" function uses a physical red crosshair to indicate the processing area, effectively avoiding this error.
Step 4
Once the focus and alignment settings are complete, the remaining steps are the same as the usual engraving process. Please set the processing parameters, preview, and start the processing task.
