LX2 Calibrate: Engraving Area Setup

  • Updated

The LaserPecker LX2 allows users to precisely define the engraving area using the red crosshair cursor. It supports various shapes such as rectangles, polygons, circles, and lines. After calibration, the processing area and its coordinates appear in red on the canvas. This guide explains how to use the Calibrate feature step by step.

1. Overview of the Calibrate Function

The Calibrate function helps you:

  • Define the precise area to be engraved.
  • Align designs accurately within the processing area.
  • Manage multiple engraving areas in a single setup.

2. Prepare the Laser Module

(1) Enable "Laser Module Position"

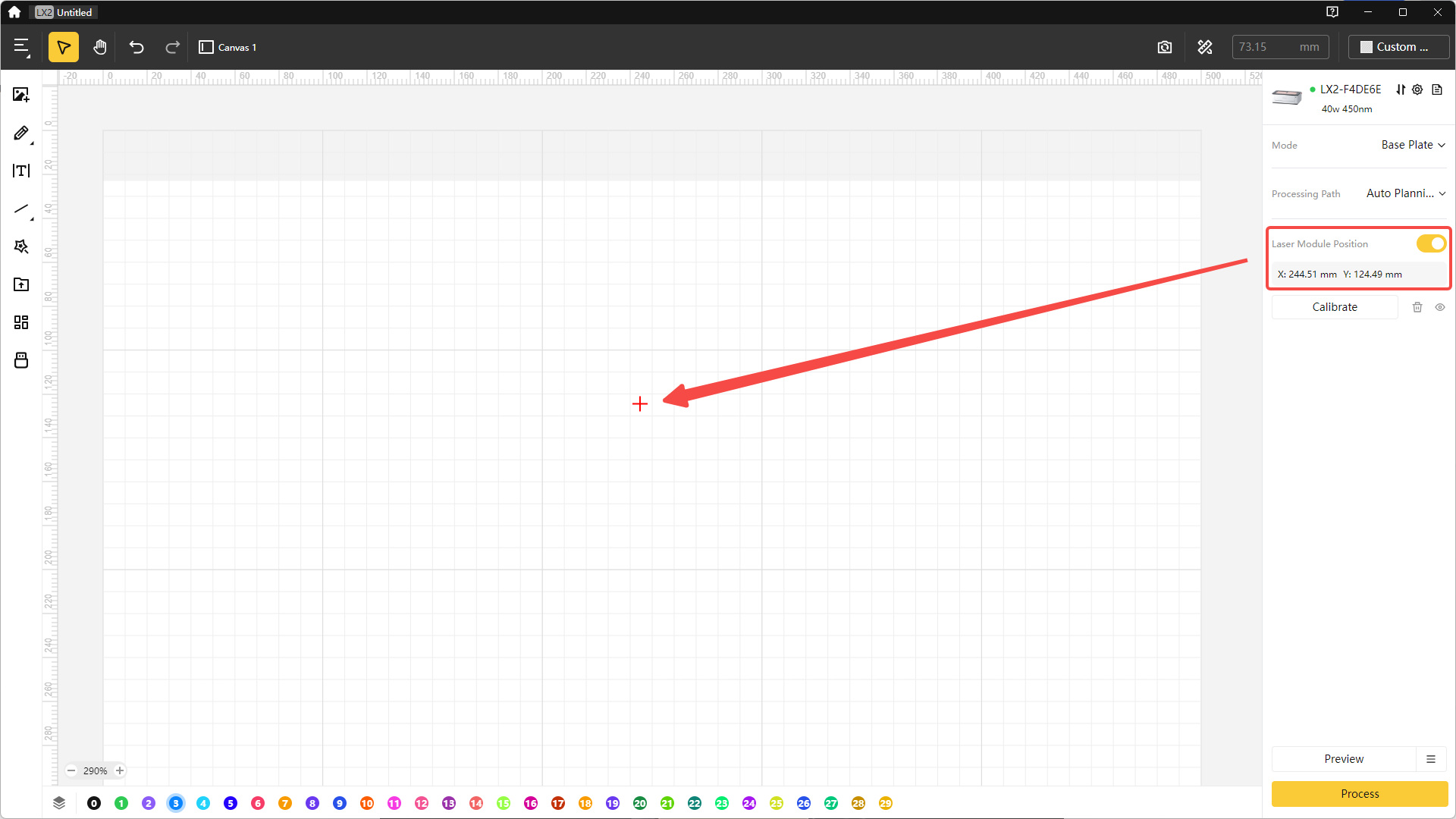

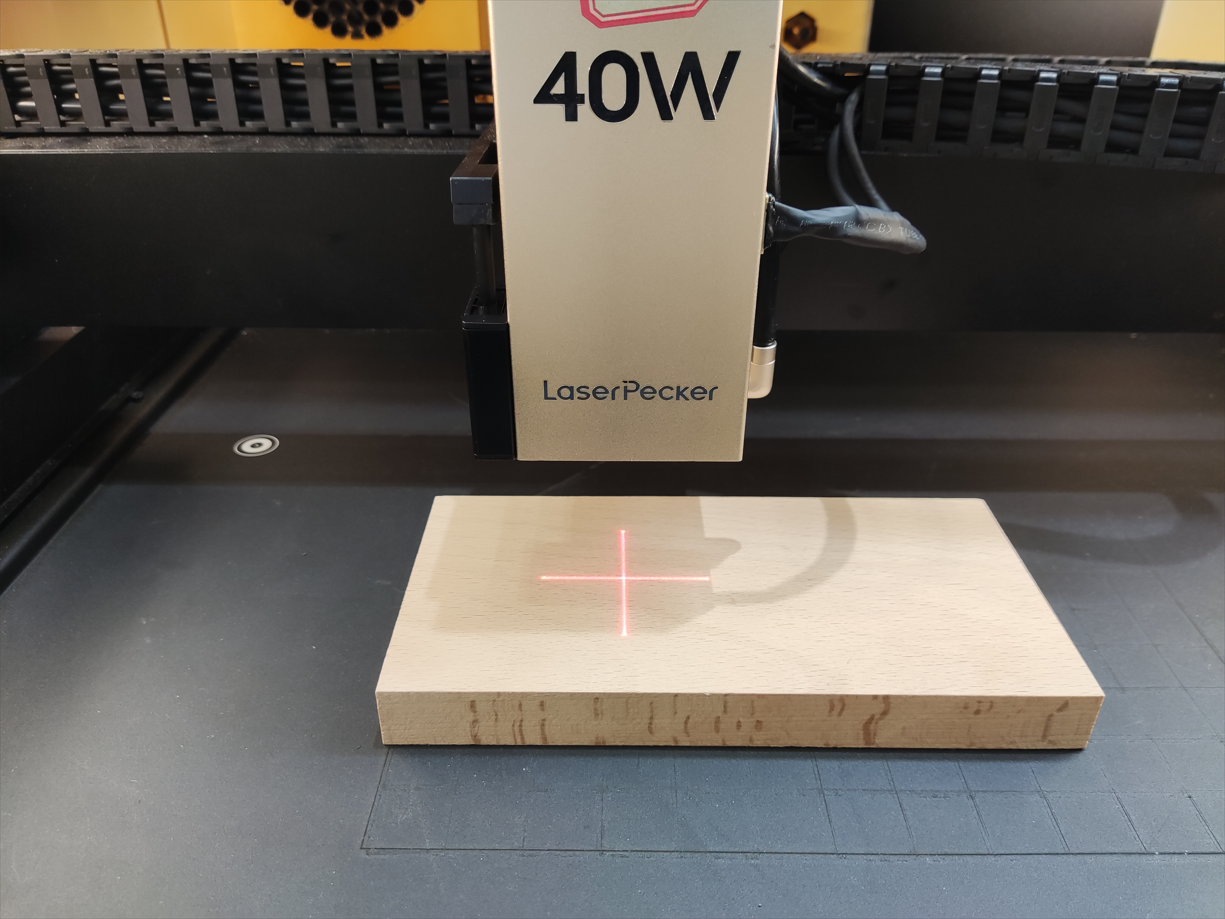

When the "Laser Module Position" function is enabled, the software displays the real-time coordinates and position of the laser module on the canvas. The red crosshair indicates the laser's current position. This function assists in performing both Auto Measure and Calibrate operations.


(2) Set the Focal Distance

  • Place the material on the Base Plate and move the Laser Module over it.

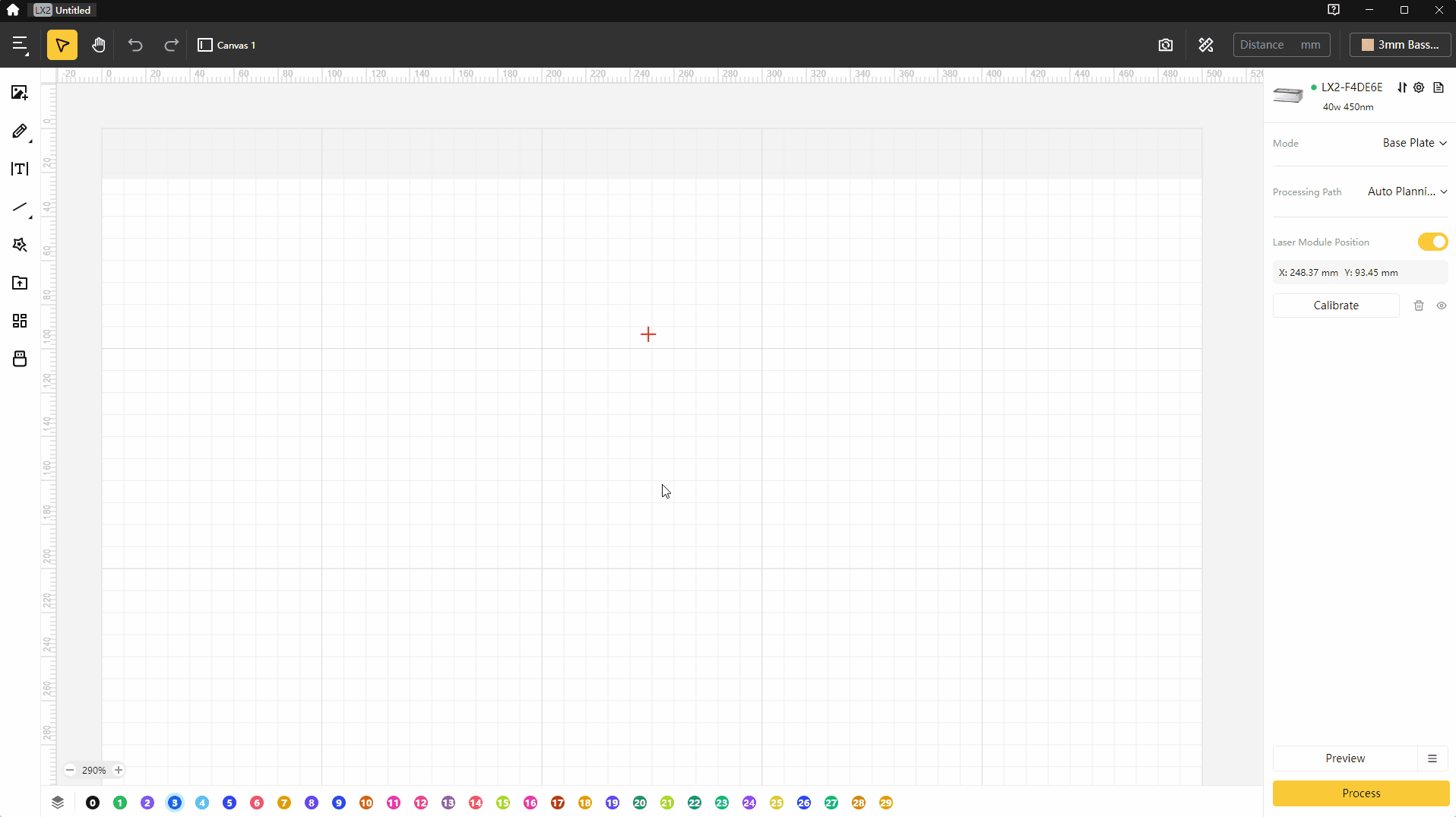

  • Click Auto Measure, move the cursor to the red crosshair marker on the canvas, and left-click. The device will then measure the focal distance automatically.
LDS auto measure 3.gif

3. Calibrate the Processing Area

Choose Calibration Method

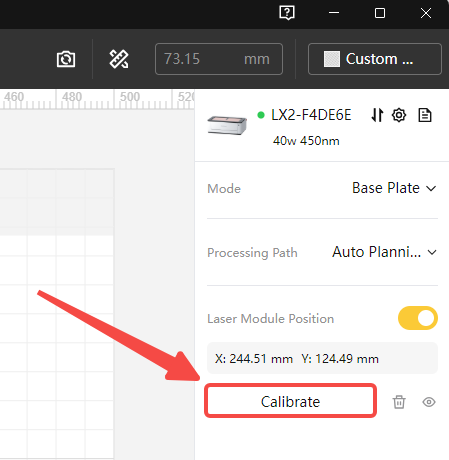

(1) Click the Calibrate button on the right side of the software.

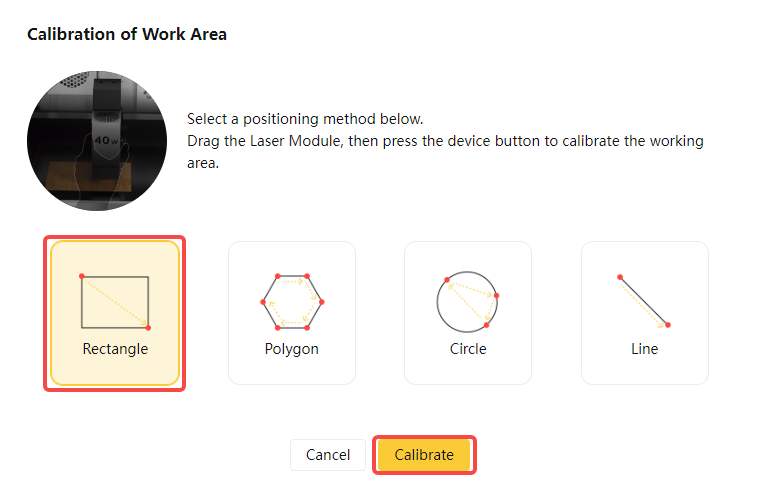

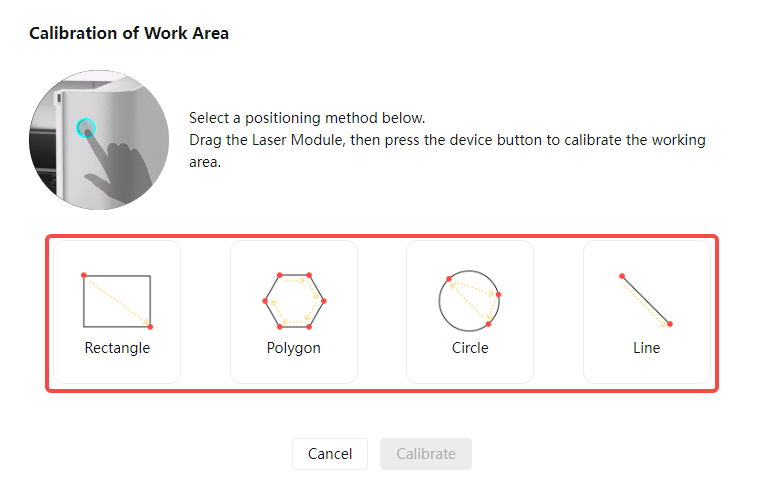

(2) In the pop-up window, select the calibration method based on your material shape:

ShapeMinimum PointsDescription
Rectangle2Create a rectangle by marking two non-horizontal points.
Polygon≥3Mark three or more points; the shape closes automatically.
Circle3Mark three non-collinear points on the rotary wheel contour.
Line2Mark at least two points.

Example: Rectangle Calibration

(1) Select Rectangle and click Calibrate.

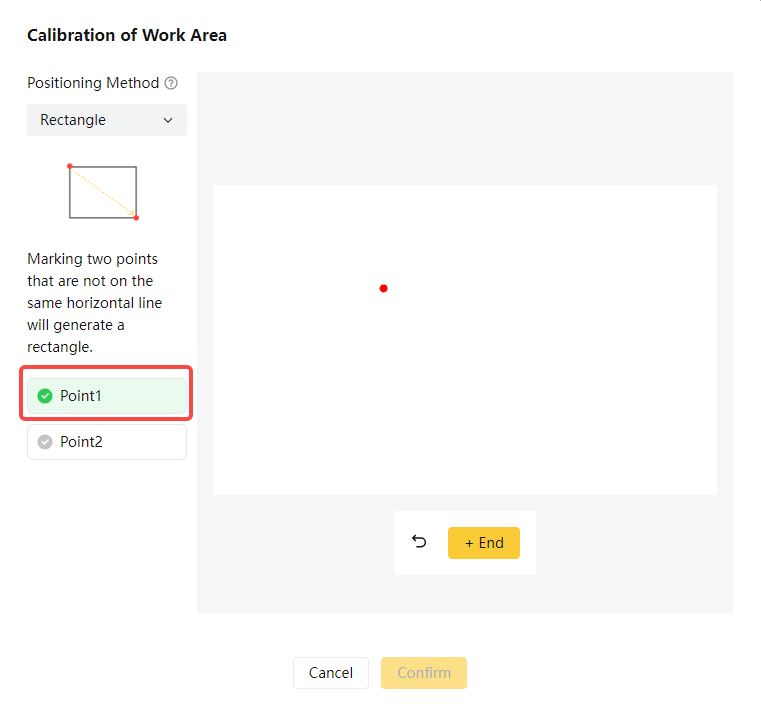

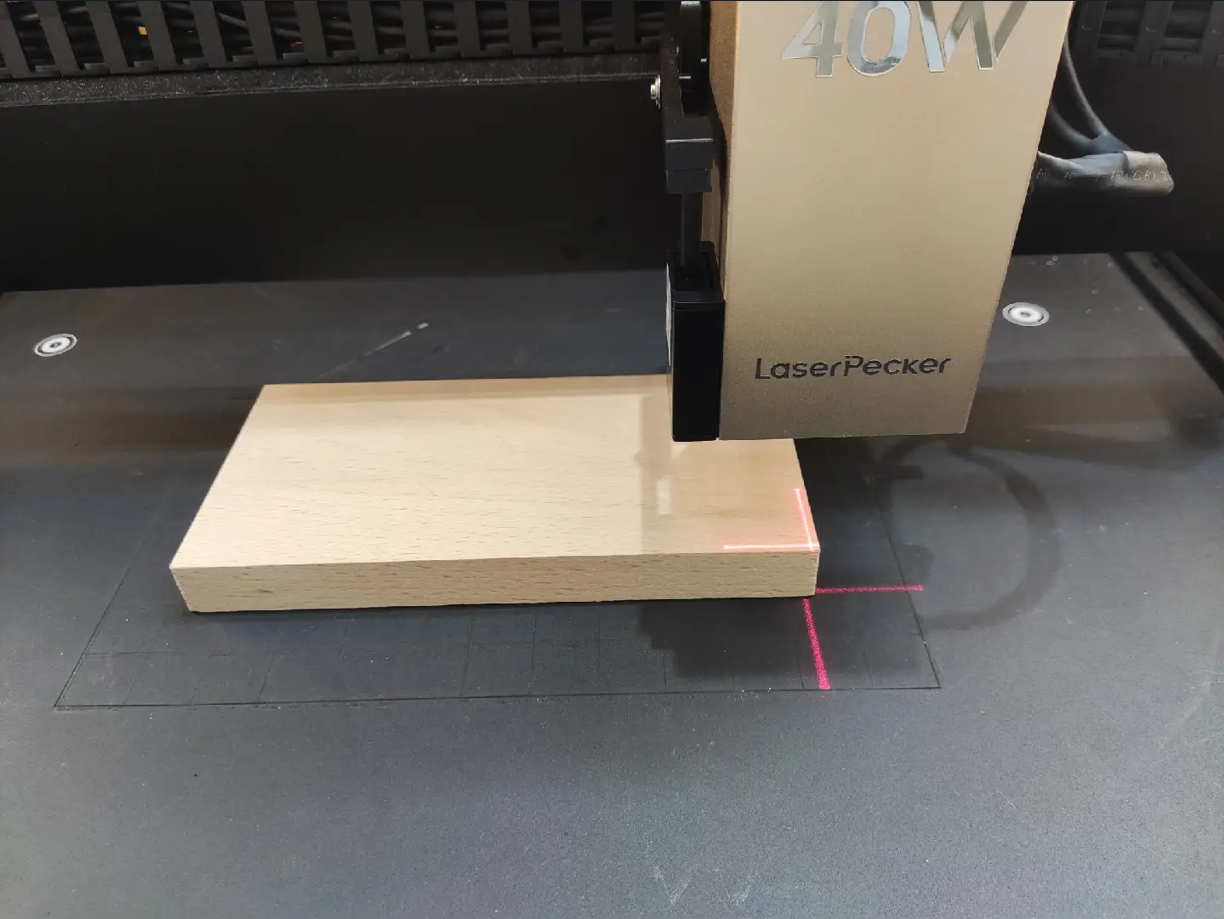

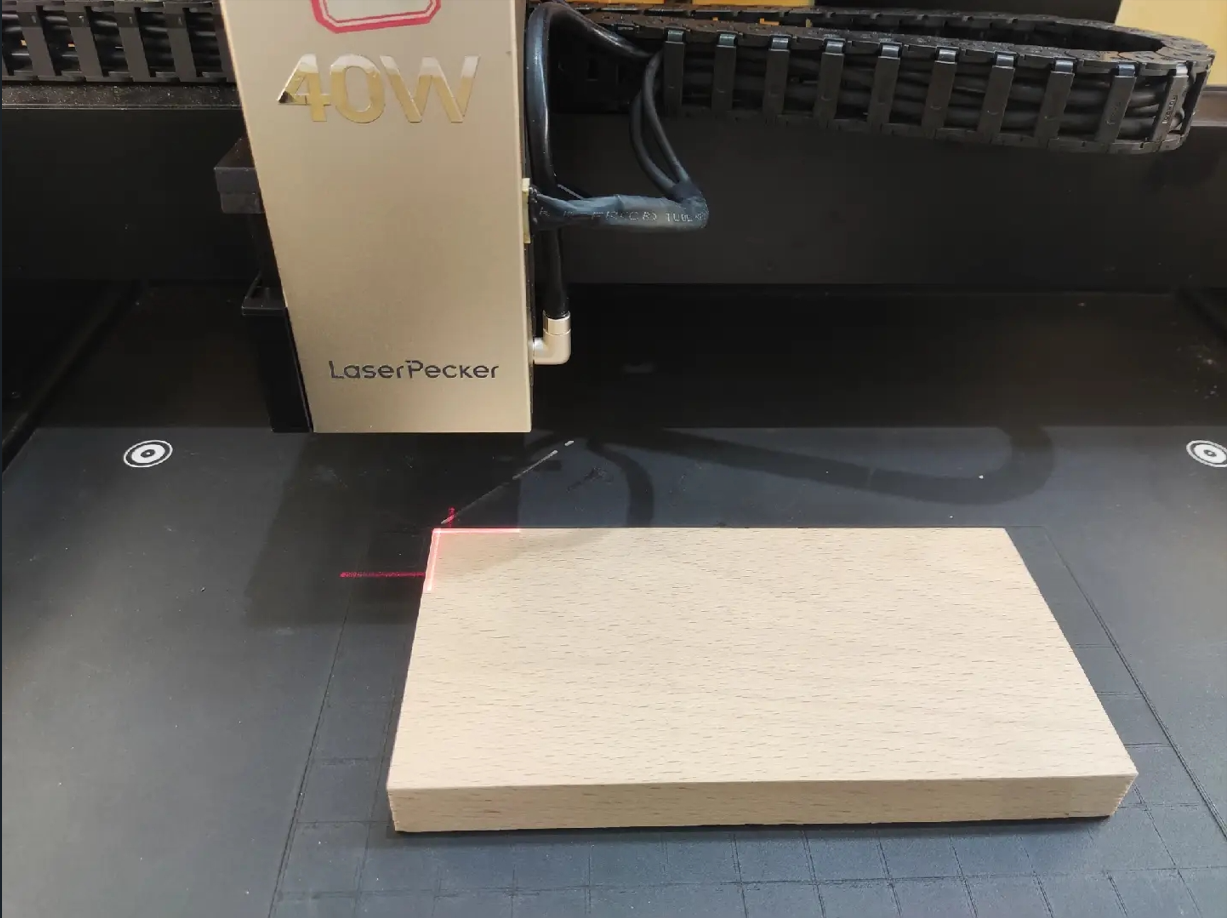

(2) Drag the Laser Module to align the center of the Red Crosshair with the first point of the desired engraving area. Press the device button on the LX2 to record this point (a beep confirms successful recording).

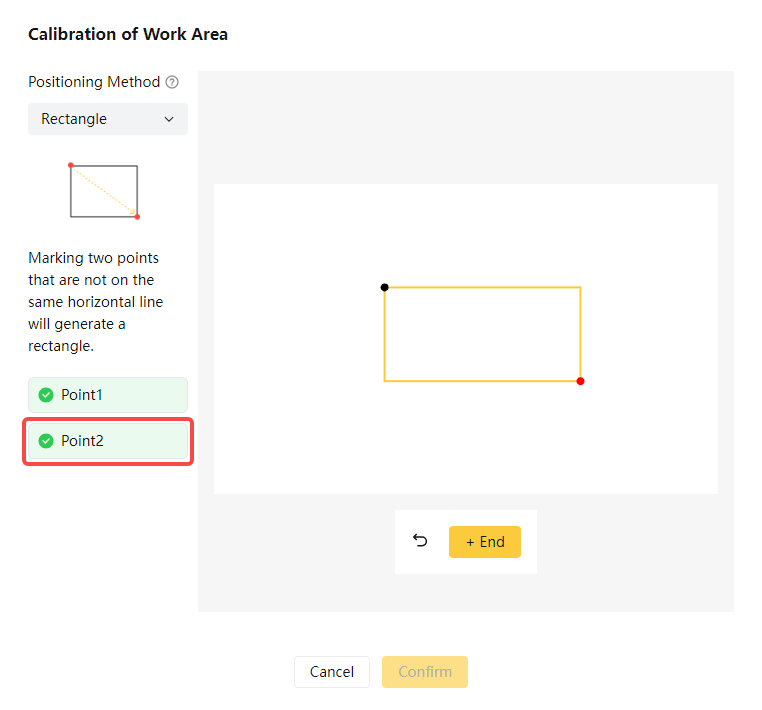

(3) Repeat the process for the second point.

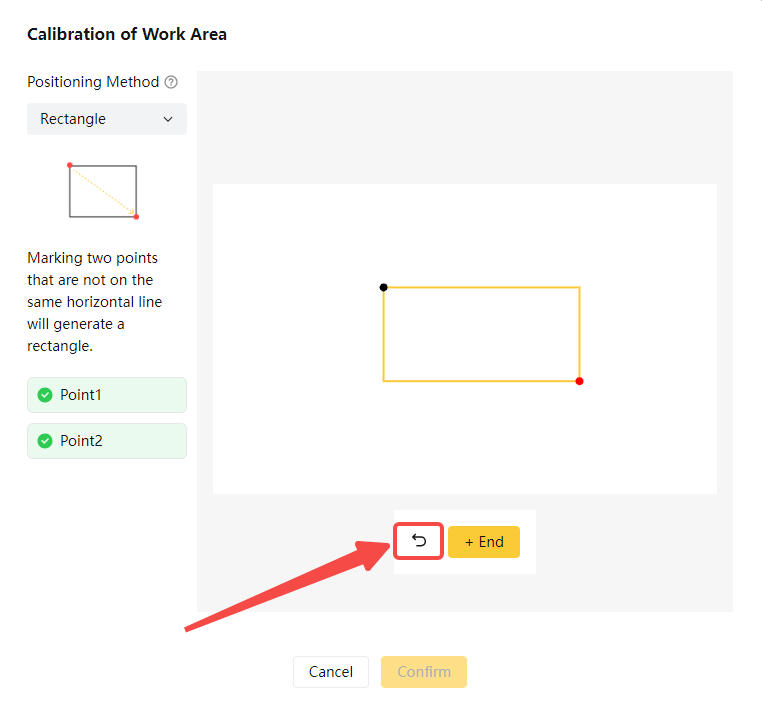

(4) To modify a calibration point, click the Back icon.

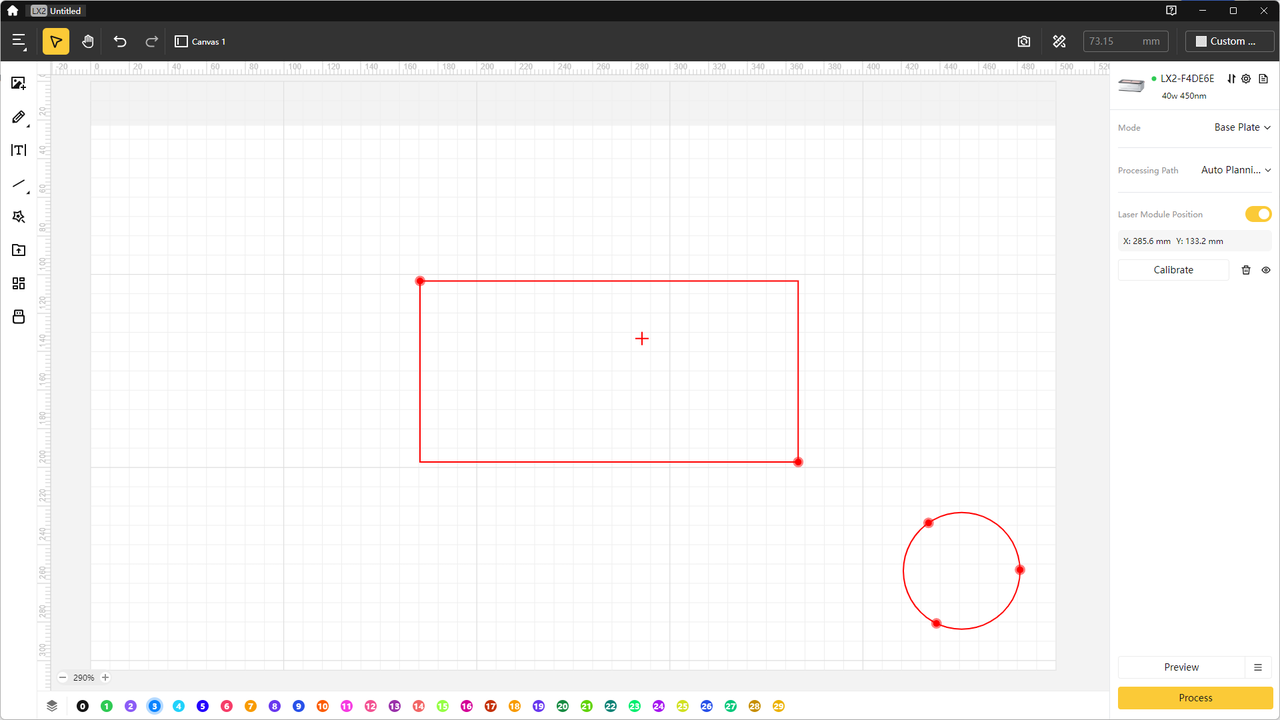

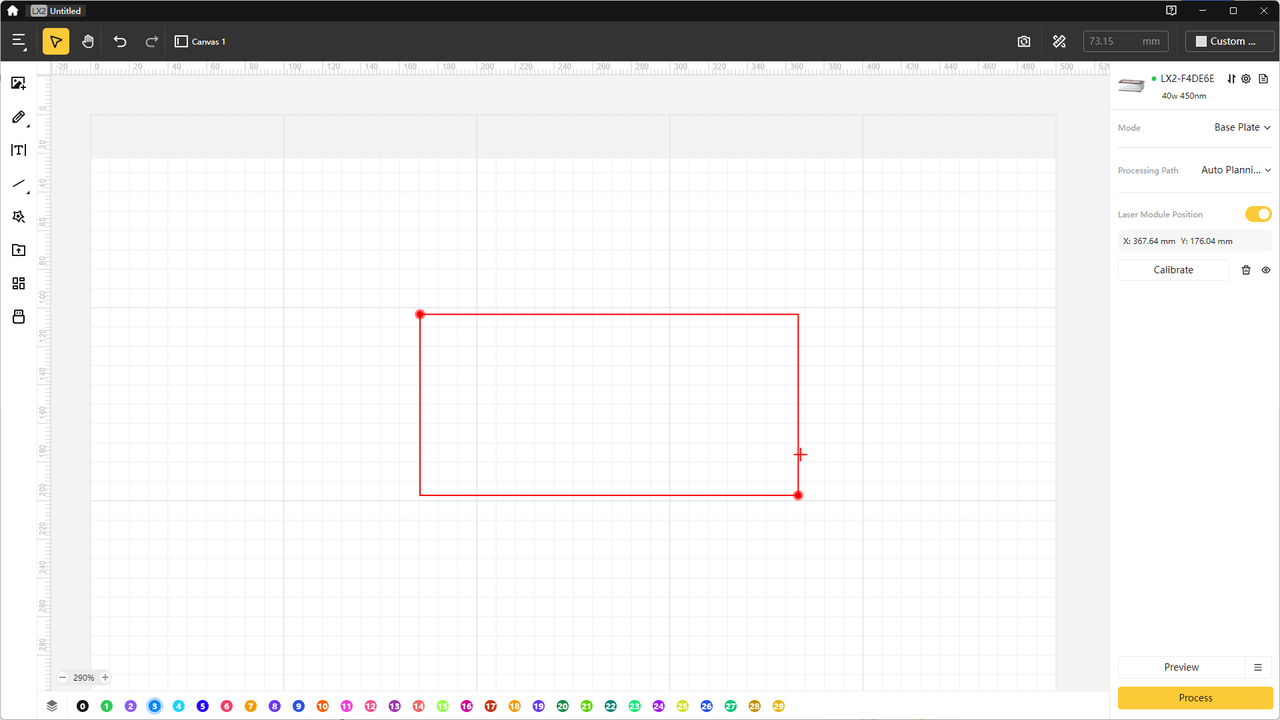

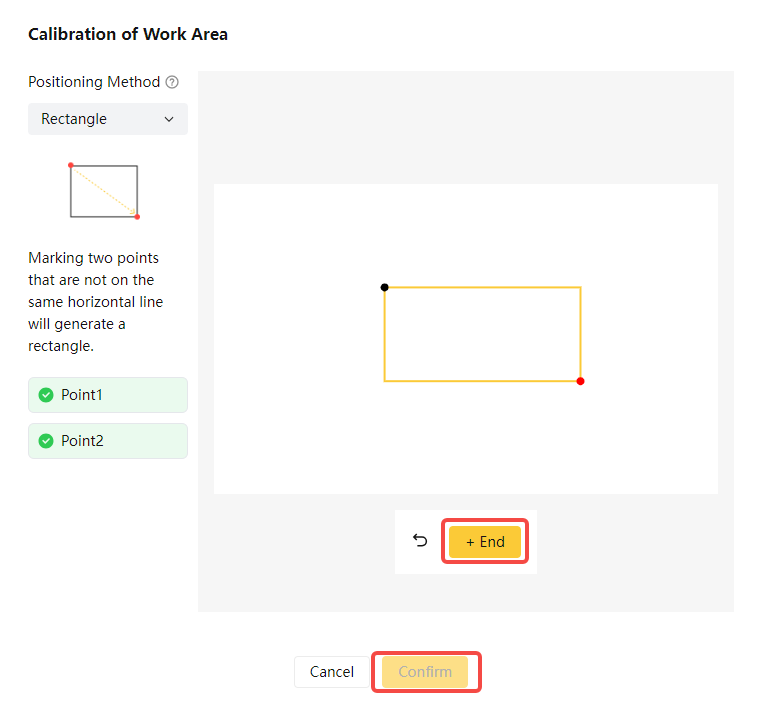

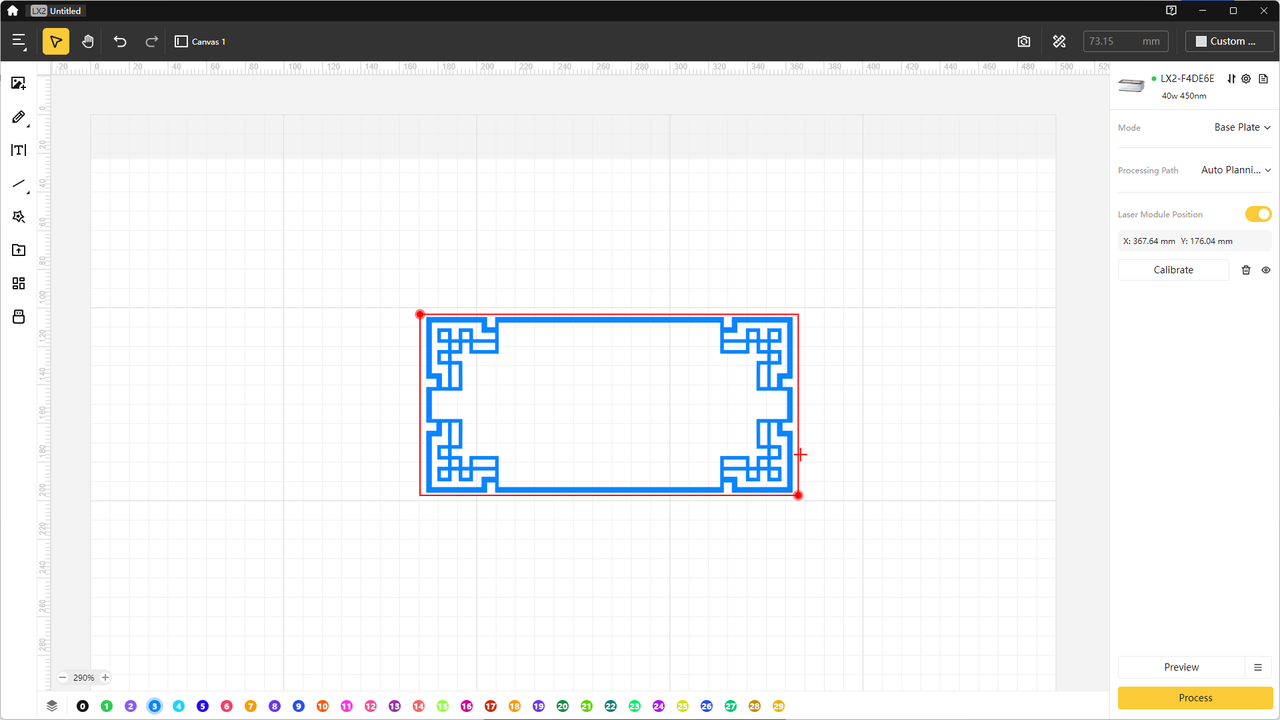

(5) After finishing, click End and then Confirm. The marked processing area will appear on the canvas as a red outline.



(6) You can now place your designs within this red outline for precise engraving.


4. Calibrate Multiple Areas

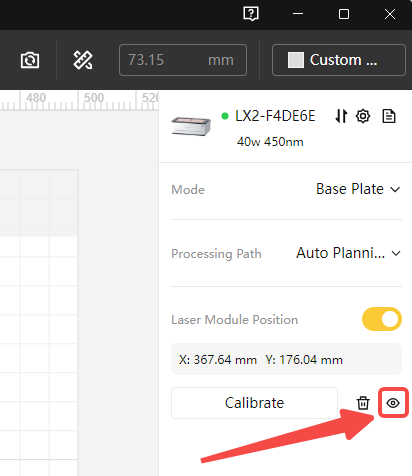

(1) The software supports multiple processing areas in one setup. Click the Eye icon next to Calibrate to add additional areas/shapes.

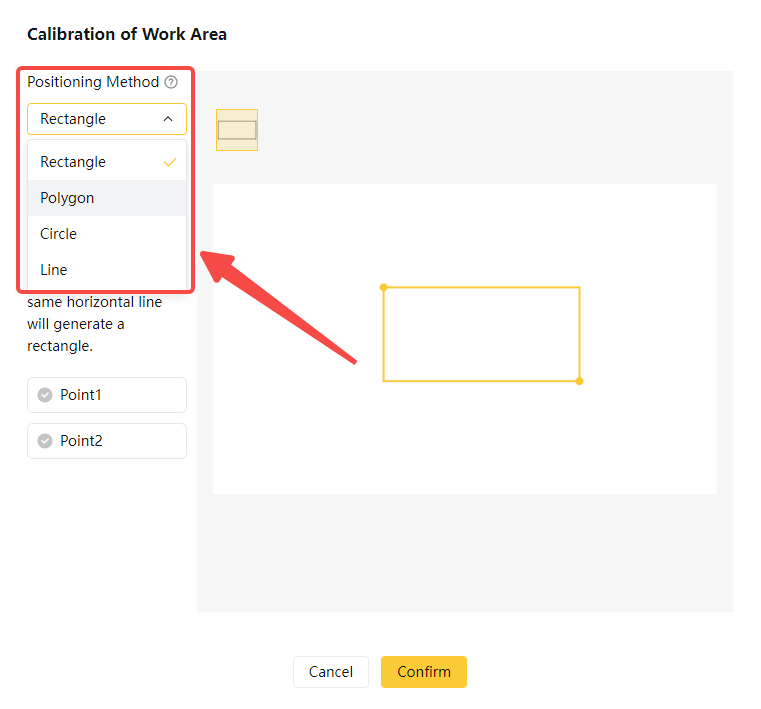

(2) Click Positioning Method to change the calibration shape for the current area.

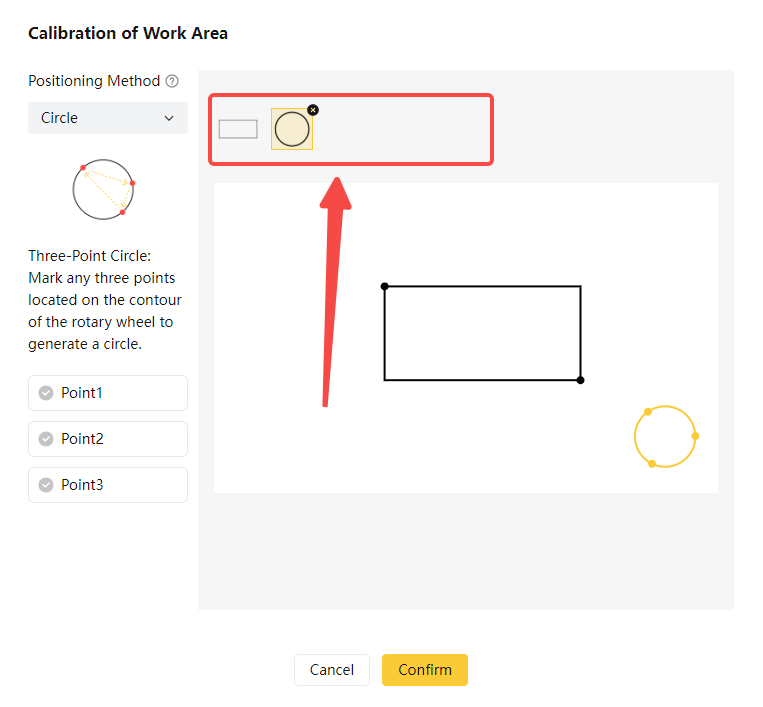

(3) All added areas appear at the top. Click their icons to switch between them, recalibrate, or delete them.



5. Delete Calibrating Areas

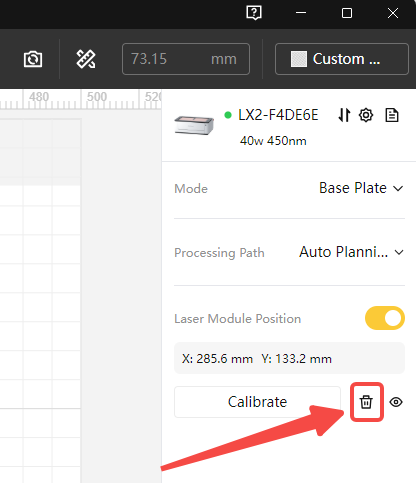

  • To clear all areas, click the Delete icon next to Calibrate.
  • To delete a specific area, enter the Calibration of Work Area page and delete individually.

6. Summary

After defining your engraving areas, you can place your designs accurately within the red outlines. You can also manage multiple areas in a single setup, switch between them, recalibrate, or delete them as needed.
