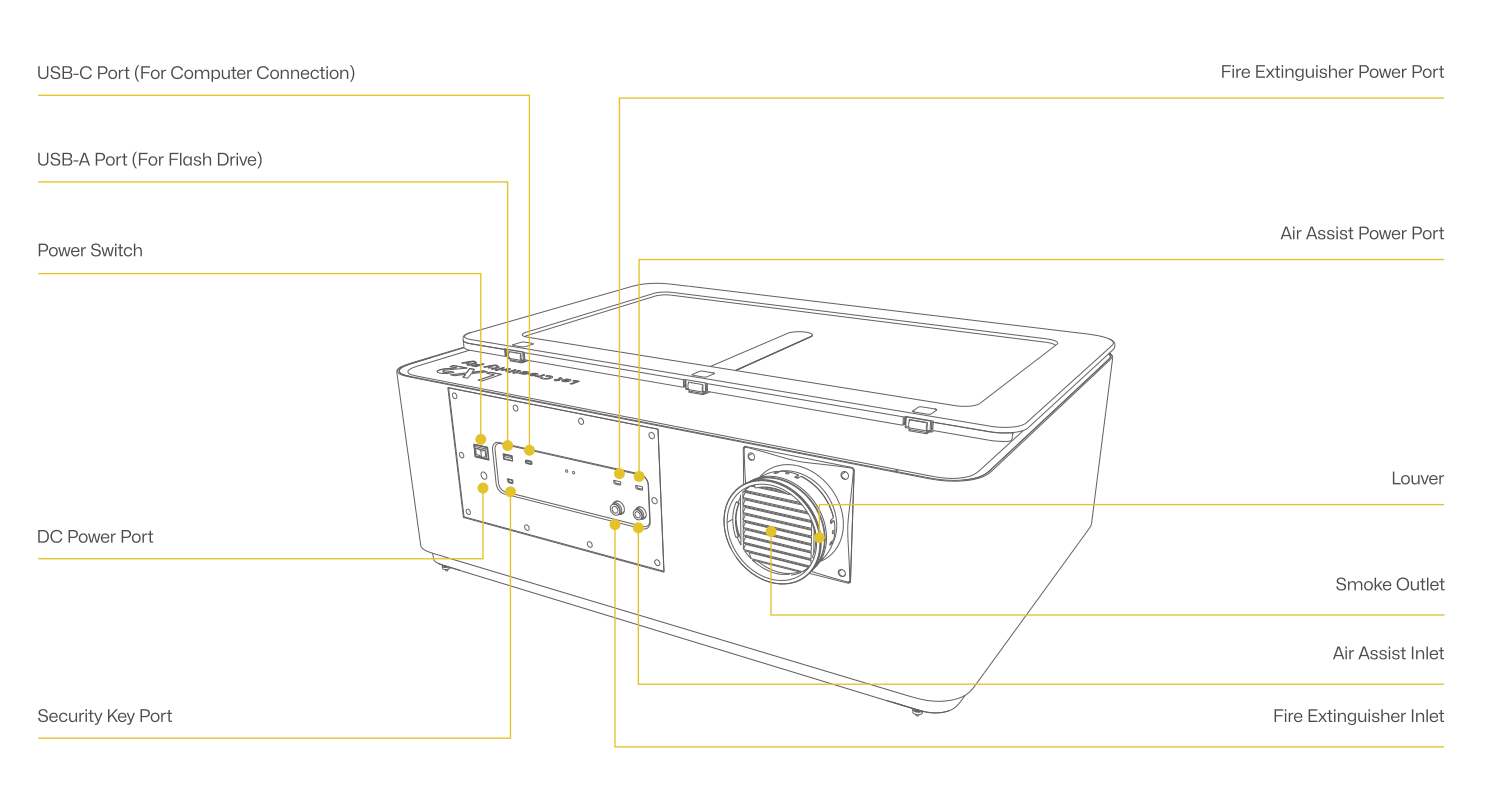

This guide explains the function of each port on the rear panel of the LaserPecker LX2, helping users correctly identify and connect power and accessories.
1. USB Ports
- USB-C Port: For wired computer connection. Wi-Fi setup is also supported for wireless control.
- USB-A Port: For engraving directly from a USB flash drive.
2. Power
- Power Switch: Turns the device on or off.
- DC Power Port: Requires a 24V DC power supply with a rated current of 10A or higher.
3. Security
- Security Key Port: Controls access to the laser. The machine cannot emit the laser beam if the Security Key is missing.
4. Accessories
- Fire Extinguisher Power Port: Supplies power to the Fire Extinguisher accessory.
- Air Assist Power Port: Supplies power to the Air Assist accessory.
5. Airflow & Exhaust
- Louver: Remove before connecting the exhaust pipe.
- Smoke Outlet: For venting smoke.
- Air Assist Inlet: Connects to the air assist hose.
- Fire Extinguisher Inlet: Connects to the fire extinguisher hose.
