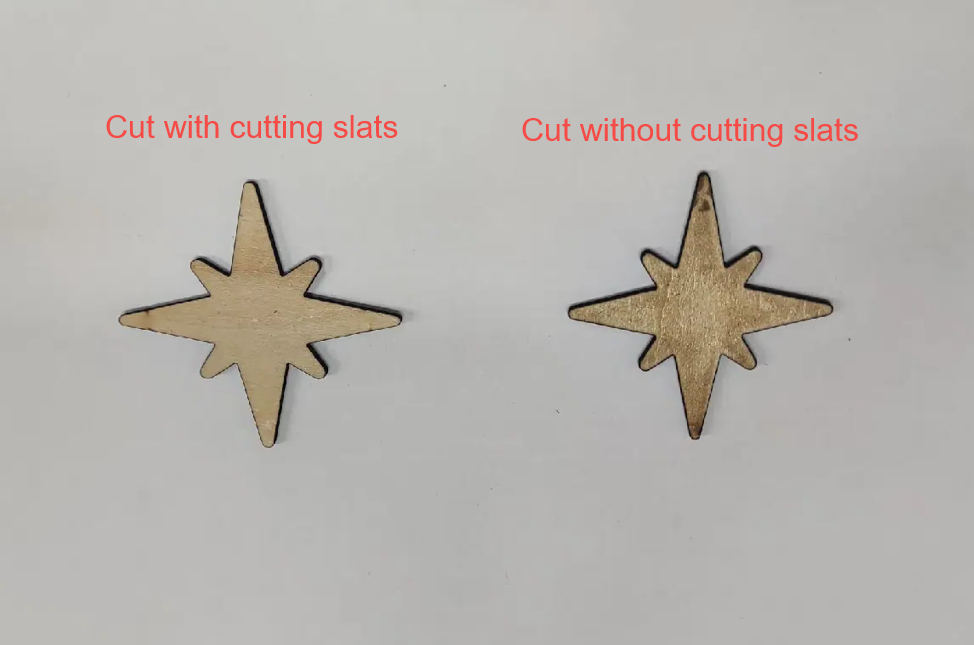

To enhance cutting results and improve smoke ventilation, the LX2 is equipped with four Cutting Slats. When cutting materials such as wood, placing your workpiece on the slats improves airflow, helping remove smoke and debris for smoother and more precise results.
Installation Steps

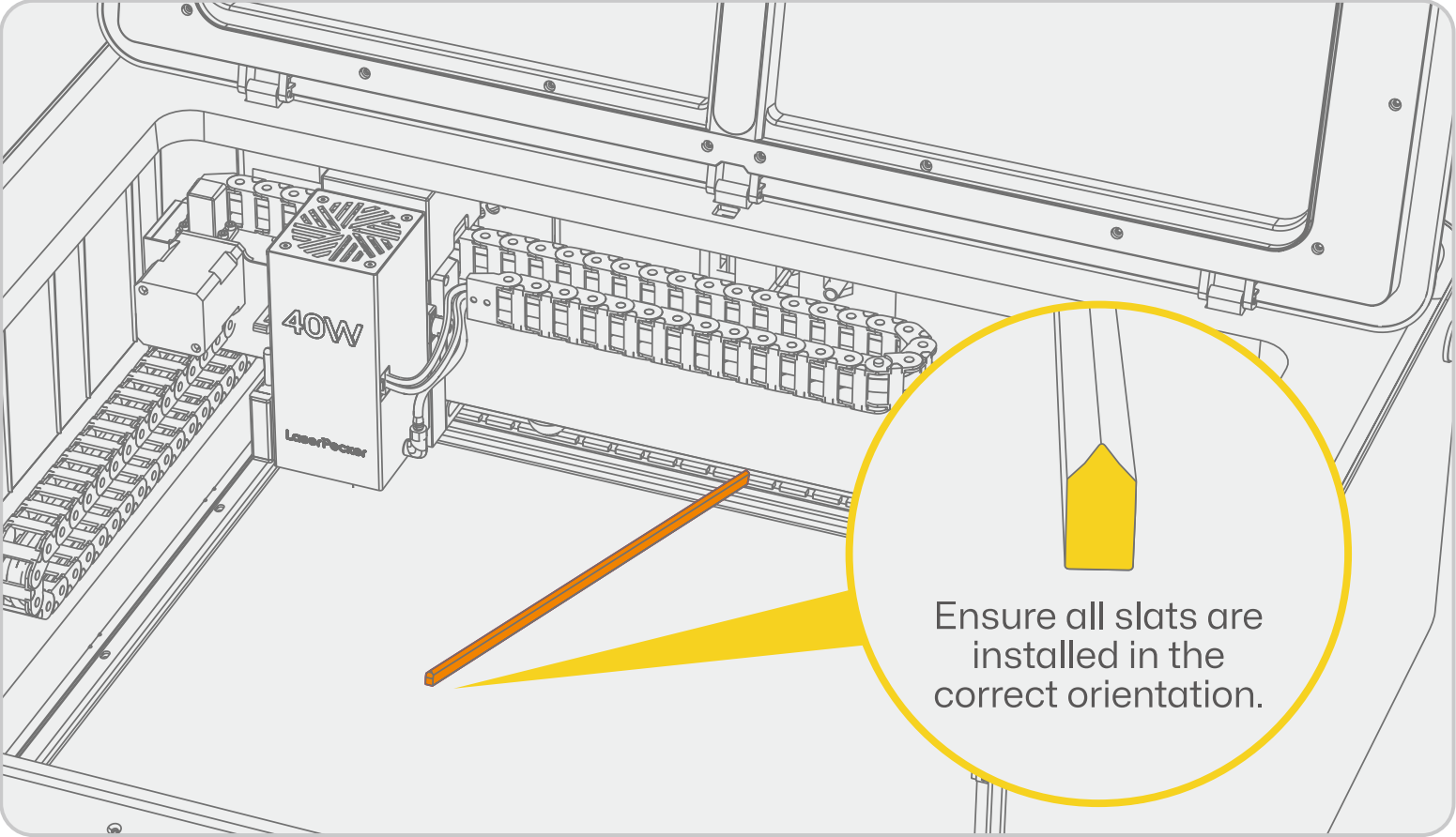

1. Confirm the correct orientation.
Position each Cutting Slat with the narrow side facing upward.

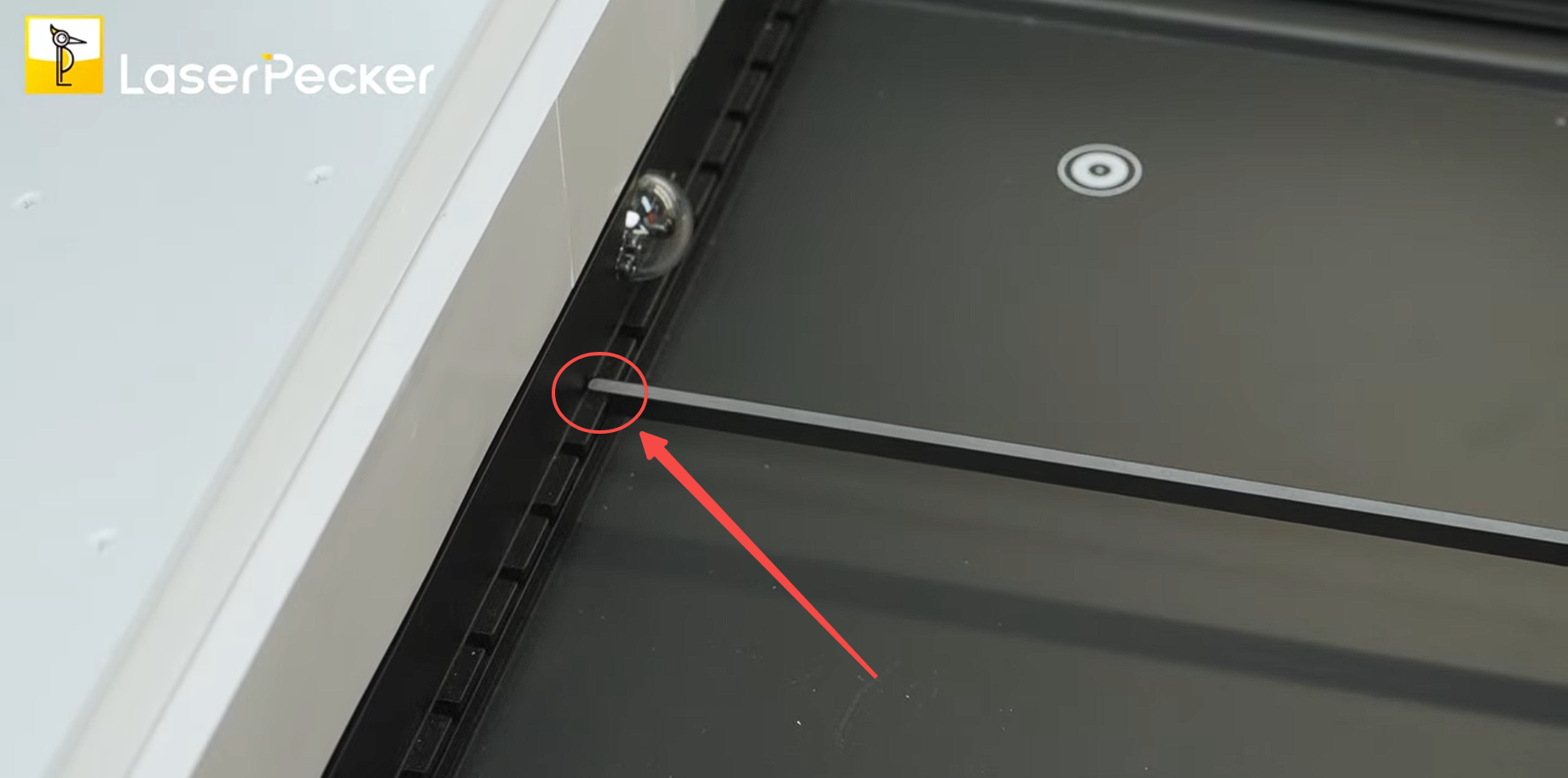

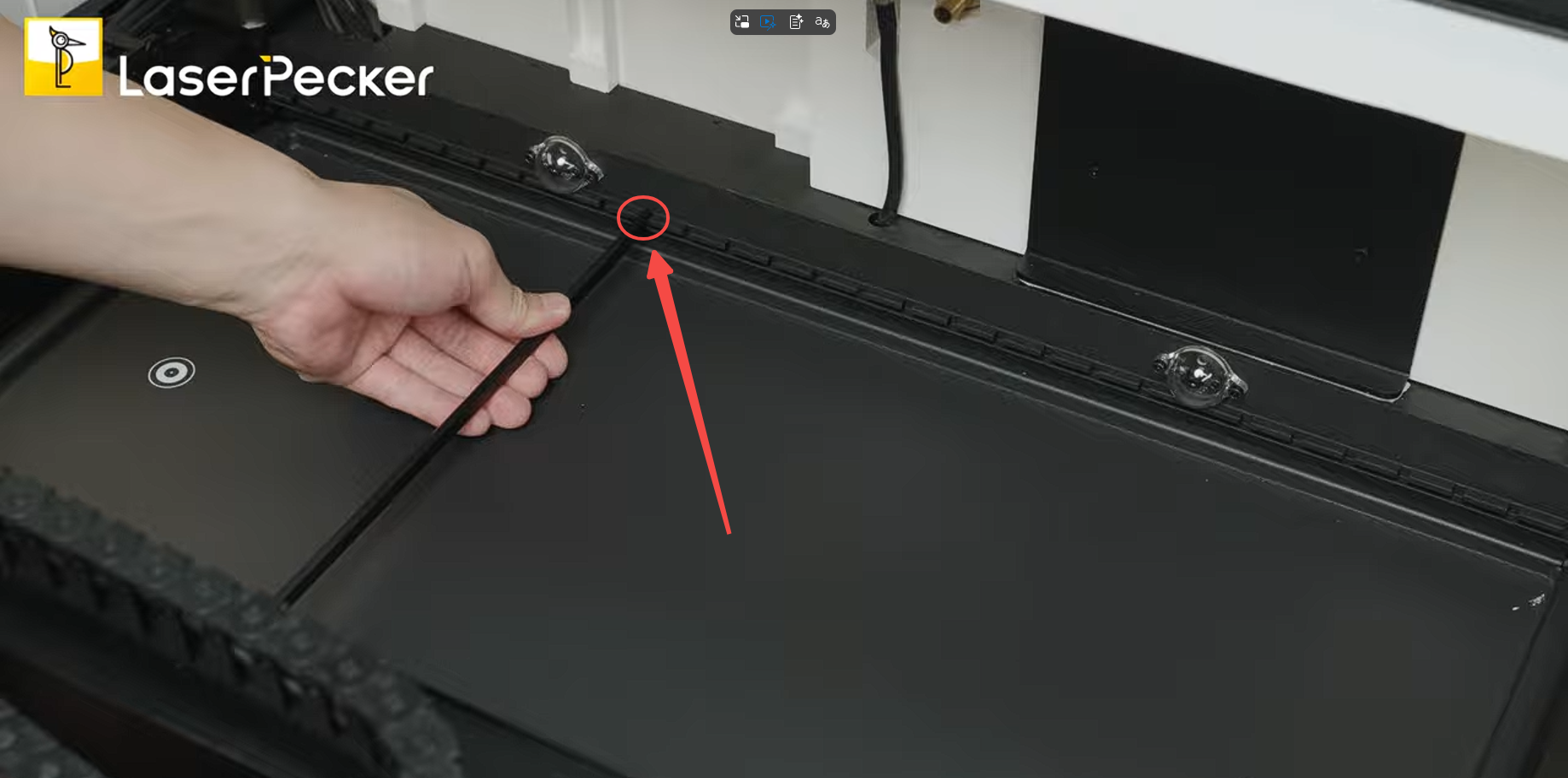

2. Insert the slats into the frame.
Place one end of the slat into the front-frame slot, then insert the other end into the corresponding slot on the rear frame.

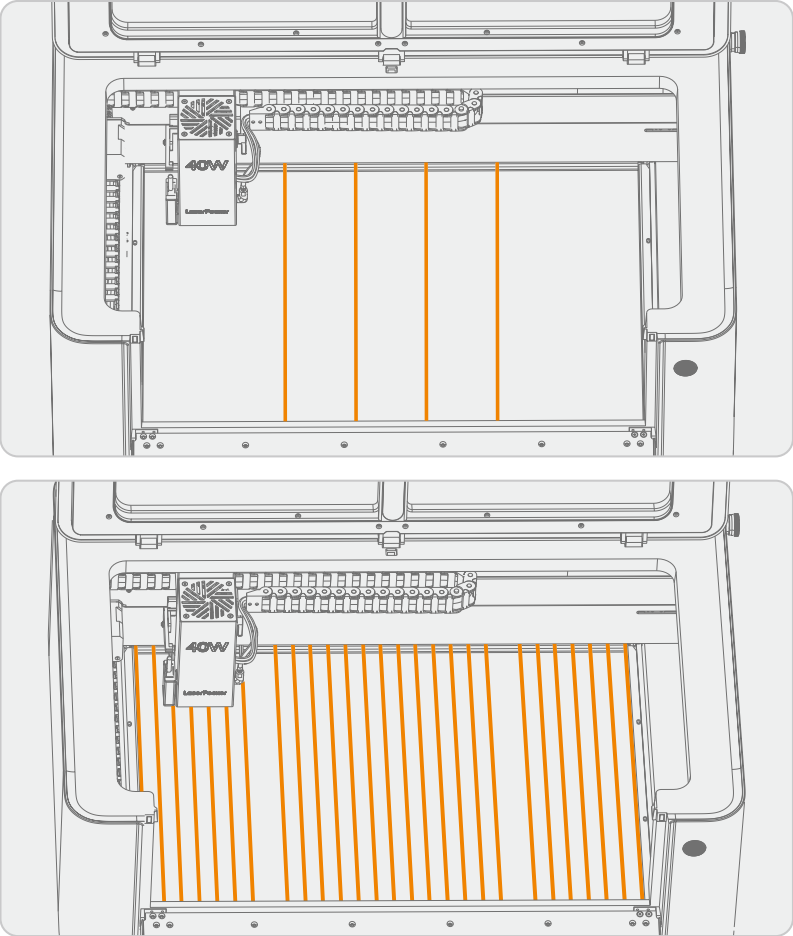

3. Adjust the spacing as needed.
You may reposition the slats to properly support your material. The LX2 includes four Cutting Slats by default; additional slats can be purchased if needed.
4. Begin your cutting task.
Once everything is securely positioned, you may start your project.
Specifications
| Minimum Slat Spacing | 20 mm |
| Maximum Supported Object Height | 22 mm (with slats installed) |
| Maximum Machine Capacity | Up to 27 slats |
