This guide explains how to adjust the Exhaust Duration when using the LaserPecker LP4 with the Standard Enclosure.
This setting controls how long the enclosure fan runs after engraving to remove smoke, ensuring optimal air circulation and safety.
Steps to Adjust the Exhaust Duration
(1) Connect the LP4 Safeguard to LDS.
(2) Enter the Create interface.

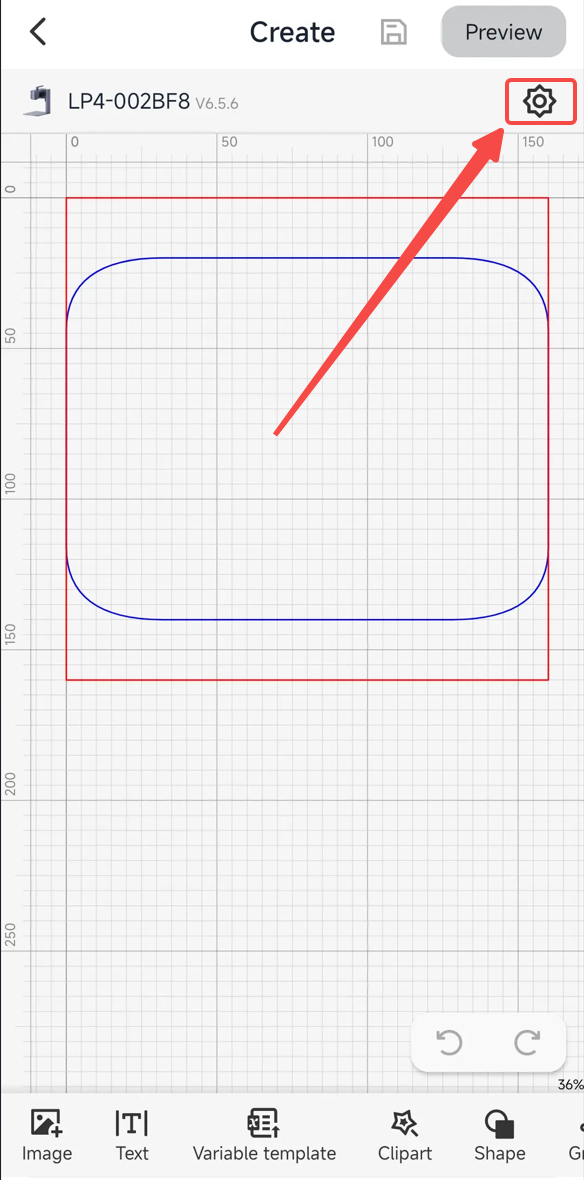

(3) Click the Settings button in the top-right corner to open the Mode Settings page.

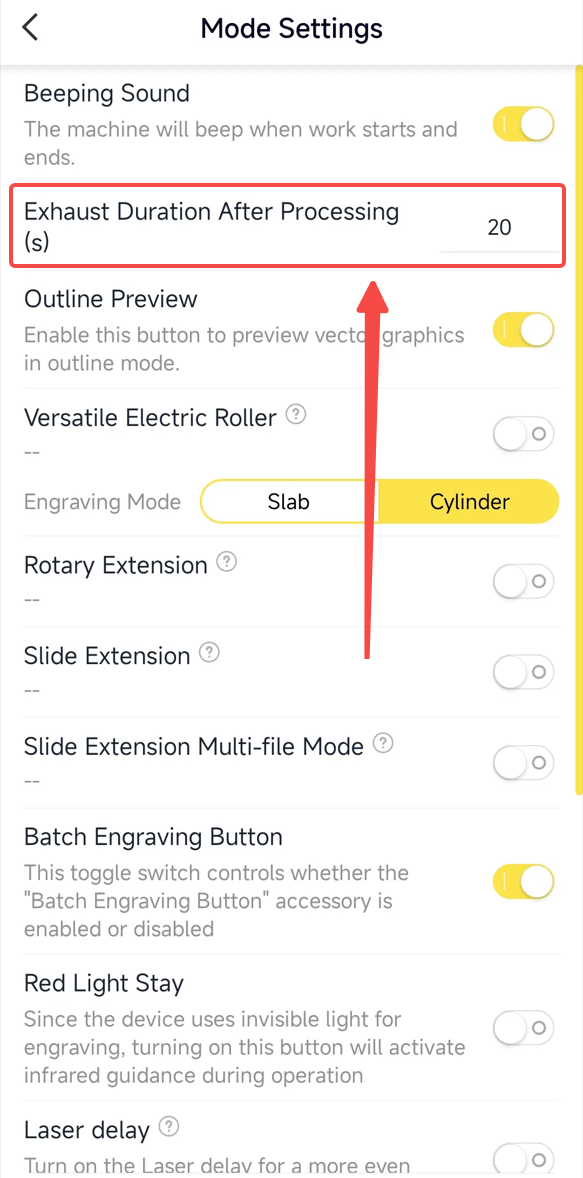

(4) Locate the "Exhaust Duration After Processing" option.
(5) Adjust the time according to your needs (1–300 seconds).
