Problem Description

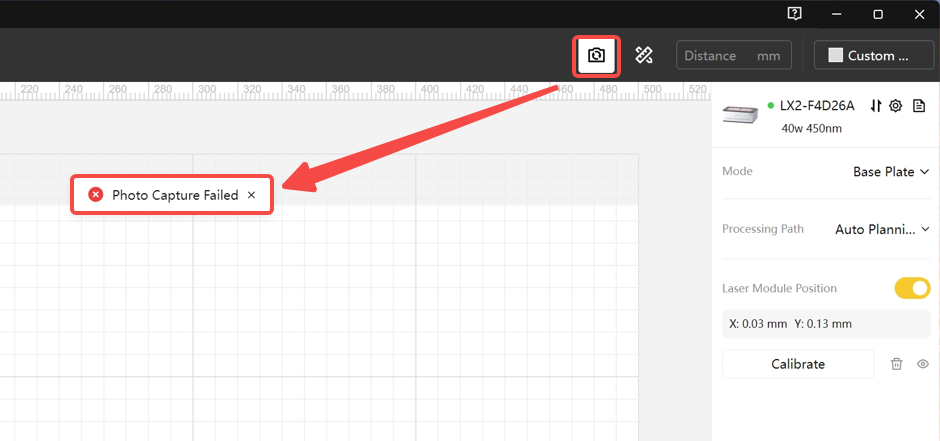

Clicking the "Refresh Background" icon in the software produces no response, and the canvas shows no background image. One of the following error messages may appear:
- Photo Capture Failed
- Failed to retrieve camera calibration data!
- Camera calibration data is invalid or missing. Please recalibrate.
- Please calibrate the camera first! Calibration improves processing results.
- Marker dots may be dirty or obscured. Image is for reference only. Please use the red crosshair for positioning.
Troubleshooting Steps
1. Common Solution
Most of the above errors can be resolved by recalibrating the camera. Follow the official guide to calibrate the LX2 camera: Calibrating the LX2 Camera.
2. Update Software and Firmware
2.1 Checking the Software Version
If the primary error is "Photo Capture Failed", ensure that both your LDS software and LaserPecker LX2 firmware are updated to the latest versions.

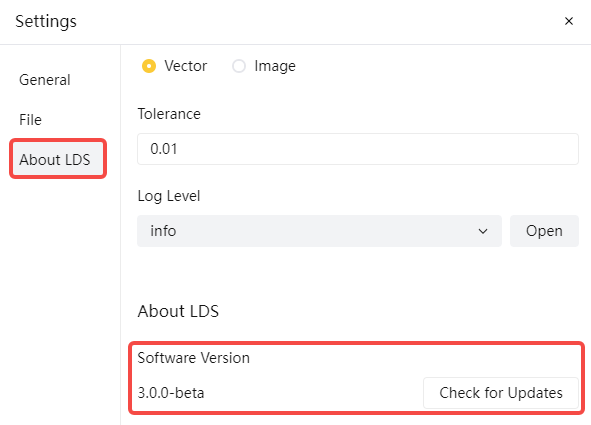

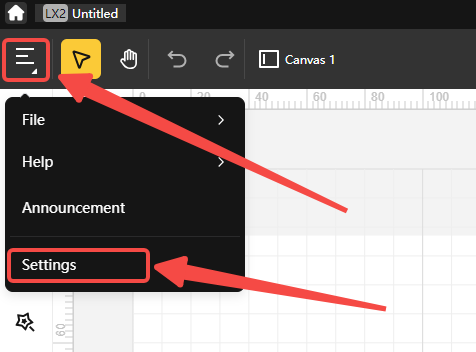

- Click the "Main menu" button in the top-left corner → select Settings.
- Open About LDS.
- The current software version is displayed on the right.
2.2 Checking the Firmware Version

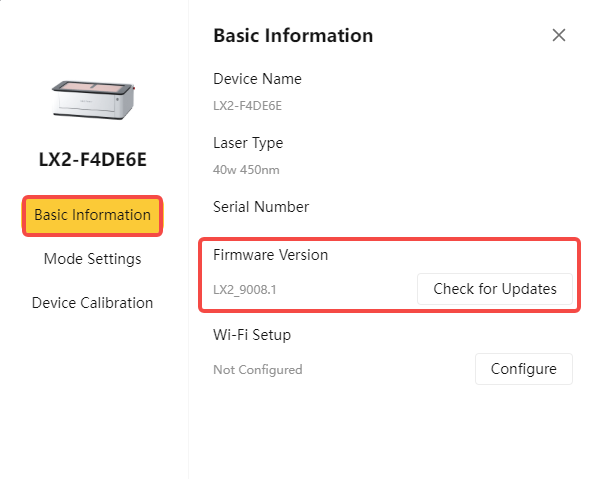

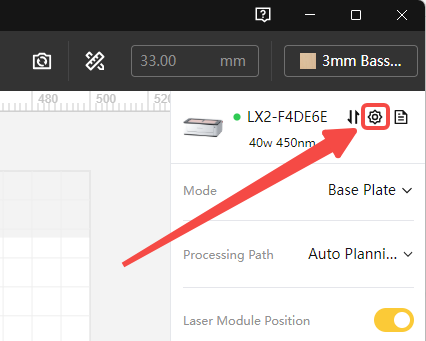

- Connect to the LX2 device and click the gear icon in the top-right corner.
- Open Basic Information.
- The current firmware version is displayed on the right.
If the software or firmware is outdated, install the latest versions and try refreshing the camera background again.
3. Inspecting the Camera and Base Plate
If the error message is "Marker dots may be dirty or obscured. Image is for reference only. Please use the red crosshair for positioning.", follow these steps:

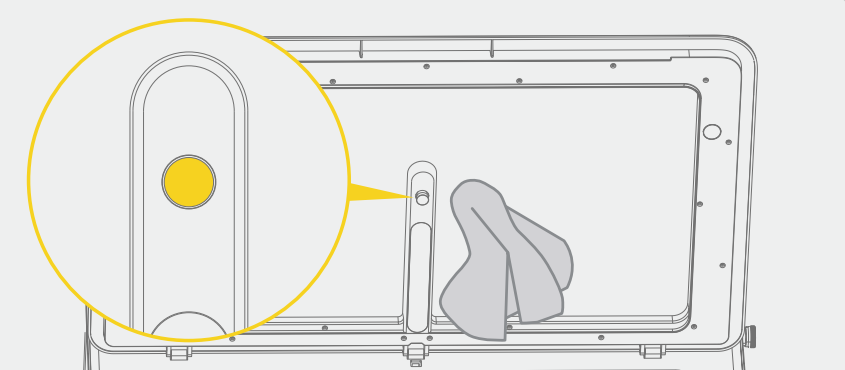

(1) Clean the camera lens
Check if the camera lens is dirty. Clean the surface using a lens cloth or lint-free cloth.
(2) Check reference dots

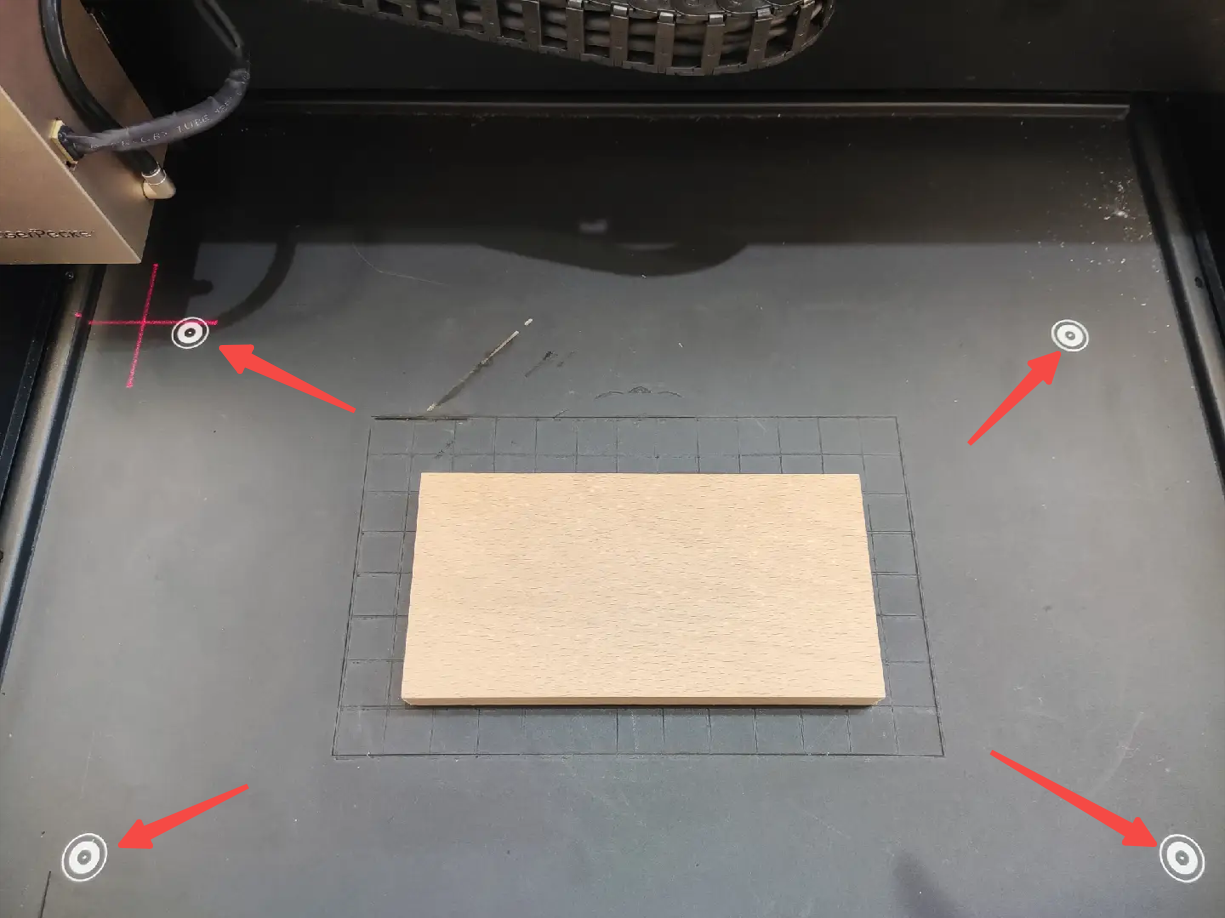

Inspect whether the four black-and-white reference dots on the Base Plate are obstructed by any objects.
(3) Material blocking reference dots

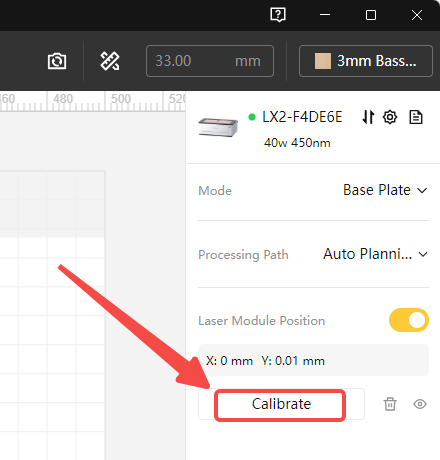

If the material is too large and covers the reference dots, switch to the Calibrate function for positioning.
(4) Replace damaged reference dots

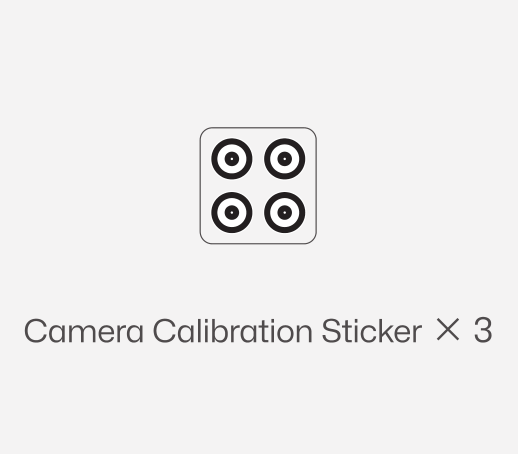

If the reference dots are damaged, use the replacement stickers from the toolkit. Apply them precisely to the original positions, then recalibrate the camera.
4. Contact Support
If the issue persists after following all the steps above, please reach out to our after-sales support team. We are ready to assist you and ensure the problem is resolved quickly.
Email: support@laserpecker.com
