After extended use, smoke residue and dust may accumulate on the camera lens, floodlights, and flame sensors. Regular cleaning helps ensure proper detection, illumination, and overall system performance.
Before cleaning, power off the device and allow it to cool completely.

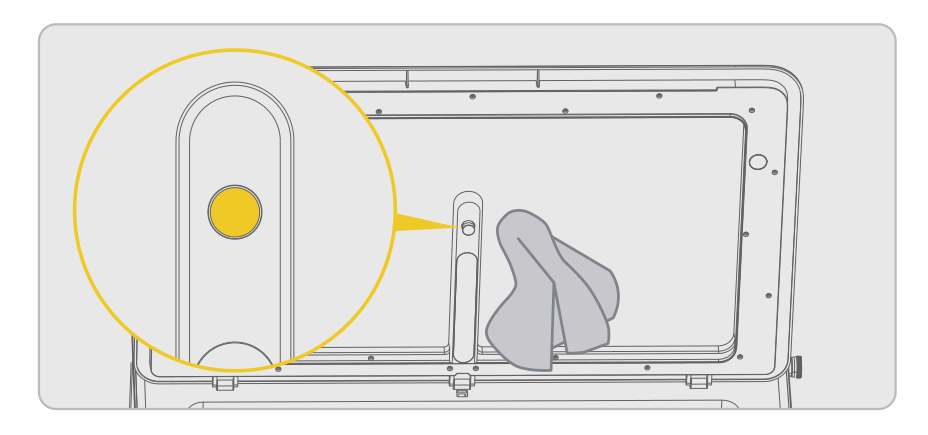

Camera Lens
Open the top lid. If the camera lens is dirty, gently clean the surface using a lens cloth or a lint-free cloth.

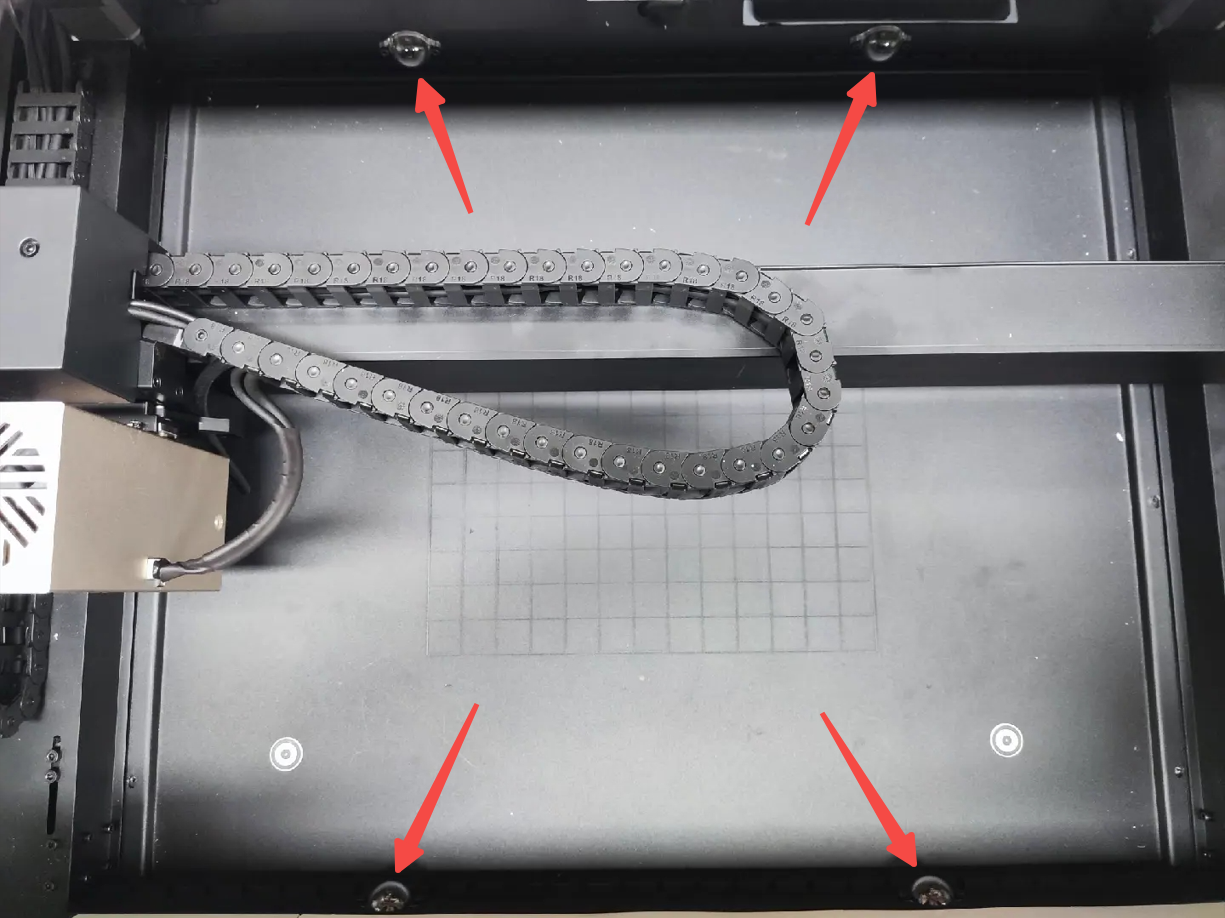

Flame Sensors
Wipe the flame sensors located on the front and rear inner frames of the machine.

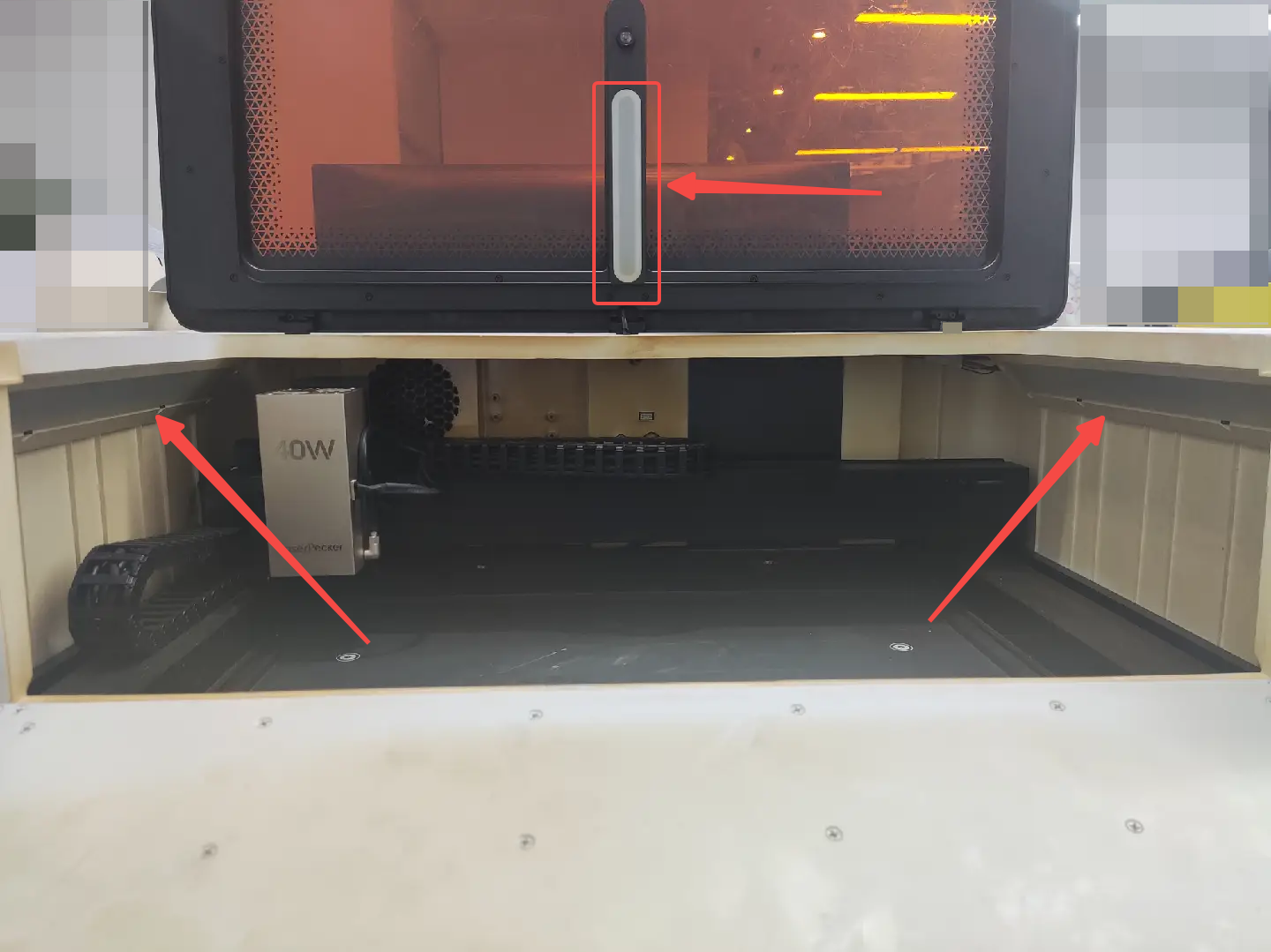

Floodlights
Clean the floodlights located on the left and right sides of the frame, as well as those on the top lid.
Recommended Cleaning Frequency
- Regular cleaning of the camera, flame sensors, and floodlights helps maintain image clarity, detection sensitivity, and lighting brightness.
- It is recommended to clean these components once per month.
- Adjust the cleaning frequency based on actual usage intensity and the operating environment (for example, frequent engraving or heavy smoke conditions).
