With prolonged use, dust and residue may accumulate on the protective lens, which can reduce laser output power. In addition, the protective lens may become worn over time, affecting laser transmittance.
To ensure optimal laser performance:
- Clean the protective lens regularly.
- After each cleaning, inspect the lens for signs of wear.
- Replace the protective lens if wear or damage is detected.
Before replacement, power off the device and allow it to cool completely.
20W / 40W / 60W 455 nm Laser Module
(1) Power off the device. Disconnect the laser module cables, distance sensor cable, and air hose, then remove the laser module.

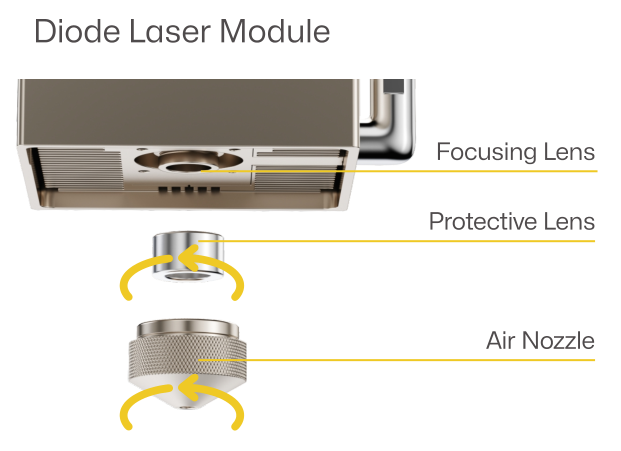

(2) Remove the air nozzle and the protective lens from the laser module.
(3) Take a new protective lens from the toolkit and replace the old one.
(One spare protective lens is included with each LX2.)
(4) Reinstall the air nozzle and mount the laser module back onto the LX2.
2W 1064 nm Laser Module
(1) Power off the device. Disconnect the laser module cables, distance sensor cable, and air hose, then remove the laser module.
(2) Remove the protective lens from the laser module.
(3) Take a new protective lens from the toolkit and replace the old one.
(One spare protective lens is included with each LX2.)
(4) Mount the laser module back onto the LX2.
