LP1 Plus - Quick Start Guide

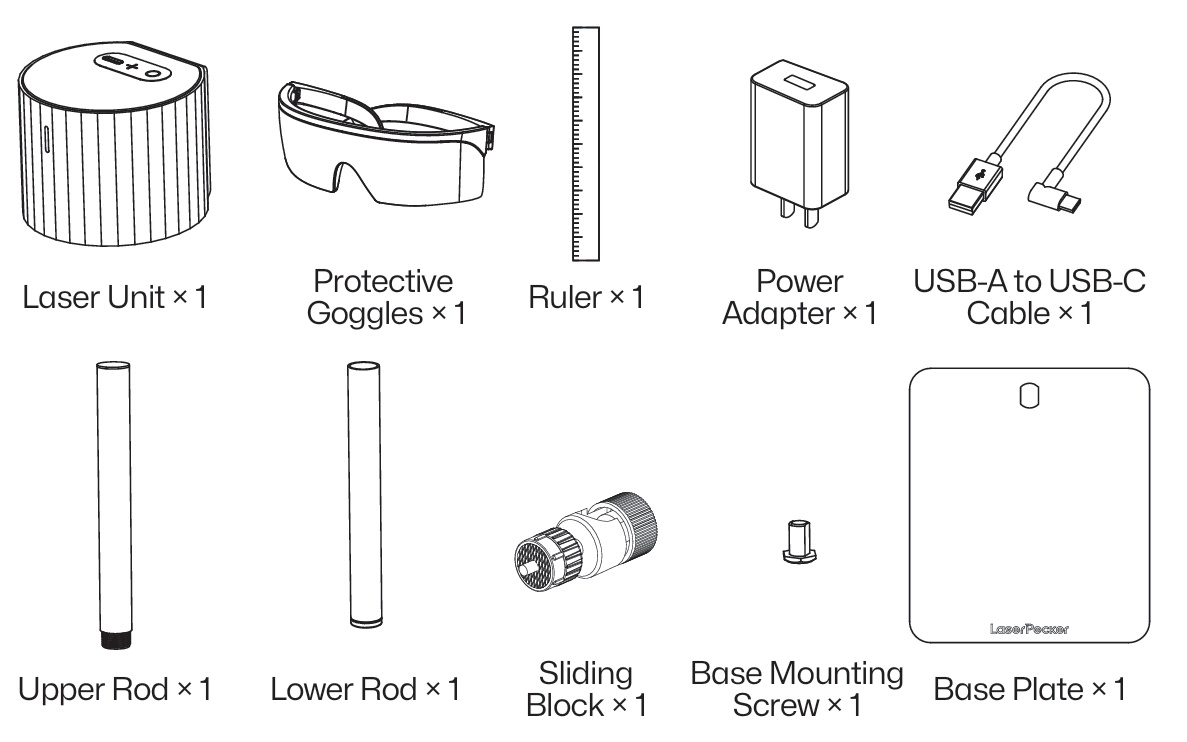

Package List

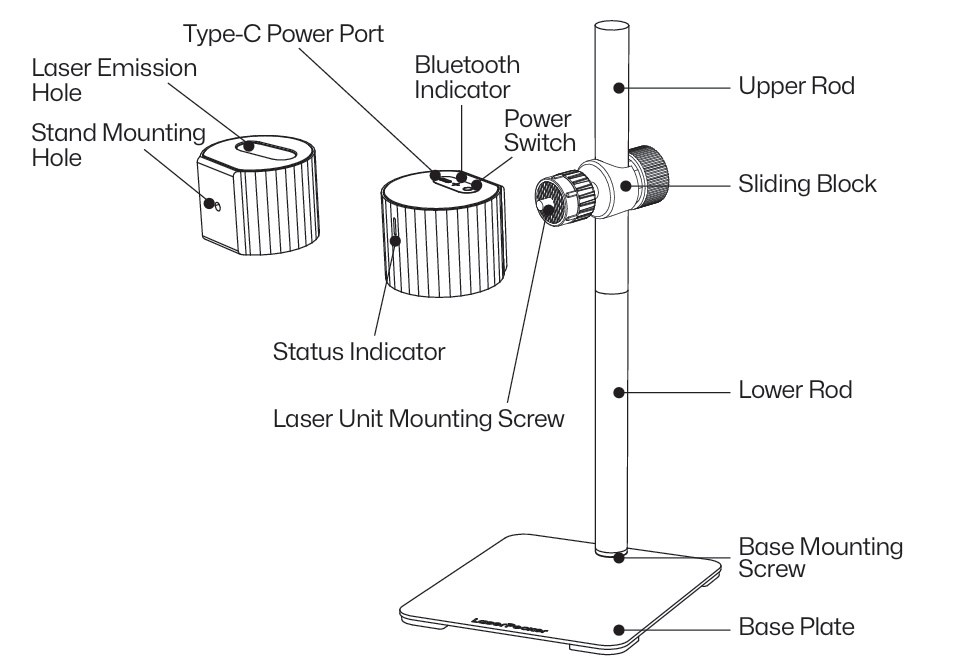

Component Introduction

Quick Assembly

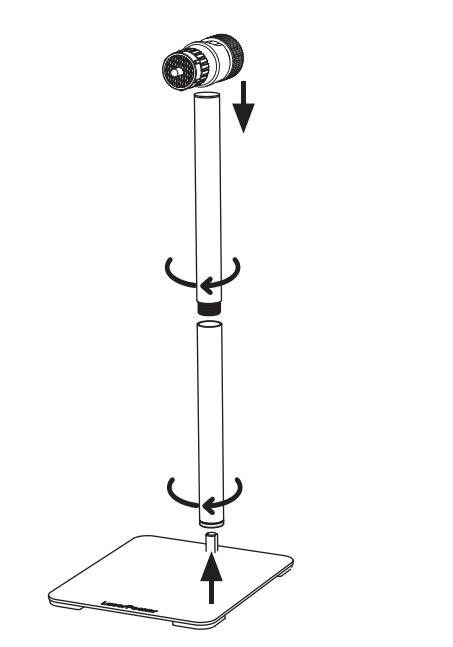

Step 1: Stand Installation

• Twist the Upper and Lower Rods together to form one long rod.
• Secure the rod to the Base Plate using the Base Mounting Screw.
• Slide the Sliding Block onto the rod and secure it in place.

Step 2: Laser Unit Installation

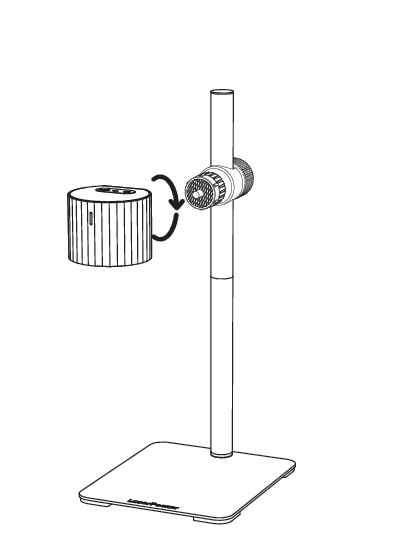

• Rotate the Laser Unit clockwise onto the Sliding Block.
• Level the unit.
• Tighten the arm's ball head to secure the Laser Unit.

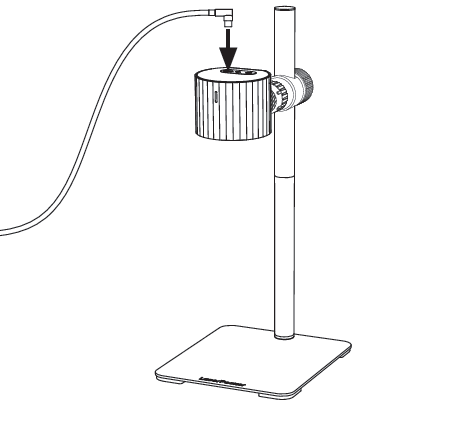

Step 3: Power Connection

• Connect a USB-C power source with at least 5V/2A output.
• Use the included charger for optimal performance, or any QC2.0-certified charger.

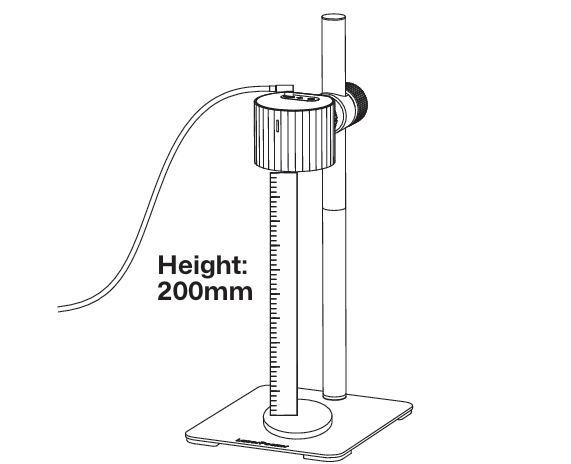

Step 4: Focusing

• Slide the Sliding Block to adjust the height so that the distance between the laser lens and the material surface is exactly 200 mm.
• Use the included ruler to ensure accuracy.

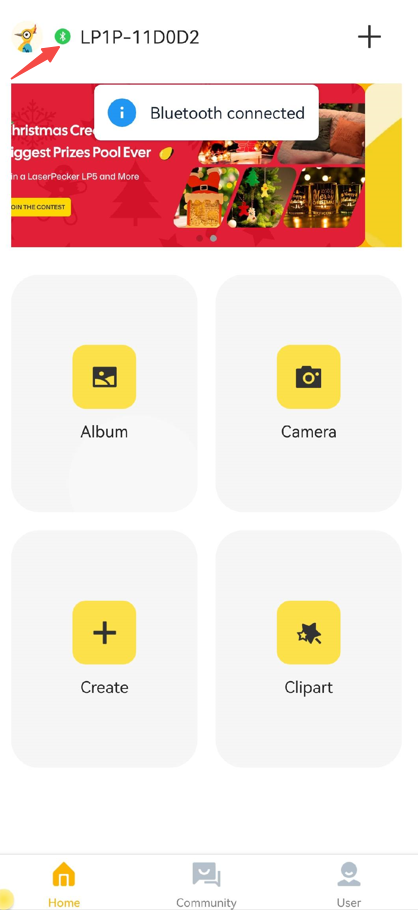

Software Connection

Note
Preparing for Bluetooth:
Power on the LP1 Plus. Wait for the indicator light: solid yellow → flashing blue.

(1) Open the LaserPecker Design Space App.

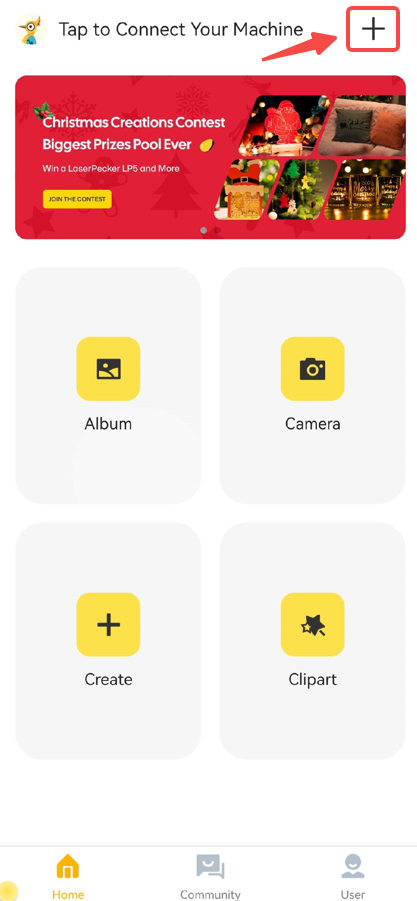

(2) Tap the "+" button in the top-right corner.

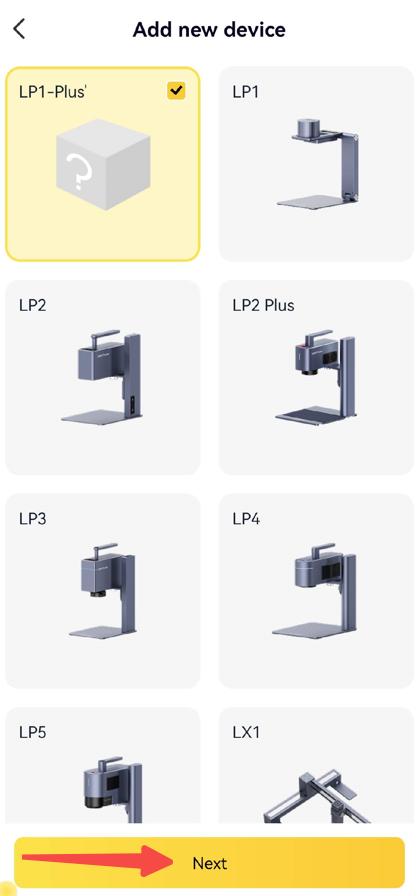

(3) Select your machine model: LP1 Plus.

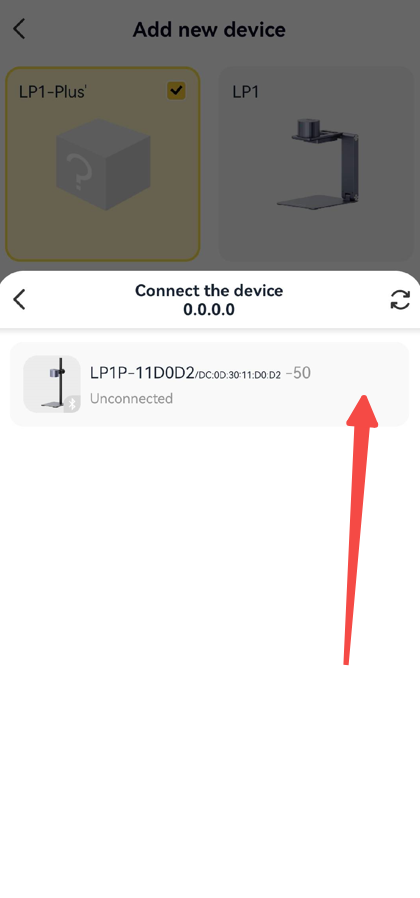

(4) Tap Next to complete the connection.

Using the Product

Step 1: Accessing the Canvas

• Connect your LP1 Plus to the LaserPecker Design Space App.

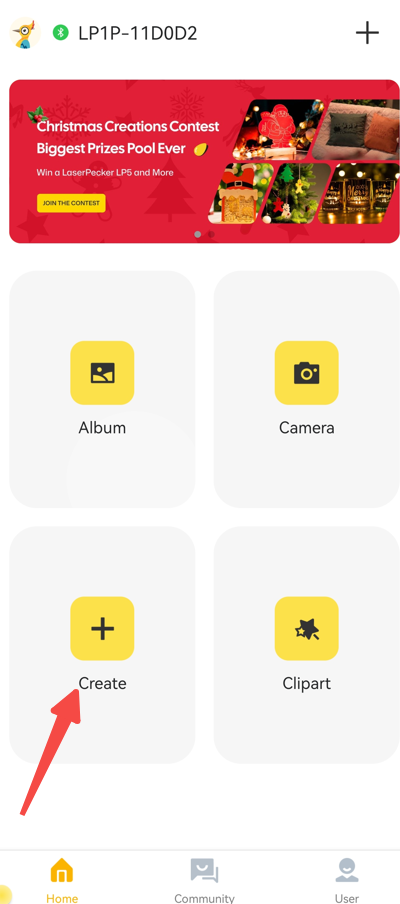

• Tap Create to open the canvas.

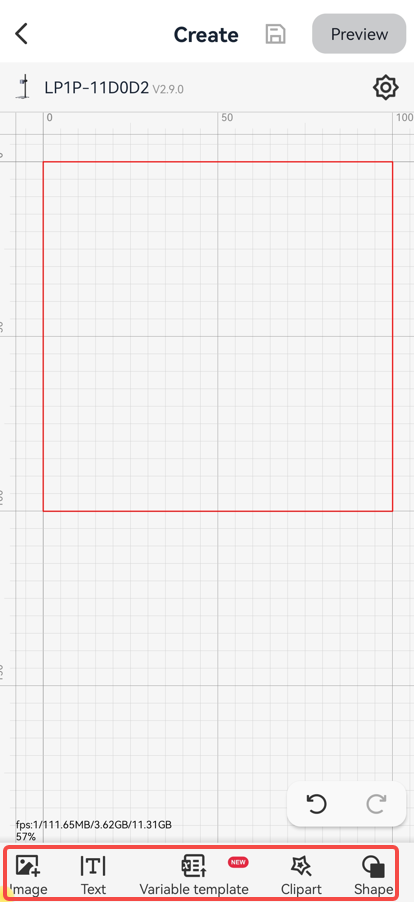

Step 2: Importing Files

• Import images, text, or patterns from the bottom toolbar.

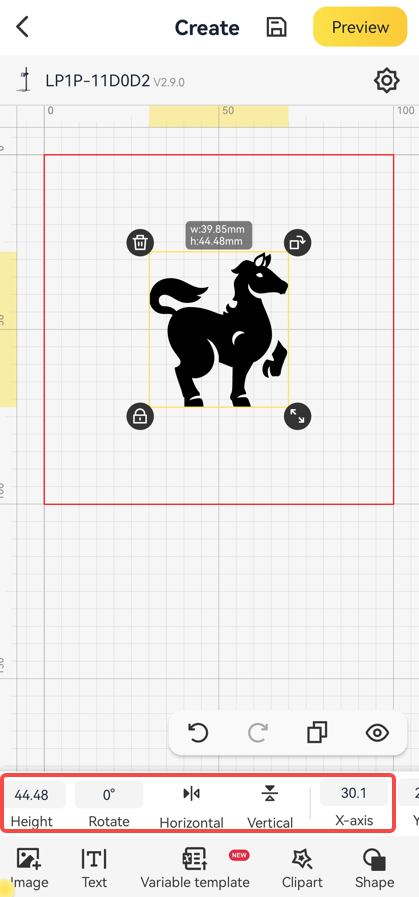

• Swipe the editing bar to adjust size and position as needed.

Step 3: Placing Material & Preview

• Place the engraving material onto the Base Plate.

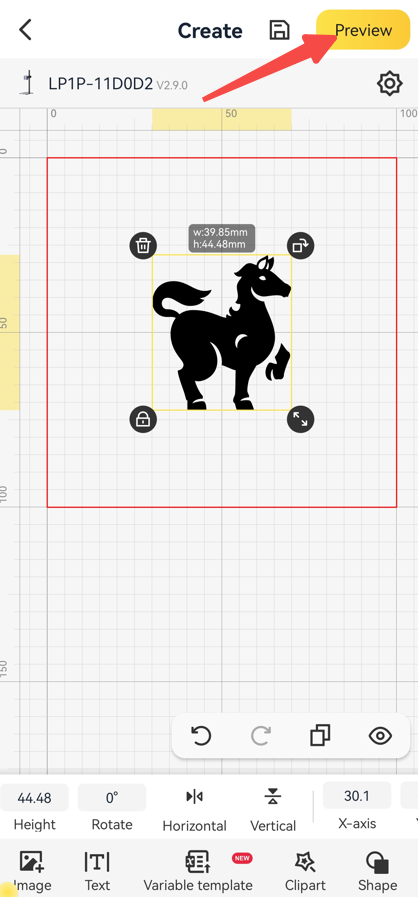

• Tap Preview (top-right corner) to check settings.

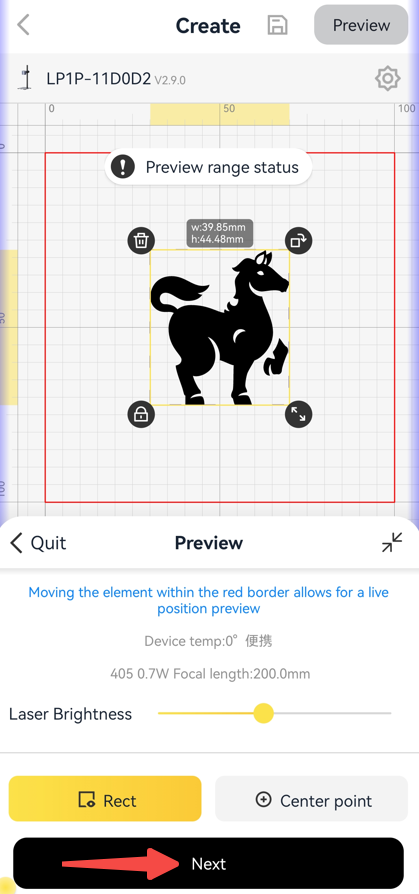

• Tap Next to go to the File Settings page.

Step 4: Sending File & Engraving

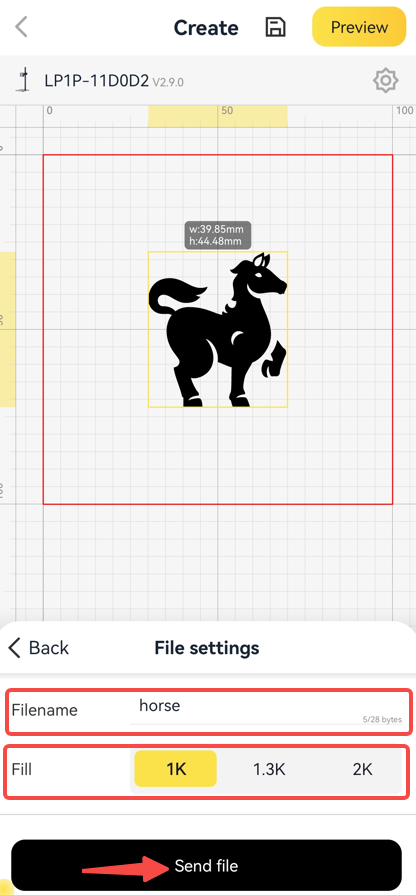

• Set resolution, edit file name, then tap Send File.

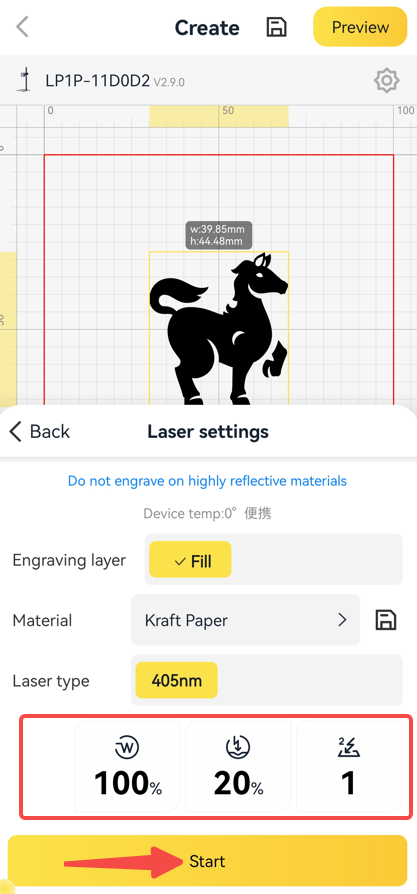

• Adjust engraving parameters as needed.
• Tap Start to begin engraving.

Engraving Modes

Dithering Mode

• Applied automatically when importing images from the album.
• Usually requires longer engraving time than Fill Mode.

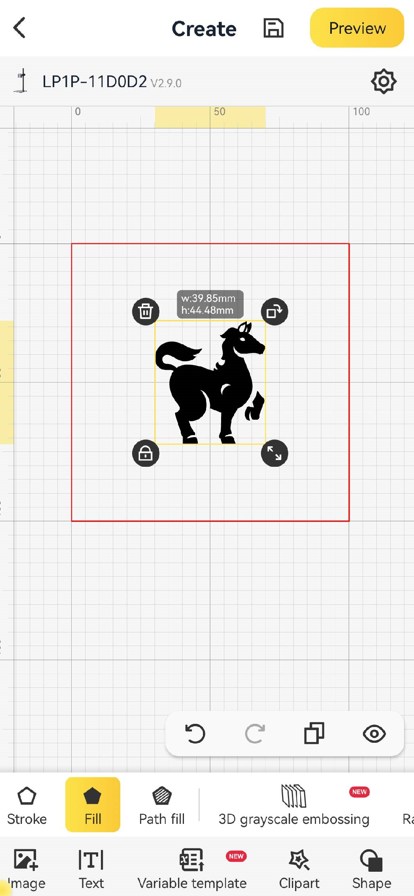

Fill Mode

• Applied automatically for text or Clipart patterns.
• More efficient than Dithering Mode.

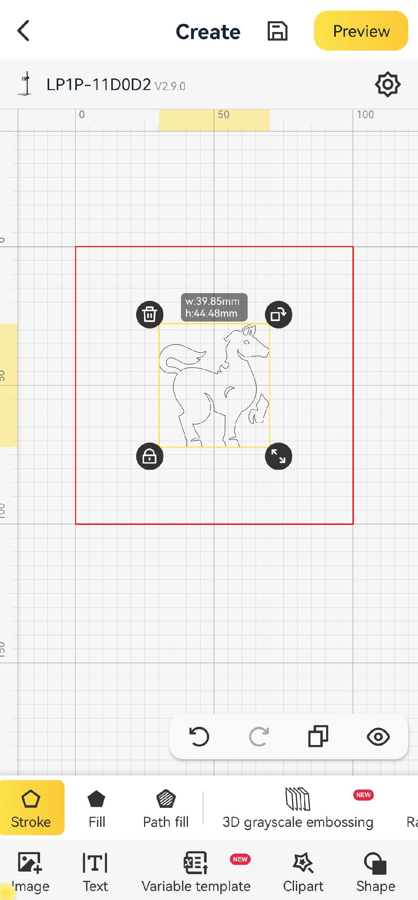

Line Mode

• Tap Stroke in the editing bar to switch from Fill Mode to Line Mode.
• Engraves only the outline of the graphic.

Technical Specifications
