Overview
The LX2 Laser Module can be moved manually by dragging, or precisely via the LDS Beta software using the XYZ Motion Console.
Opening the Control Panel

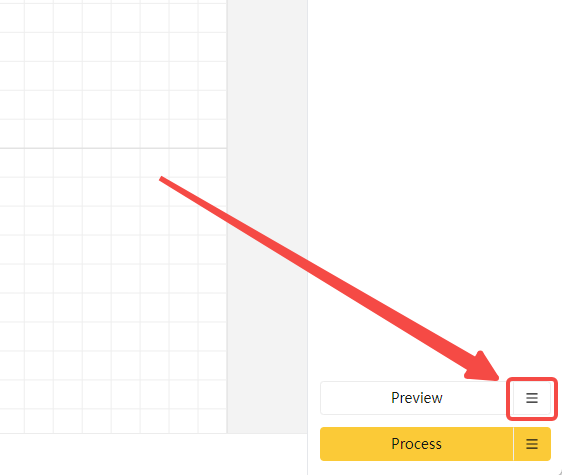

Click the icon next to the Preview button to open the XYZ Motion Console and Preview Settings panel.

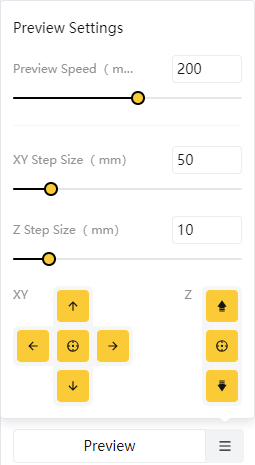

Control Panel Parameters
(1) Preview Speed
- Sets the speed at which the Laser Module moves along the outline during preview.
- Adjustable range: 80–300 mm/s.
(2) XY Step Size
Sets the distance the Laser Module moves along the X and Y axes per directional button click.
(3) Z Step Size
Sets the height the Laser Module moves along the Z axis per directional button click.
(4) XY Motion Control
- Click the directional buttons to move the Laser Module forward, backward, left, or right along the XY plane.
- Click the center button to return the Laser Module to the top-left corner of the working area.
(5) Z Motion Control
- Click the directional buttons to move the Laser Module up or down along the Z axis.
- Click the center button to return the Laser Module to the starting height of the Z axis.
