This guide explains how to connect your LaserPecker LX2 to a Wi-Fi network using the LaserPecker Design Space (LDS) mobile app.
Follow these steps when setting up Wi-Fi for the first time or changing to a new network.
Before You Start
Make sure the following conditions are met before proceeding:
- Your mobile phone is connected to a 2.4 GHz or 5 GHz Wi-Fi network.

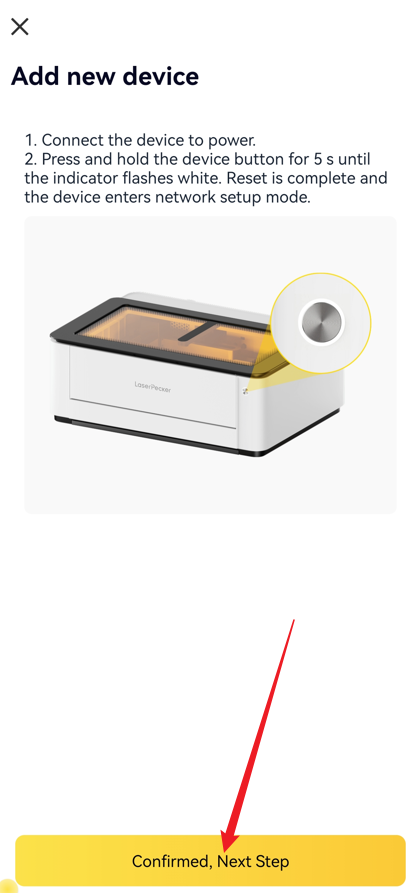

- The LX2 is powered on.
- The indicator light is flashing white (standby mode).
- The LaserPecker Design Space app is installed and updated to the latest version.
Step 1: Add the LX2 Device in the LDS App
- Open the LaserPecker Design Space app on your phone

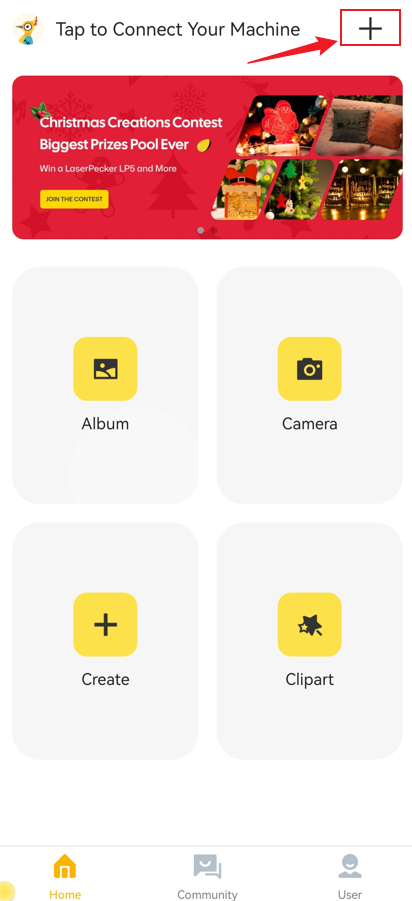

- Tap the "+" button in the top-right corner

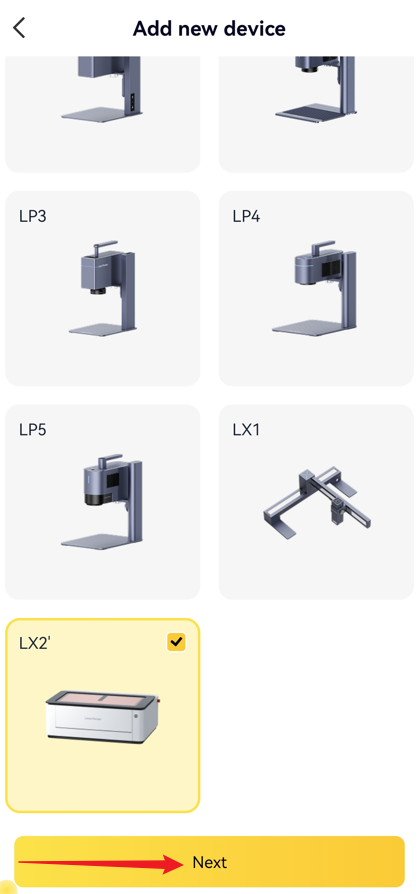

- Select "LX2" as the machine model
- Tap "Next" to continue
Step 2: Select a Wi-Fi Network

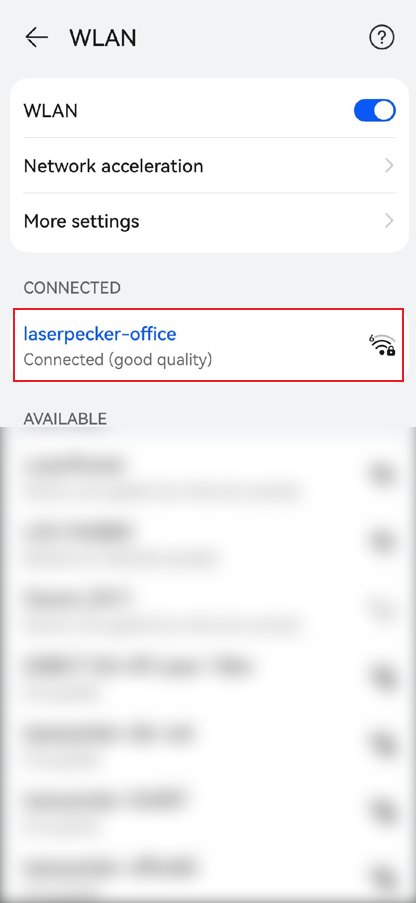

Both the phone and the LX2 must be connected to the same 2.4 GHz or 5 GHz network

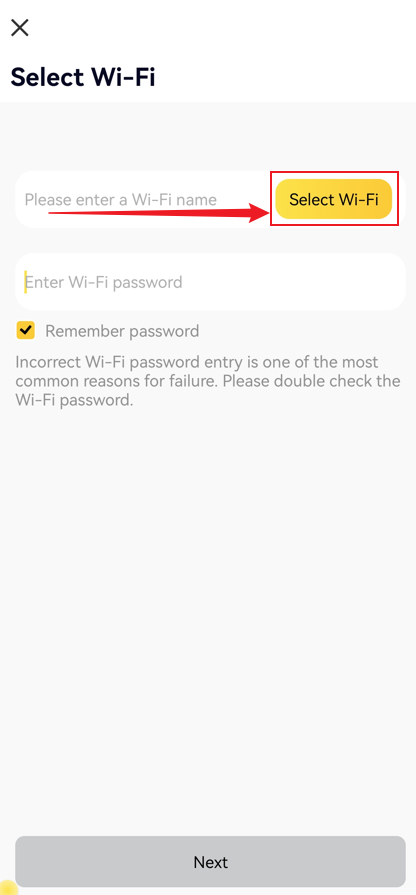

- Choose a Wi-Fi network from the list

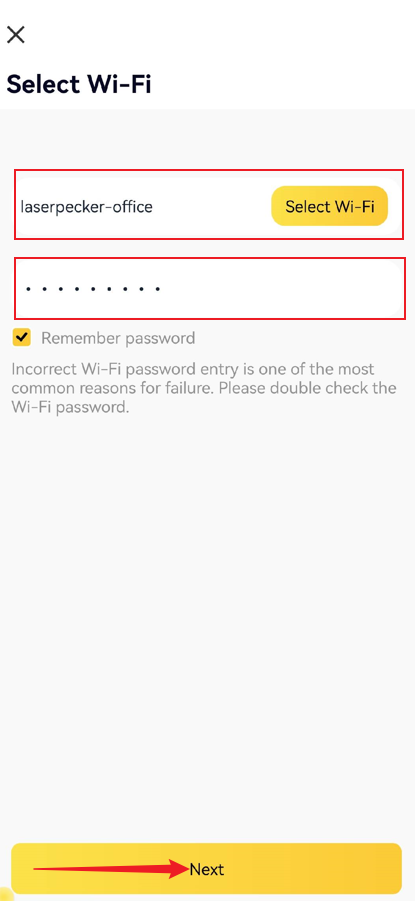

- Enter the Wi-Fi password
- Enable "Show Password" to verify accuracy
- Tap "Next" to start the configuration

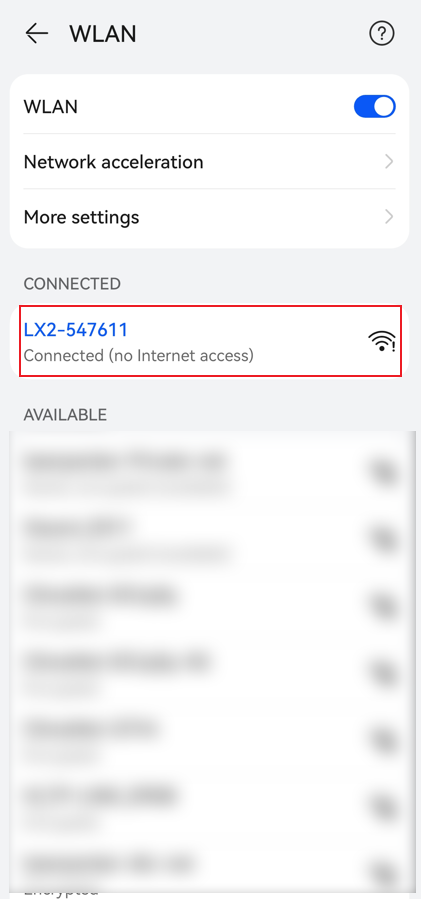

Step 3: Connect to the LX2 Hotspot

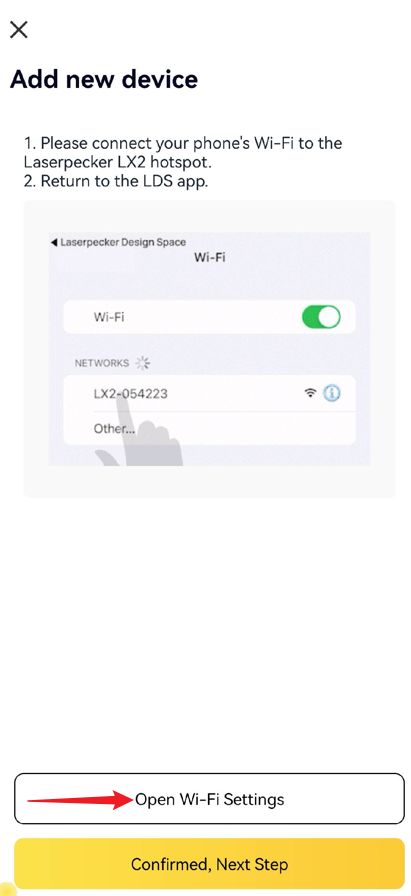

- When prompted, open your phone’s Wi-Fi settings
- Connect to the LaserPecker LX2 hotspot
- Return to the LDS app

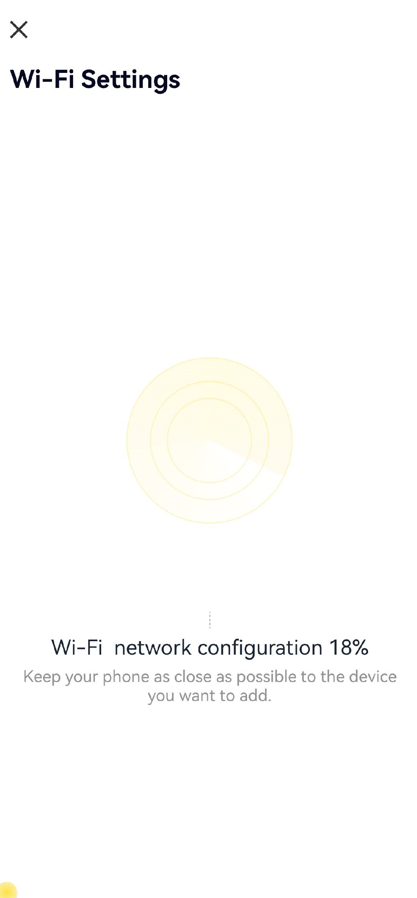

- Wait for the configuration process to complete
Successful Connection
- A blue flashing indicator light means the Wi-Fi setup is successful.
- The device will appear as online in the LDS app.
Troubleshooting
If the network configuration fails, check the following:
- Your phone and the LDS app are connected to the same Wi-Fi network
- The Wi-Fi password is entered correctly (case-sensitive, including special characters)
- If the issue persists, retry the setup process.
After following the steps above, the Wi-Fi connection should be successfully completed. If not, please do not hesitate to contact us at support@laserpecker.com for further assistance.
