To achieve the best slicing quality and engraving results, please choose the appropriate workflow based on the file size and engraving area:
-
Mobile Workflow
Recommended for small engraving areas and small-depth-map files. The generated slicing data will also be relatively small.
-
Desktop Workflow
For large engraving areas or large-depth-map files, it is recommended to complete slicing and parameter configuration on a computer. After saving the file to a USB drive, connect the USB drive to the device for engraving.
Before performing 3D relief engraving for the first time, we recommend learning about the relief engraving process and depth map design requirements. You can click the link below to learn more about grayscale relief engraving:
What Is 3D Relief Engraving and How to Use It
Steps for 3D Relief Engraving
Step 1

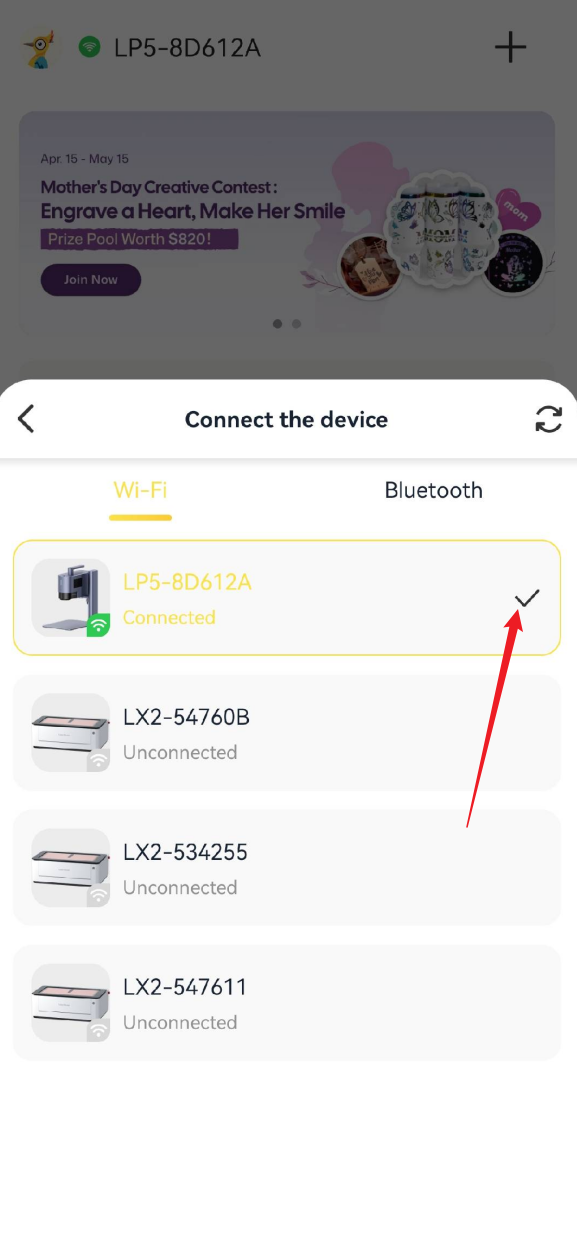

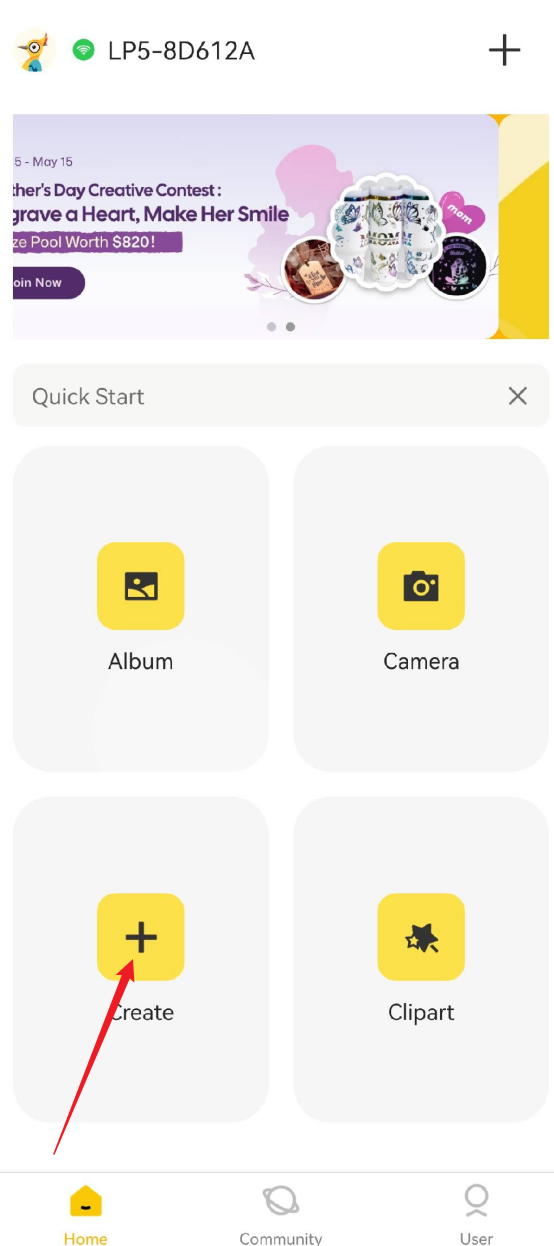

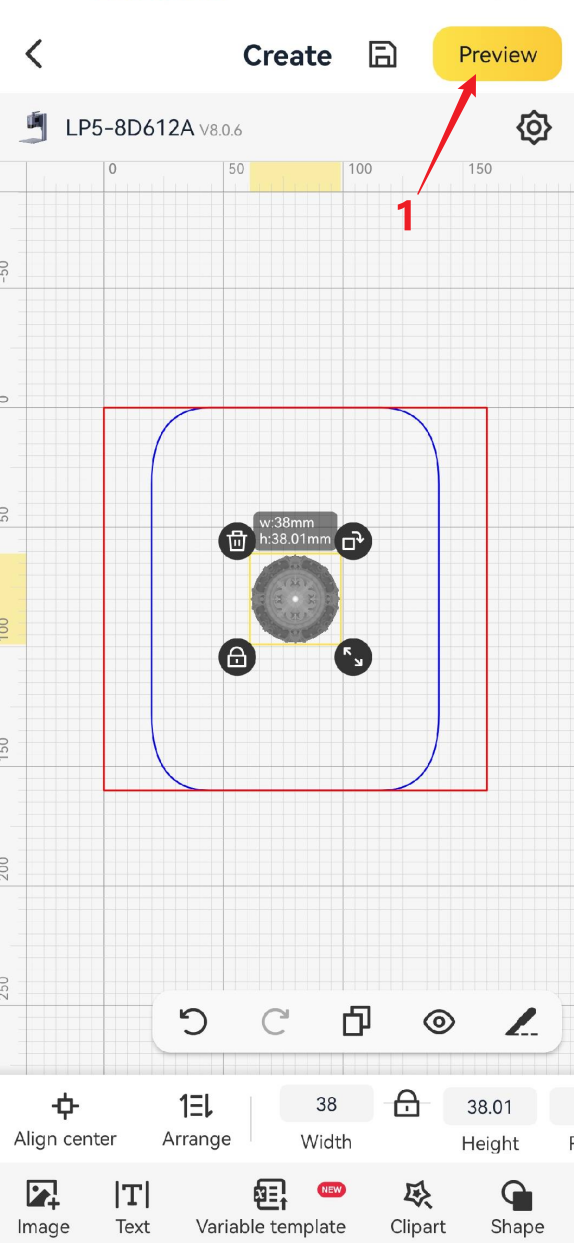

Connect your LP5 to the LaserPecker Design Space app, then tap Create to enter the workspace.
Step 2

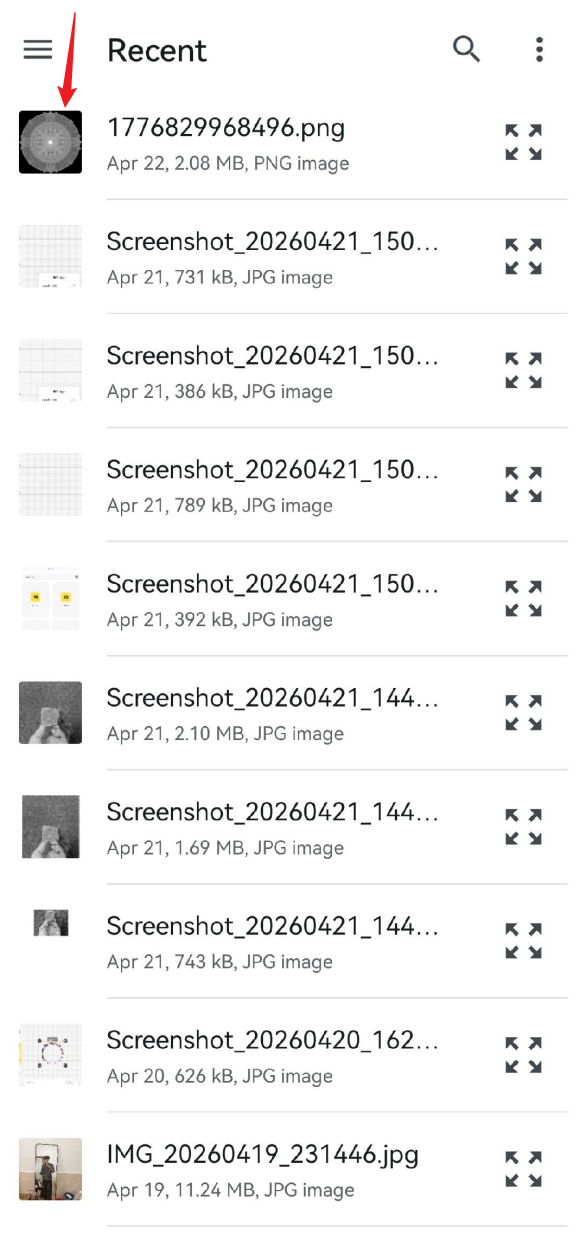

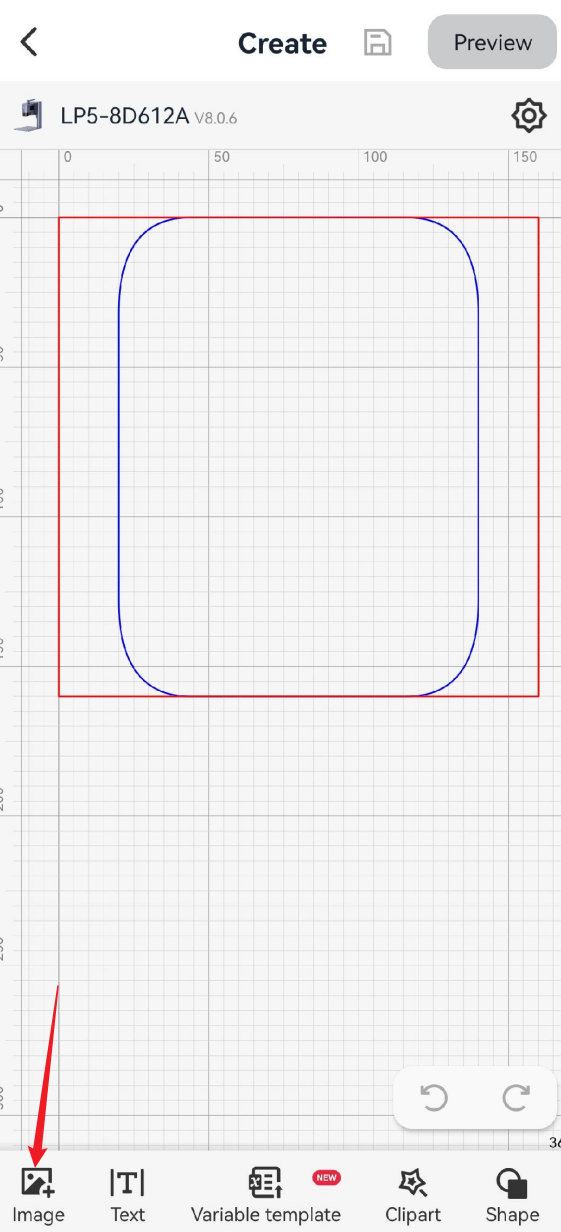

Tap Image in the toolbar at the bottom of the workspace and import the file (depth map) you want to engrave.
Step 3

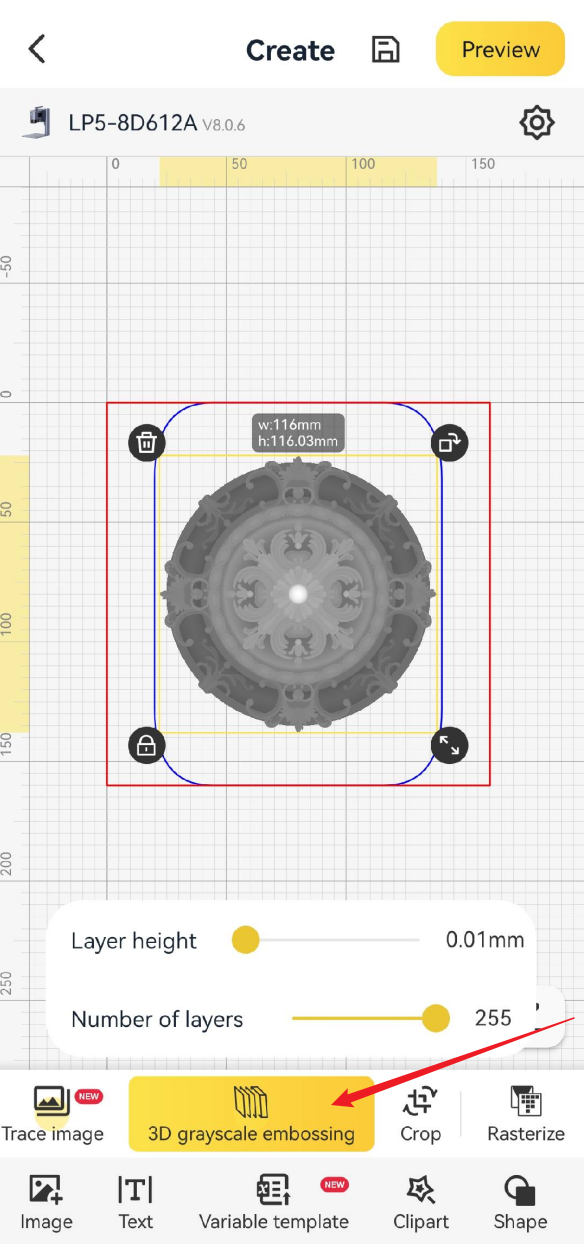

Select the design, then swipe left on the editing toolbar and tap 3D Relief Engraving (3D grayscale embossing).

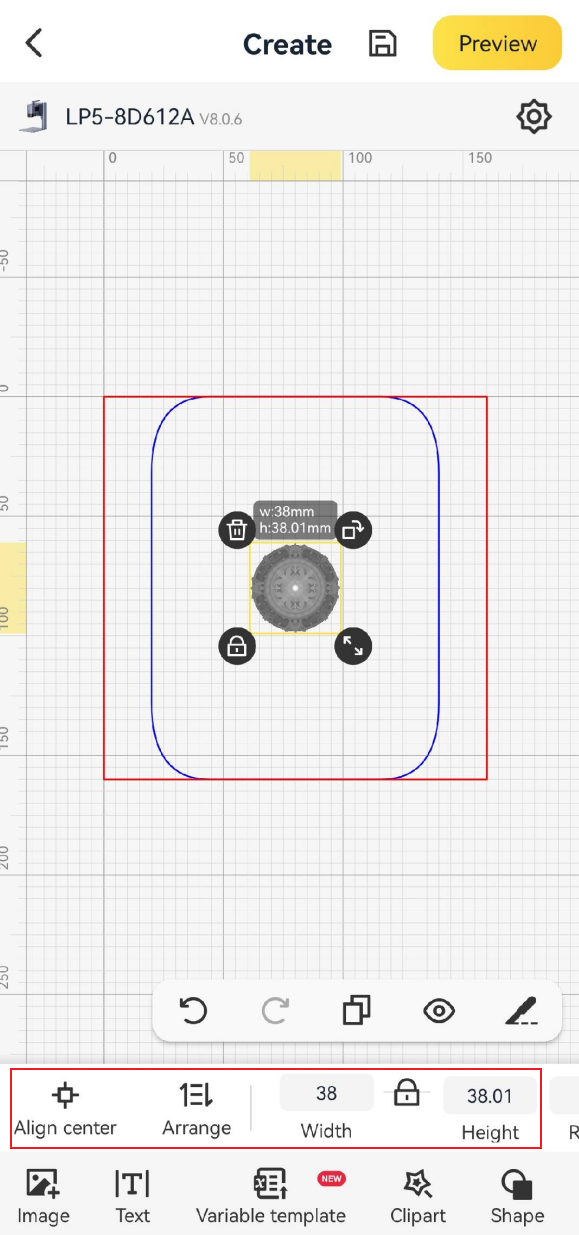

Next, continue swiping left on the toolbar and tap Align Center, then adjust the design size as needed.
For the best engraving results, centered engraving is recommended for 3D relief projects.
Step 4

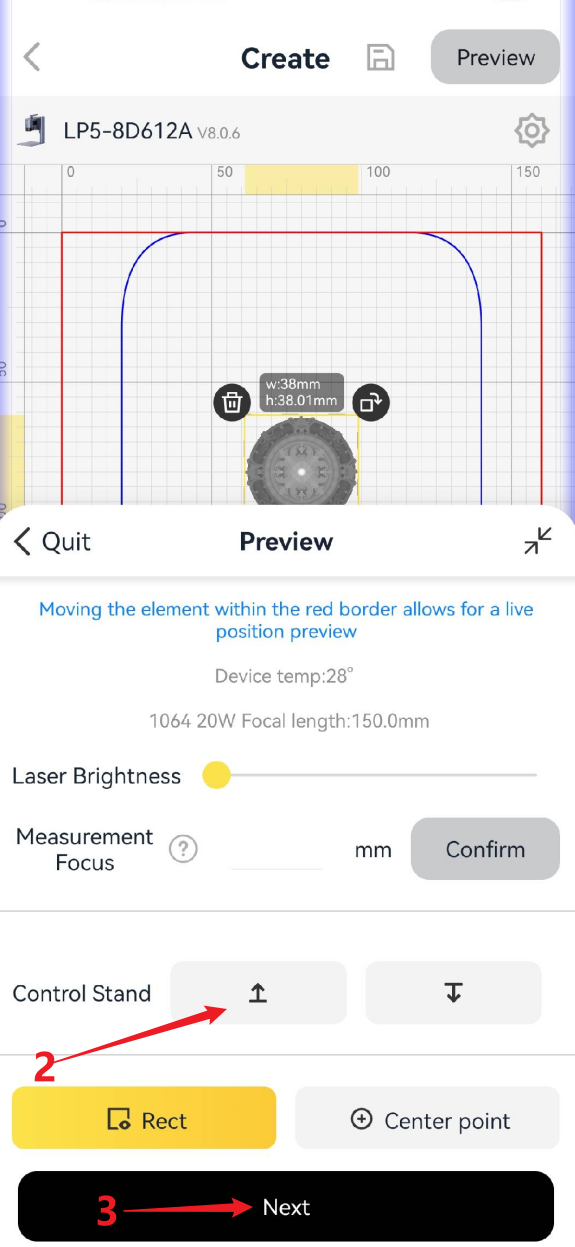

Tap Preview in the upper-right corner of the workspace and adjust the focus.

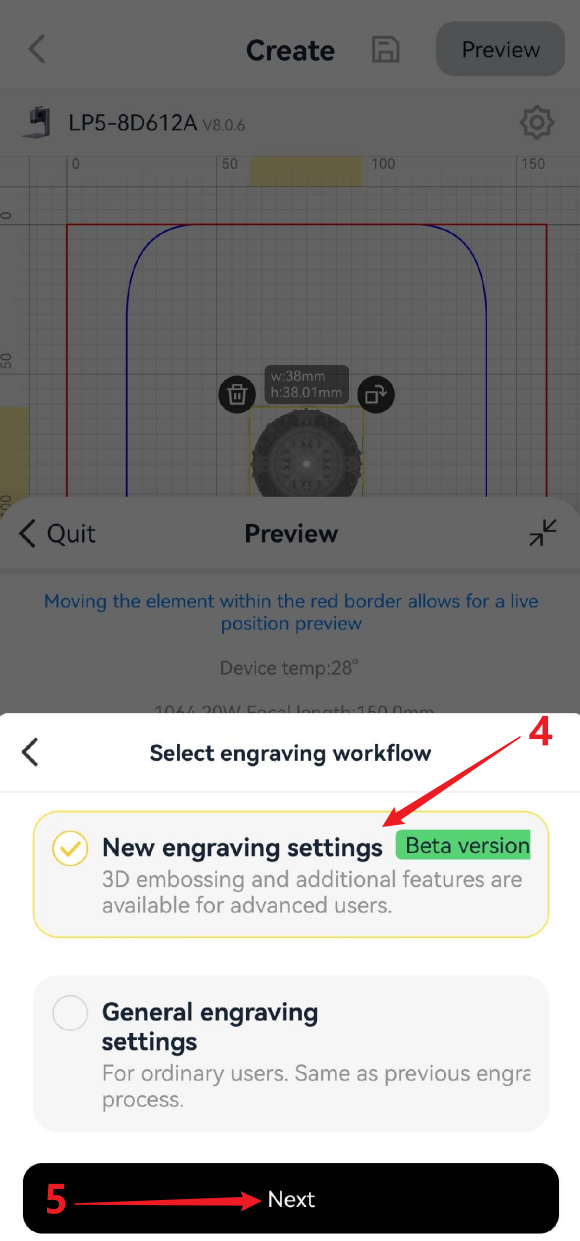

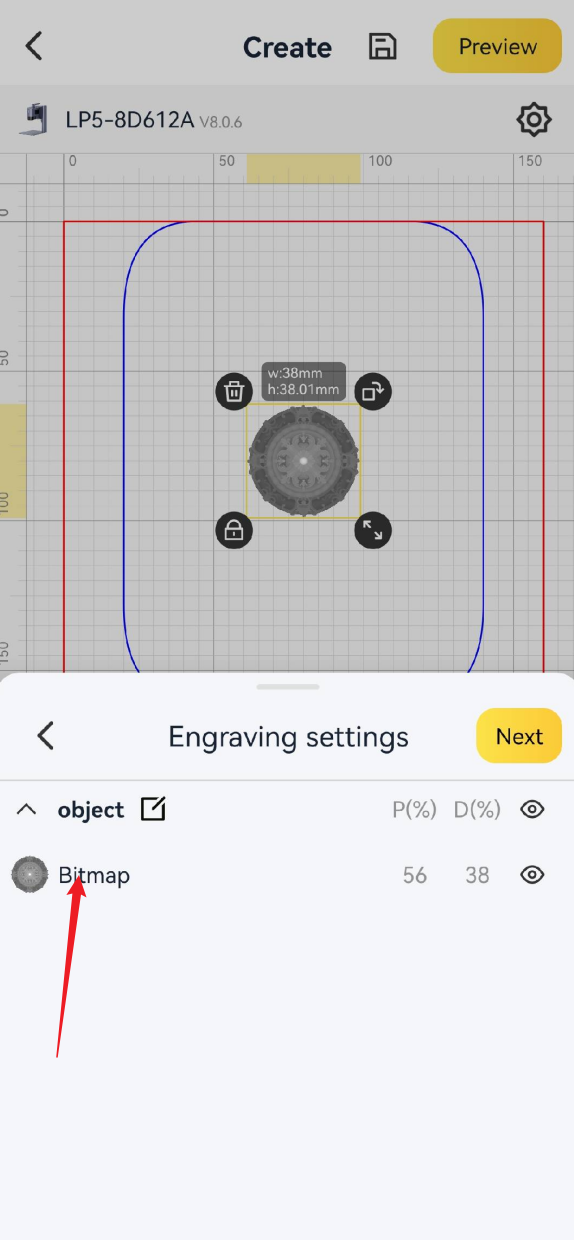

After confirming the focus, tap Next, then select New Engraving Settings.
Step 5

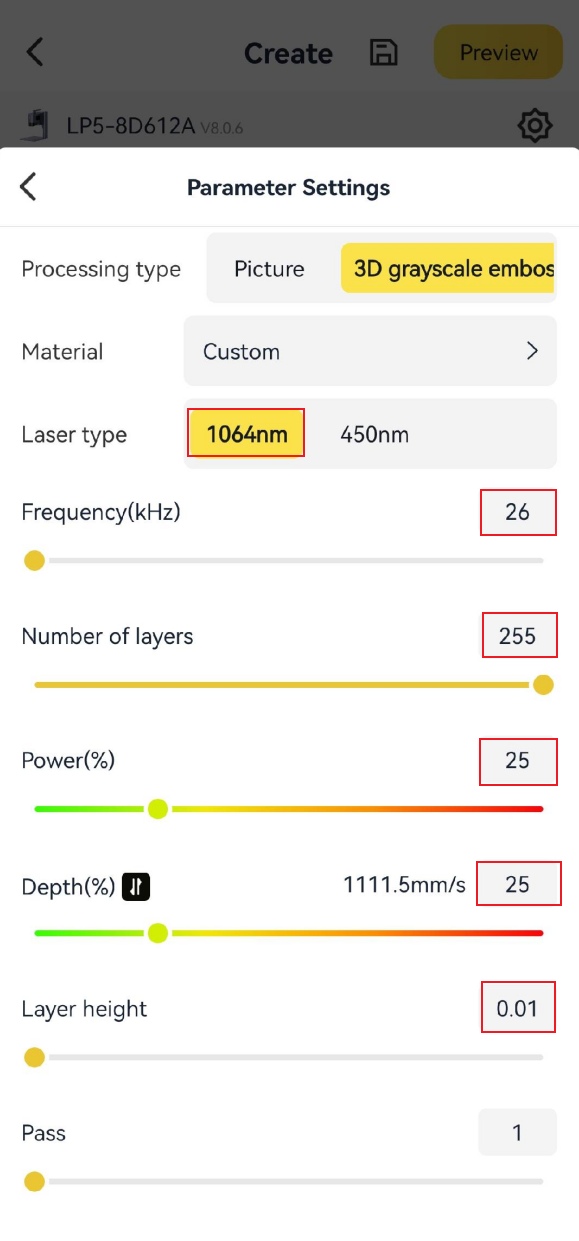

Tap Bitmap to enter the parameter configuration page. The processing type should display Sliced Relief Engraving (3D grayscale embossing).
(1) Slice Count (Number of layers)
Slice Count refers to the number of relief layers.
- More layers produce smoother relief details but require longer engraving time.
- Fewer layers produce rougher relief details but reduce engraving time.
- Increasing the number of slices will also increase the engraving depth on the material surface.
Valid range: 1–254 (integer values only)
(2) Slice Height (Layer height)
Slice Height refers to the vertical distance the support moves downward after each layer is engraved.

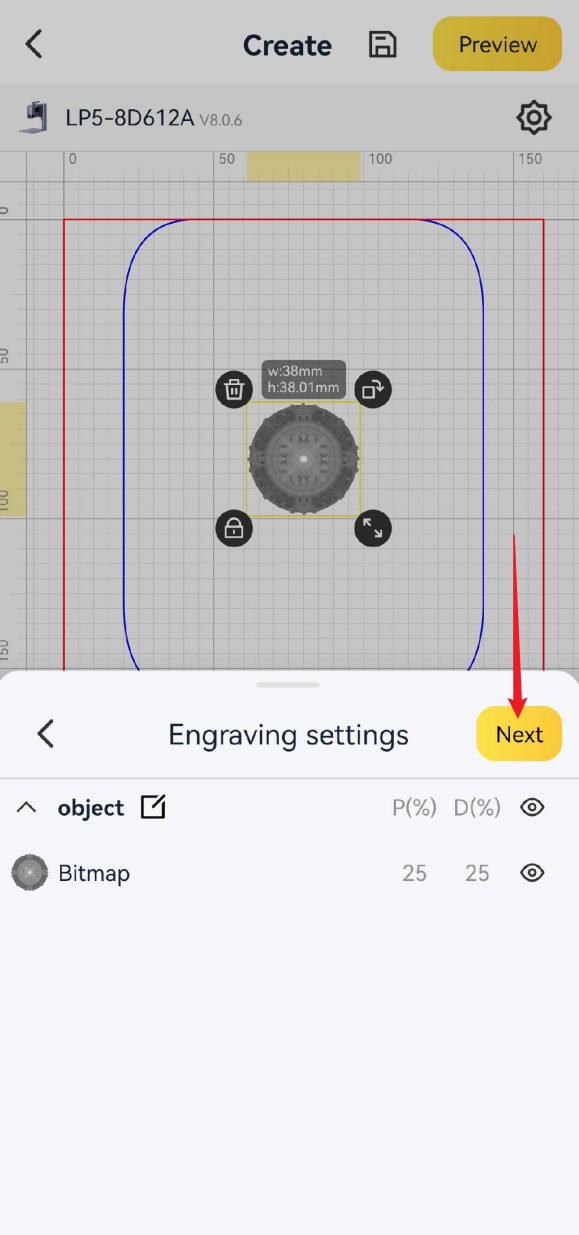

After configuring the parameters, tap the Back button to return to the engraving settings page, then tap Next.
Step 6

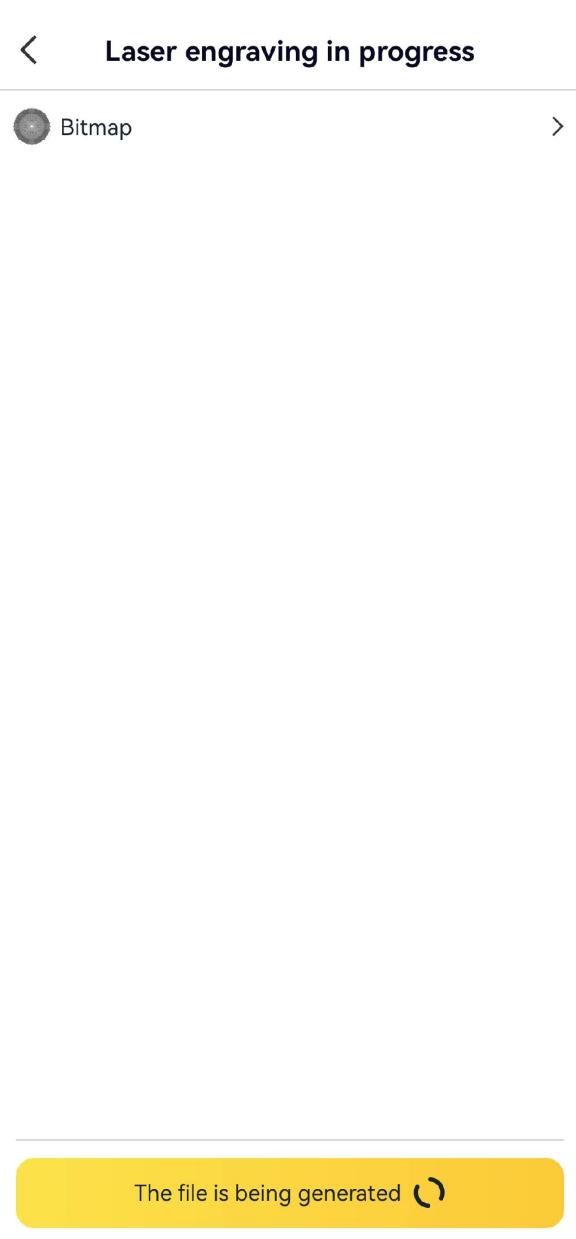

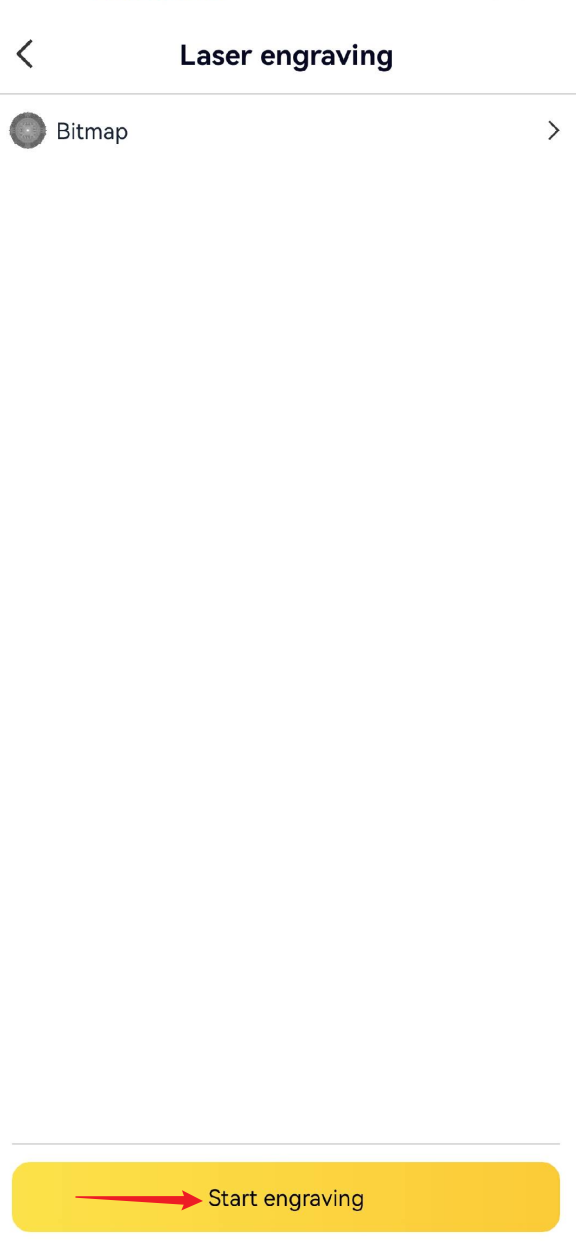

Tap Start Engraving. The interface will display the file transfer progress.

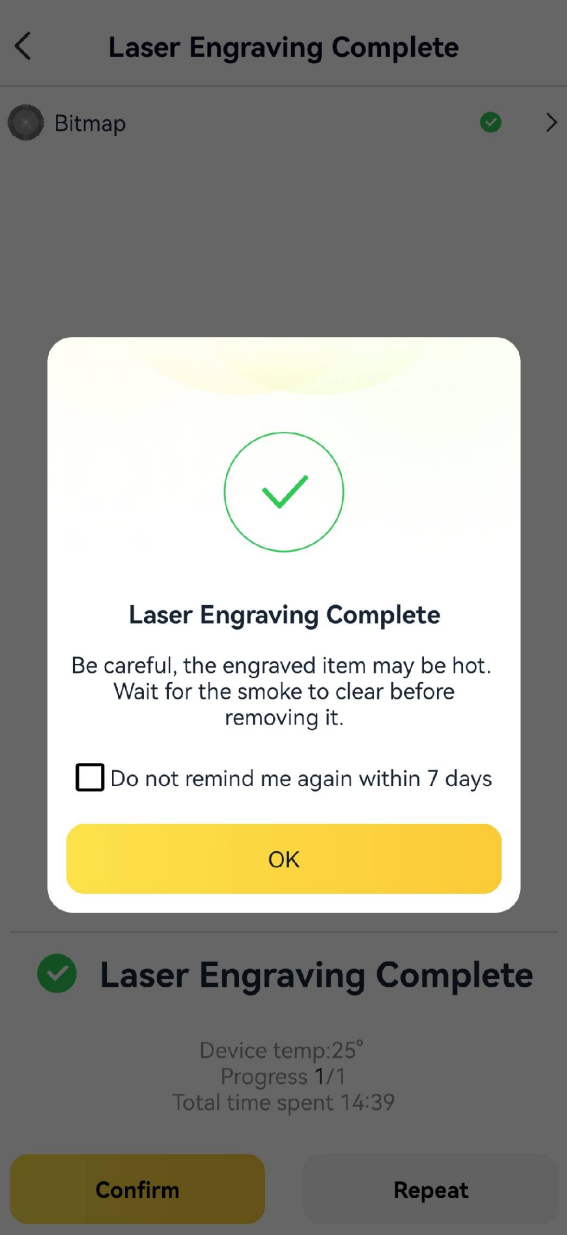

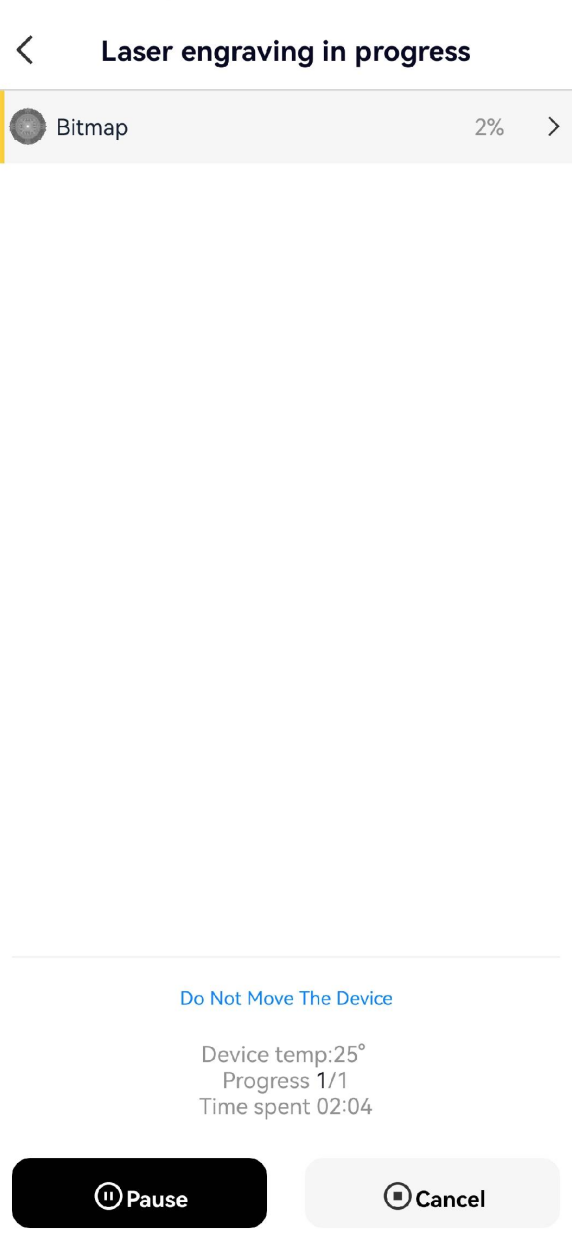

Once the transfer is complete, the device will automatically start engraving. When the engraving is finished, a Engraving Completed (Laser Engraving Complete) message will appear.
