LaserPecker GO App Operation Guide

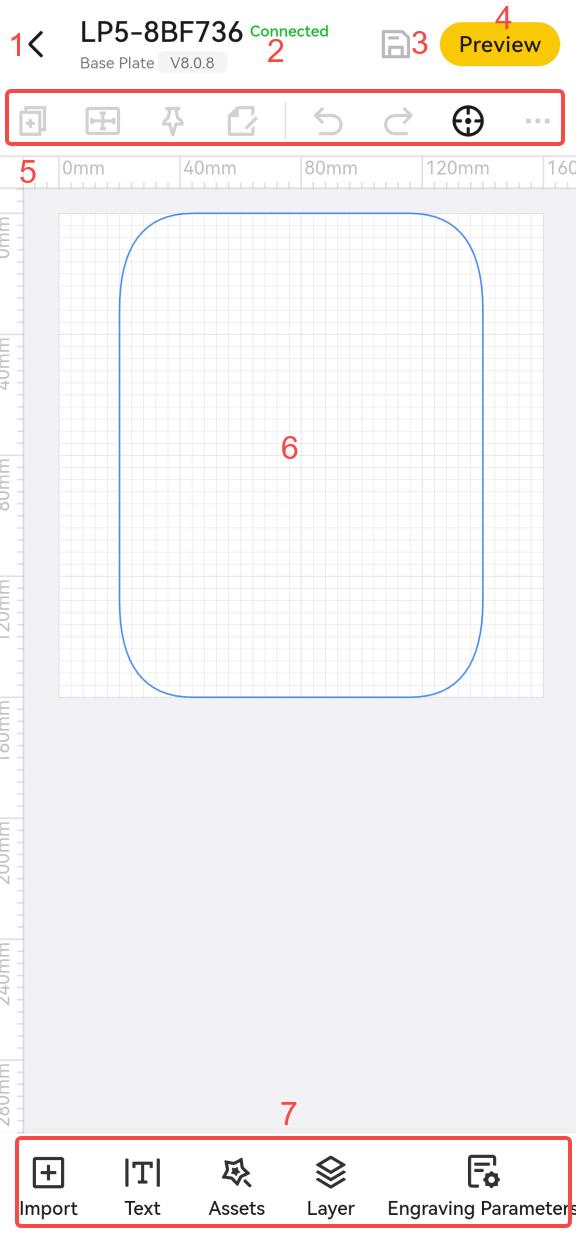

(1) Back: Return to the main interface. (2) Settings: Tap Connected to access the Device Details interface, which includes processing modes (e.g., Rotary Extension, Slide Extension, Versatile Electric Roller) and Device Setting (e.g., Beeping Sound, Firmware Version,Red Light Always on) (3) Save Project: Tap to save the current project. (4) Preview: Tap to open the preview interface. (5) Top Shortcut Bar: Provides quick-access tools for copying, centering, locking, cropping, undoing/redoing, resetting canvas view, and adjusting layer order. (6) Canvas: The canvas is the working area for placing your engraving design, with rulers along its edges. The LP4’s engraving area is an oval measuring 160 × 120 mm. For best results, place your design inside the blue frame, while the red frame indicates the maximum engraving area. Avoid placing designs near the corners of the red frame, as this may result in incomplete engraving or faded colors. The available engraving area may vary depending on the machine model. (7) Toolbar: Provides tools for importing images, creating text, adding basic shapes, and drawing graffiti, allowing you to quickly create engraving designs.

1.4.2 Top Shortcut Bar

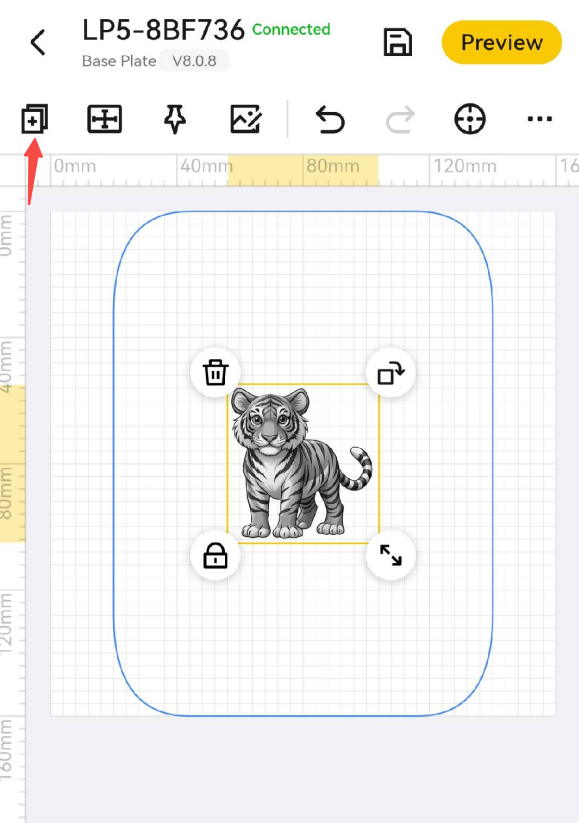

Copy

Tap the "+" copy the designs

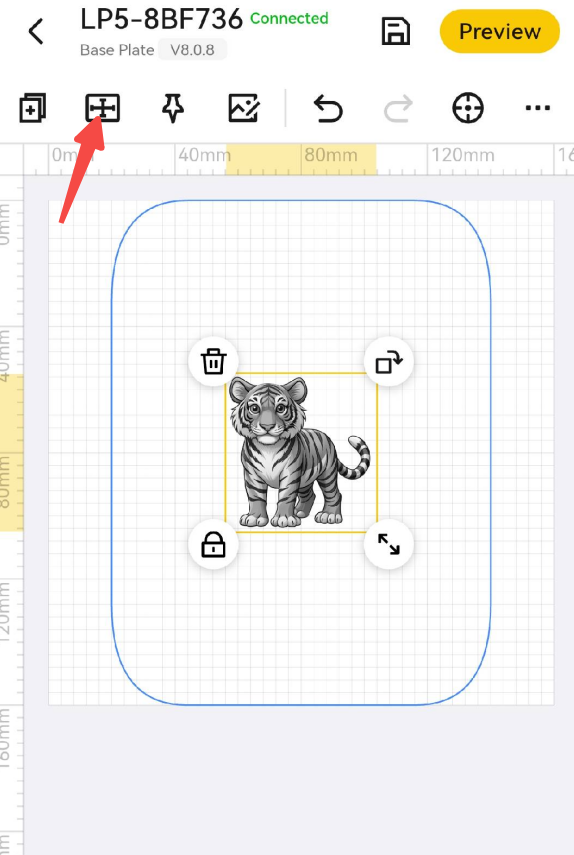

Align Center

Tap the Align Center to move the object to the center of the canvas.

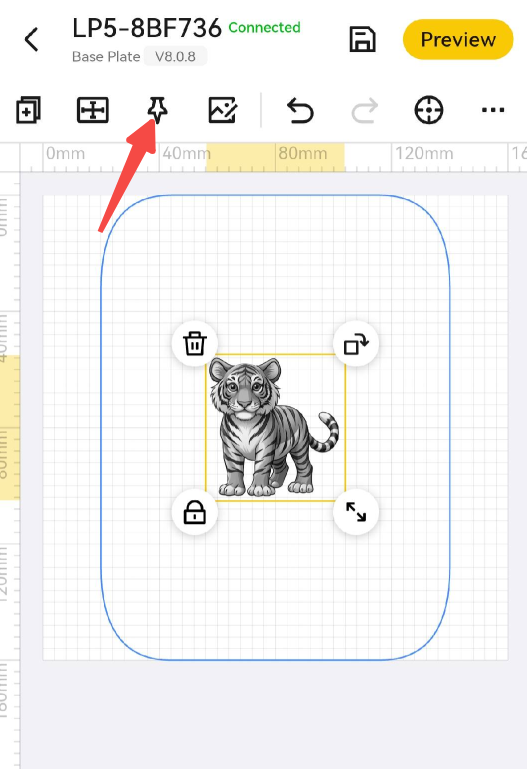

Lock icon

Tap the Lock icon to lock an object. Locked objects cannot be edited.

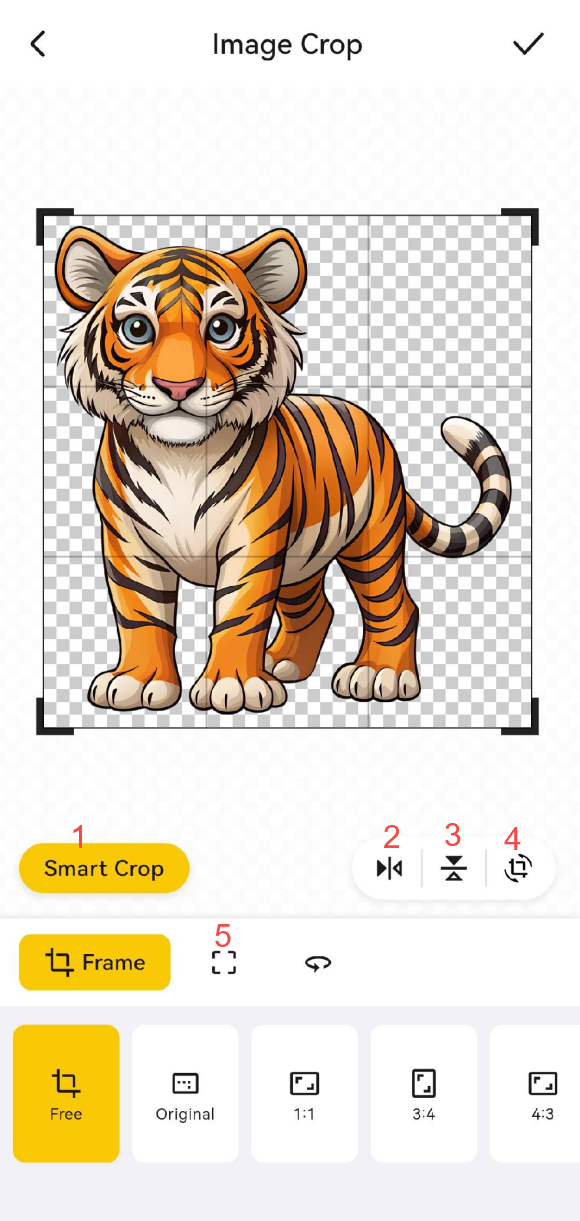

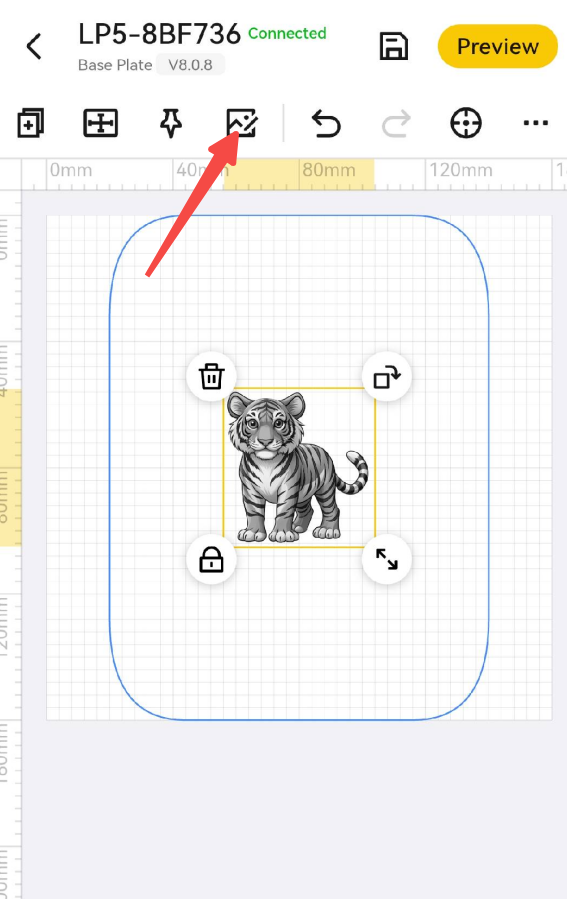

Image Crop

Tap the Crop to enter the image cropping page.

(1) Tap Auto-Cut to remove excess blank space around the image edges.

(2) Tap Flip Horizontal to mirror the image left-to-right.

(3) Tap Flip Vertical to mirror the image top-to-bottom.

(4) Tap Rotate to rotate the image by 90°.

(5) Tap Border to switch the crop frame from square to circle.

Undo & Redo

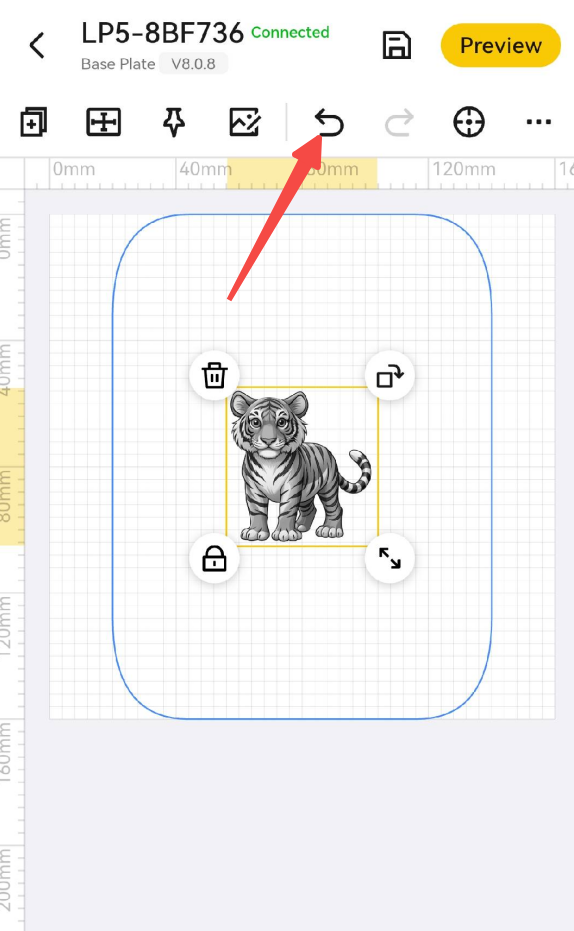

(1) Undo: Reverts the last action in case of an unintended operation or deletion.

(2) Redo: Restores an action that was previous step of undo.

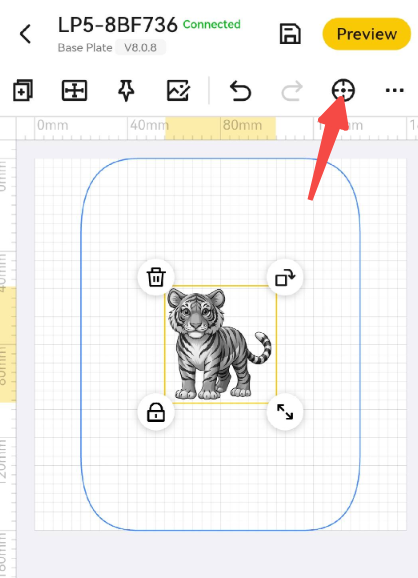

Default Canvas View

Reset Canvas View: Returns the canvas to its initial/default view

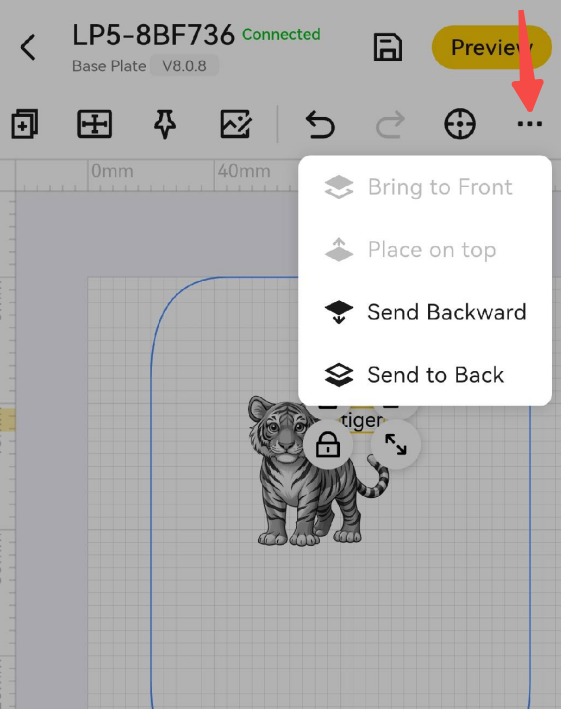

Layer Order

(1) When there are multiple objects on the canvas, tap the Arrange to adjust their layer order.

(2) Objects on higher layers will overlap those on lower layers.

(3) Arrangement options include: Bring to Front, Bring Forward, Send Backward, and Send to Back.

1.4.3 Edit Panel

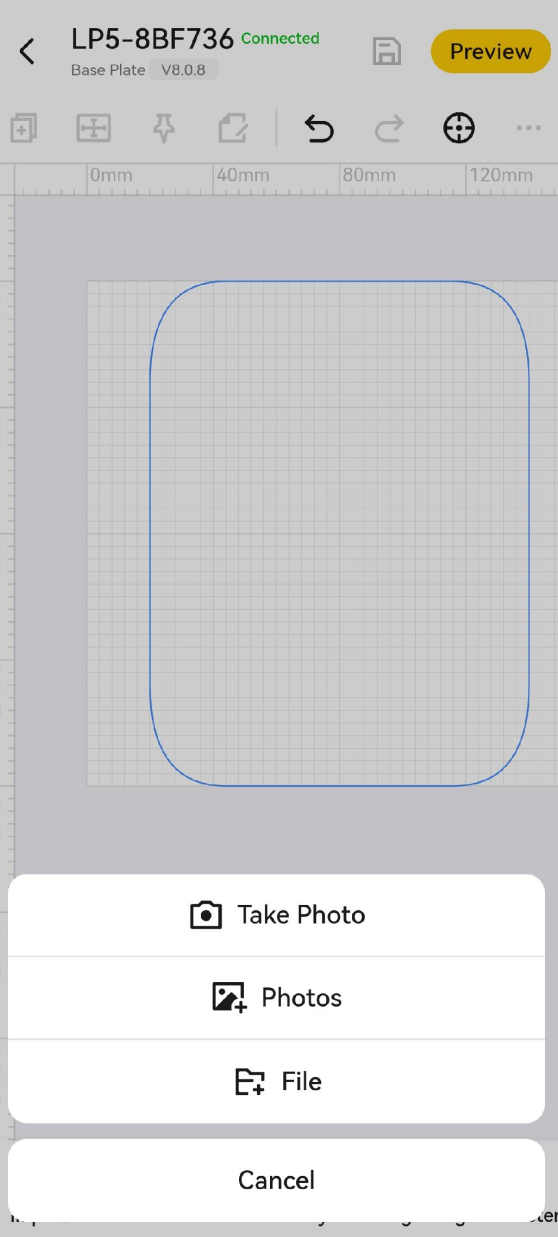

Add Image

Tap the Import to open and import photos or image files from your phone.

Edit module （Image）

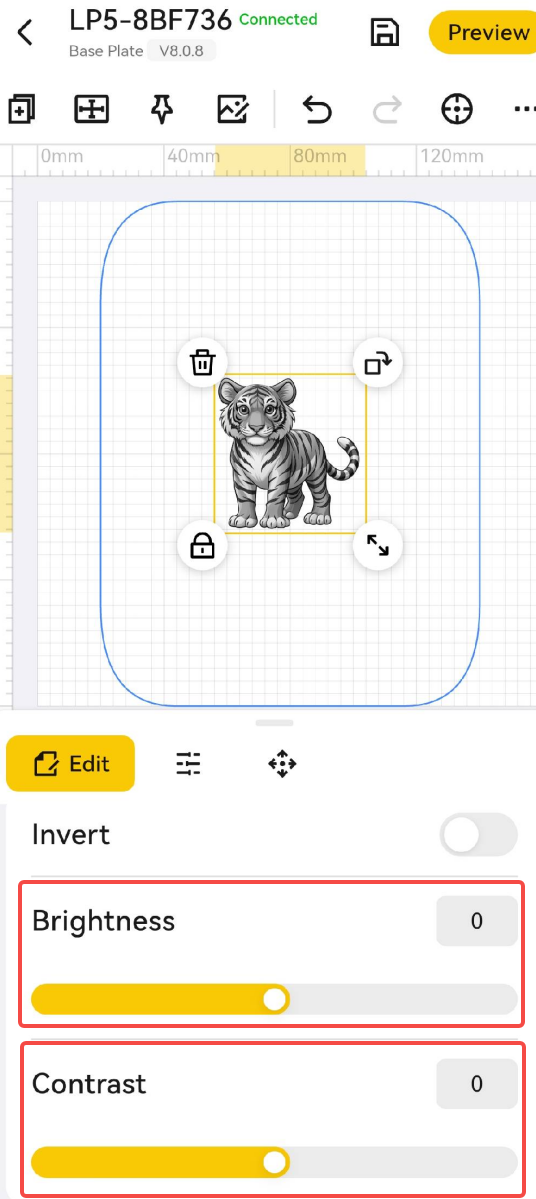

Dithering

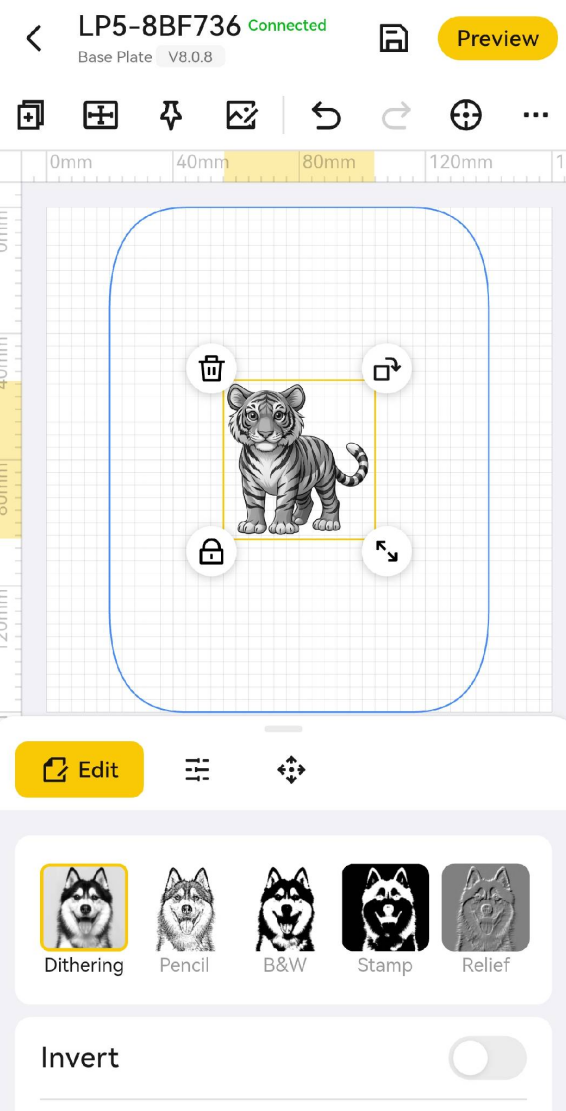

(1) Select Dithering mode.

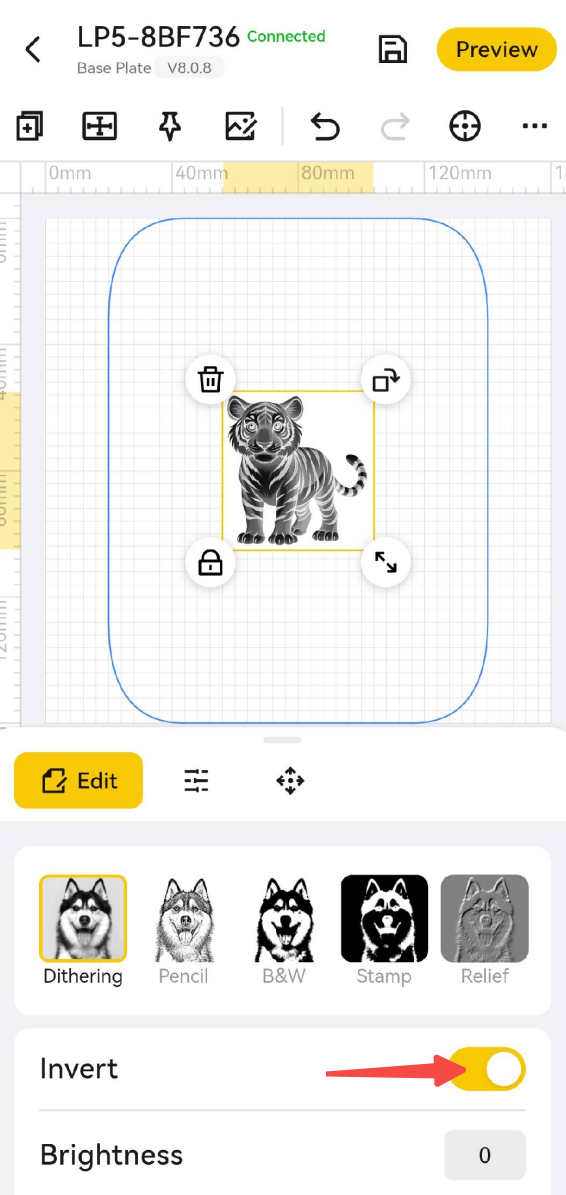

(2) Tap the Invert Colors to invert the colors of the image.

(3) The two sliders control Contrast and Brightness, allowing you to adjust the image display effect.

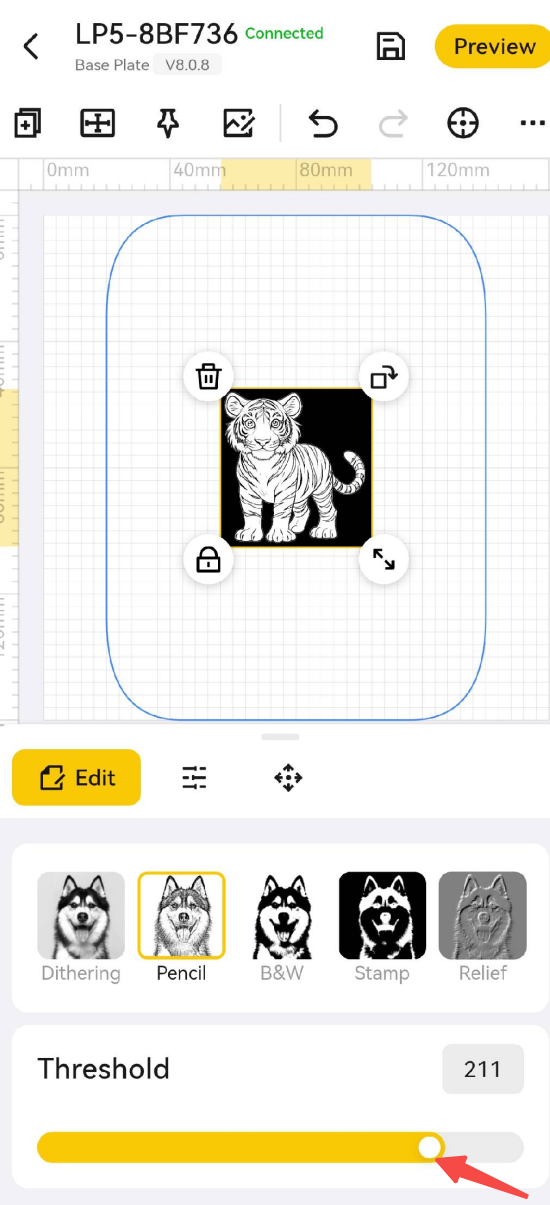

Pencil

(1) Select Pencil mode and adjust the Threshold to change the image display effect.

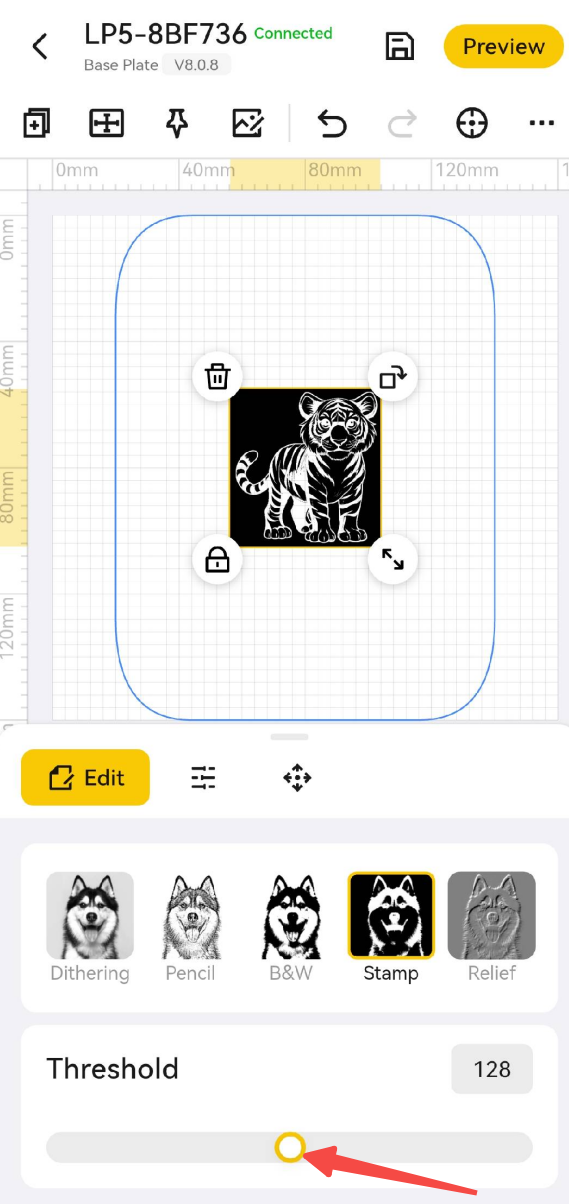

Stamp

(2) Select Stamp mode and adjust the Threshold to change the image display effect (Stamp mode horizontally mirrors and inverts the image).

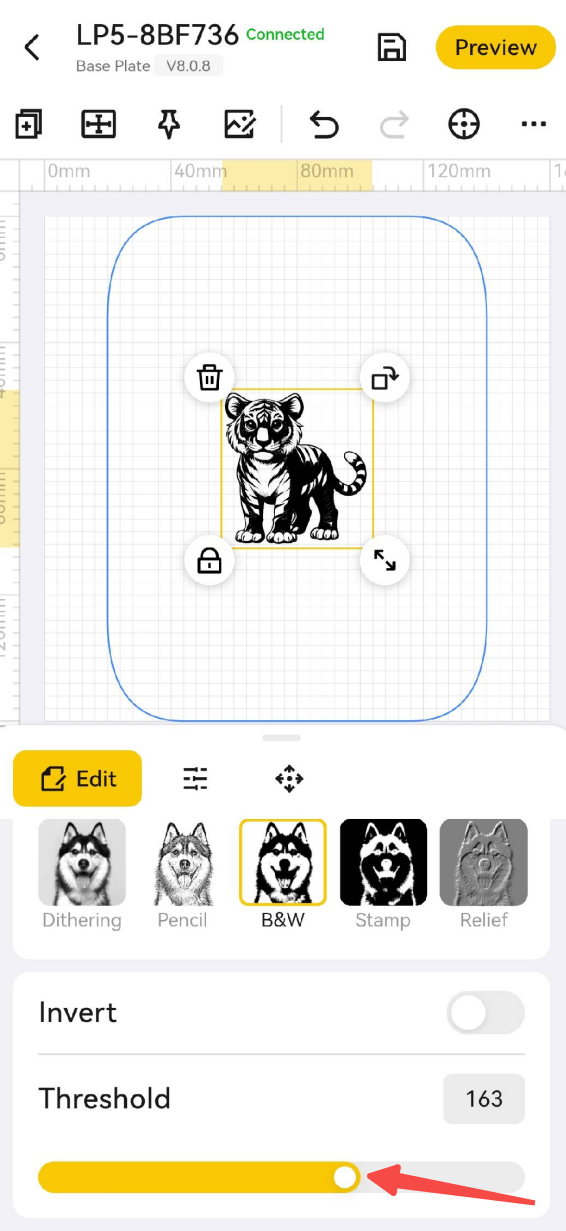

Black & White

(1) Select B & W mode and adjust the Threshold to change the image display effect.

(2) Tap the Invert Colors to invert the colors of the image.

Adjustment module (Universal)

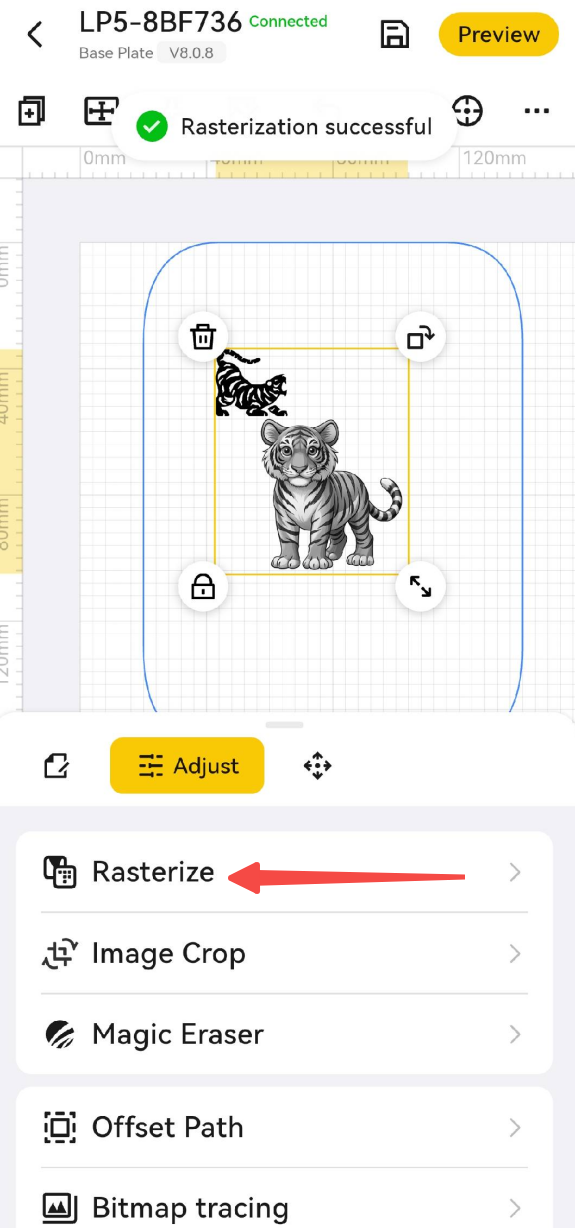

Rasterize

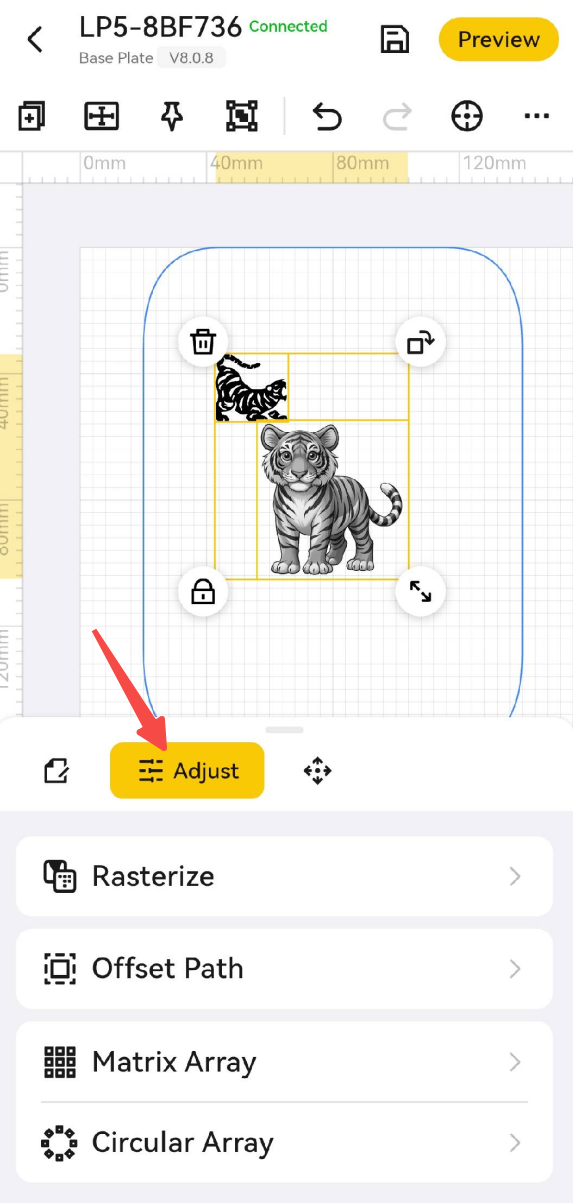

Select multiple objects, tap the Adjust and then tap the Rasterize to merge them into a single image. Combining multiple layers into one for transmission can improve efficiency.

Image Crop

Tap the Crop to enter the image cropping page.

(1) Tap Auto-Cut to remove excess blank space around the image edges.

(2) Tap Flip Horizontal to mirror the image left-to-right.

(3) Tap Flip Vertical to mirror the image top-to-bottom.

(4) Tap Rotate to rotate the image by 90°.

(5) Tap Border to switch the crop frame from square to circle.

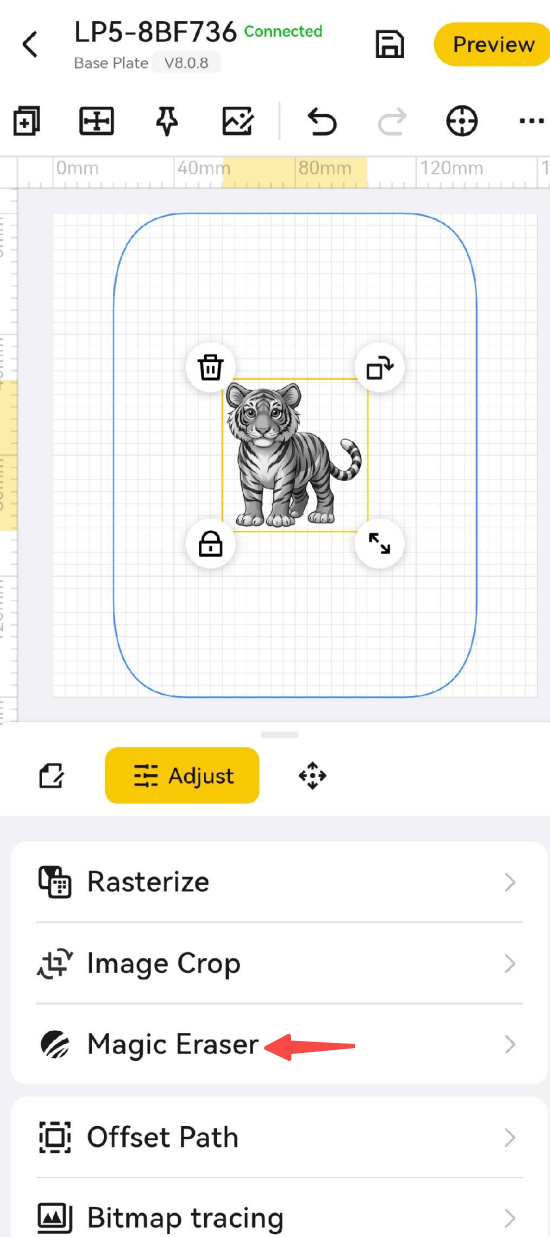

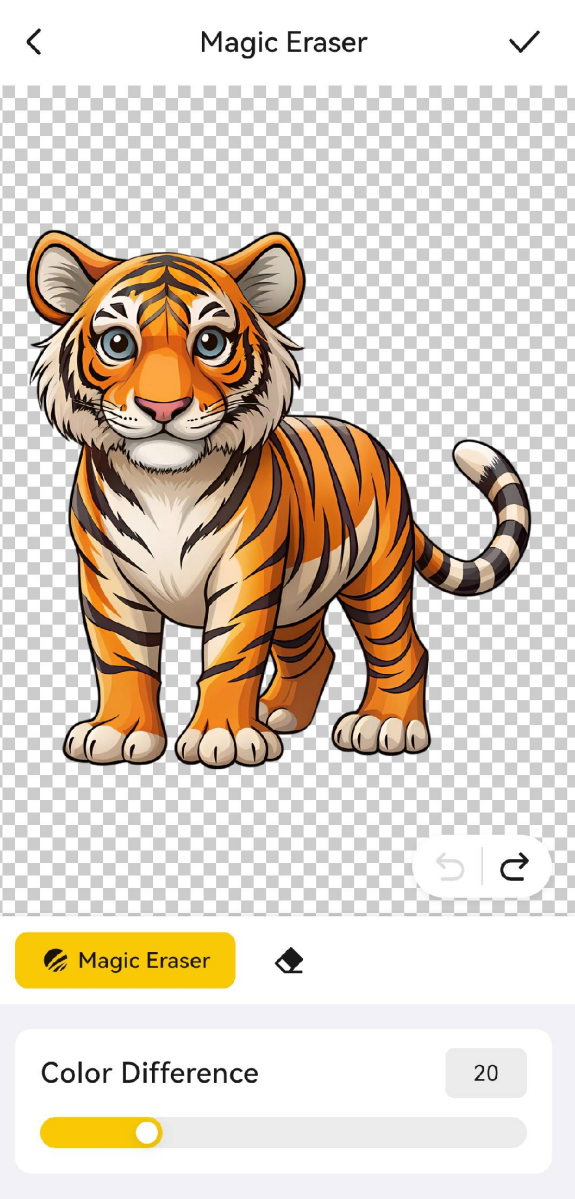

Magic Eraser

(1) Tap the Adjust and then tap the Magic Eraser to enter the image erasing page.

(2) Adjust Color Difference to control the range of color recognition. A lower aberration erases only pixels with colors very close to the tapped point; a higher aberration erases a wider range of colors.

(3) Tap the area you want to erase for smart removal. Undo and Redo help you recover from incorrect erasing operations.

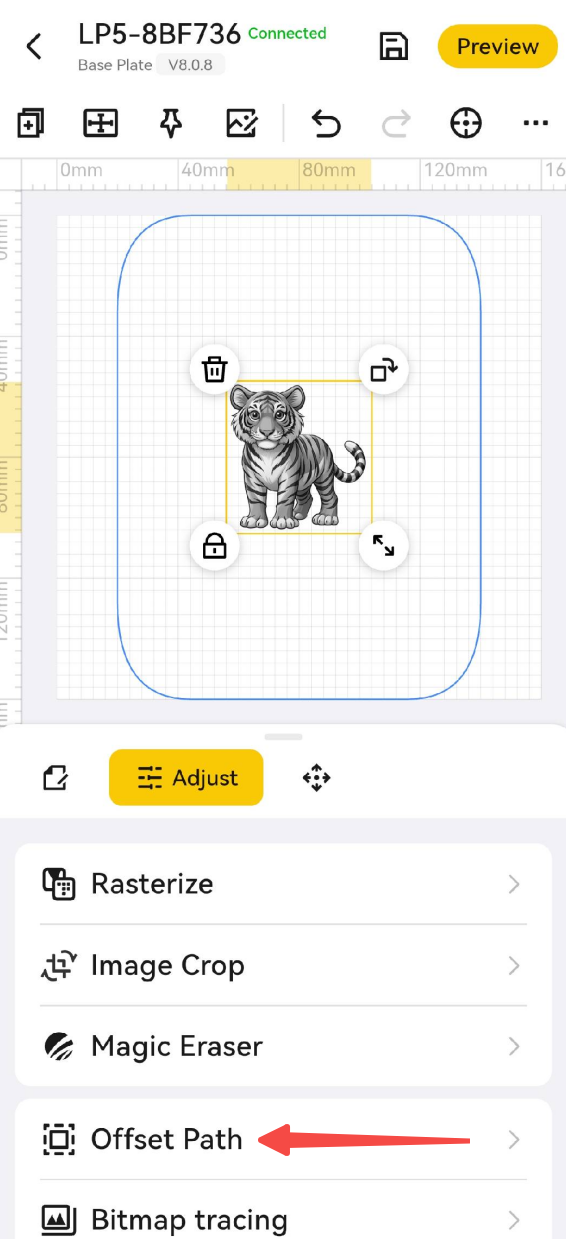

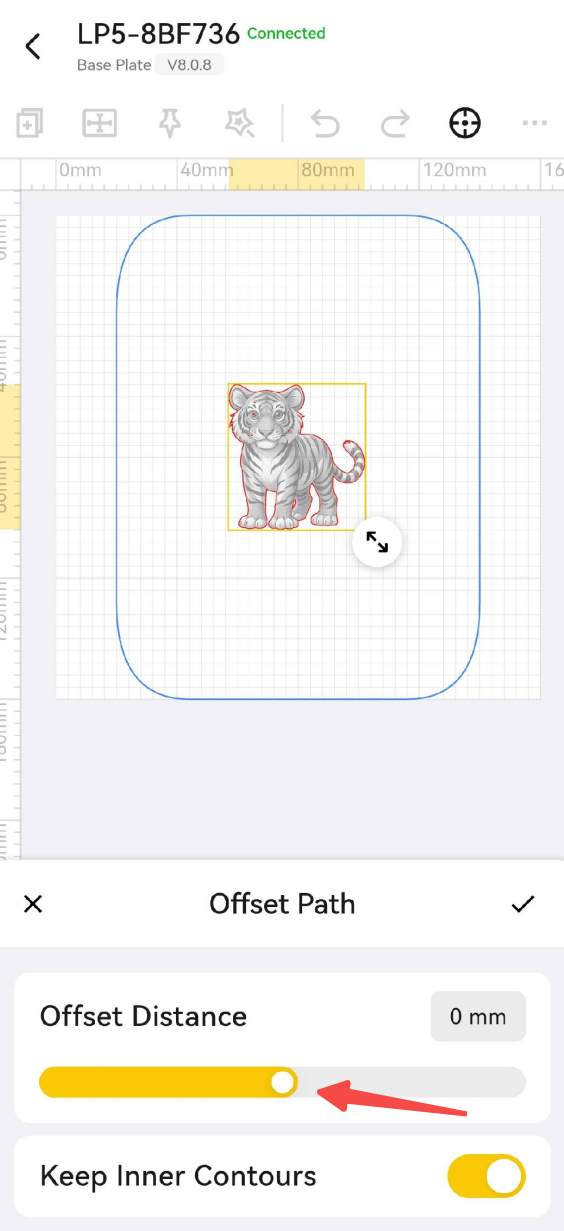

Offset Path ( Outline Extraction)

(1) Tap the Adjust and then tap the Offset Path. The red solid line on the canvas represents the outline generated.

(2) A positive Offset Distance adds an outer outline; a negative Offset Distance adds an inner outline.

(3) If the bitmap background is transparent, you can check "Preserve the internal outline of the bitmap" to add internal outlines to the bitmap.

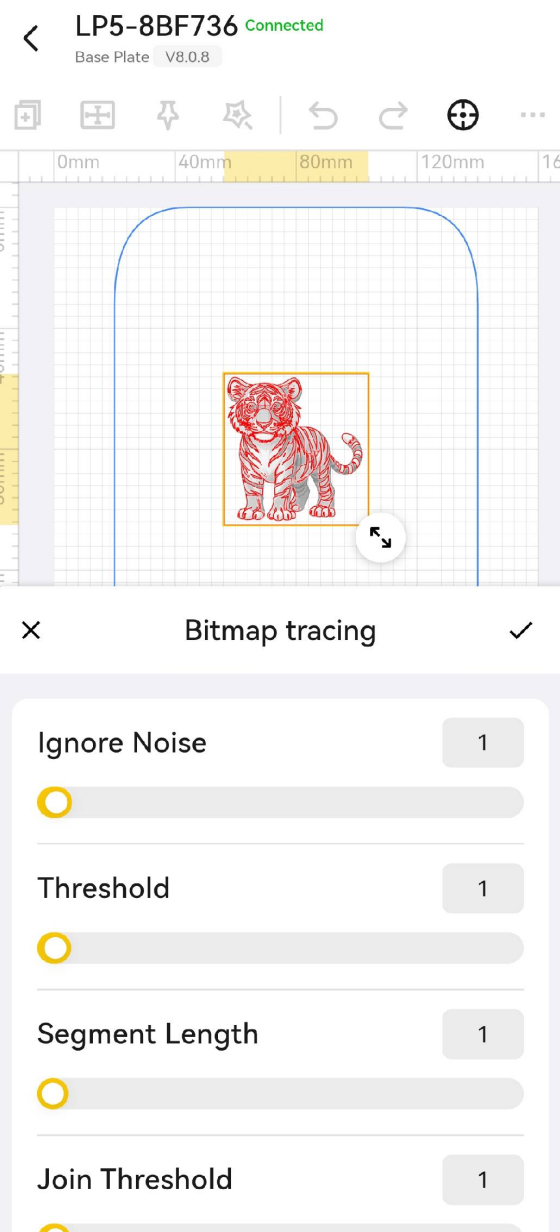

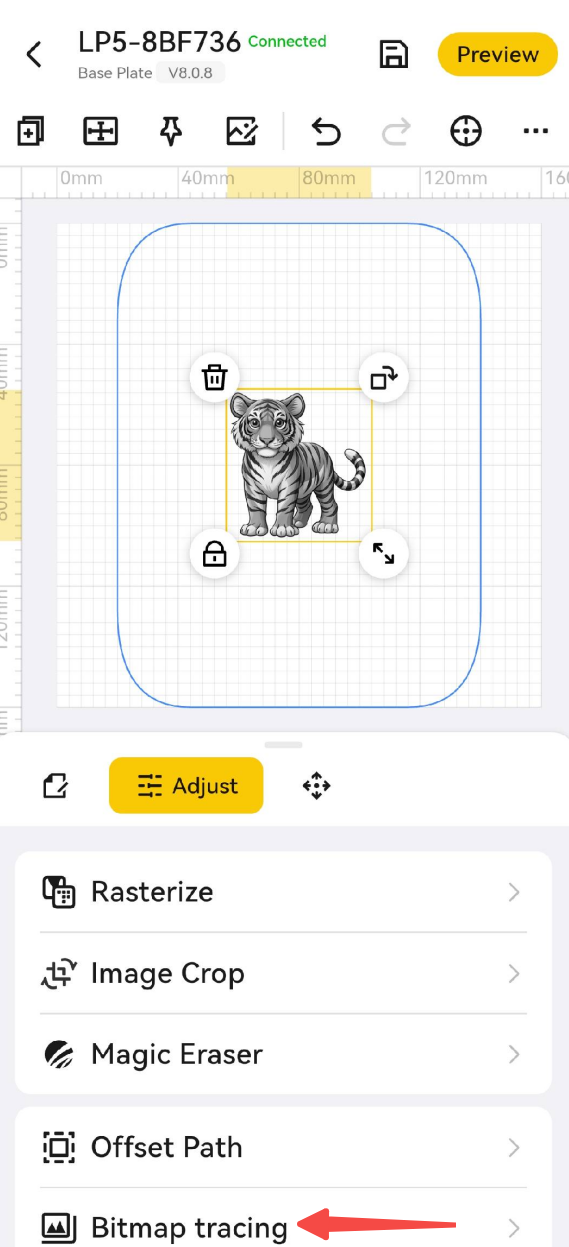

Bitmap tracing ( Trace Image)

Tap the Adjust and then tap the Bitmap tracing. A red solid line will appear on the canvas, indicating the vector graphic to be generated (only image formats such as JPG, JPEG, and PNG support the Trace Image function).

Matrix Array

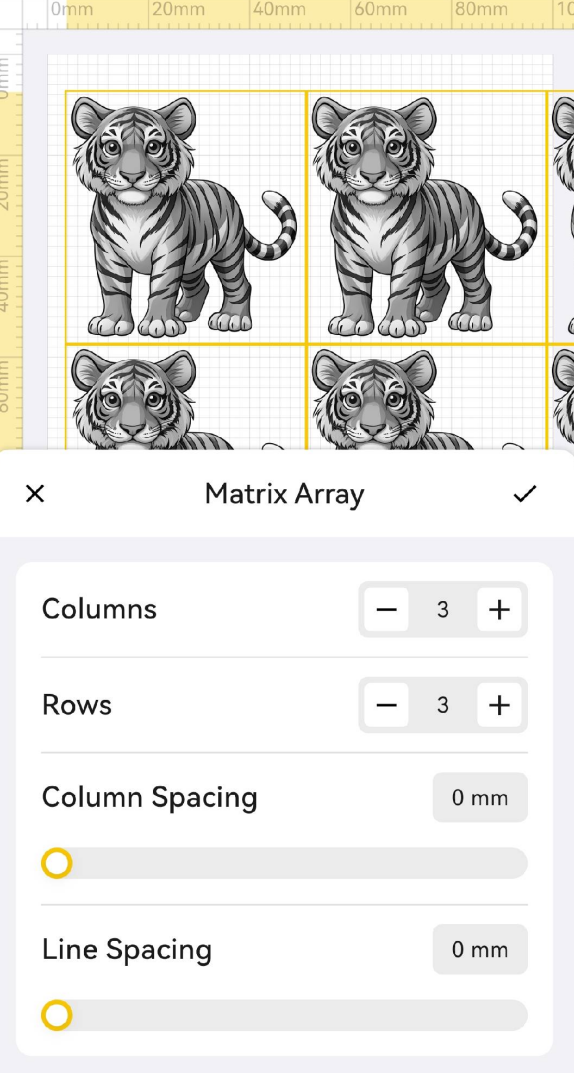

After creating an element, select it and click the Matrix Array. A settings window will appear. Enter the desired number of rows and columns—the canvas will preview the array in real time—then click Confirm to generate the array.

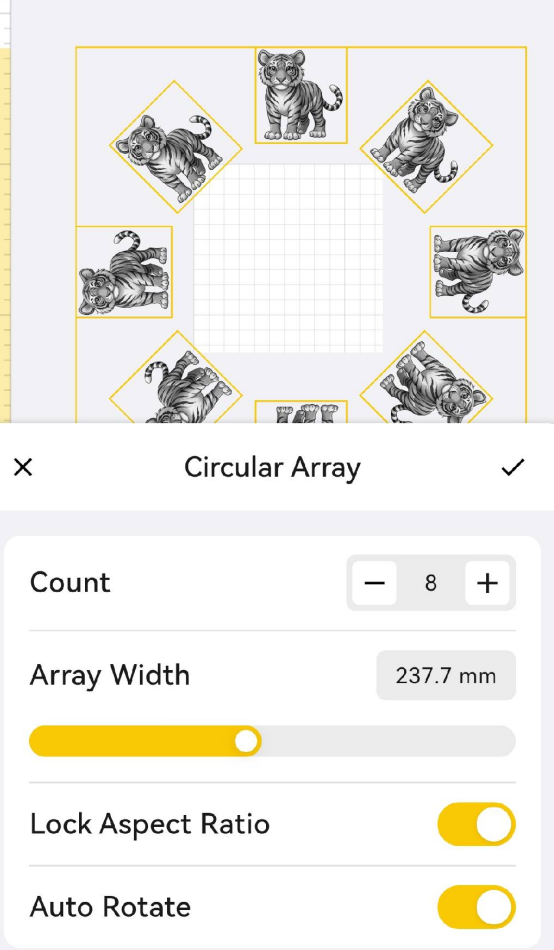

Circular Array

After creating an element, select it and click the Circular Array. A settings window will appear.

General Module (Universal)

Size & Position

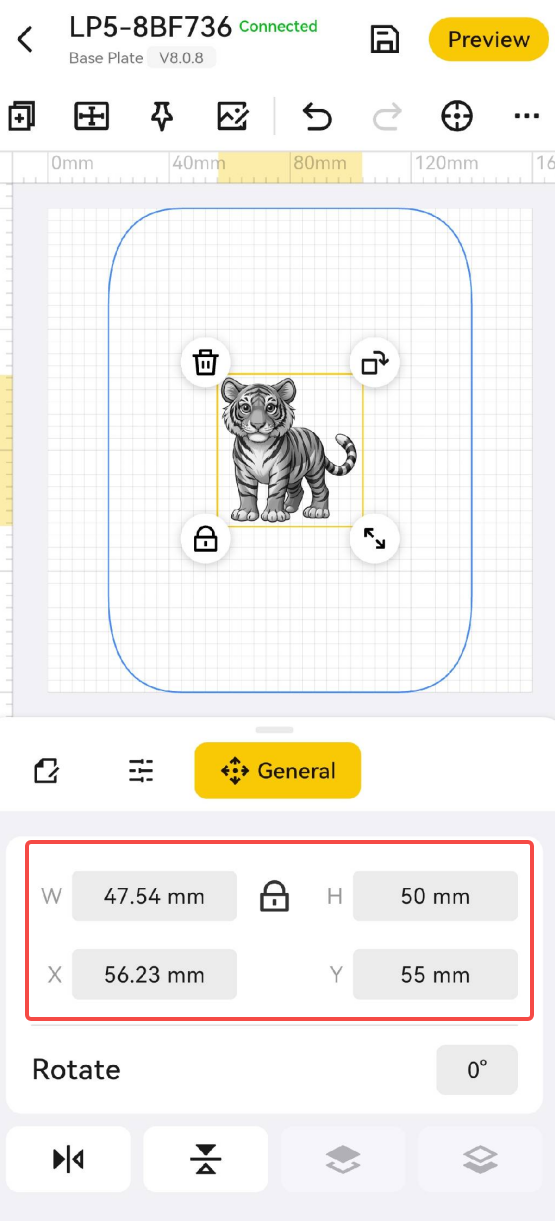

 It allows you to adjust properties such as size, rotation, and position.

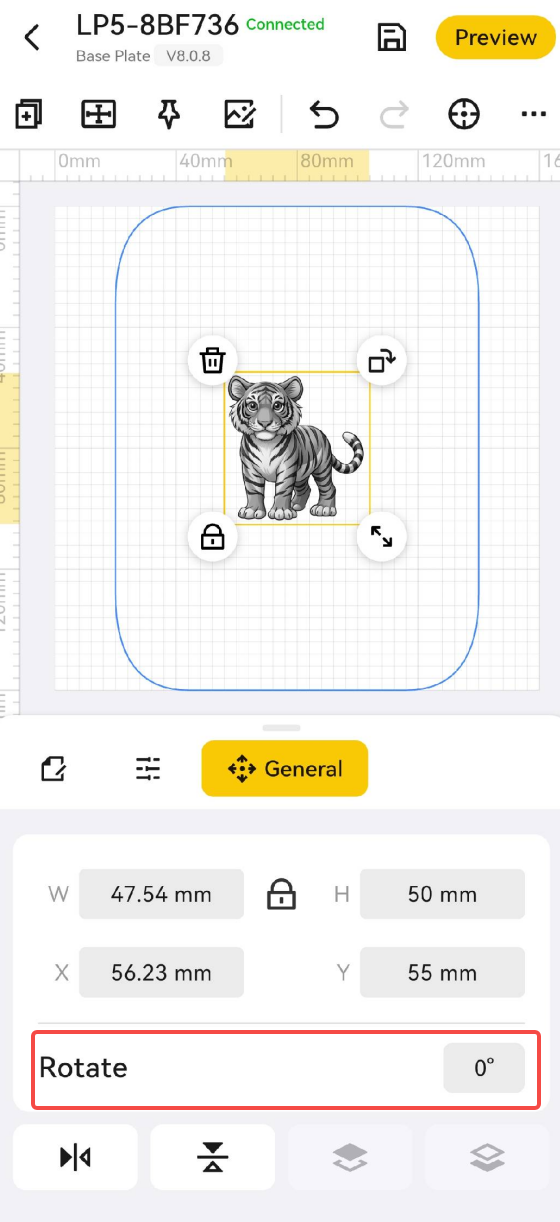

Rotation

(1) Tap the Rotation input box and enter the desired angle. The image will rotate clockwise.

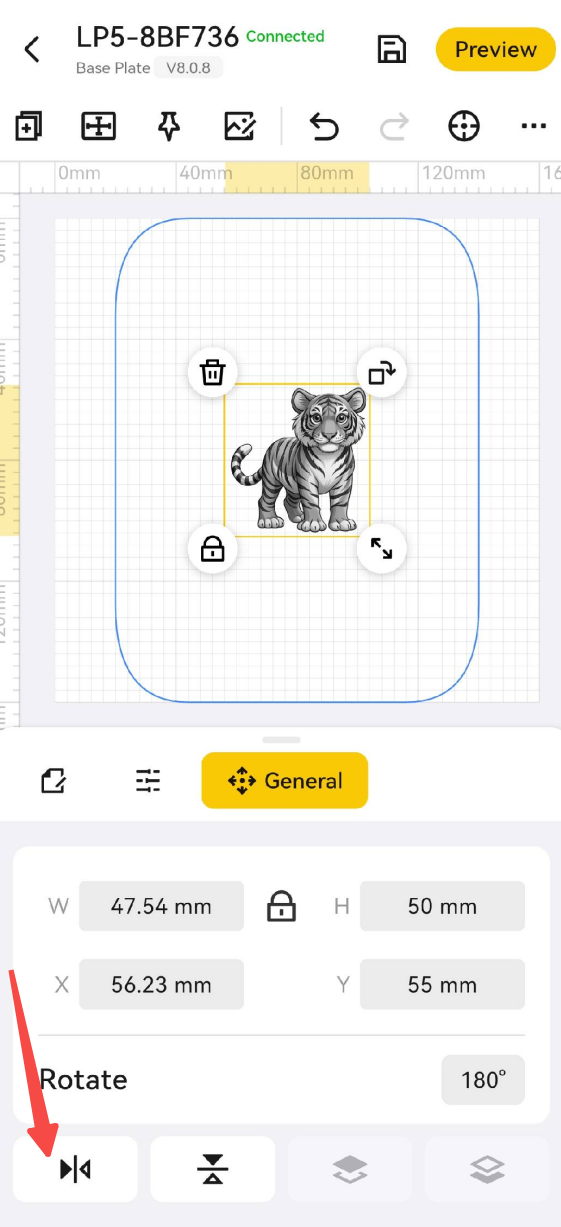

(2) Tap Horizontal to mirror the image left-to-right. Tap Vertical to mirror the image top-to-bottom.

Object Position

(1) Tap the X or Y-axis input box and enter the desired coordinate. The image will move to that position.

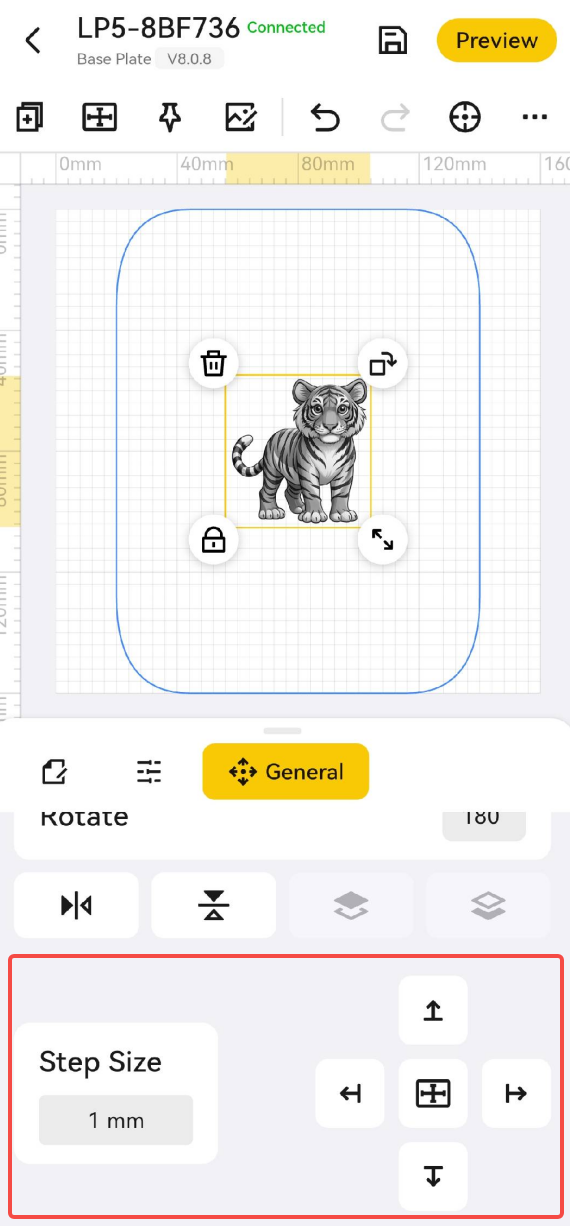

(2) Tap the Fine-Tune and select the step size (1, 2, or 5). Tap the Arrow to move the image by the selected step.

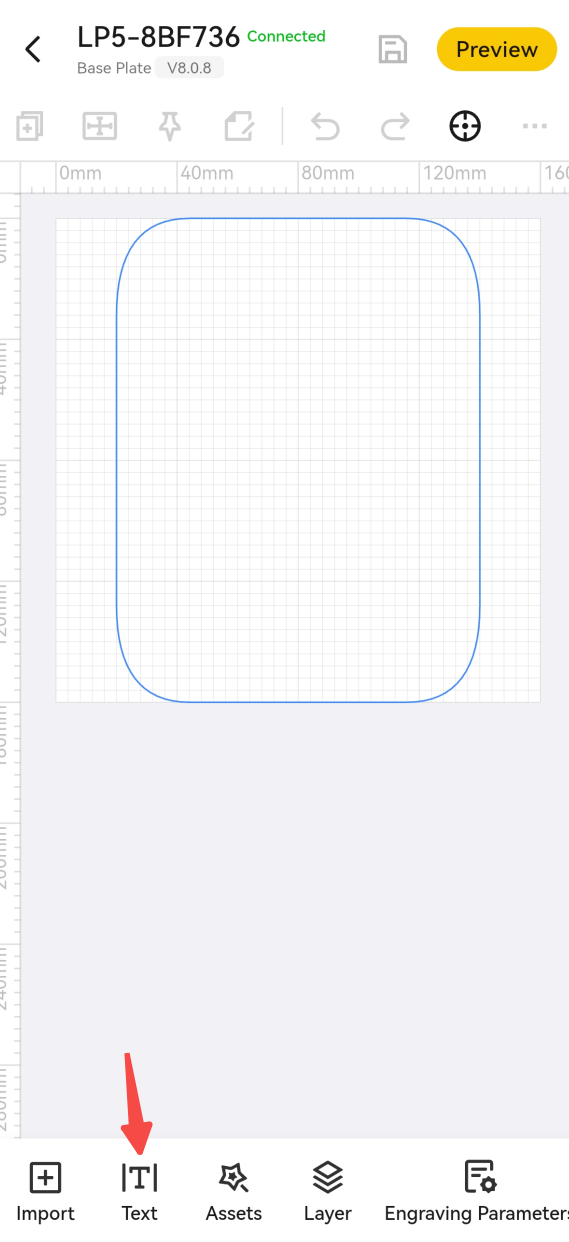

Add Text

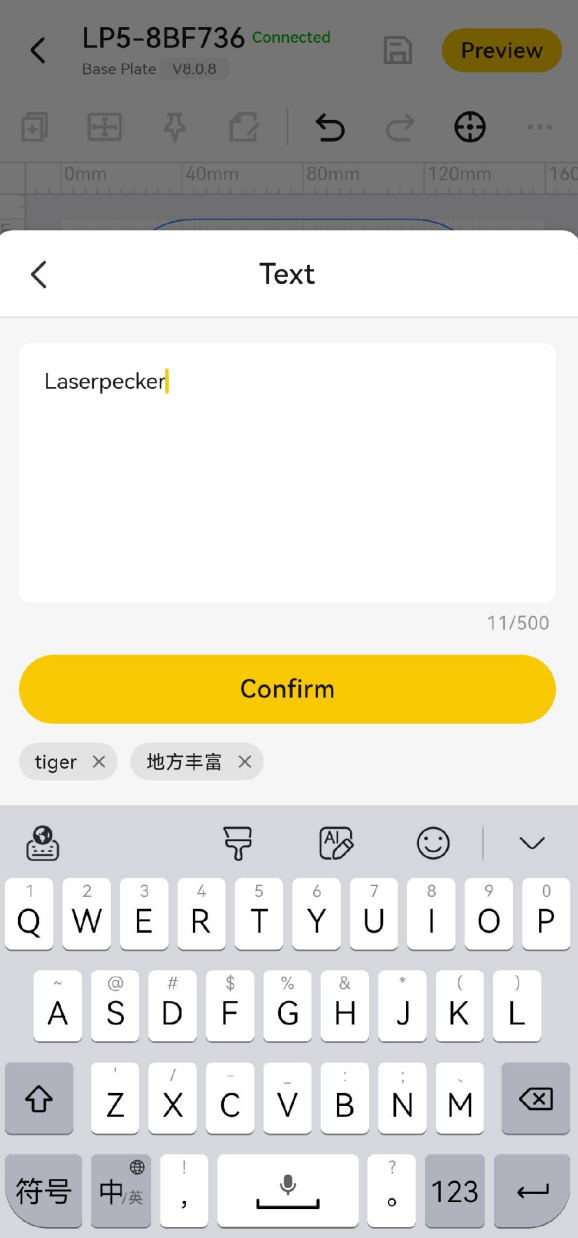

(1) Tap the Text at the bottom left to open the text input interface.

(2) Enter the content and tap Confirm. The text will appear on the canvas.

Edit Module (Text)

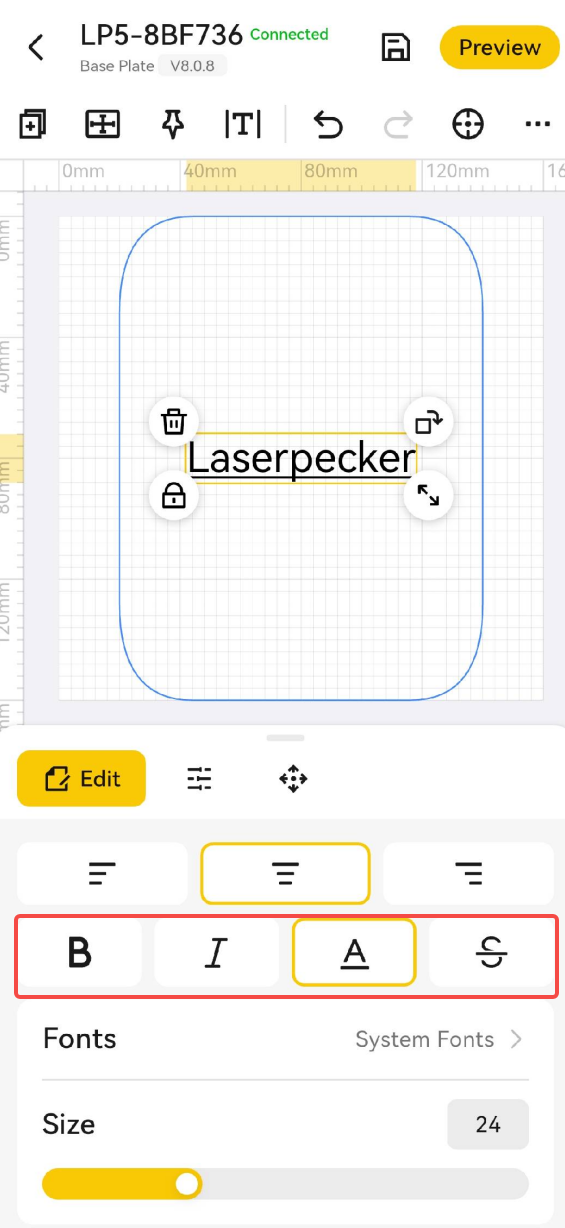

Text Style

Select the desired style, and the text style will be updated. Supported styles include Bold, Italic, Underline, and Strikethrough.

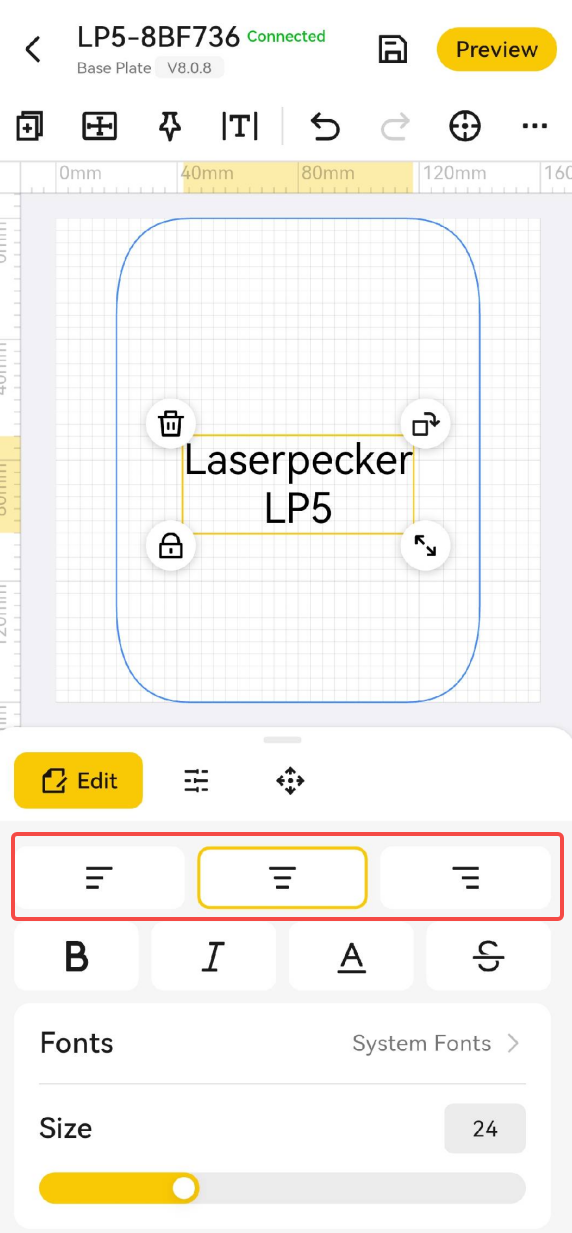

Text Alignment

Select the desired alignment (Left, Center, or Right), and the text alignment will be updated.

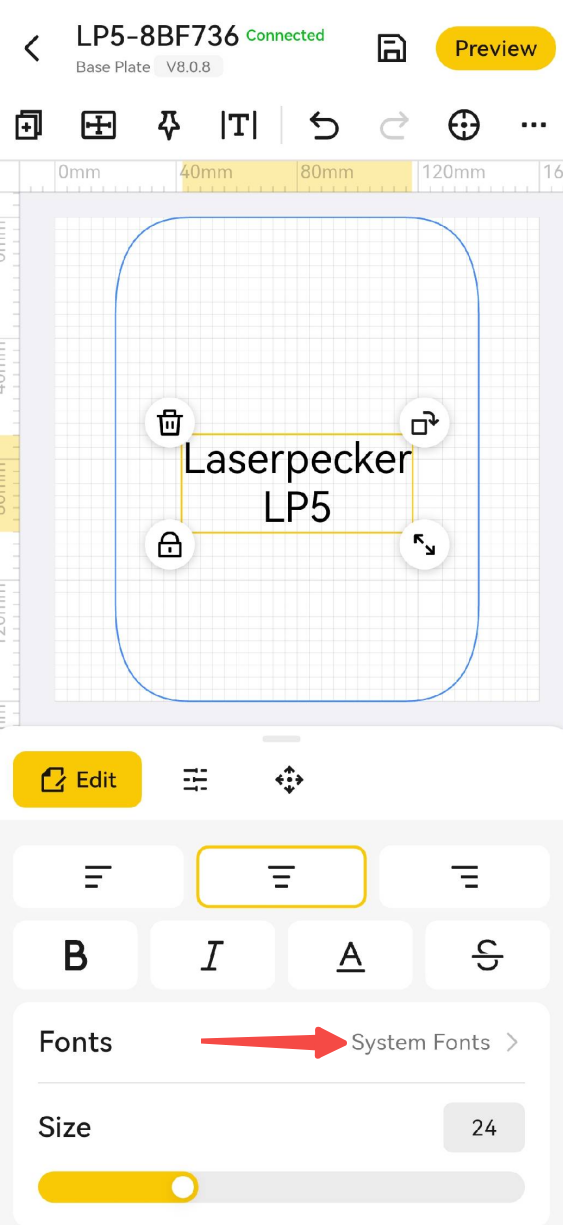

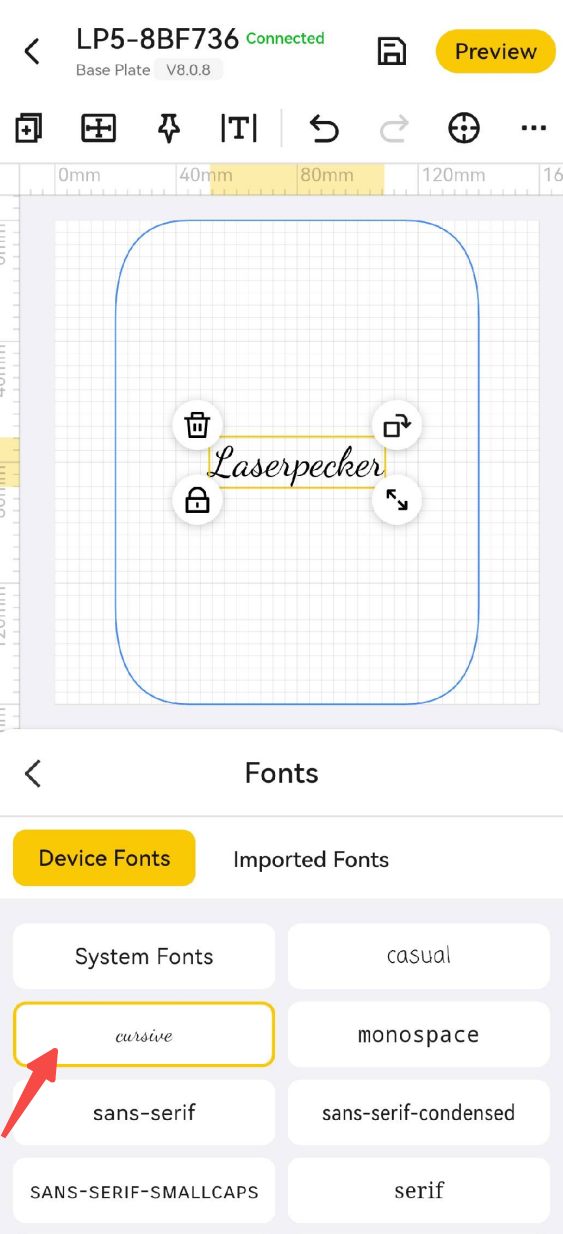

Set Font

Tap Font, select the desired font, and the text font will be updated.

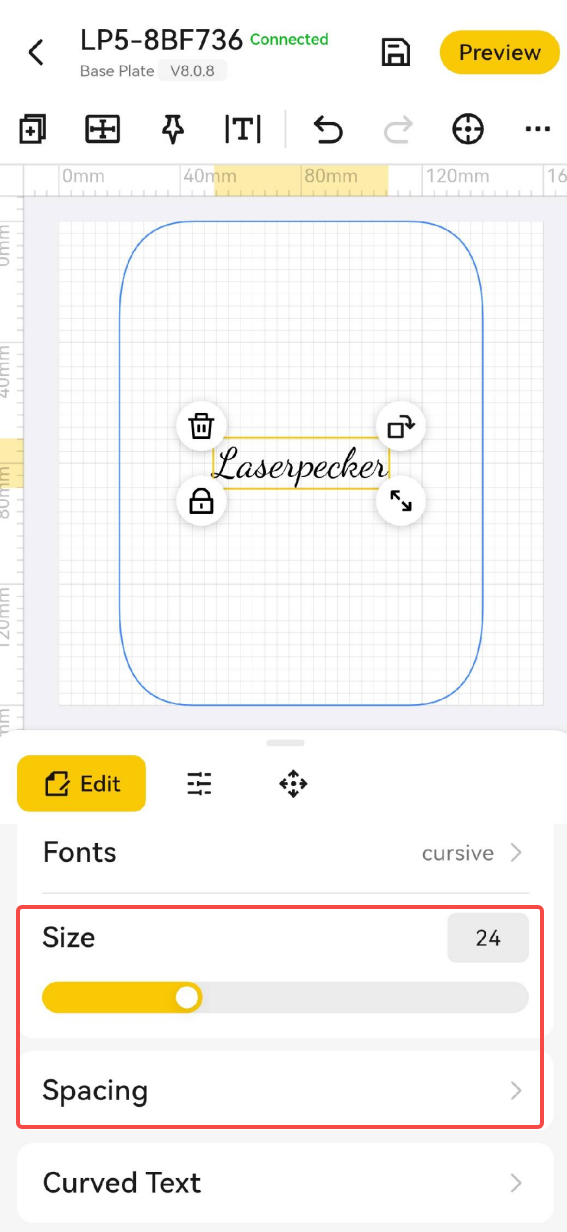

Font Size & Spacing

Adjust the Text size, Letter spacing, and line spacing by entering values in the respective input boxes.

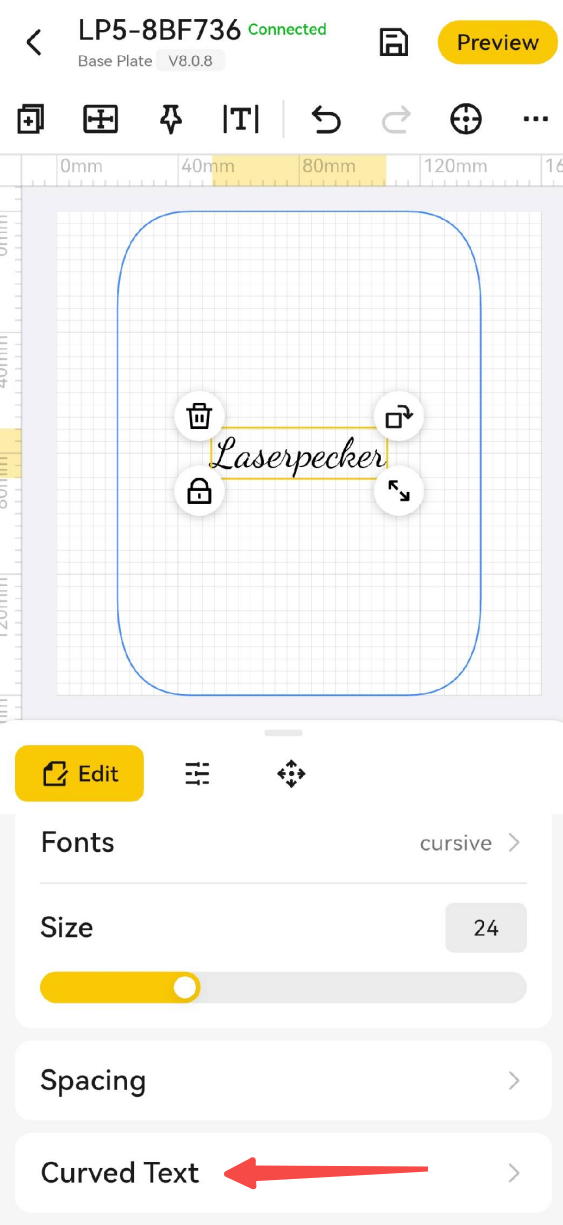

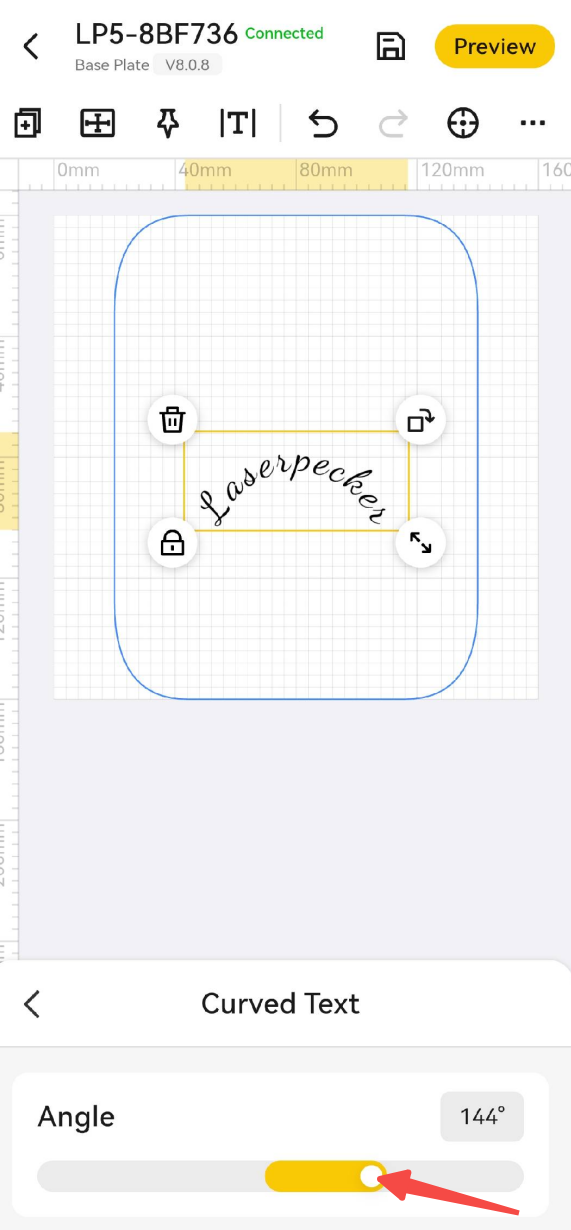

Curve Text

Tap the Curve Text to adjust the curvature of the text. Negative values curve upward; positive values curve downward.

1.4.4 Toolbar

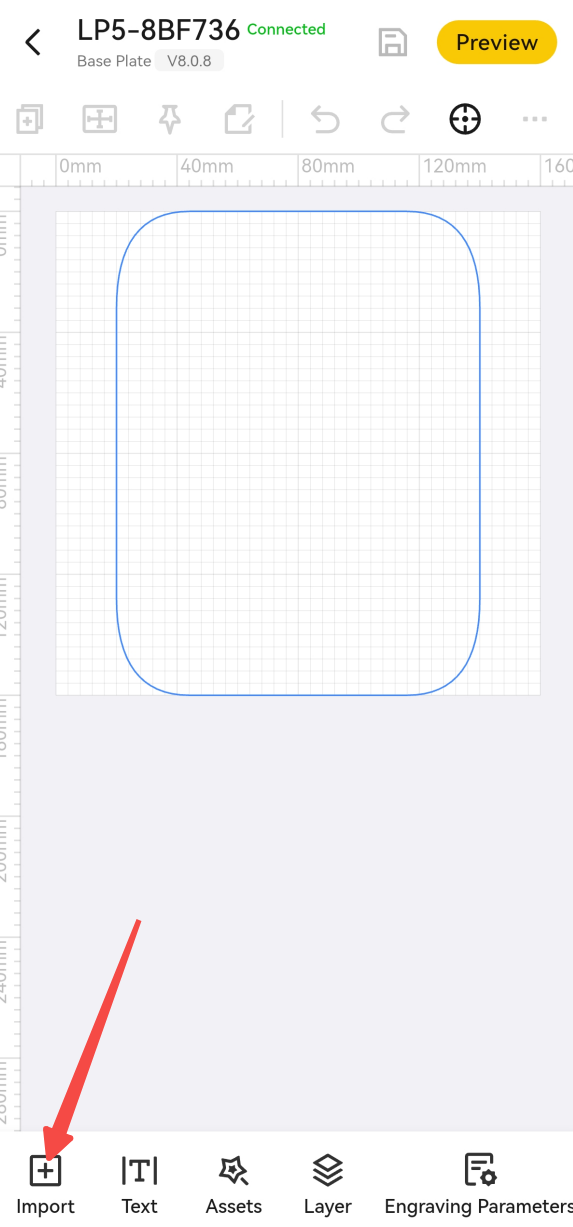

Add Image

Tap the Import to open and import photos or image files from your phone.

Add Text

(1) Tap the Text at the bottom left to open the text input interface.

(2) Enter the content and tap Confirm. The text will appear on the canvas.

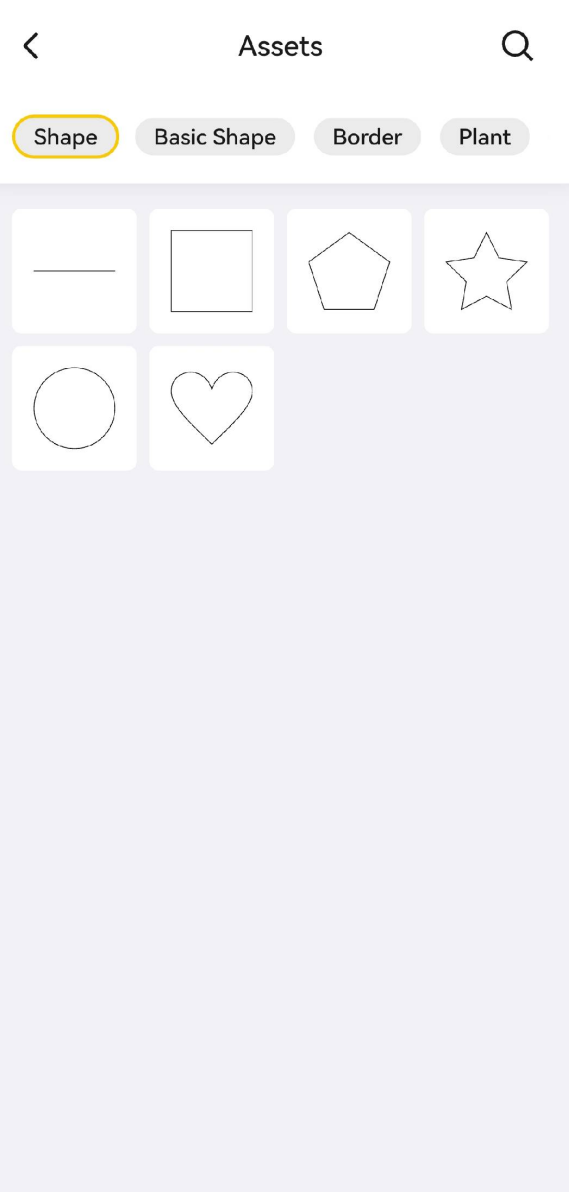

Add Assets

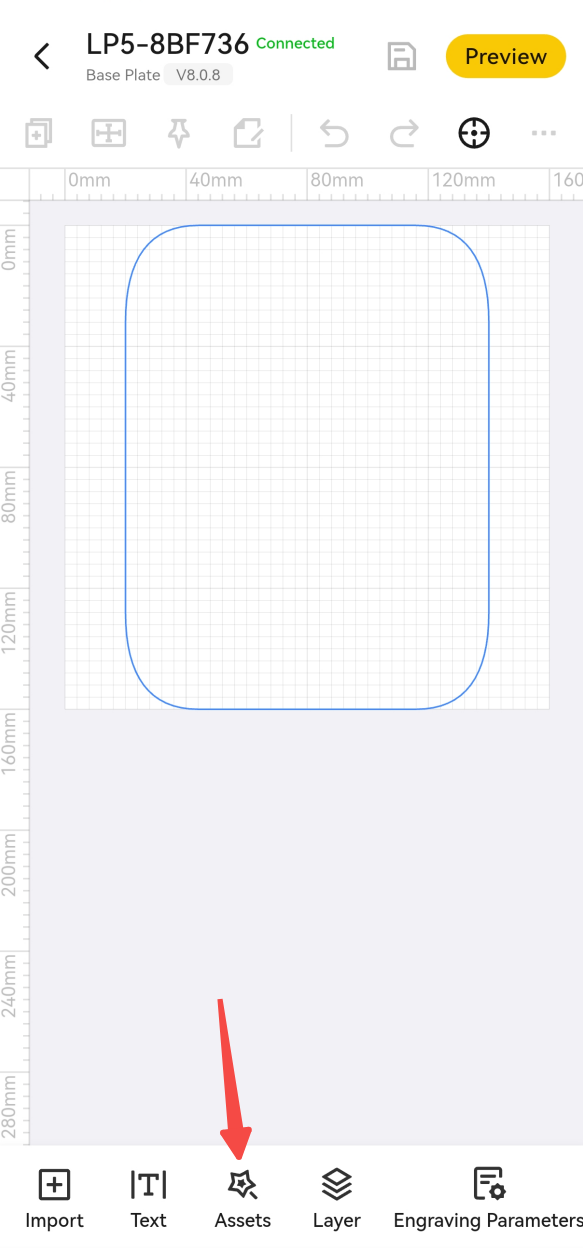

Tap the Assets at the bottom and select a vector graphic to import onto the canvas

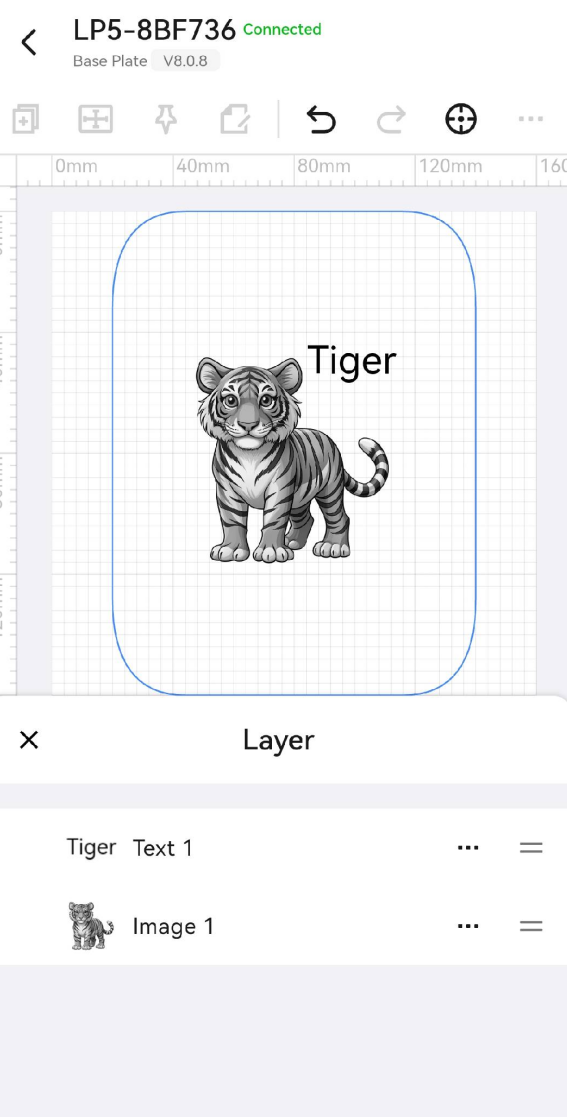

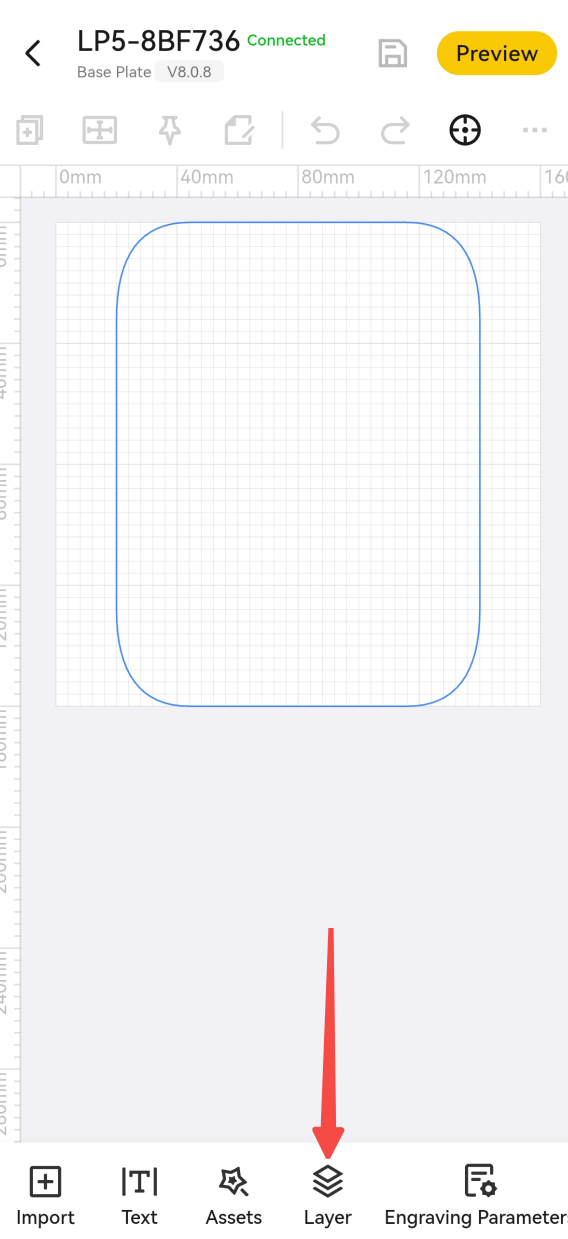

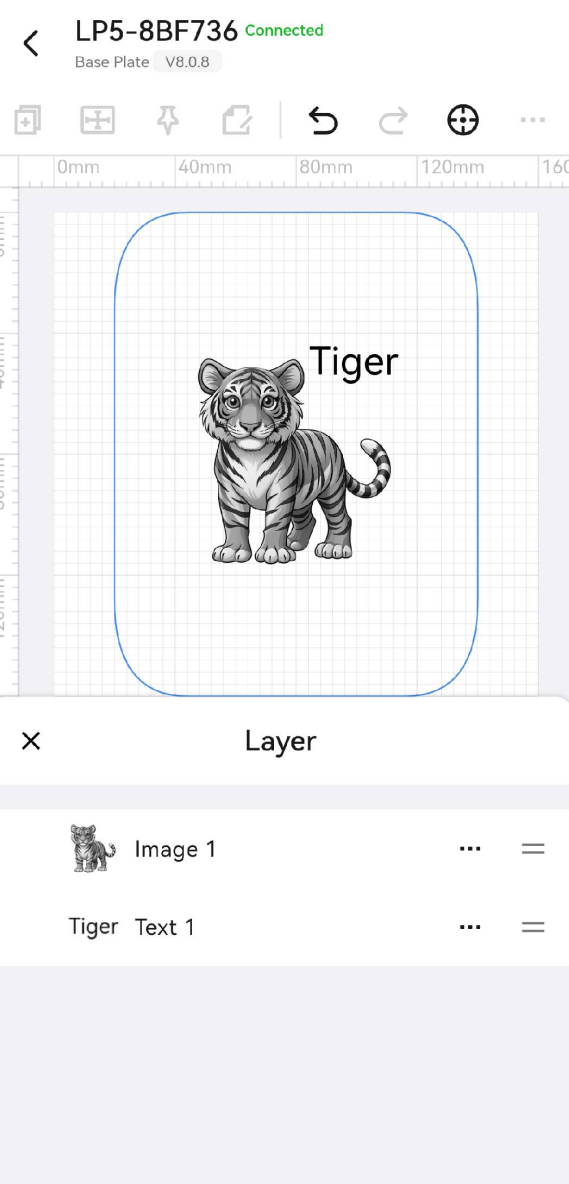

Layer

(1) Tap the Layer in the bottom to open the layers panel on the right side of the screen.

(2) Each created or imported object has its own layer. Tap a Layer to locate the corresponding object on the canvas.

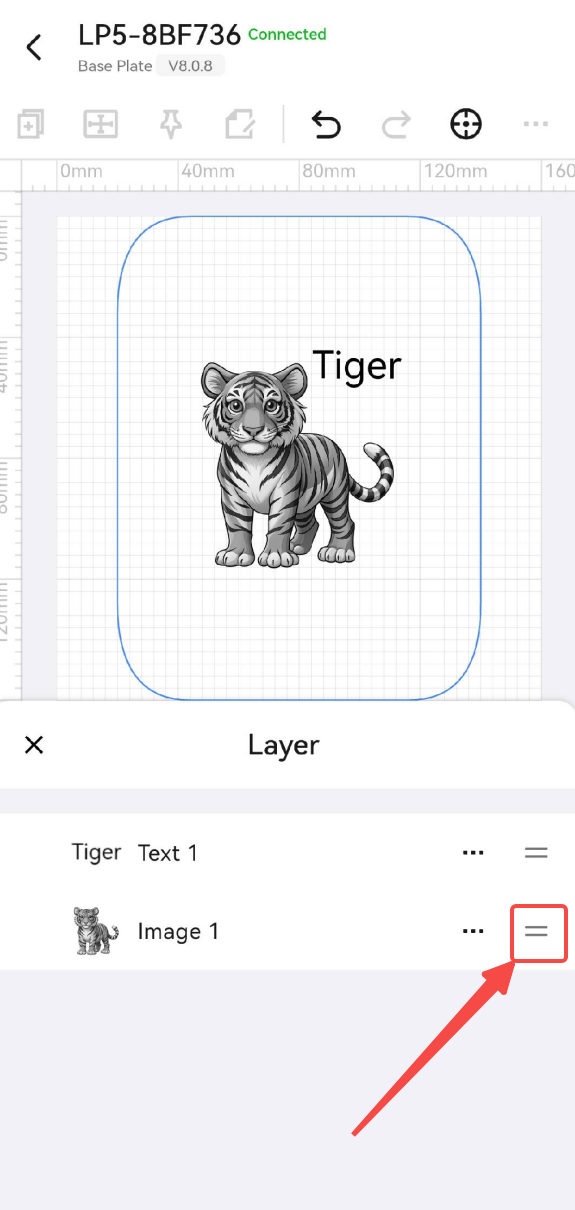

(3) Tap  the ... icon on the right side of a layer until a solid line appears around the layer edge, then drag to reorder layers.

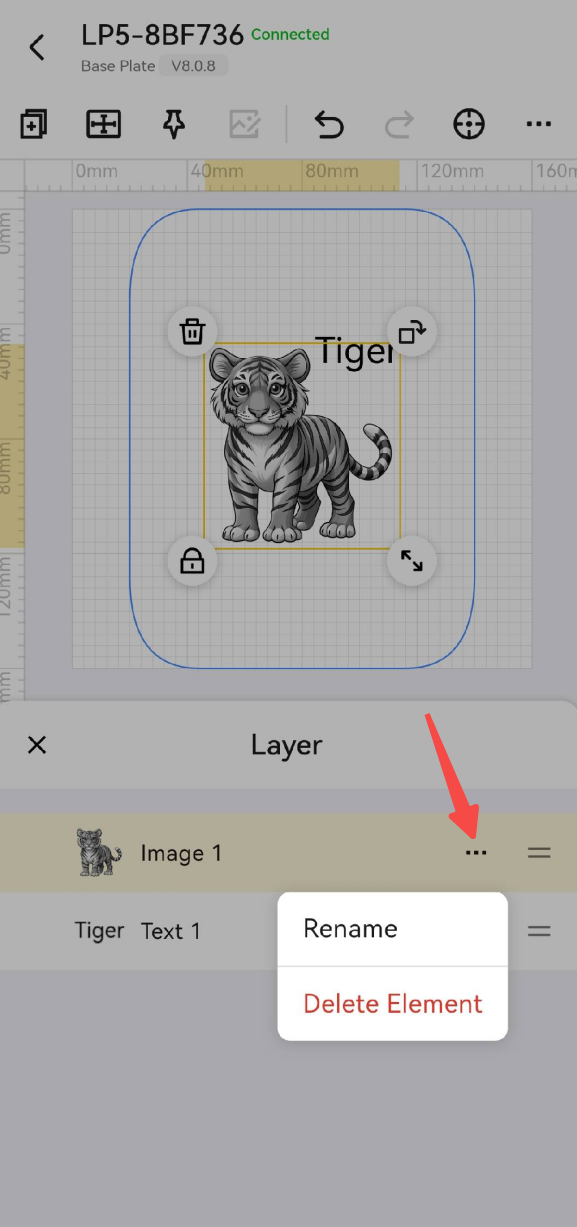

(4) Tap the ...  icon to rename or delete the element.

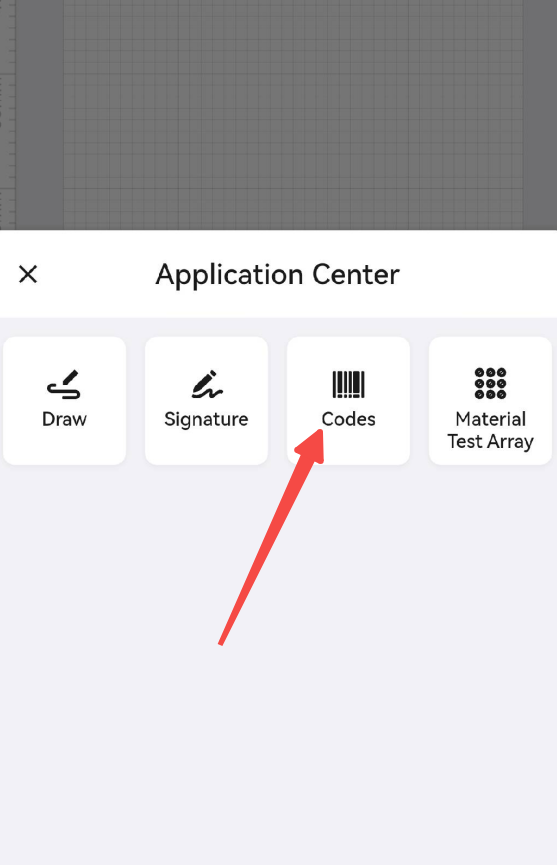

Application Center

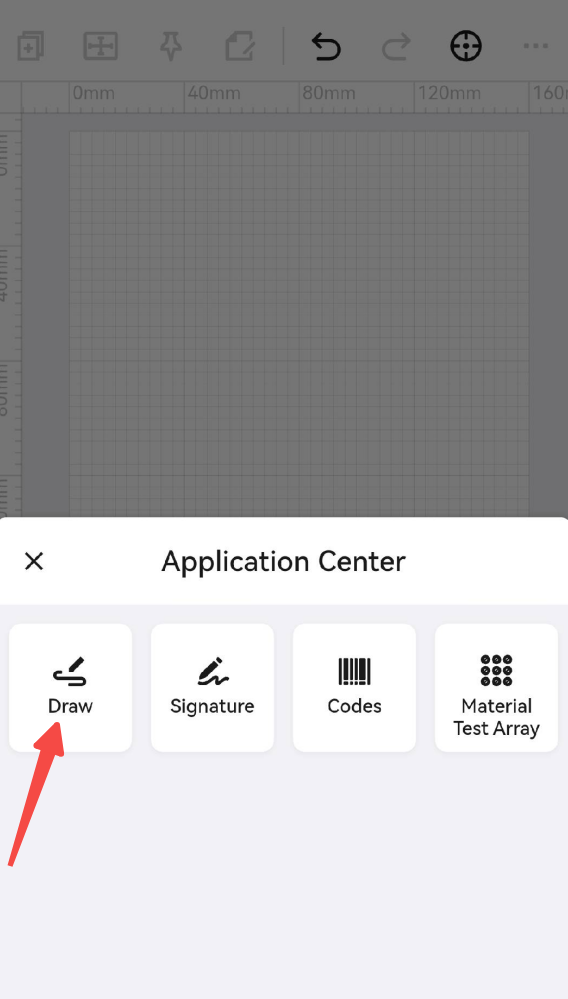

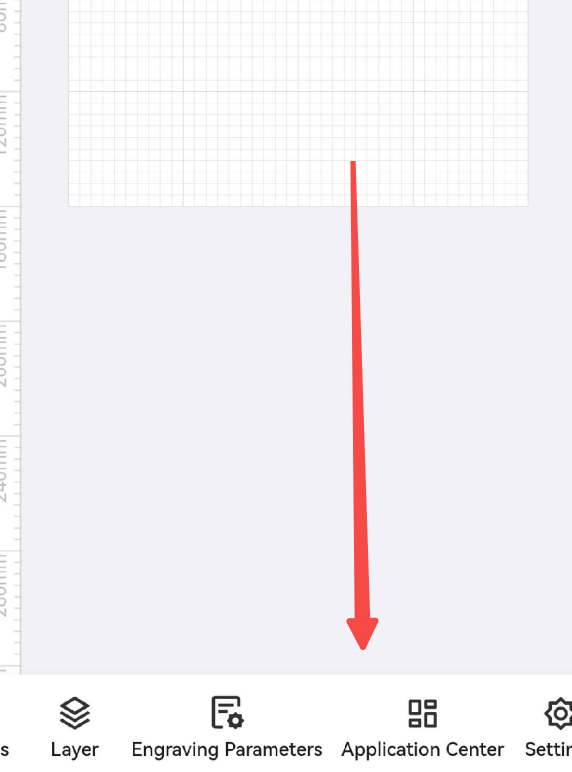

 Swipe left on the Toolbar to tap the Application Center to access the  Application Center panel

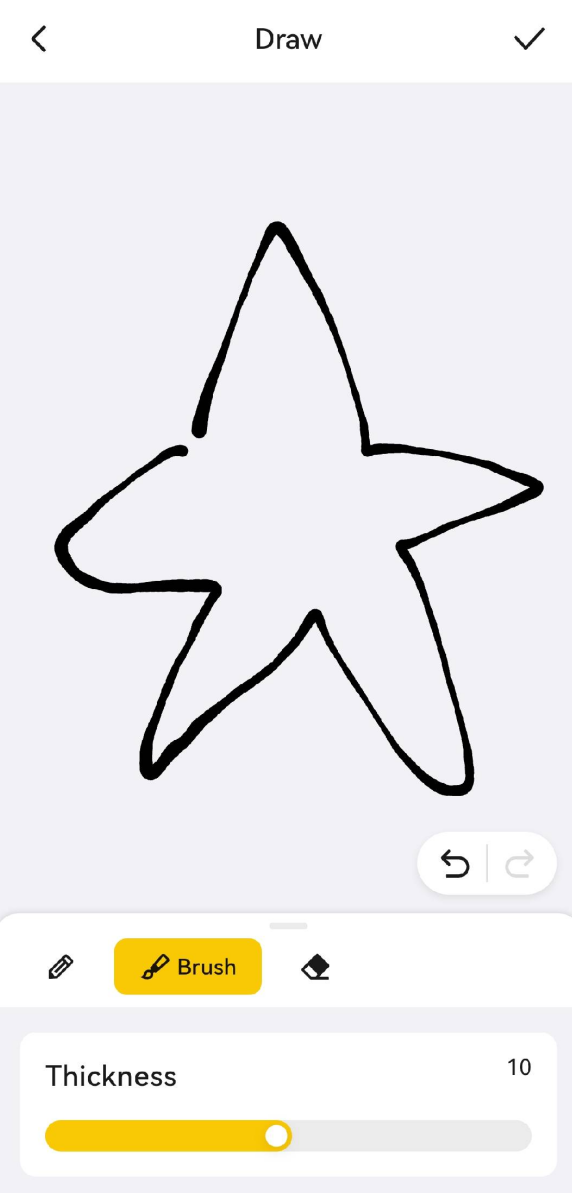

Draw

(1) Tap the Draw to open the Draw interface.

(2) Tap the Brush tool to start drawing. Adjust the size to change the thickness of the line.

(3) Tap the Eraser tool to erase parts of the drawing. Adjust the size to change the eraser area.

(4) Tap the ✅ button at the top-right corner to add the drawing to the canvas.

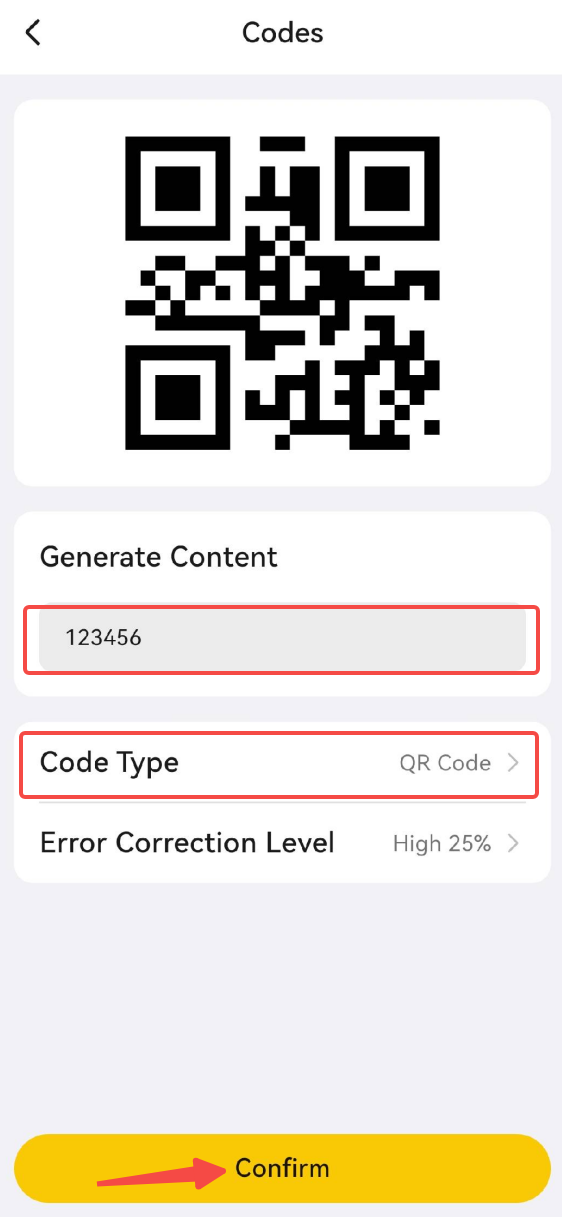

Codes

(1) Tap the Codes to open the Codes interface.

Select the desired code type (e.g., QR code or barcode), enter the content, and tap Confirm. The generated code will be displayed on the canvas.

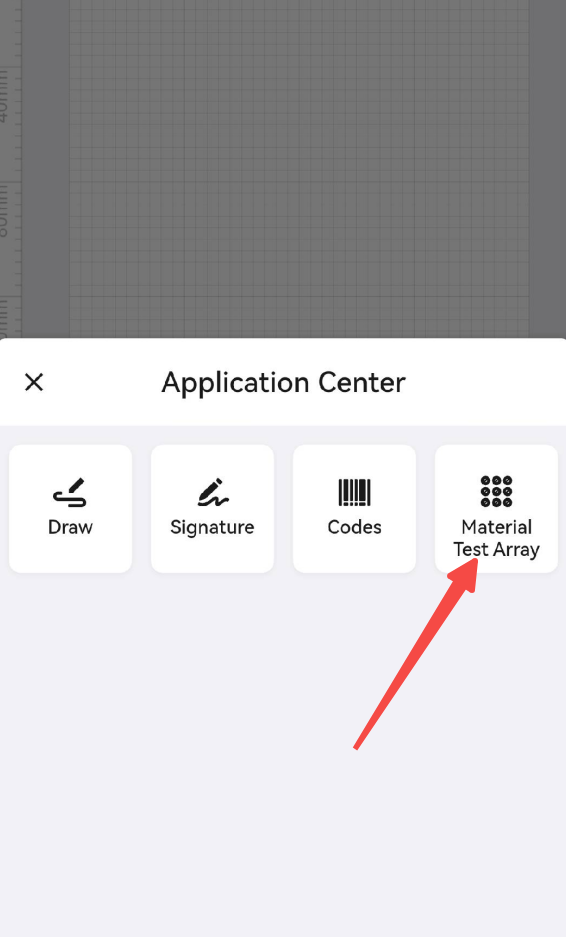

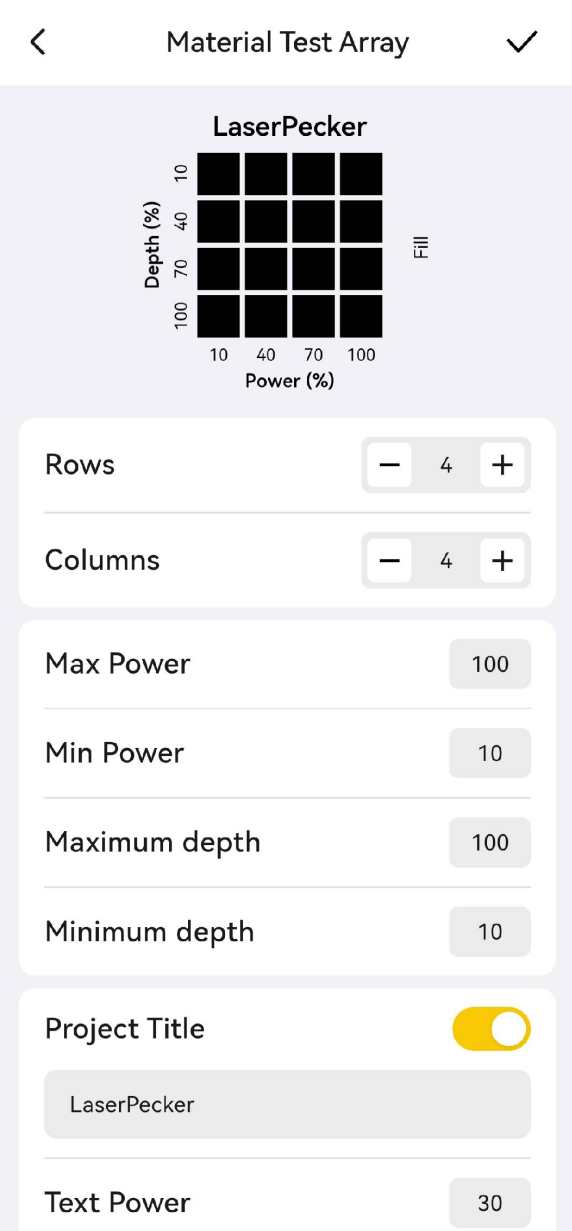

Material test array

(1) Tap the Material test Array to open the Material test array interface.

The generated array includes power, depth, and number of columns & rows. Scroll down the page to select the engraving layer, laser type, and resolution.

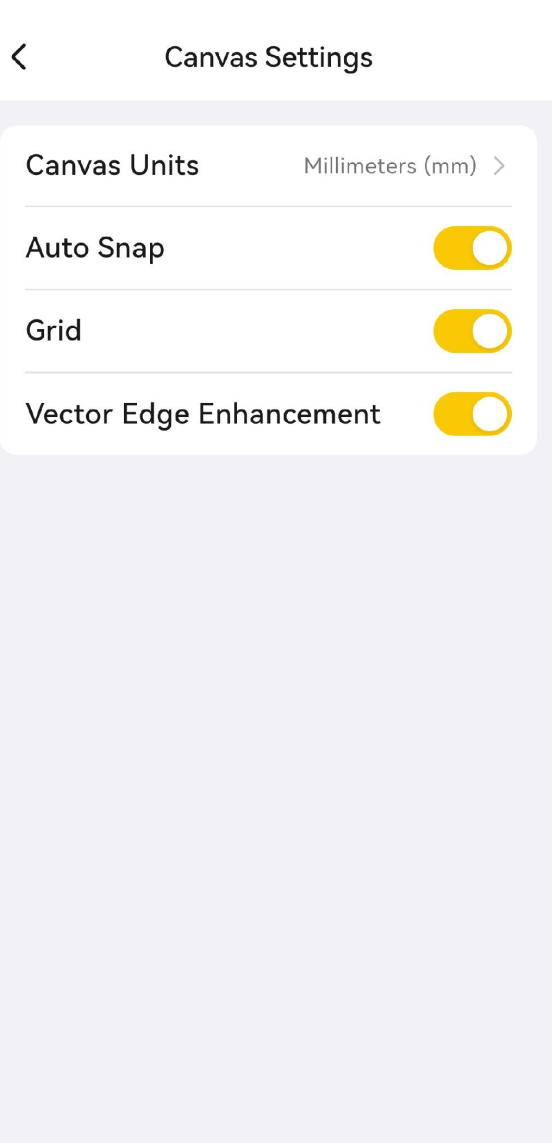

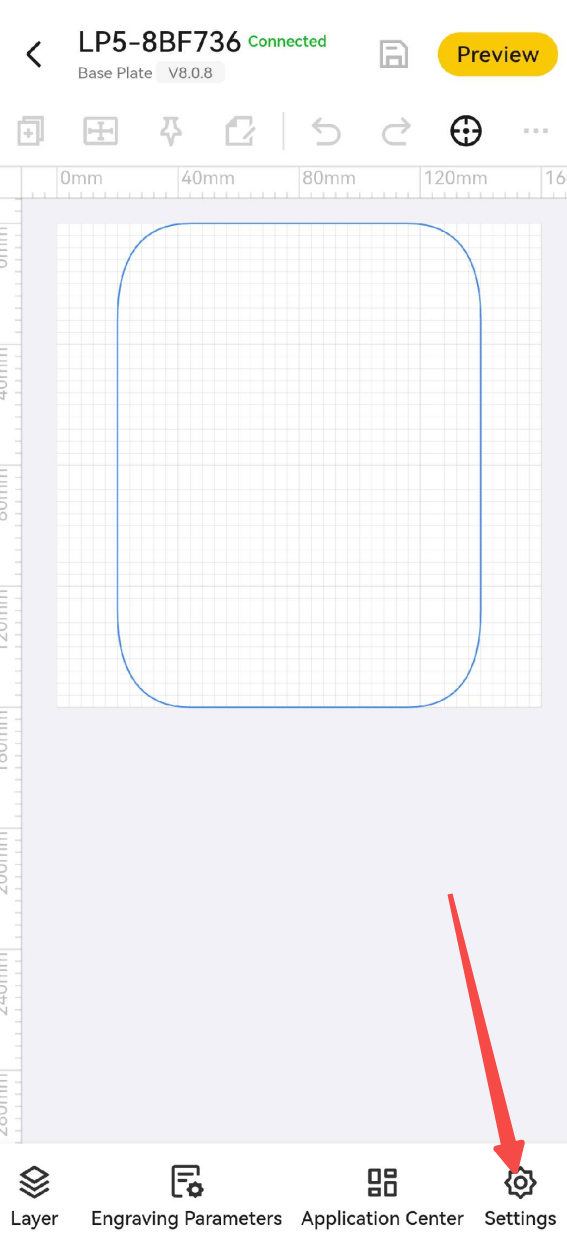

Change Settings

Tap the Settings in the bottom‑right corner to open the settings interface.

(1) Canvas Units: Change the unit of measurement displayed to Inch on the canvas.

(2)Auto Snap: Elements automatically snap to canvas center, edges, grid lines, and other objects for precise alignment.

(3) Grid: Show or hide the grid on the canvas.

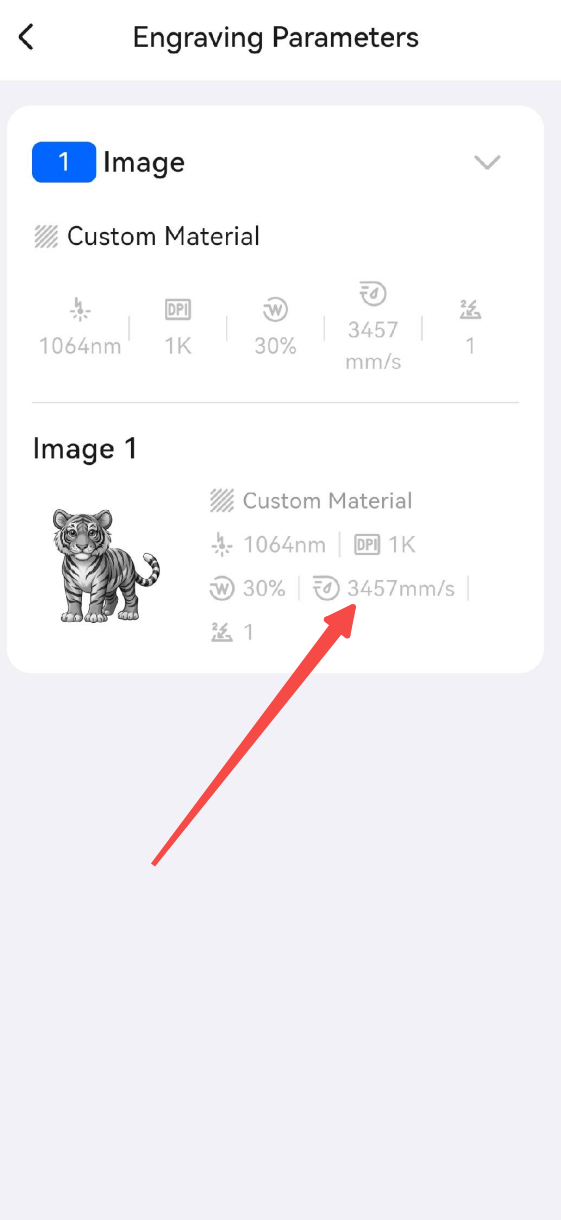

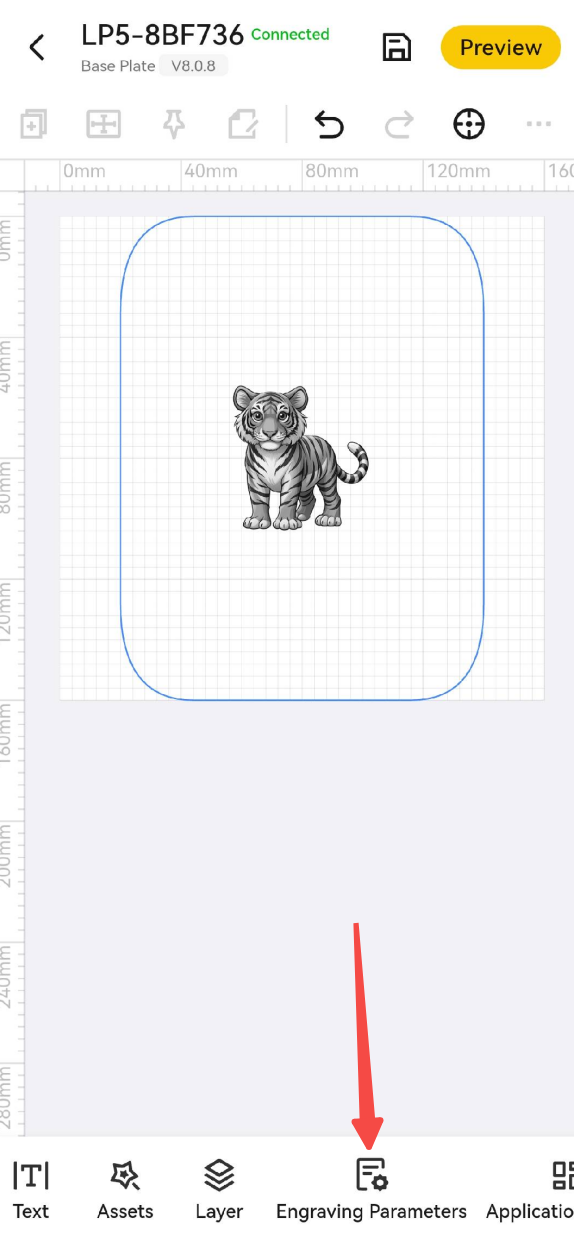

Engraving Parameters

(1)Tap the Engraving Parameters to access the Engraving Parameter page.

(2)Tap the Design to access the Object Parameter page.

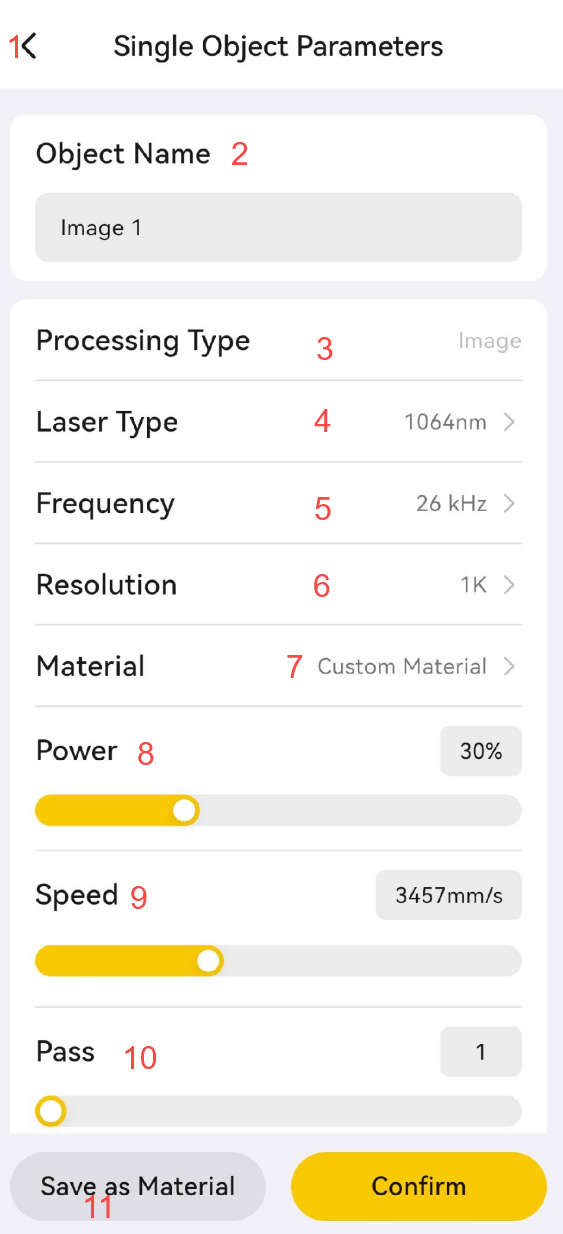

(3)Object Parameters — Overview

(1) Back button: return to the preview page. (2) Object Name :Tap the input box to modify the file name. (3) Laser Type: The engraving layer displays the engraving type (Image, Fill, Line, Cut). (4) Laser Type: displays the laser source information. The 450 nm blue diode laser is suitable for engraving coated metals, anodized metals, 304 stainless steel, bamboo, wood, leather, food, paper, fabric, photosensitive stamps, plastic, acrylic, opaque glass, glazed ceramics, etc. The 1064 nm laser is suitable for engraving metals, plastic, and synthetic leather. (5) Frequency:Controls how many laser pulses are fired per second (Hz). Higher frequency is good for detailed engraving. Lower frequency = more spaced pulses, deeper penetration—better for deep engraving (6) Select the desired resolution. Resolution refers to the number of dots per unit area. Higher resolution means denser dots and smaller spacing, producing finer engraving results and displaying more image detail – but also increasing processing time. Lower resolution helps save processing time. Resolution options vary by machine model. The LP4 supports 1K, 2K, 4K, and 8K resolutions. (7) Material: Tap Custom to select recommended parameters based on the engraving material. If the material is not available in the material library, you can set custom processing parameters by entering values. Tap the icon on the right to save the custom parameters. (8) Power (%): The output power of the laser during processing. Higher power results in deeper engraving or cutting. Value Range: [1, 100]. (9) Speed：The movement speed of the laser beam. (10) Passes: The number of times the laser beam follows the processing path over the material. More passes result in deeper marks. Value Range: [1, 255]. (11) Save as material: Save engraving parameters to your material library for reuse.

1.5 Preview & Engraving

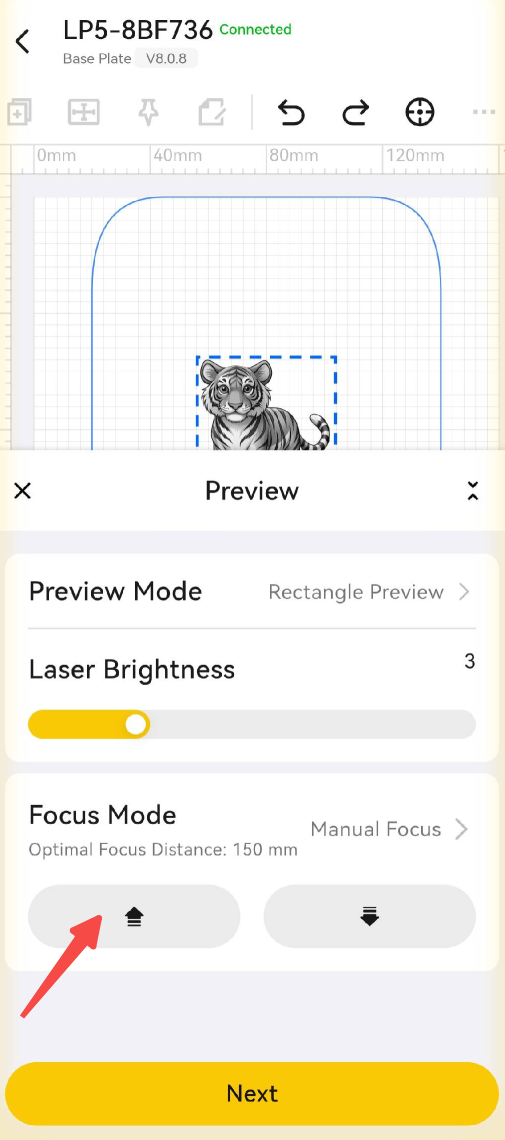

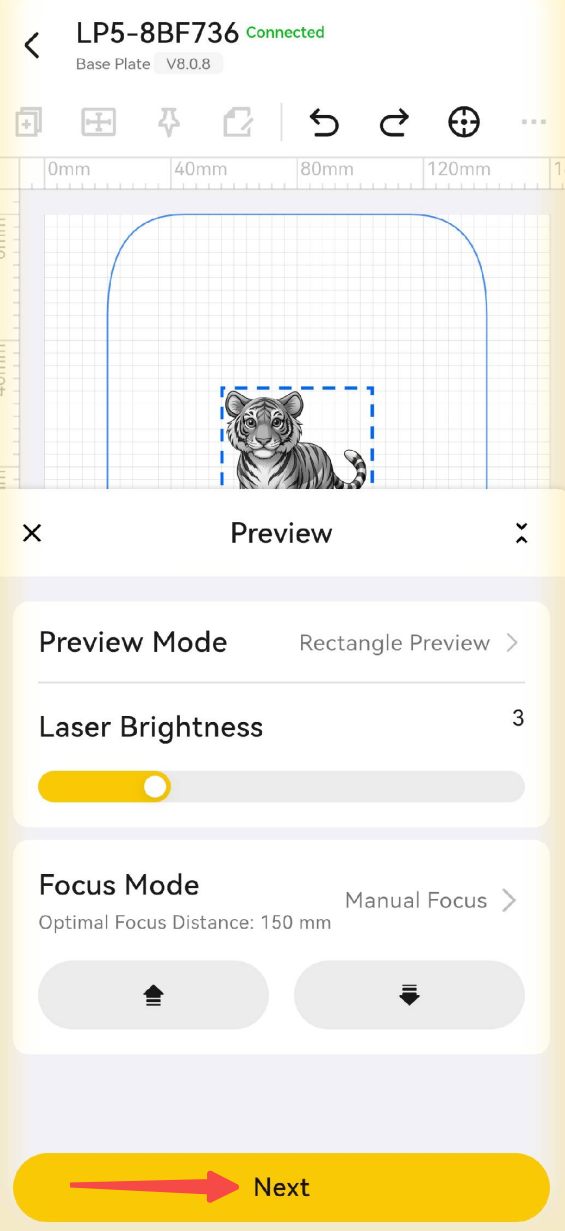

Preview

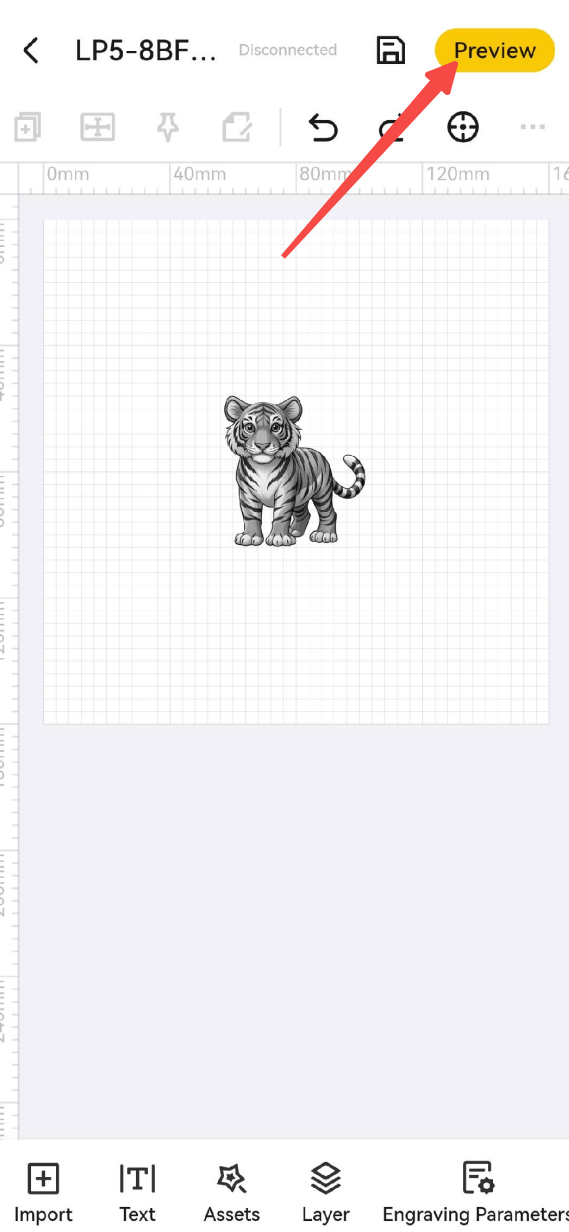

(6) Tap Preview to start focal distance adjustment.

Start Process (Engraving Parameter Page)

(1) Tap the Next to access the Engraving Parameter page.

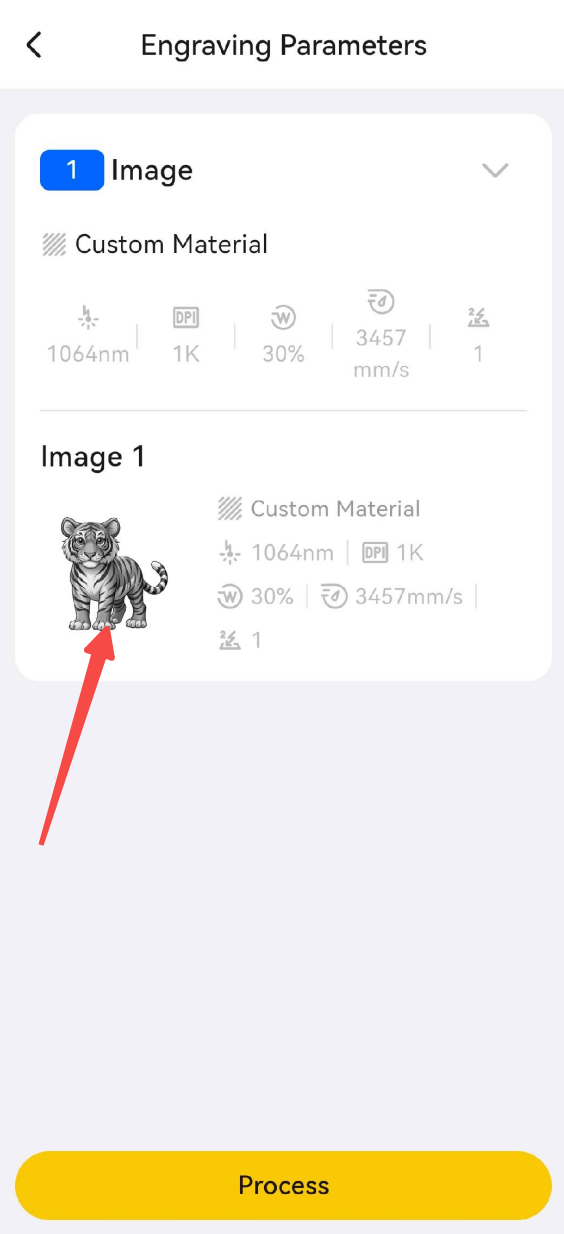

(2) Tap the Design to access the Object Parameter page.

(3) Set the engraving parameters as needed, then tap the Confirm

(1) Back : return to the preview page. (2) Object Name :Tap the input box to modify the file name. (3) Processing Type : The engraving layer displays the engraving type (Image, Fill, Line, Cut). (4) Laser Type : displays the laser source information. The 450 nm blue diode laser is suitable for engraving coated metals, anodized metals, 304 stainless steel, bamboo, wood, leather, food, paper, fabric, photosensitive stamps, plastic, acrylic, opaque glass, glazed ceramics, etc. The 1064 nm laser is suitable for engraving metals, plastic, and synthetic leather. (5) Frequency :Controls how many laser pulses are fired per second (Hz). Higher frequency is good for detailed engraving. Lower frequency = more spaced pulses, deeper penetration—better for deep engraving (6) Select the desired resolution. Resolution refers to the number of dots per unit area. Higher resolution means denser dots and smaller spacing, producing finer engraving results and displaying more image detail – but also increasing processing time. Lower resolution helps save processing time. Resolution options vary by machine model. The LP4 supports 1K, 2K, 4K, and 8K resolutions. (7) Material : Tap Custom to select recommended parameters based on the engraving material. If the material is not available in the material library, you can set custom processing parameters by entering values. Tap the icon on the right to save the custom parameters. (8)Power (%) : The output power of the laser during processing. Higher power results in deeper engraving or cutting. Value Range: [1, 100]. (9)Speed：The movement speed of the laser beam. (10)Passes : The number of times the laser beam follows the processing path over the material. More passes result in deeper marks. Value Range: [1, 255]. (11)Save as material : Save engraving parameters to your material library for reuse.

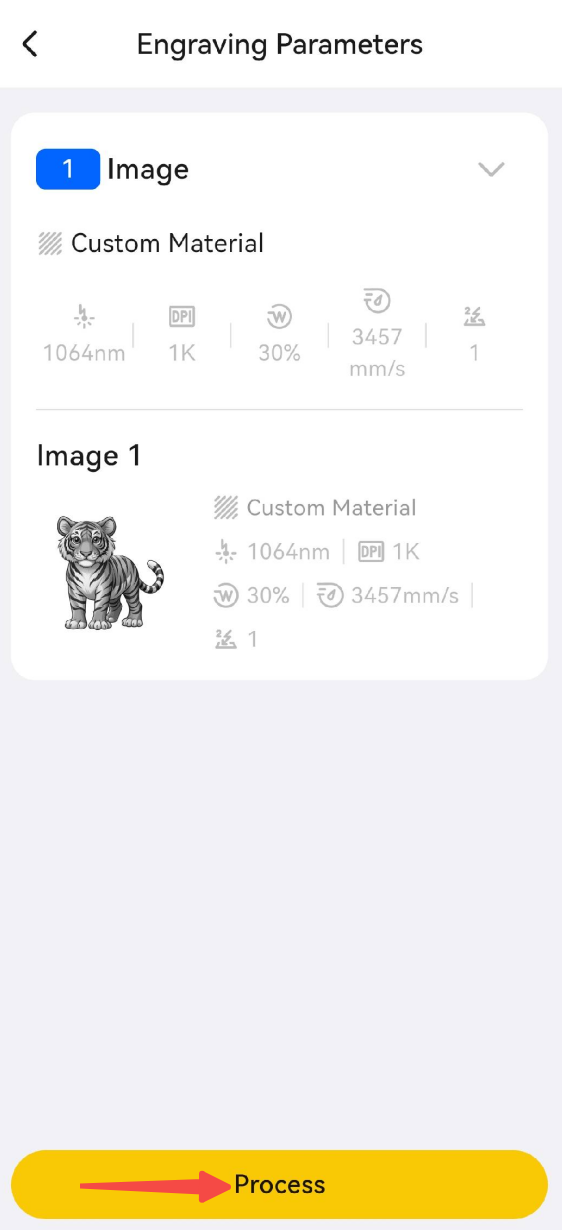

(4) Tap the Process to start engraving

1.6  Device Details(Mode Settings ）

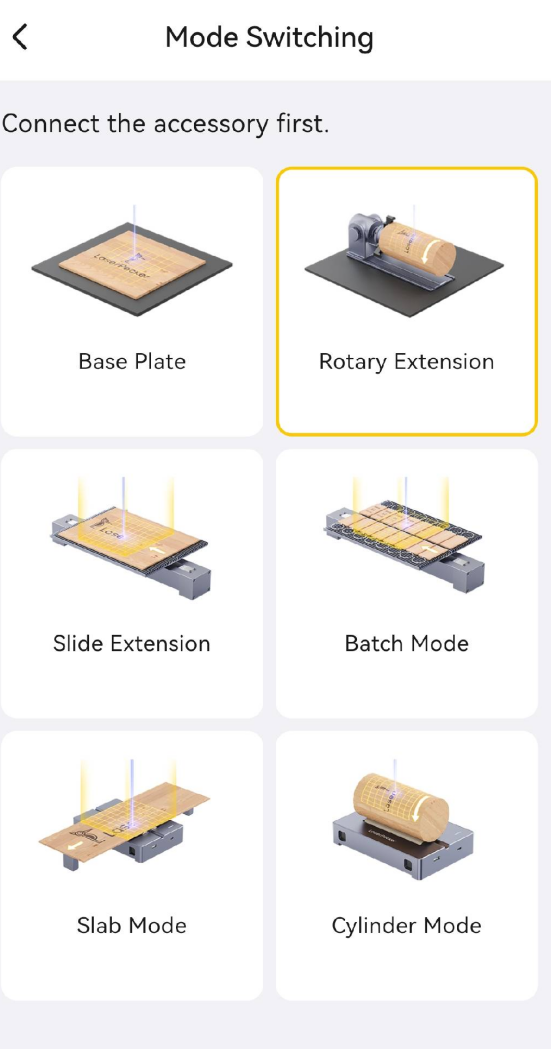

Processing Mode

Base Plate

The default processing mode. It is suitable for engraving and cutting flat materials.

Rotary Extension

Ideal for processing cylindrical objects. After installing the Jaws / Stud Assembly, place the object on the rotary extension for engraving. The diameter/perimeter of the engraved objects must be entered before use.

 Slide Extension

 1️⃣Slide Extension Mode :Connect the Slide Extension for engraving. Place the object on the Slide Extension, which replaces the Y-axis movement of the Laser Unit, suitable for engraving larger materials.

 Batch Mode

2️⃣The Slide Extension acts as a carrier, moving flat materials to the designated engraving position for multi-file processing.

Versatile Electric Roller

1️⃣ Slab Mode: When enabled, the canvas length extends to 2000 mm, supporting longer flat materials.

2️⃣ Cylinder Mode: Supports engraving cylindrical objects such as wooden rods, water bottles, and cans.

3️⃣ Trolley Mode: An engraving mode exclusive to the LP2, allowing engraving on flat materials with extended length.

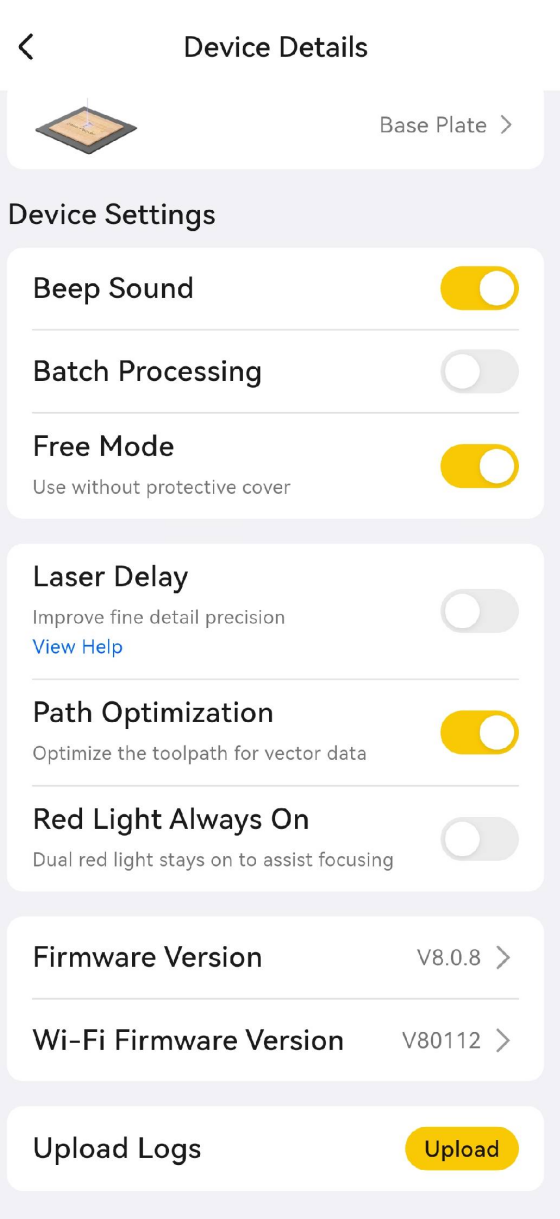

Device Setting

Beeping Sound: When enabled, a beeping sound plays at the start and end of a job.

Batch Engraving: Enable this function after connecting the batch engraving button accessory. The button can then be used to preview and engrave the previous last transferred file.

Safety Mode

1️⃣Close Free Mode

(1) If the protective cover is not connected, Free Mode must be enabled to preview and engrave.

(2) If the protective cover is opened during engraving, the device will pause. To resume, close the cover and tap the Continue.

(3) When the protective cover is connected, ensure it is properly closed before previewing or engraving.

2️⃣Enable Free Mode

The device no longer detects whether the protective cover is correctly installed and closed.

Note: Although this mode allows the device to operate without a protective cover (Class 4 conditions), it is not recommended for safety reasons. When operating in this mode, you must wear laser safety goggles that meet certified standards, especially when there is a risk of laser beam exposure.

Laser Delay: When enabled, it results in a more even engraving effect.

Path Optimization: When enabled, engraving paths for vector data are optimized for higher efficiency.

Red Light Always on: Keeps the dual red dots (used for focusing) constantly lit.

Firmware Version: Displays the current firmware version of the machine.

Upload Logs: Upload software logs to help developers troubleshoot issues.

Laser delay: When enabled, it results in a more even engraving effect.

Path optimization: When enabled, engraving paths for vector data are optimized for higher efficiency.
