Firmware Upgrade Guide for LaserPecker Machines

  • Updated

This guide aims to help users upgrade their machines' firmware to the latest version using LaserPecker Apps and PC Software.



Risk Notification:

Before proceeding, please note that previous engraving documents may be lost during the upgrade process. It is highly recommended to back up your data.



1. Update Machine's Firmware Using Apps:

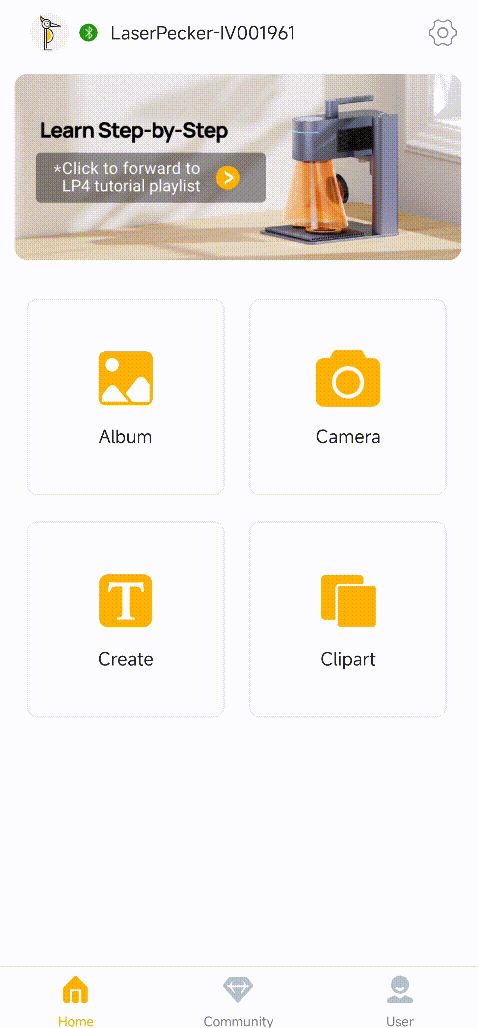

LaserPecker (Community Version)

For users of the LaserPecker app, follow these steps to upgrade your LP machine's firmware:

  1. Connect your LP machine to the app via bluetooth
  2. Navigate to Machine Settings
  3. Select Firmware Version
  4. Click on 7.0.0.X to upgrade

Online upgrade path 1



LaserPecker Design Space (Pro Version)

For the users of LaserPecker Design Space app, follow these steps to upgrade your LP machine's firmware:

  1. Connect your LP machine to the app via bluetooth
  2. Navigate to Users
  3. Go to Settings
  4. Select Version
  5. Click on Version Update
  6. Choose Update Manual to upgrade.

Online upgrade path 2



2. Update Machine's Firmware Using PC Software:

For the users of LaserPecker Design Space (PC Software), there are two ways to update your machine's firmware.

Way 1: Firmware upgrade pop-up

When you connect your LP machine to the PC software, a pop-up notification will appear, prompting you to upgrade your machine's firmware. Simply click “OK” to start the firmware upgrade immediately.


*Please note: For a successful upgrade, connecting your machine to the PC software via a Bluetooth dongle is necessary. (a USB cable connection will not work for firmware upgrading).

Way 2: Manual firmware update via machine settings

You can also manually update the machine's firmware using the PC software by following these steps:

  1. Connect your LP machine to the PC software via a Bluetooth dongle
  2. Navigate to Machine Settings icon
  3. Select Firmware Upgrade
  4. Click OK to start the upgrade

machine setting icon select firmware upgrading firmware upgrade succes



3. Important Instructions for Firmware Upgrade

  1. Ensure your LaserPecker machine is stably powered on and do not move it until the upgrade process is finished.
  2. Do not use or move your LaserPecker machine until the indicator turns blue. Otherwise, it will interrupt the upgrade process and may cause malfunction.
  3. When the firmware upgrade is complete, turn the machine off and turn it back on. You can then enjoy the new version's features.
  4. Avoid upgrading or downgrading the firmware arbitrarily unless necessary, as this this can sometimes brick your LaserPecker machine.
