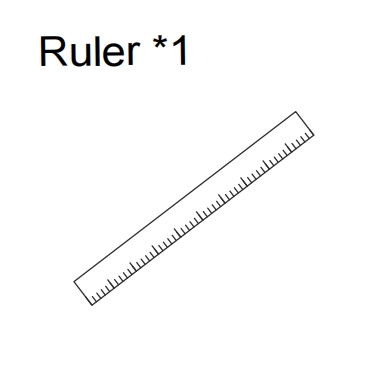

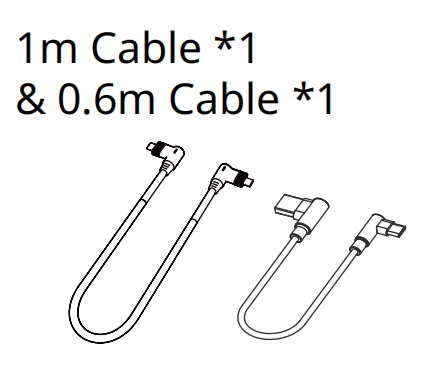

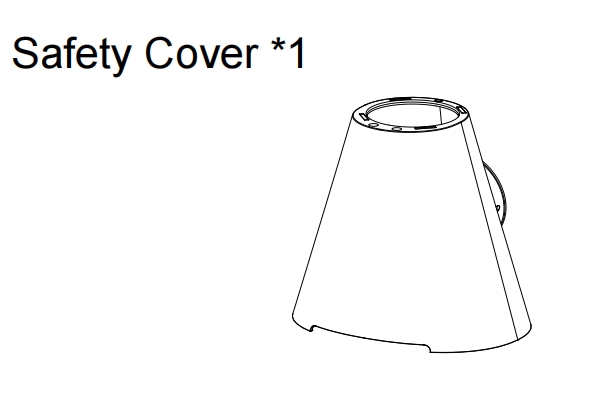

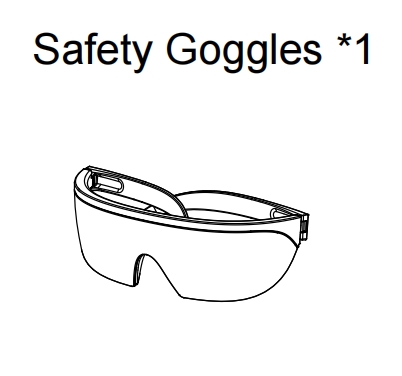

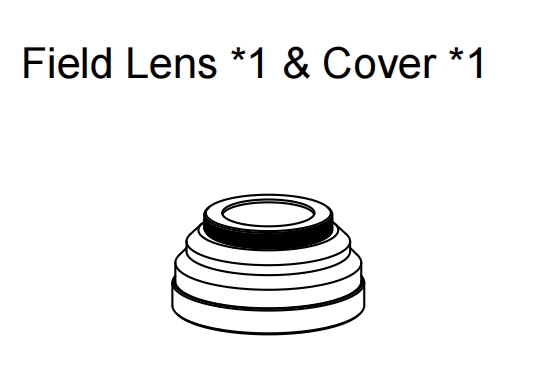

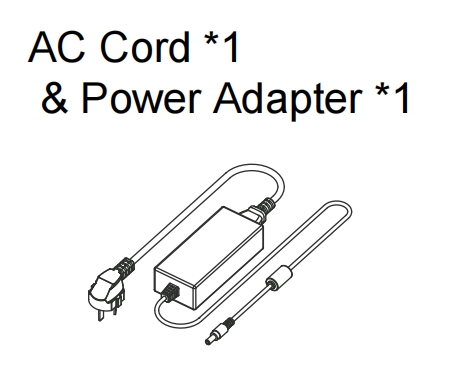

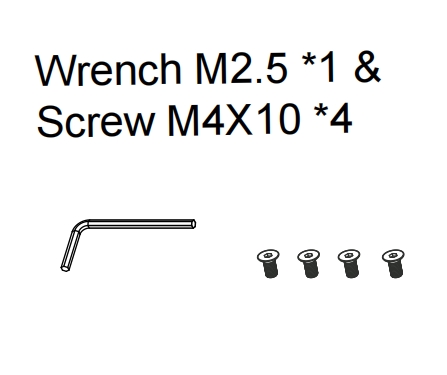

What is Included?
→ If any items are missing or damaged please contact the LaserPecker Technical Support team via support@laserpecker.com
LP4 Components and Features

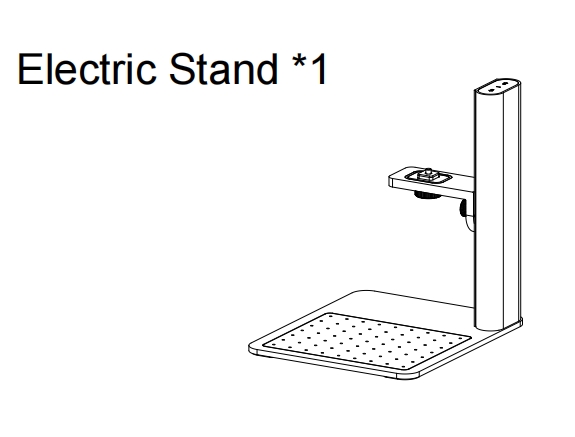

Laser Unit / Electric Stand/ LED Indicators
Power interface
LP4 LED Status Indicators
| Color | LED Status | Host Status |
|---|---|---|
| Blue | Flashing | The LP4 is in standby mode and waiting to connect. |
| Continuous | The LP4 is connected to a computer via the Type-C port. | |
| Yellow | Flashes once | LP4 is self-checking. |
| Red | Continuous | The Emergency Stop button was triggered. OR the LP4 is connected to LightBurn. |
| Red & Green | Alternate flashes | LP4 firmware is being updated or downgraded. |
| Multiple Colors | Changing gradually | A job is currently in progress. |
| Green | Flashing | The LP4 is receiving data. |
