As the LaserPecker LX2 is used over time, smoke, dust, and debris may accumulate inside the Exhaust Fan and Laser Module. This can not only affect exhaust efficiency but may also cause smoke retention and degrade the performance of the Laser Module. To maintain the optimal exhaust performance of the LaserPecker LX2, we recommend cleaning both the Exhaust Fan and the Laser Module promptly when you receive the "Cleaning Reminder" in your software.
Cleaning Reminder Schedule
The Cleaning Reminder is automatically pushed based on the working hours of your Laser Module. The intervals vary by module type:
- 40W 450nm Laser Module: Every 2 hours of use
- 20W 450nm Laser Module: Every 4 hours of use
- 2W 1064nm Laser Module: Every 20 hours of use
If you don't need this reminder, you can disable it in the Device Settings interface.
How to Enable or Disable the Cleaning Reminder?
-

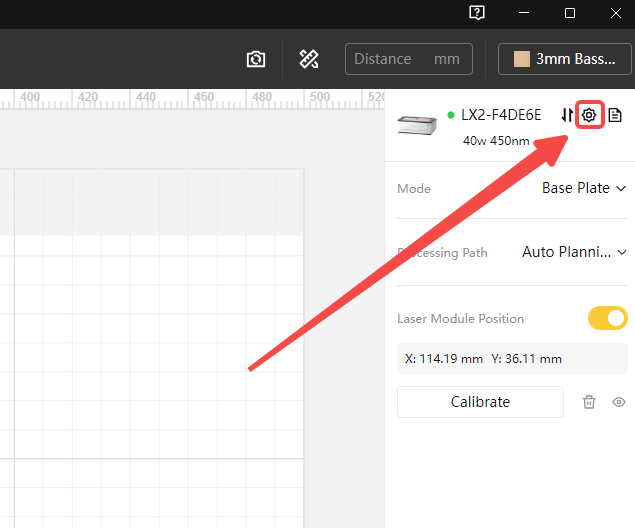

Connect to your machine. Open the Device Settings interface.
-

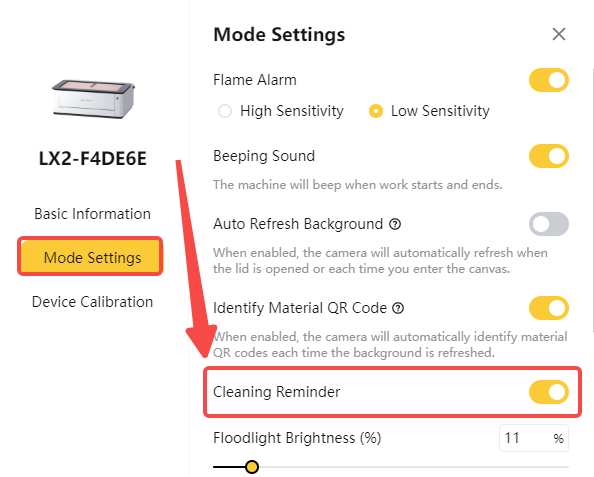

Select Mode Settings, and you can turn the Cleaning Reminder function on and off as needed.
How to Clean the Exhaust Fan?
For a detailed guide on how to clean the Exhaust Fan, please refer to the following link:
Cleaning the Smoke Exhaust Fan for LaserPecker LX2
How to Clean the Laser Module
For a detailed guide on how to clean the Laser Module, please refer to the following link:
