Setting Correct Focal Length for LP2 Plus

Proper focusing ensures the energy of the laser beam is concentrated on one point, resulting in an accurate, high-quality effect. Improper focusing will result in unclear, uneven, or no effect at all. This guide will explain how the LP2 Plus achieves proper focusing.

Step 1: Connect and Access Settings

• Connect your LP2 Plus to the LaserPecker Design Space App.

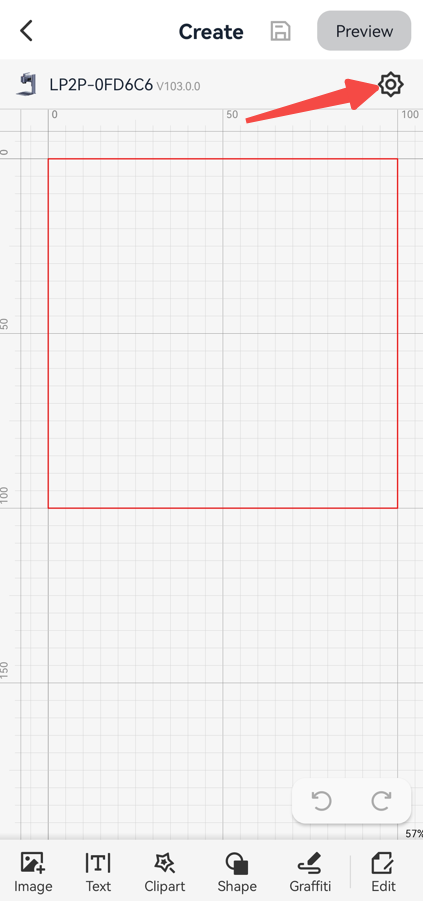

• Access the canvas and then click the settings button in the top right corner to open the Mode Settings page.



Step 2: Activate Red Dots Function

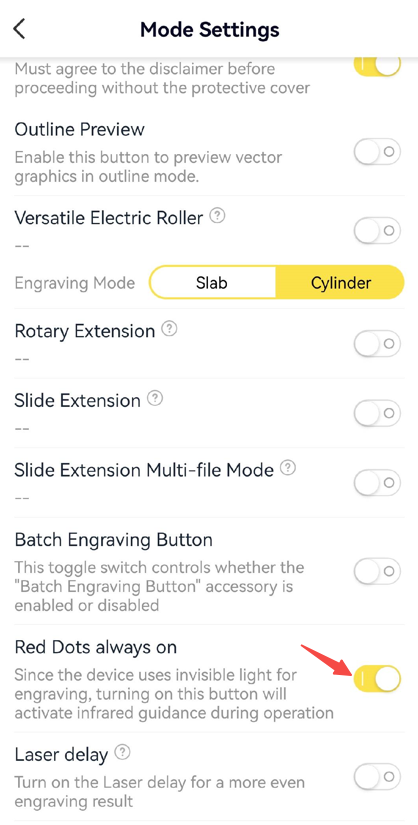

• In Mode Settings, activate the "Red Dots always on" function.

Step 3: Adjust the Laser Unit Height

As shown in the image below, short-press or long-press the up or down button on the Electric Stand to adjust the height of the Laser Unit. Once the two red dots align into a single dot, the LP2 Plus is successfully focused.

If the two red dots do not overlap at the engraving focal distance, regardless of how you adjust the height of the Laser Unit, you can follow the guide for troubleshooting.
