The flexible fixture is designed to securely hold objects of various irregular shapes, uneven surfaces, or items lacking stable support points, enabling smooth engraving on planar or curved surfaces.
1. Fixture Setup Instructions
Step 1 – Unlock the Steel Pins

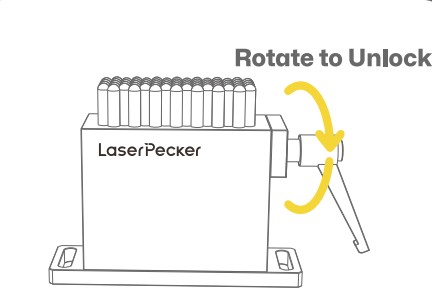

Ensure the steel pins are unlocked before positioning your object. If needed, turn the handle counterclockwise to unlock.
Step 2 – Position the Object

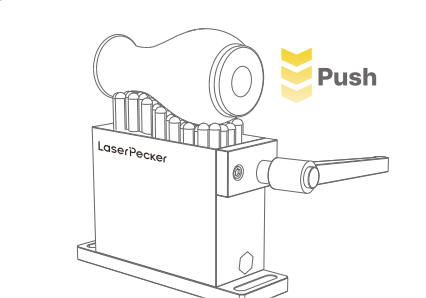

Press the object gently onto the array of steel pins, allowing them to embed into the object’s surface.
Step 3 – Lock the Pins

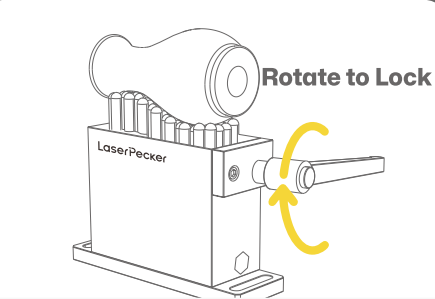

Turn the fixture handle clockwise until the pins are fully locked and the object is securely held.
Tips
If the object remains loose or unstable, repeat steps 1–3 until it is firmly secured.
2. Technical Specifications
| Weight | Net Weight: 1.2 kg Gross Weight: 1.3 kg |
| Dimensions | 40 × 106 × 130 mm |
| Steel Needle Stroke | 21 mm |
| Steel Needle Diameter | 6 mm |
| Steel Needle Area | 30 × 80 mm |
| Maximum Usage Count | 1,000,000 times |
| Maximum Load | 200 kg |
3. Compatibility with LX2 and Riser Base
The LX2 supports a maximum processing height of 45 mm. Since the flexible fixture itself exceeds this limit, it must be used with a Riser Base (sold separately).
Please refer to the LX2 Riser Base Guide for detailed setup instructions.
Compatible Material Height with Flexible Fixture + Riser Base:
| Level | Material Height |
| 1 | Not supported |
| 2 | Not supported |
| 3 | 0–23 mm |
| 4 | 0–47.5 mm |
Tips
Using different Riser Base levels affects the maximum material height. Always verify your setup before starting the process.
4. Material Processing Guide
Step 1 – Place Material on Base Plate

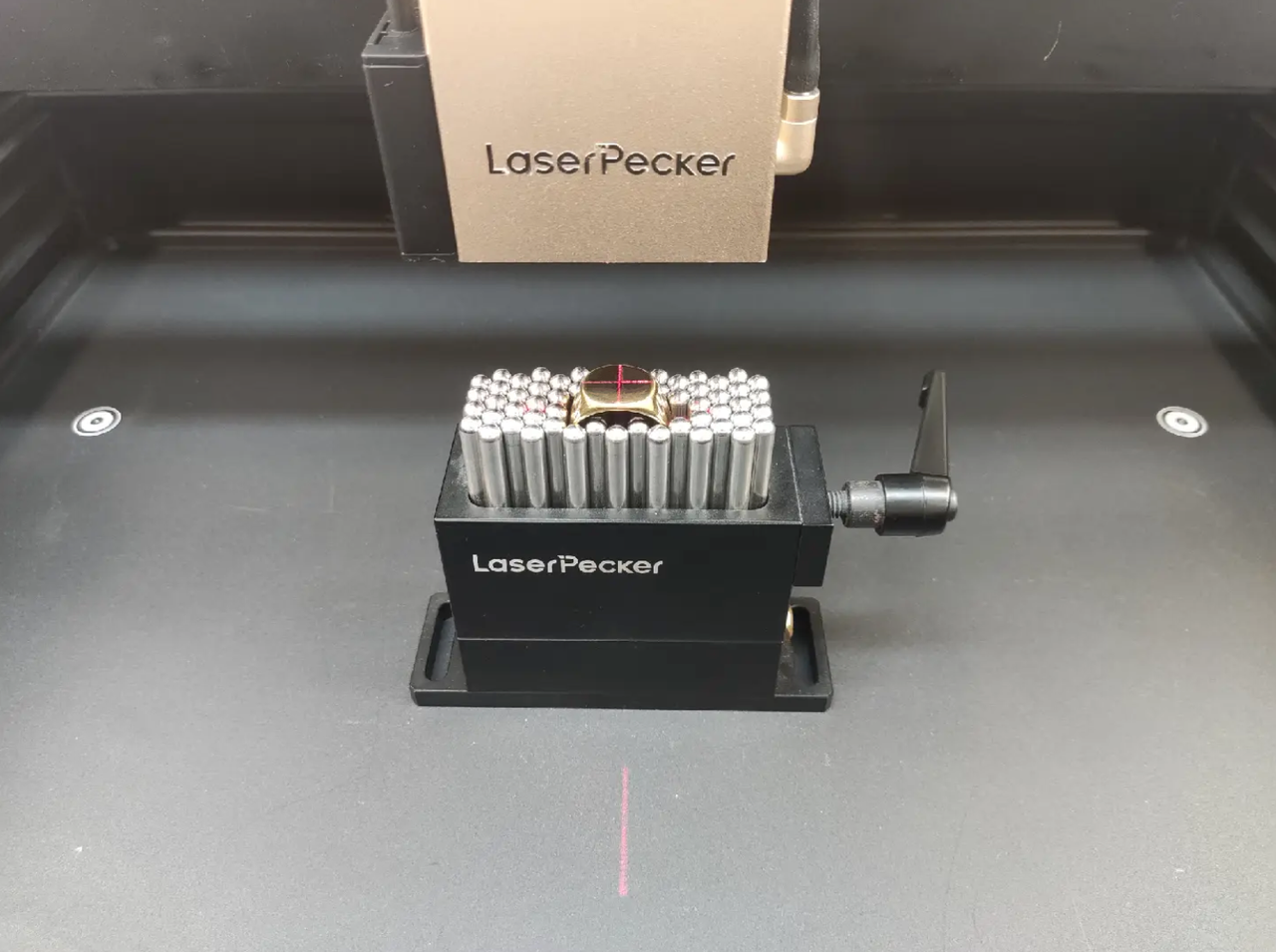

Place the material on the Base Plate and move the Laser Module above it.
Step 2 – Auto Measure

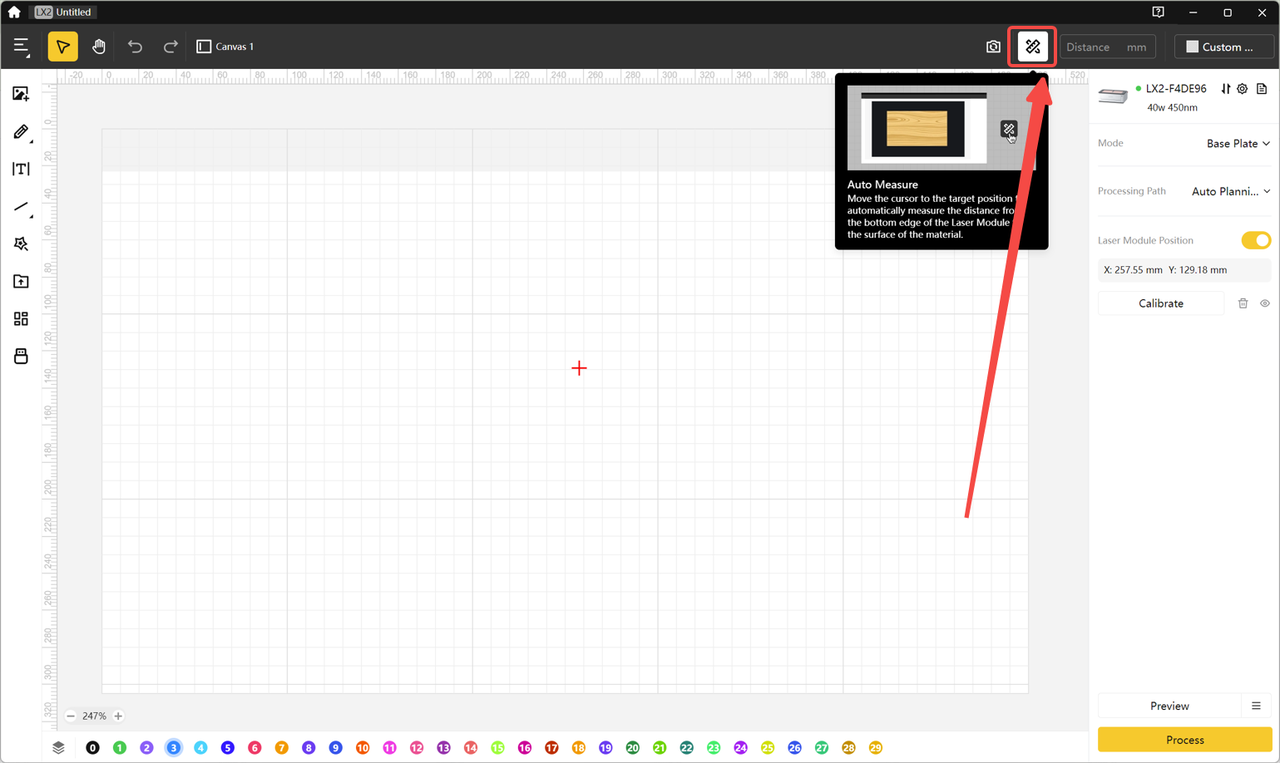

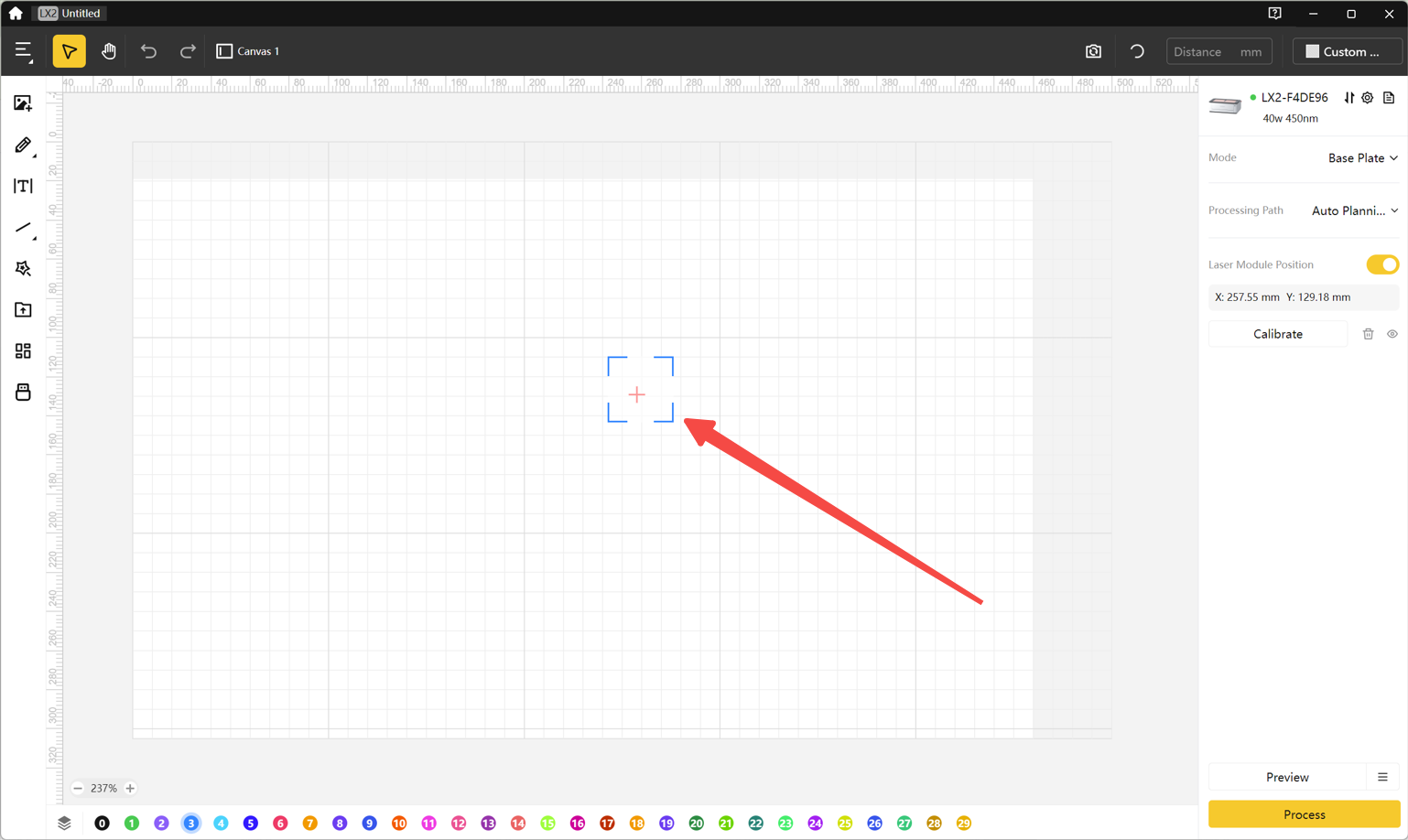

Click “Auto Measure”, move the mouse cursor to the red crosshair marker on the canvas, and left-click. The device will begin focal length detection.
Step 3 – Calibrate Processing Area

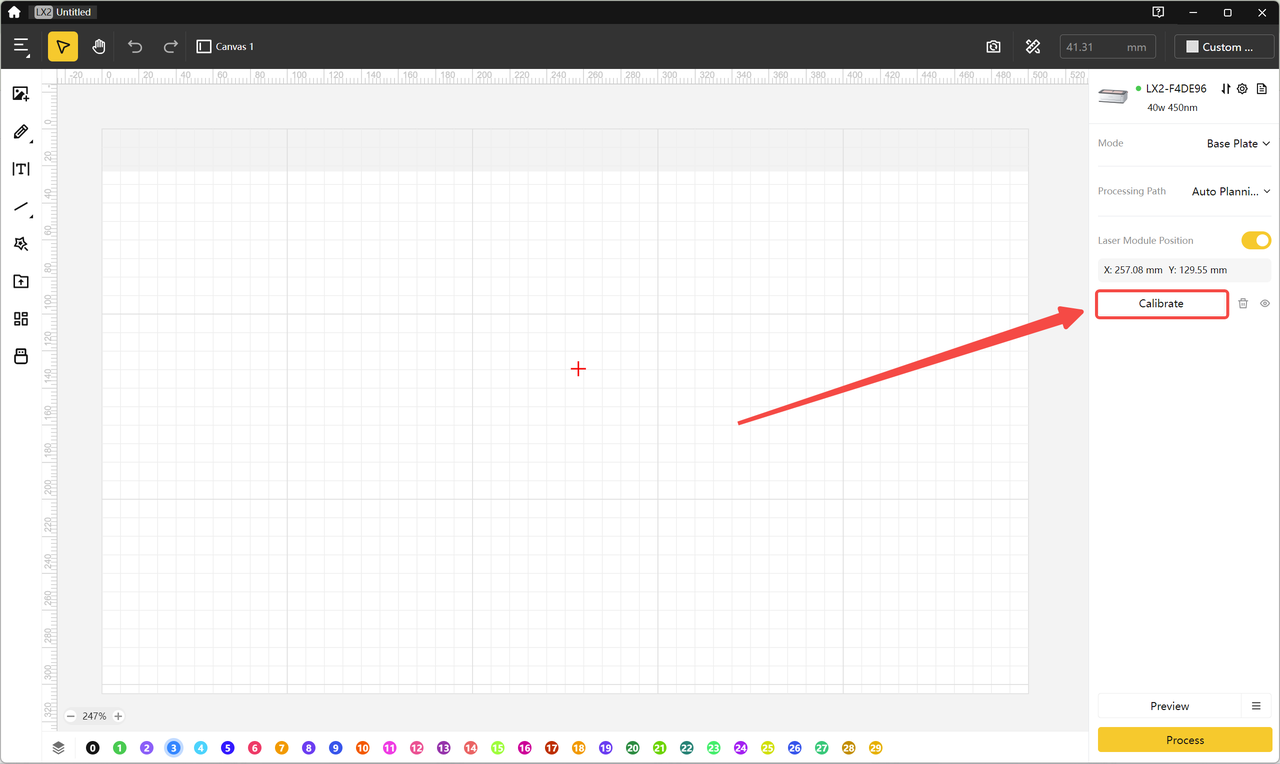

Click the “Calibrate” function to mark the processing area.
Step 4 – Record Reference Points

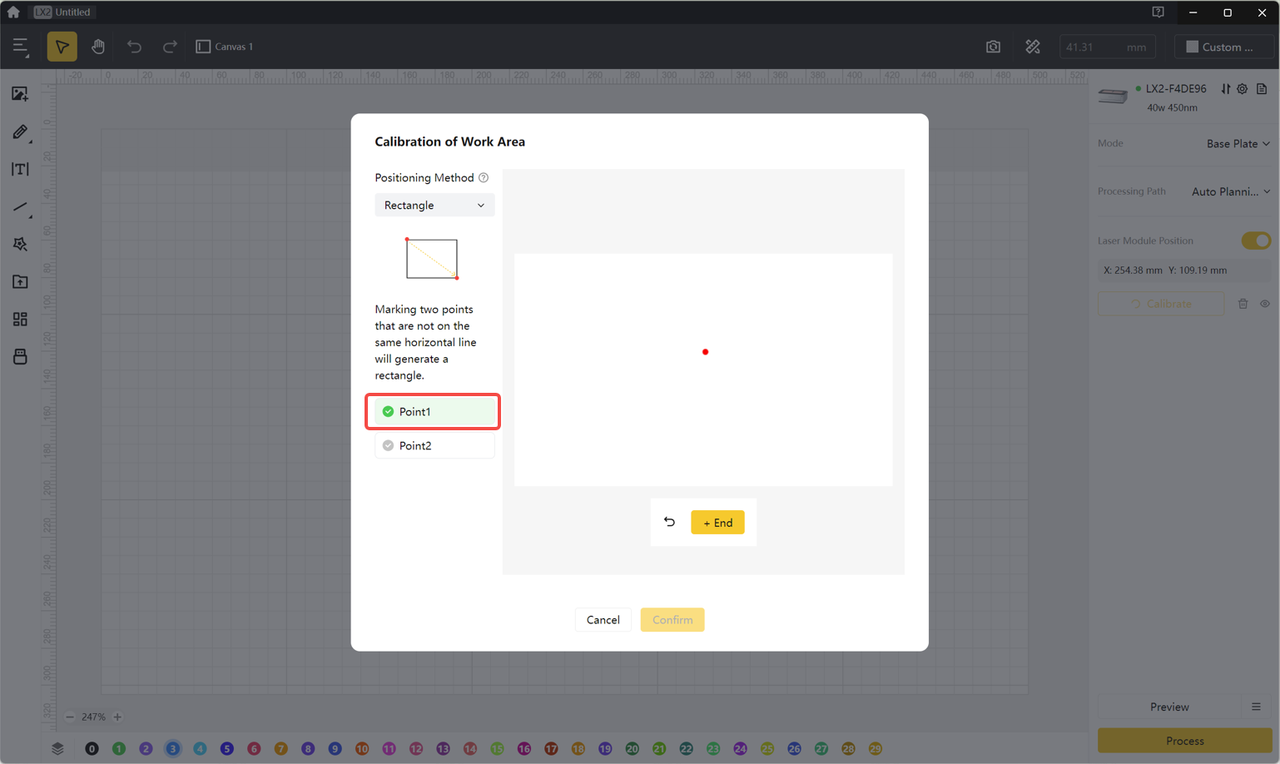

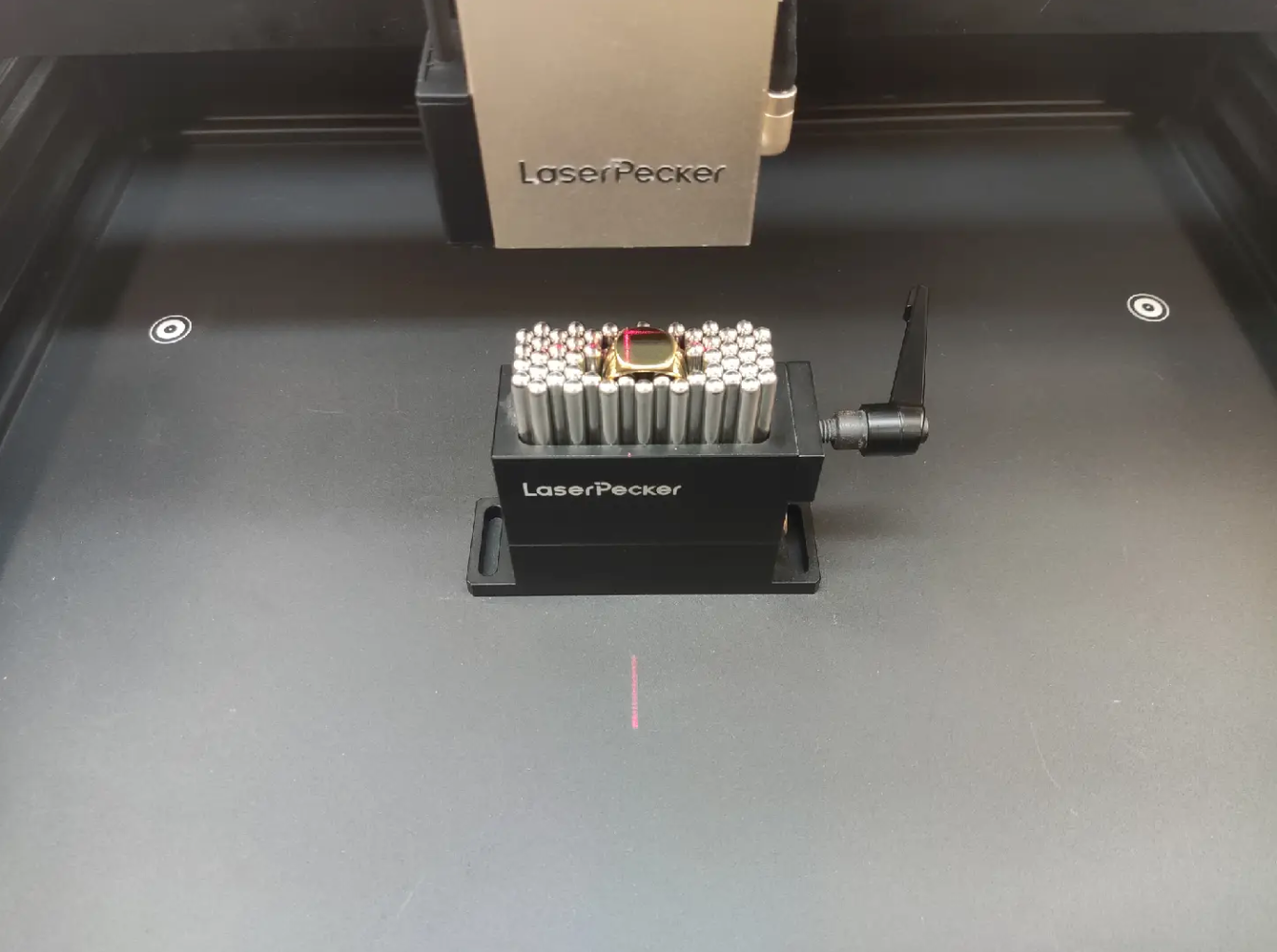

- Drag the Laser Module to align the center of the red crosshair with the first point of your desired engraving area. Press the LX2 device button to record the point (a beep confirms successful recording).

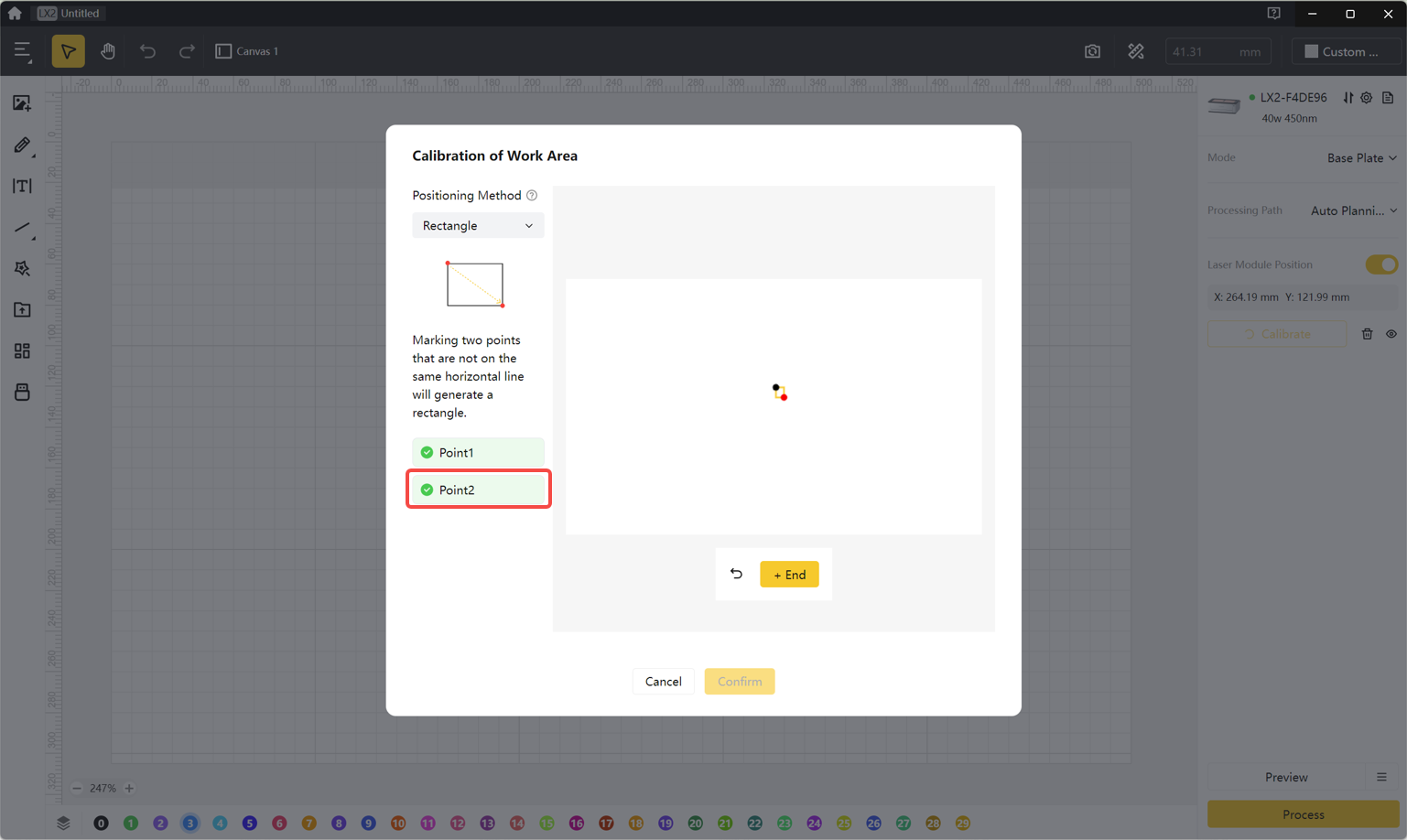

- Repeat for the second point.
Installing the Base Plate on a different Riser Base layer may cause visual parallax, reducing camera positioning accuracy. Using the physical red crosshair for calibration avoids this error.
Step 5 – Import Design and Set Engraving

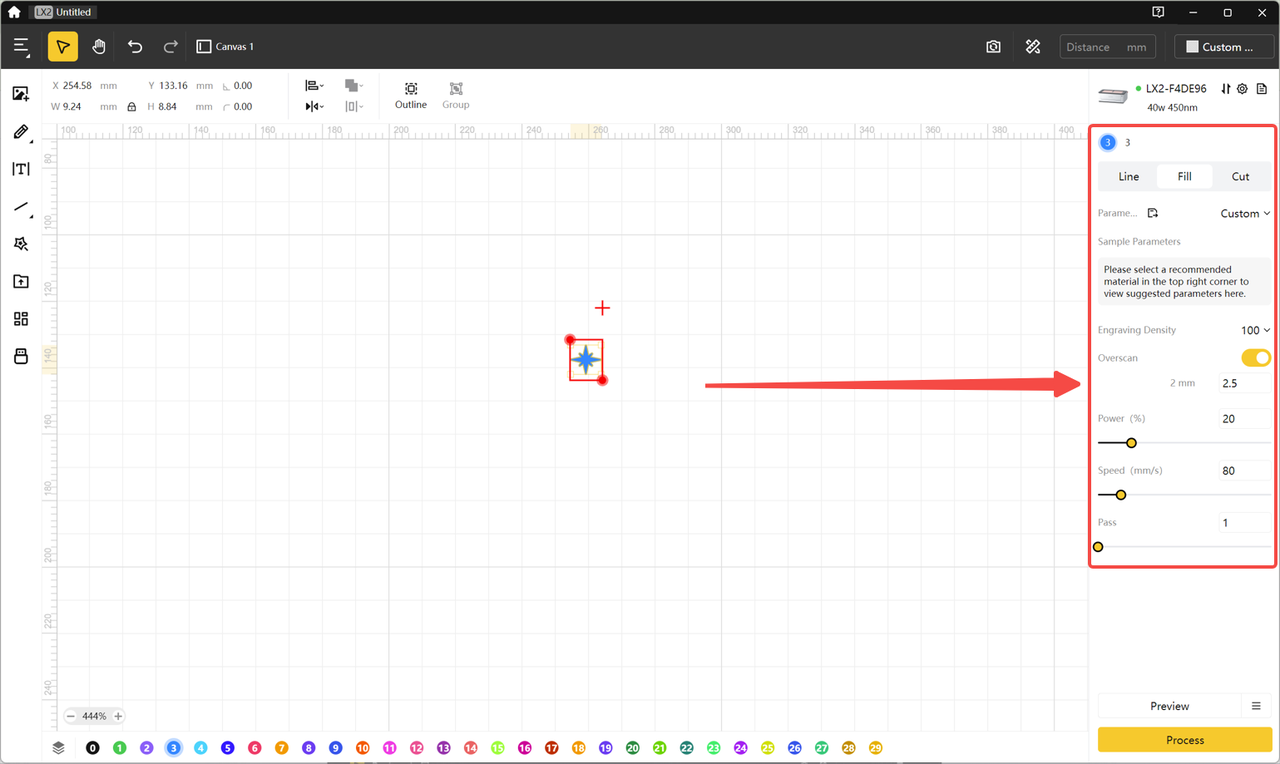

Import your design, adjust its size and orientation, set the appropriate engraving parameters, preview the processing area, and start the engraving job.
