The LX2 is equipped with a top-cover camera to make processing more convenient. This camera allows you to:
- Preview the processing area
- Assist with material alignment
- Precisely position your design on the material
Precautions Before Using the Camera
(1) Ensure the processing area is well-lit. Poor lighting can result in low-quality snapshots.
(2) Use a background color that contrasts with the material for better camera recognition.
(3) Avoid highly reflective materials, as they may prevent the camera from recognizing the processing area.
(4) Leave at least 2 mm of space between each piece of material to help the camera distinguish them.
Step-by-Step Instructions

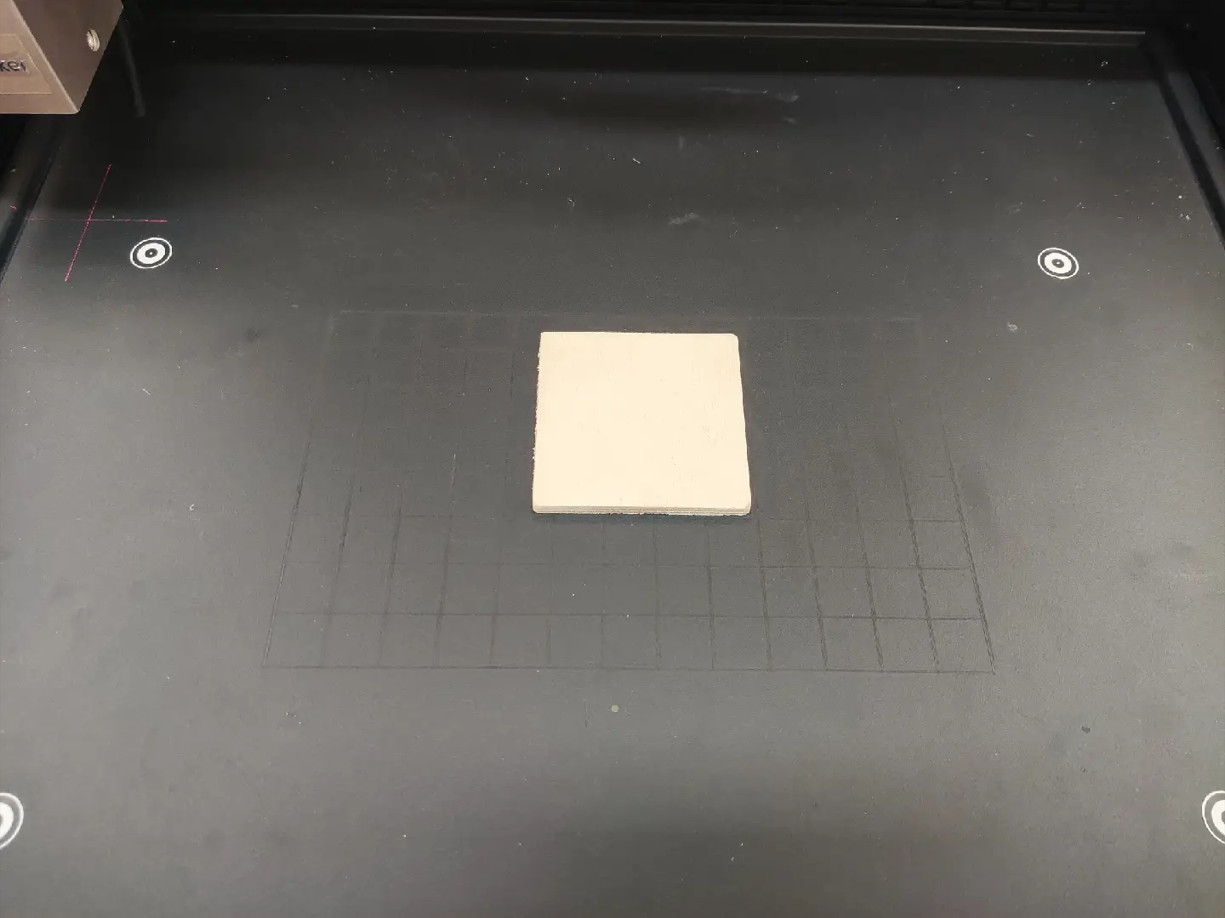

1. Prepare the Material and Base Plate
- Place the material on the Base Plate.
- Ensure the Base Plate is clean and all four calibration dots are unobstructed and free of stains.

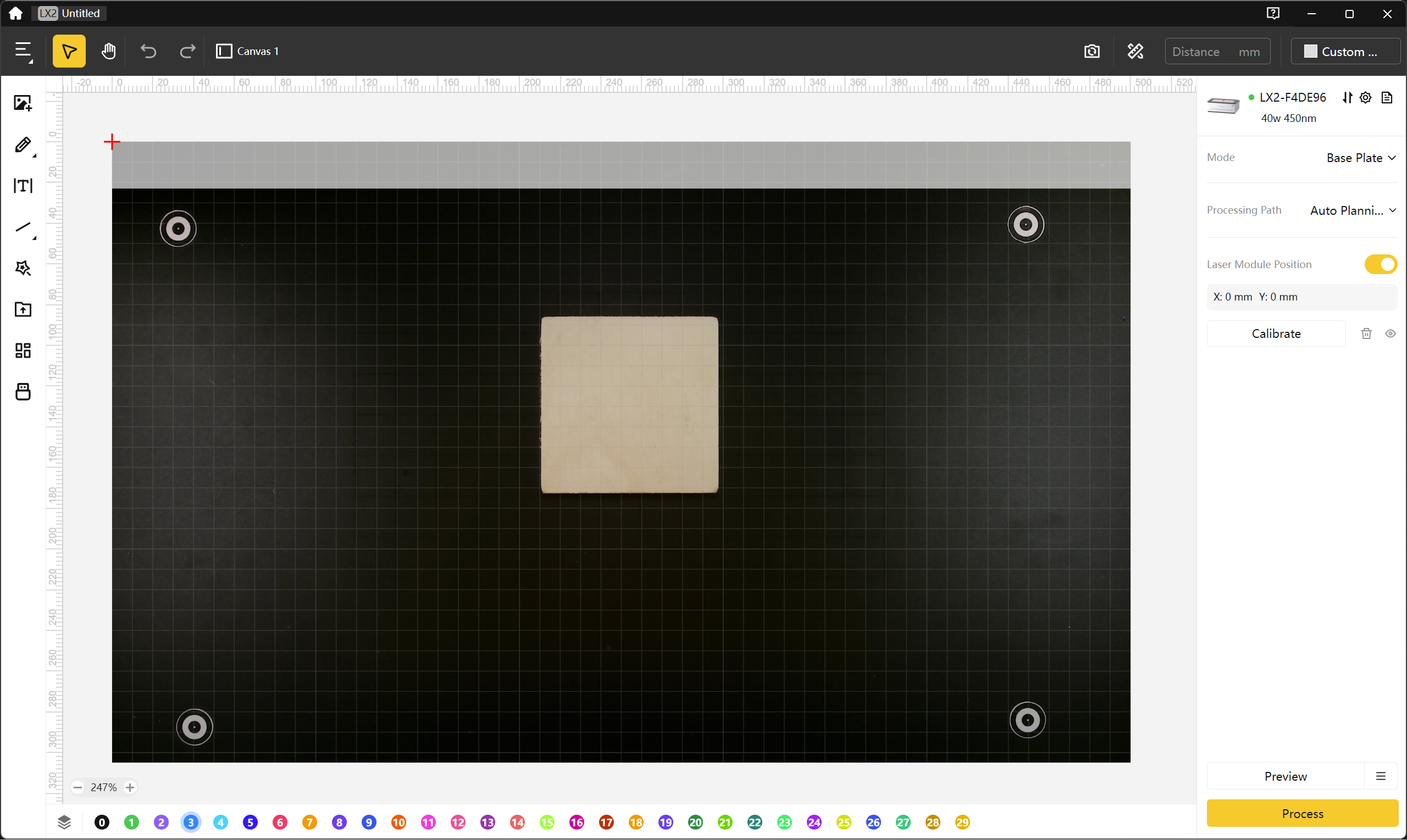

2. Connect the Device and Refresh the Background
- Connect the LaserPecker LX2. Make sure the top and front covers are properly closed.

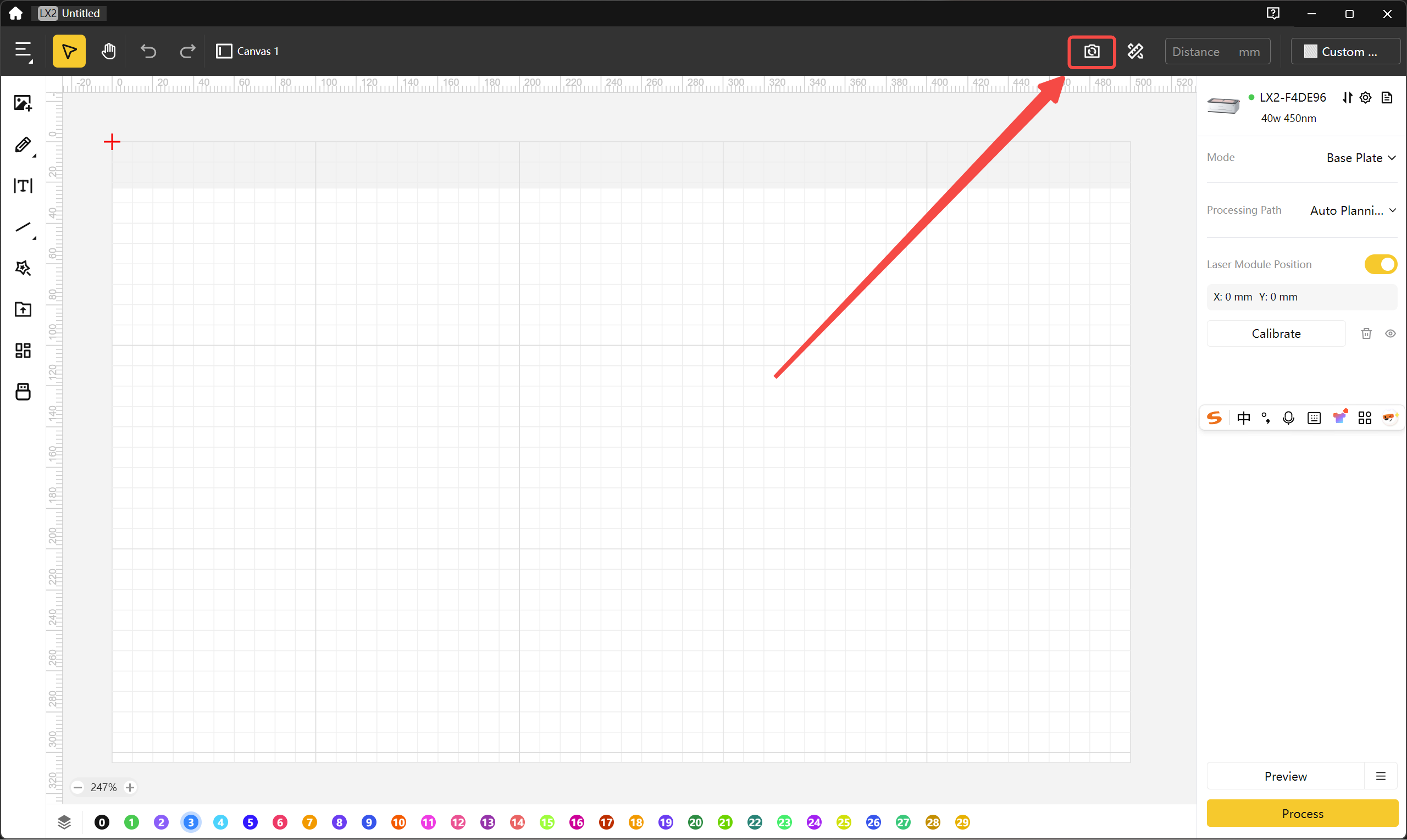

- Click the camera icon at the top-right corner of the software to refresh the background.
Remove the camera’s protective film before refreshing the background.
3. Import and Align the Design

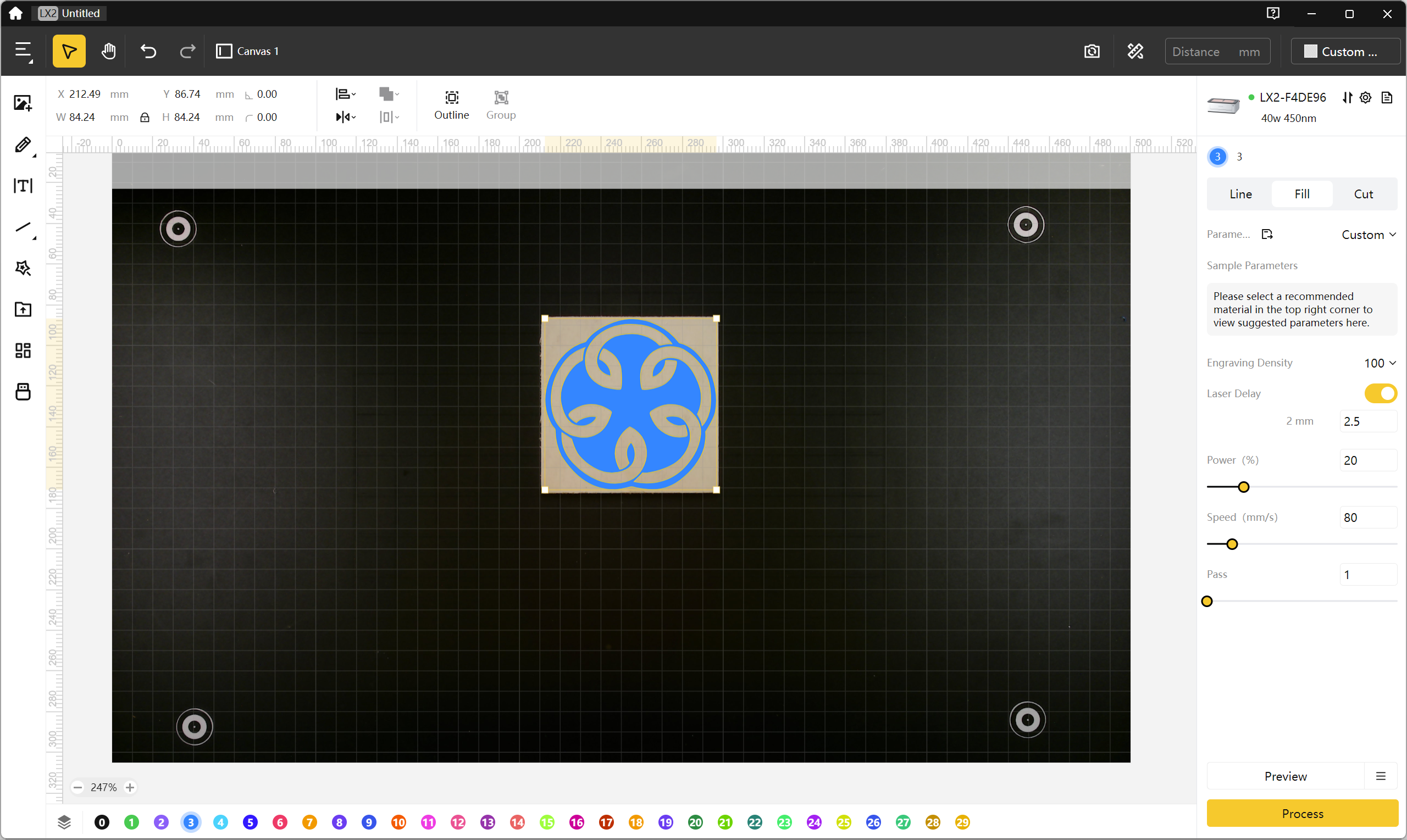

- After refreshing the background, import your design file.
- Adjust the size and orientation of the design to match the material in the background.

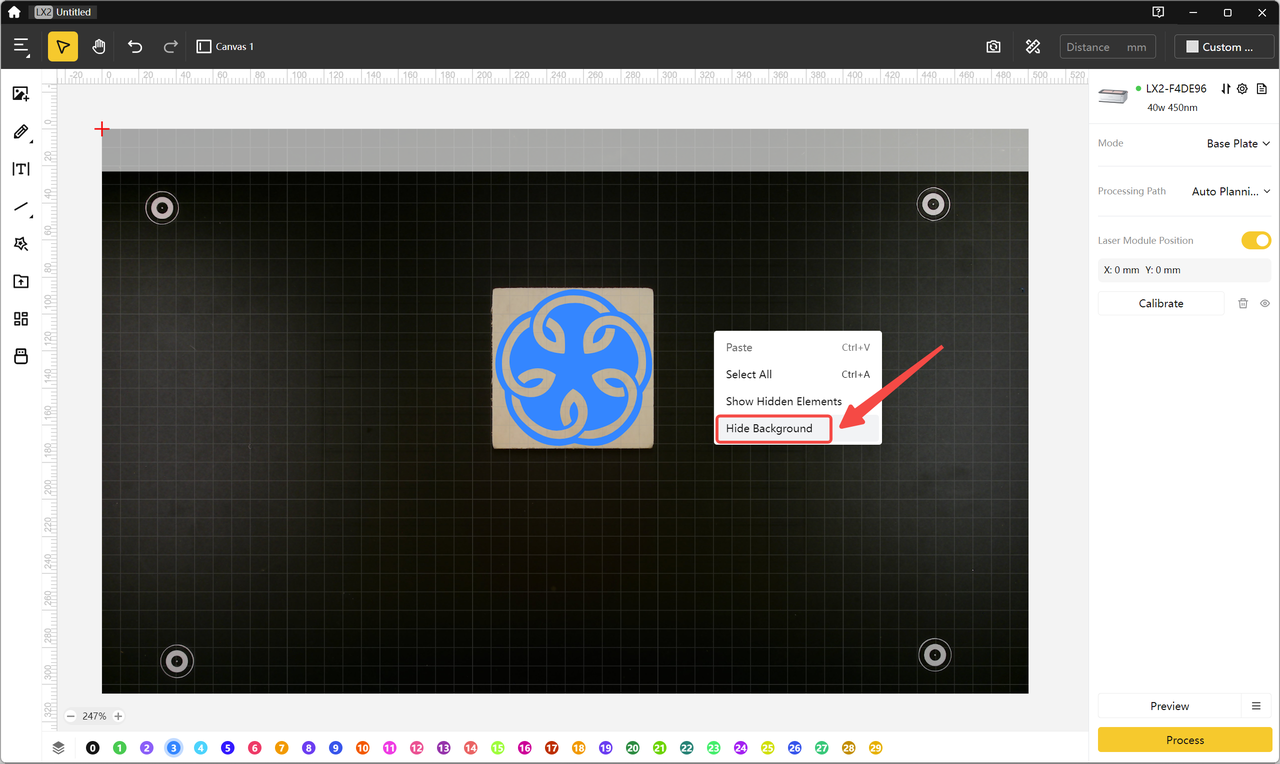

- Right-click to hide the background if needed.
4. Complete the Standard Procedure
- Measure the focal distance.
- Set the engraving parameters.
- Preview the processing area.
- Start processing.
Tips
(1) It is recommended to use the camera positioning function only when the Base Plate is installed.
(2) When using a Riser Base, the camera’s positioning accuracy may not be guaranteed.
(3) When processing with the Rotary Extension or Conveyor Feeder, use the red crosshair calibration method for accurate positioning.
