1. V655 Firmware Upgrade Precautions
The LaserPecker Development Team is always working to improve our tech interface and user experience. We encourage our users to stay up to date by upgrading their machine's firmware as well as the app or software that they use.
The V655 firmware update mainly improves the LP4's engraving speed. Before updating to this version, please be sure to perform the following steps.
1.1 Save your Settings before upgrade
Customized settings from previous jobs that users have saved in the LDS Software/App are relative to the slower speeds of the earlier firmware versions and will not be applicable after upgrading to the faster V655 firmware.

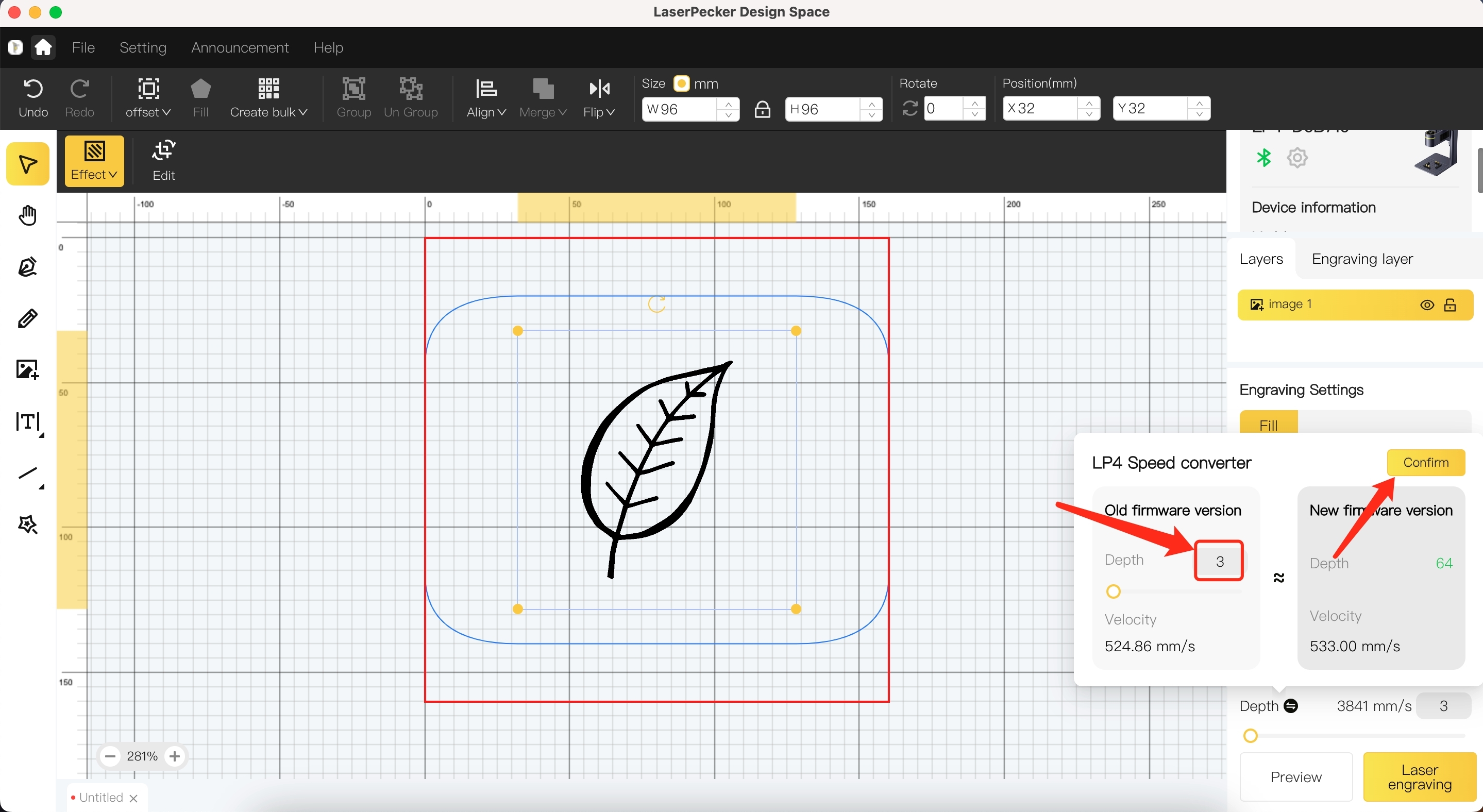

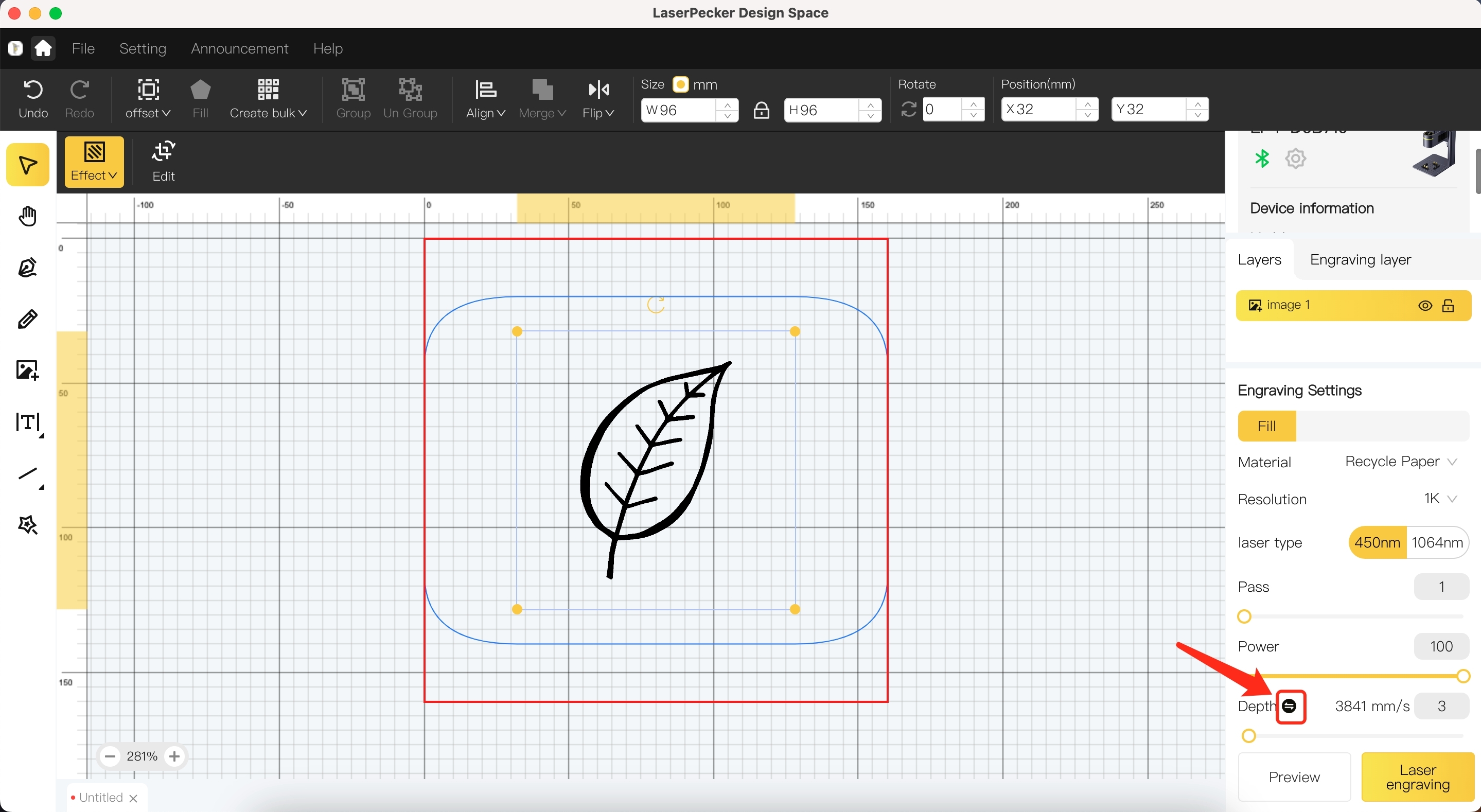

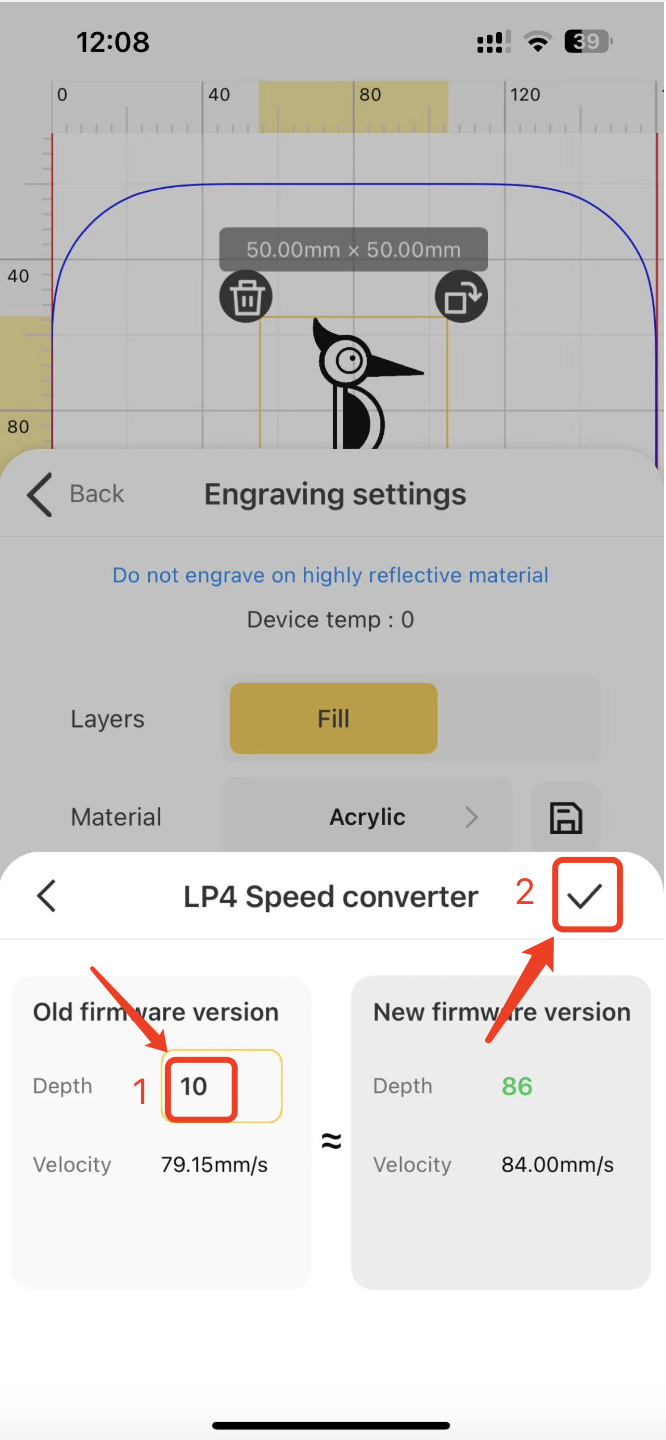

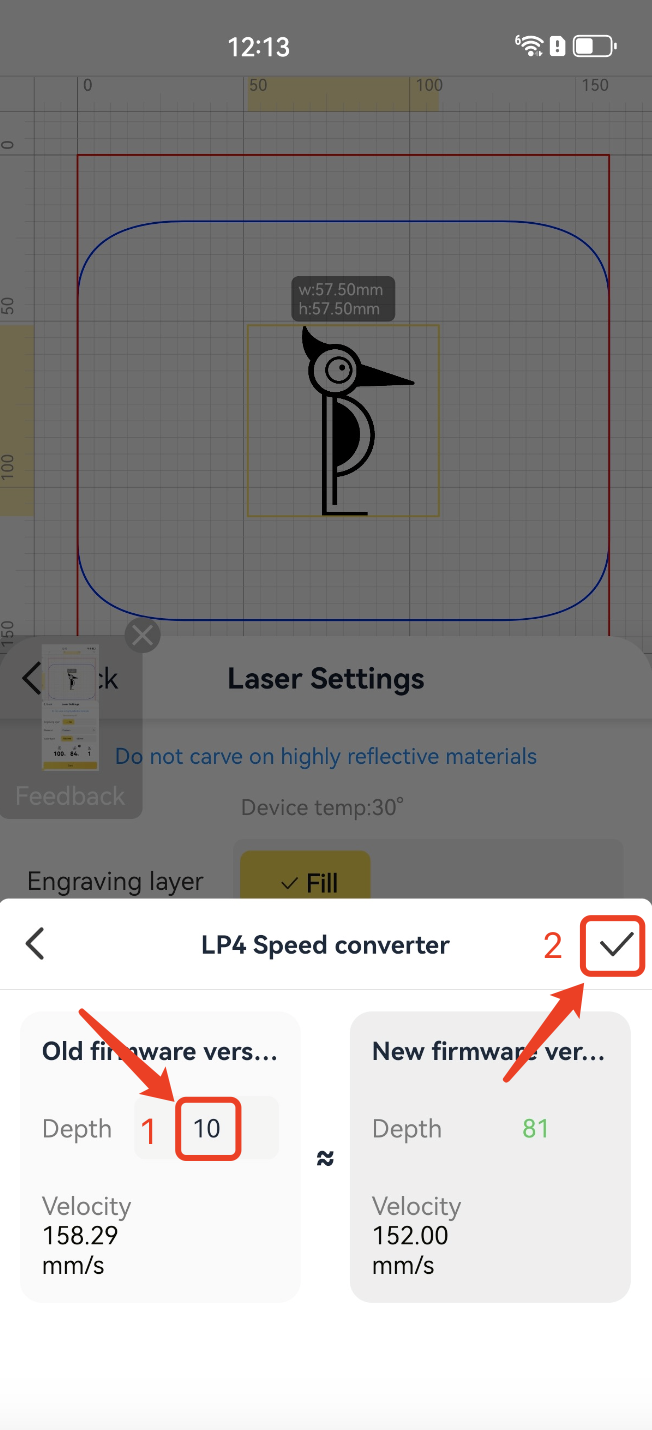

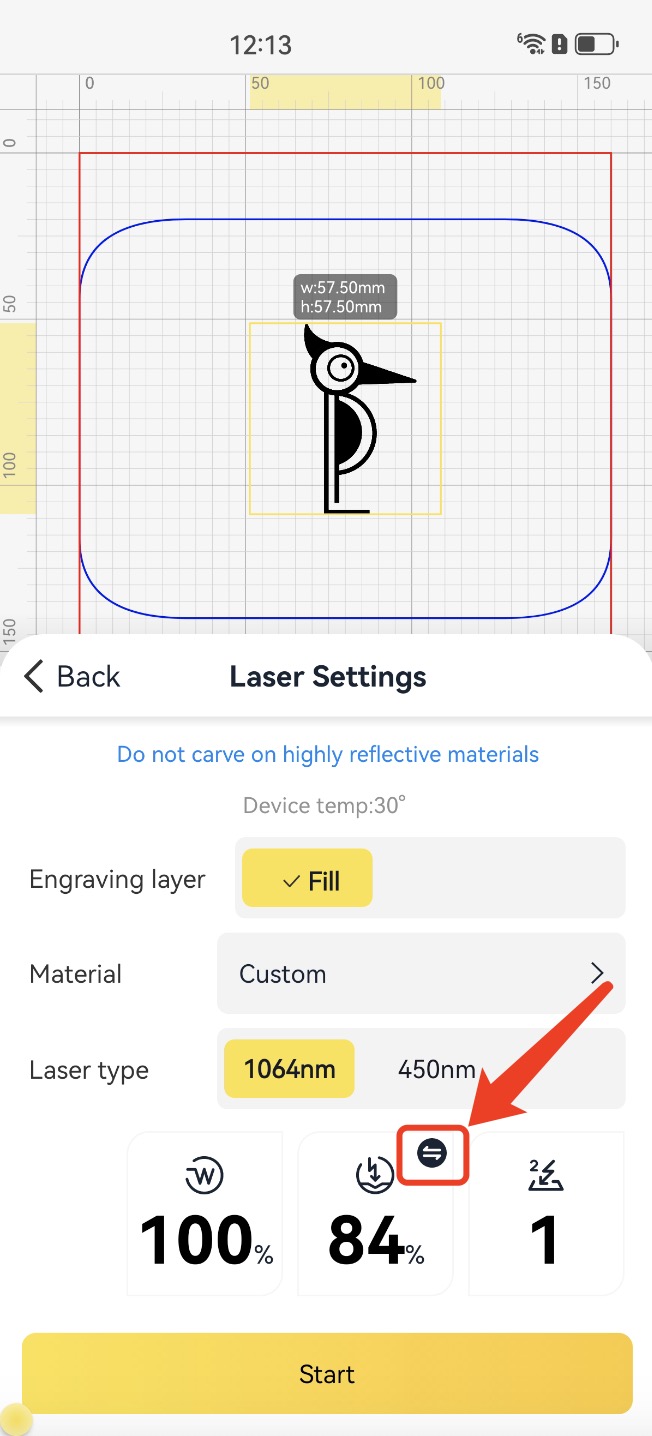

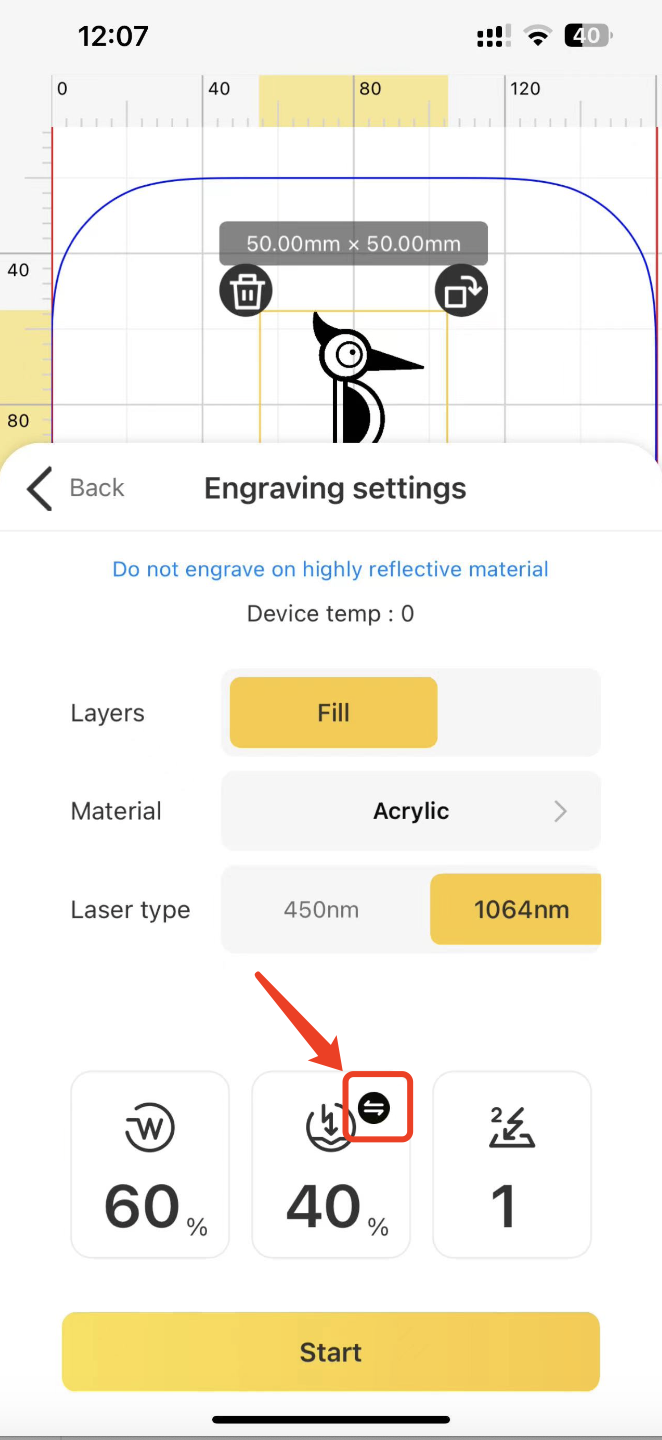

The latest version of the LDS Software/App has a newly added function that allows users to convert settings from their previous jobs. To do so, these custom settings must be saved and the LDS Software/App must be upgraded.
1.2 Check the settings conversion chart after upgrade
As a backup measure to ensure that users are able to repeat their previous jobs with the same results, we have provided a settings conversion chart on the official LaserPecker website.
Recommended parameter for firmware before V655.
Recommended parameters for V655 firmware.
| 2W 1064nm | 10W 450nm | |||
| Processing | Resolution | P/D | P/D | |
| Aluminum oxide | Fill | 1k | 100 / 10 | 100 / 10 |
| 2k | 50 / 10 | 50 / 10 | ||
| 4k | 20 / 5 | 50 / 5 | ||
| Picture | 1k | 60 / 3 | 90 / 10 | |
| 2k | 50 / 3 | 40 / 10 | ||
| 4k | 50 / 10 | 10 / 10 | ||
| Line Engraving | 1k | 100 / 10 | 100 / 10 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Aluminum oxide (V655) | Fill | 1k | 100 / 81 | 100 / 81 |
| 2k | 50 / 81 | 50 / 81 | ||
| 4k | 20 / 72 | 50 / 72 | ||
| Picture | 1k | 60 / 30 | 90 / 40 | |
| 2k | 50 / 20 | 40 / 10 | ||
| 4k | 50 / 10 | 10 / 10 | ||
| Line Engraving | 1k | 100 / 91 | 100 / 91 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Stainless steel | Fill | 1k | 100 / 40 | 100 / 40 |
| 2k | 50 / 50 | 30 / 20 | ||
| 4k | 10 / 10 | / | ||
| Picture | 1k | 50 / 40 | / | |
| 2k | 50 / 50 | / | ||
| 4k | 100 / 20 | / | ||
| Line Engraving | 1k | 100 / 20 | 100 / 40 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Stainless steel (V655) | Fill | 1k | 100 / 91 | 100 / 91 |
| 2k | 50 / 92 | 30 / 86 | ||
| 4k | 10 / 81 | / | ||
| Picture | 1k | 50 / 40 | / | |
| 2k | 50 / 50 | / | ||
| 4k | 100 / 20 | / | ||
| Line Engraving | 1k | 100 / 94 | 100 / 96 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Steel | Fill | 1k | 5 / 10 | 60 / 30 |
| 2k | 45417 | 30 / 20 | ||
| 4k | 40 / 40 | 10 / 10 | ||
| Picture | 1k | 100 / 100 | 80 / 50 | |
| 2k | 100 / 100 | 70 / 30 | ||
| 4k | 95 / 15 | 50 / 20 | ||
| Line Engraving | 1k | 10 / 5 | 60 / 30 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Steel (V655) | Fill | 1k | 5 / 81 | 60 / 89 |
| 2k | 5 / 72 | 30 / 86 | ||
| 4k | 40 / 91 | 10 / 81 | ||
| Picture | 1k | 100 / 100 | 80 / 50 | |
| 2k | 100 / 100 | 70 / 30 | ||
| 4k | 95 / 15 | 50 / 20 | ||
| Line Engraving | 1k | 10 / 86 | 60 / 95 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Copper | Fill | 1k | 50 / 10 | / |
| 2k | 80 / 5 | / | ||
| 4k | 10 / 5 | / | ||
| Picture | 1k | 100 / 40 | / | |
| 2k | 10/ 60 | / | ||
| 4k | 80 / 50 | / | ||
| Line Engraving | 1k | 50 / 10 | / | |
| 2k | / | / | ||
| 4k | / | / | ||
| Copper (V655) | Fill | 1k | 50 / 81 | / |
| 2k | 80 / 72 | / | ||
| 4k | 10 / 72 | / | ||
| Picture | 1k | 100 / 40 | / | |
| 2k | 10/ 60 | / | ||
| 4k | 80 / 50 | / | ||
| Line Engraving | 1k | 50 / 91 | / | |
| 2k | / | / | ||
| 4k | / | / | ||
| Titanium | Fill | 1k | 50 / 10 | / |
| 2k | 30 / 30 | / | ||
| 4k | 10 / 10 | / | ||
| Picture | 1k | 100 / 80 | / | |
| 2k | 100 / 50 | / | ||
| 4k | 80 / 10 | / | ||
| Line Engraving | 1k | 50 / 10 | / | |
| 2k | / | / | ||
| 4k | / | / | ||
| Titanium (V655) | Fill | 1k | 50 / 81 | / |
| 2k | 30 / 89 | / | ||
| 4k | 10 / 81 | / | ||
| Picture | 1k | 100 / 80 | / | |
| 2k | 100 / 50 | / | ||
| 4k | 80 / 10 | / | ||
| Line Engraving | 1k | 50 / 91 | / | |
| 2k | / | / | ||
| 4k | / | / | ||
| Tungsten | Fill | 1k | 70 / 70 | / |
| 2k | 50 / 10 | / | ||
| 4k | 30 / 5 | / | ||
| Picture | 1k | 100 / 100 | / | |
| 2k | 50 / 20 | / | ||
| 4k | 30 / 10 | / | ||
| Line Engraving | 1k | 100 / 70 | 100 / 70 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Tungsten (V655) | Fill | 1k | 70 / 93 | 70 / 93 |
| 2k | 50 / 81 | 50 / 81 | ||
| 4k | 30 / 72 | 40 / 81 | ||
| Picture | 1k | 100 / 100 | 100 / 90 | |
| 2k | 50 / 20 | 70 / 20 | ||
| 4k | 30 / 10 | / | ||
| Line Engraving | 1k | 100 / 98 | 100 / 98 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Basswood plank | Fill | 1k | / | 10 / 20 |
| 2k | / | 30 / 3 | ||
| 4k | / | 10 / 3 | ||
| Picture | 1k | / | 100 / 5 | |
| 2k | / | 50 / 3 | ||
| 4k | / | / | ||
| Line Engraving | 1k | / | 10 / 20 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 100 / 70 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Basswood plank (V655) | Fill | 1k | / | 10 / 86 |
| 2k | / | 30 / 64 | ||
| 4k | / | 10 / 64 | ||
| Picture | 1k | / | 100 / 5 | |
| 2k | / | 50 / 3 | ||
| 4k | / | / | ||
| Line Engraving | 1k | / | 10 / 94 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 100 / 98 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Black walnut | Fill | 1k | / | 50 / 30 |
| 2k | / | 30 / 20 | ||
| 4k | / | 20 / 10 | ||
| Picture | 1k | / | 70 / 30 | |
| 2k | / | 40 / 20 | ||
| 4k | / | 25 / 10 | ||
| Line Engraving | 1k | / | 50 / 30 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 100 / 70 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Black walnut (V655) | Fill | 1k | / | 50 / 89 |
| 2k | / | 30 / 86 | ||
| 4k | / | 20 / 81 | ||
| Picture | 1k | / | 70 / 30 | |
| 2k | / | 40 / 20 | ||
| 4k | / | 25 / 10 | ||
| Line Engraving | 1k | / | 50 / 95 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 100 / 98 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Bamboo strip | Fill | 1k | / | 70 / 10 |
| 2k | / | 30 / 5 | ||
| 4k | / | 5 / 2 | ||
| Picture | 1k | / | 90 / 20 | |
| 2k | / | 40 / 10 | ||
| 4k | / | 20 / 5 | ||
| Line Engraving | 1k | / | 70 / 10 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | / | |
| 2k | / | / | ||
| 4k | / | / | ||
| Bamboo strip (V655) | Fill | 1k | / | 70 / 81 |
| 2k | / | 30 / 72 | ||
| 4k | / | 5 / 57 | ||
| Picture | 1k | / | 90 / 20 | |
| 2k | / | 40 / 10 | ||
| 4k | / | 20 / 5 | ||
| Line Engraving | 1k | / | 70 / 91 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | / | |
| 2k | / | / | ||
| 4k | / | / | ||
| Bamboo | Fill | 1k | / | 1 / 15 |
| 2k | / | 1 / 10 | ||
| 4k | / | 1 / 3 | ||
| Picture | 1k | / | 1 / 30 | |
| 2k | / | 1 / 10 | ||
| 4k | / | 1 / 3 | ||
| Line Engraving | 1k | / | 1 / 15 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 50 / 100 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Bamboo (V655) | Fill | 1k | / | 1 / 84 |
| 2k | / | 1 / 81 | ||
| 4k | / | 1 / 64 | ||
| Picture | 1k | / | 1 / 30 | |
| 2k | / | 1 / 10 | ||
| 4k | / | 1 / 3 | ||
| Line Engraving | 1k | / | 1 / 93 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 50 / 100 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Poplar slice | Fill | 1k | / | 95 / 15 |
| 2k | / | 50 / 6 | ||
| 4k | / | 11 / 3 | ||
| Picture | 1k | / | 100 / 30 | |
| 2k | / | 5 / 15 | ||
| 4k | / | / | ||
| Line Engraving | 1k | / | 80 / 15 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | / | |
| 2k | / | / | ||
| 4k | / | / | ||
| Poplar slice (V655) | Fill | 1k | / | 95 / 84 |
| 2k | / | 50 / 75 | ||
| 4k | / | 11 / 64 | ||
| Picture | 1k | / | 100 / 30 | |
| 2k | / | 5 / 15 | ||
| 4k | / | / | ||
| Line Engraving | 1k | / | 5 / 90 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | / | |
| 2k | / | / | ||
| 4k | / | / | ||
| Beech | Fill | 1k | / | 1 / 10 |
| 2k | / | 1 / 3 | ||
| 4k | / | 1 / 1 | ||
| Picture | 1k | / | 50 / 30 | |
| 2k | / | 1 / 20 | ||
| 4k | / | 1 / 2 | ||
| Line Engraving | 1k | / | 1 / 10 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 100 / 30 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Beech (V655) | Fill | 1k | / | 1 / 81 |
| 2k | / | 1 / 64 | ||
| 4k | / | 1 / 39 | ||
| Picture | 1k | / | 50 / 30 | |
| 2k | / | 1 / 20 | ||
| 4k | / | 1 / 2 | ||
| Line Engraving | 1k | / | 1 / 91 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 100 / 95 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Cork Coaster | Fill | 1k | / | 30 / 2 |
| 2k | / | 1 / 1 | ||
| 4k | / | / | ||
| Picture | 1k | / | 30 / 5 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Engraving | 1k | / | 30 / 2 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 50 / 15 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Cork Coaster (V655) | Fill | 1k | / | 30 / 57 |
| 2k | / | 1 / 39 | ||
| 4k | / | / | ||
| Picture | 1k | / | 30 / 5 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Engraving | 1k | / | 30 / 79 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 50 / 93 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Density board | Fill | 1k | / | 1 / 15 |
| 2k | / | 1 / 5 | ||
| 4k | / | 1 / 3 | ||
| Picture | 1k | / | / | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Engraving | 1k | / | 1 / 10 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 100 / 30 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Density Board (V655) | Fill | 1k | / | 1 / 84 |
| 2k | / | 1 / 72 | ||
| 4k | / | 1 / 64 | ||
| Picture | 1k | / | / | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Engraving | 1k | / | 1 / 91 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 100 / 95 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Kraft Paper | Fill | 1k | / | 50 / 15 |
| 2k | / | 10 / 5 | ||
| 4k | / | 1 / 1 | ||
| Picture | 1k | / | 24 / 18 | |
| 2k | / | 10 / 5 | ||
| 4k | / | 1 / 1 | ||
| Line Engraving | 1k | / | 50 / 15 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 10 / 80 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Kraft Paper (V655) | Fill | 1k | / | 50 / 84 |
| 2k | / | 10 / 72 | ||
| 4k | / | 1 / 39 | ||
| Picture | 1k | / | 24 / 18 | |
| 2k | / | 10 / 5 | ||
| 4k | / | 1 / 1 | ||
| Line Engraving | 1k | / | 50 / 93 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 10 / 99 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Cardstock Paper | Fill | 1k | 50 / 10 | 10 / 15 |
| 2k | / | / | ||
| 4k | / | / | ||
| Picture | 1k | 60 / 5 | 20 / 15 | |
| 2k | 25 / 1 | / | ||
| 4k | / | / | ||
| Line Engraving | 1k | 50 / 10 | 5 / 5 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 30 / 20 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Cardstock Paper (V655) | Fill | 1k | 50 / 81 | 10 / 84 |
| 2k | / | / | ||
| 4k | / | / | ||
| Picture | 1k | 60 / 5 | 20 / 15 | |
| 2k | 25 / 1 | / | ||
| 4k | / | / | ||
| Line Engraving | 1k | 50 / 91 | 5 / 86 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 30 / 94 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Cardboard | Fill | 1k | / | 70 / 5 |
| 2k | / | 2 / 2 | ||
| 4k | / | 1 / 1 | ||
| Picture | 1k | / | 70 / 5 | |
| 2k | / | 15 / 2 | ||
| 4k | / | 1 / 1 | ||
| Line Engraving | 1k | / | 70 / 5 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 60 / 50 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Cardboard (V655) | Fill | 1k | / | 70 / 72 |
| 2k | / | 2 / 57 | ||
| 4k | / | 1 / 39 | ||
| Picture | 1k | / | 70 / 5 | |
| 2k | / | 15 / 2 | ||
| 4k | / | 1 / 1 | ||
| Line Engraving | 1k | / | 70 / 86 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 60 / 97 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Corrugated Paper | Fill | 1k | / | 10 / 20 |
| 2k | / | 5 / 5 | ||
| 4k | / | / | ||
| Picture | 1k | / | 10 / 10 | |
| 2k | / | 5 / 5 | ||
| 4k | / | / | ||
| Line Engraving | 1k | / | 10 / 10 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 60 / 50 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Corrugated Paper (V655) | Fill | 1k | / | 10 / 86 |
| 2k | / | 5 / 72 | ||
| 4k | / | / | ||
| Picture | 1k | / | 10 / 10 | |
| 2k | / | 5 / 5 | ||
| 4k | / | / | ||
| Line Engraving | 1k | / | 10 / 91 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 60 / 97 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Recycled Paper | Fill | 1k | / | 10 / 5 |
| 2k | / | 3 / 2 | ||
| 4k | / | / | ||
| Picture | 1k | / | 30 / 10 | |
| 2k | / | 10 / 5 | ||
| 4k | / | 5 / 3 | ||
| Line Engraving | 1k | / | 1 / 1 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 20 / 5 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Recycled Paper (V655) | Fill | 1k | / | 10 / 72 |
| 2k | / | 3 / 57 | ||
| 4k | / | / | ||
| Picture | 1k | / | 30 / 10 | |
| 2k | / | 10 / 5 | ||
| 4k | / | 5 / 3 | ||
| Line Engraving | 1k | / | 1 / 70 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 20 / 86 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Marker Paper | Fill | 1k | / | 14 / 14 |
| 2k | / | 11 / 4 | ||
| 4k | / | / | ||
| Picture | 1k | / | 36 / 10 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Engraving | 1k | / | 5 / 1 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 20 / 20 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Marker Paper (V655) | Fill | 1k | / | 14 / 84 |
| 2k | / | 11 / 69 | ||
| 4k | / | / | ||
| Picture | 1k | / | 36 / 10 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Engraving | 1k | / | 5 / 70 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 20 / 94 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Acrylic | Fill | 1k | 60 / 40 | 50 / 30 |
| 2k | 30 / 10 | 20 / 20 | ||
| 4k | 5 / 5 | 10 / 5 | ||
| Picture | 1k | 60 / 20 | 30 / 10 | |
| 2k | 30 / 15 | 20 / 5 | ||
| 4k | 5 / 5 | 10 / 1 | ||
| Line Engraving | 1k | 60 / 40 | 50 / 30 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 100 / 30 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Acrylic (V655) | Fill | 1k | 60 / 91 | 50 / 89 |
| 2k | 30 / 81 | 20 / 86 | ||
| 4k | 5 / 72 | 10 / 72 | ||
| Picture | 1k | 60 / 20 | 30 / 10 | |
| 2k | 30 / 15 | 20 / 5 | ||
| 4k | 5 / 5 | 10 / 1 | ||
| Line Engraving | 1k | 60 / 96 | 50 / 95 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 100 / 95 | |
| 2k | / | / | ||
| 4k | / | / | ||
| PVC | Fill | 1k | 70 / 20 | 50 / 10 |
| 2k | 60 / 10 | 20 / 10 | ||
| 4k | 20 / 10 | 10 / 5 | ||
| Picture | 1k | 60 / 50 | 100 / 30 | |
| 2k | 80 / 10 | 80 / 10 | ||
| 4k | 60 / 10 | 40 / 5 | ||
| Line Engraving | 1k | 70 / 20 | 50 / 10 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 50 / 50 | |
| 2k | / | / | ||
| 4k | / | / | ||
| PVC (V655) | Fill | 1k | 70 / 86 | 50 / 81 |
| 2k | 60 / 81 | 20 / 81 | ||
| 4k | 20 / 81 | 10 / 72 | ||
| Picture | 1k | 60 / 50 | 100 / 30 | |
| 2k | 80 / 10 | 80 / 10 | ||
| 4k | 60 / 10 | 40 / 5 | ||
| Line Engraving | 1k | 70 / 94 | 50 / 91 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 50 / 97 | |
| 2k | / | / | ||
| 4k | / | / | ||
| ABS | Fill | 1k | 60 / 20 | 70 / 20 |
| 2k | 40 / 30 | 40 / 20 | ||
| 4k | 30 / 10 | 30 / 10 | ||
| Picture | 1k | 80 / 90 | 100 / 30 | |
| 2k | 60 / 60 | 80 / 10 | ||
| 4k | 30 / 15 | 40 / 5 | ||
| Line Engraving | 1k | 60 / 20 | 70 / 20 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | / | |
| 2k | / | / | ||
| 4k | / | / | ||
| ABS (V655) | Fill | 1k | 60 / 86 | 70 / 86 |
| 2k | 40 / 89 | 40 / 86 | ||
| 4k | 30 / 31 | 30 / 81 | ||
| Picture | 1k | 80 / 90 | 100 / 30 | |
| 2k | 60 / 60 | 80 / 10 | ||
| 4k | 30 / 15 | 40 / 5 | ||
| Line Engraving | 1k | 60 / 94 | 70 / 94 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | / | |
| 2k | / | / | ||
| 4k | / | / | ||
| Photosensitive Seal | Fill | 1k | / | 1 / 2 |
| 2k | / | 1 / 1 | ||
| 4k | / | / | ||
| Picture | 1k | / | / | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Engraving | 1k | / | 1 / 2 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 50 / 50 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Photosensitive Seal (V655) | Fill | 1k | / | 1 / 57 |
| 2k | / | 1 / 39 | ||
| 4k | / | / | ||
| Picture | 1k | / | / | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Engraving | 1k | / | 1 / 79 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 50 / 97 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Cowhide | Fill | 1k | / | 60 / 50 |
| 2k | / | / | ||
| 4k | / | / | ||
| Picture | 1k | / | / | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Engraving | 1k | / | 60 / 5 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 30 / 35 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Cowhide (V655) | Fill | 1k | / | 60 / 72 |
| 2k | / | / | ||
| 4k | / | / | ||
| Picture | 1k | / | / | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Engraving | 1k | / | 60 / 86 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 30 / 35 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Letherette | Fill | 1k | 30 / 60 | 20 / 15 |
| 2k | 12 / 20 | 6 / 4 | ||
| 4k | / | / | ||
| Picture | 1k | 25 / 50 | 35 / 30 | |
| 2k | / | 8 / 3 | ||
| 4k | / | 1 / 1 | ||
| Line Engraving | 1k | 50 / 40 | 20 / 10 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 30 / 40 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Letherette (V655) | Fill | 1k | 30 / 93 | 20 / 84 |
| 2k | 12 / 86 | 6 / 69 | ||
| 4k | / | / | ||
| Picture | 1k | 25 / 50 | 35 / 30 | |
| 2k | / | 8 / 3 | ||
| 4k | / | 1 / 1 | ||
| Line Engraving | 1k | 50 / 96 | 20 / 91 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Line Cutting | 1k | / | 30 / 96 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Shale Slab | Fill | 1k | 100 / 100 | 100 / 10 |
| 2k | 100 / 100 | 100 / 5 | ||
| 4k | 100 / 100 | 100 / 3 | ||
| Picture | 1k | / | 100 / 30 | |
| 2k | 100 / 100 | 100 / 25 | ||
| 4k | 100 / 100 | 100 / 10 | ||
| Line Engraving | 1k | 100 / 100 | 100 / 10 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Shale Slab (V655) | Fill | 1k | 100 / 95 | 100 / 81 |
| 2k | 100 / 95 | 100 / 72 | ||
| 4k | 100 / 95 | 100 / 64 | ||
| Picture | 1k | / | 100 / 30 | |
| 2k | 100 / 100 | 100 / 25 | ||
| 4k | 100 / 100 | 100 / 10 | ||
| Line Engraving | 1k | 100 / 100 | 100 / 91 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Marble Slab | Fill | 1k | / | 100 / 80 |
| 2k | / | 100 / 70 | ||
| 4k | / | 100 / 50 | ||
| Picture | 1k | / | 100 / 100 | |
| 2k | / | 100 / 80 | ||
| 4k | / | 100 / 70 | ||
| Line Engraving | 1k | / | 100 / 100 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Marble Slab | Fill | 1k | / | 100 / 94 |
| 2k | / | 100 / 93 | ||
| 4k | / | 100 / 92 | ||
| Picture | 1k | / | 100 / 100 | |
| 2k | / | 100 / 80 | ||
| 4k | / | 100 / 70 | ||
| Line Engraving | 1k | / | 100 / 100 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Glass | Fill | 1k | / | 100 / 20 |
| 2k | / | 100 / 15 | ||
| 4k | / | 100 / 8 | ||
| Picture | 1k | / | 100 / 30 | |
| 2k | / | 100 / 20 | ||
| 4k | / | 100 / 15 | ||
| Line Engraving | 1k | / | 100 / 20 | |
| 2k | / | / | ||
| 4k | / | / | ||
| Glass (V655) | Fill | 1k | / | 100 / 86 |
| 2k | / | 100 / 84 | ||
| 4k | / | 100 / 78 | ||
| Picture | 1k | / | 100 / 30 | |
| 2k | / | 100 / 20 | ||
| 4k | / | 100 / 15 | ||
| Line Engraving | 1k | / | 100 / 94 | |
| 2k | / | / | ||
| 4k | / | / |
2. Detailed Steps to Upgrade LP4 Machine's Firmware
Step 1: Ensure the LDS App/Software is Updated to the Latest Version
Before upgrading the LP4 Machine's Firmware, it is also important to ensure that your LDS app/software is the latest version. Learn more about the Release Note of LDS
Step 2: Connect the LP4 to the Latest Version of LDS
Connect your LP4 machine to the LDS App/Software. Learn more about the How to Connect the LaserPecker LP4 to LDS App/Software
Step 3: Tap the "Setting" icon
After Connecting your LP4 machine to the LDS App/Software, find and tap the "Setting" icon.
Step 4: Tap the "Firmware Version"
In the Mode Settings interface, tap "Firmware Version" and follow the instructions to complete the firmware upgrade.
The upgraded versions of the software and firmware must be used together. The new conversion button will only appear after the software is updated.
3. Potential Issue After Firmware Update
Problem Description:
Engraving may not complete or may appear unclear.
Problem Analysis:
The V655 firmware update improves the engraving speed of the LP4. Therefore, engraving settings used prior to this update should be adjusted accordingly.
To avoid this issue, follow these steps:
1. Use the LDS software/app to convert your commonly used engraving settings immediately after updating to V655 firmware and the latest software version.
2. Consider using the new recommended settings for the LP4 mentioned in this article and adjust your original settings accordingly.
4. How to Convert Saved Settings when Using the LDS App/Software
This firmware version is optimized only for engraving speed (depth). The corresponding parameter settings of engraving power, resolution, times, etc. are consistent with the old firmware version.
4.1 Convert Saved Settings in LDS Software (Desktop PC)
After selecting the image, shape, or text, click on "Depth" in the Engraving Settings field to open the "LP4 Speed converter" pop-up window.
Enter the settings that were used with the old firmware and click "Confirm". The settings for the new version of the firmware will be converted automatically as seen below.
4.2 Convert Saved Settings in LDS App (Mobile Devices)
After selecting the image, shape, or text, click on "Depth" in the Engraving Settings field to open the "LP4 Speed converter" pop-up window.
Android
After adding the image, shape, or text to be engraved, click "Preview" to enter the Settings input interface. Select the conversion icon X to open the "LP4 Speed converter" window.
Enter the settings that were used with the old firmware and click "✓". The settings for the new version of the firmware will be converted automatically as seen below.
iOS
After adding the image, shape, or text to be engraved, click "Preview" to enter the Settings input interface. Select the conversion icon X to open the "LP4 Speed converter" window.
Related to
