LaserPecker LP5 User Guide

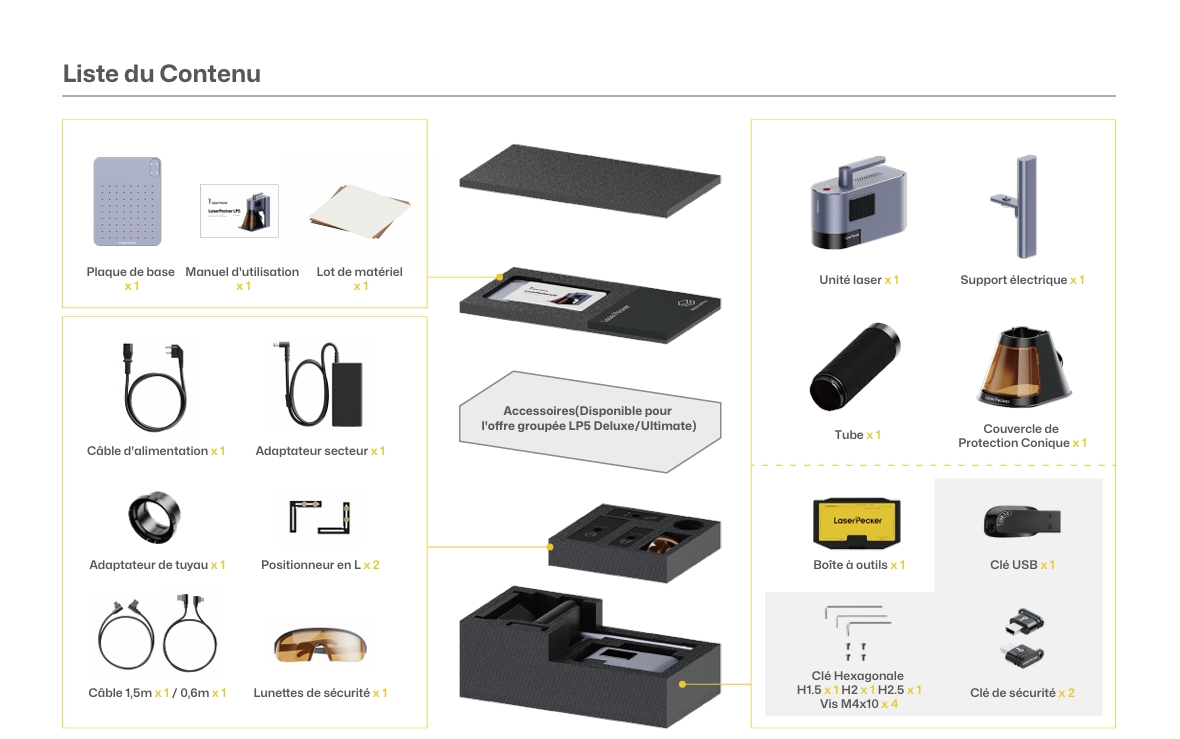

LaserPecker LP5 Package List:

（The Photo of the LP5 Package List）

Unbox LaserPecker LP5 and check the items inside the pack. If you find items missing or broken, please contact us via services@laserpecker.com

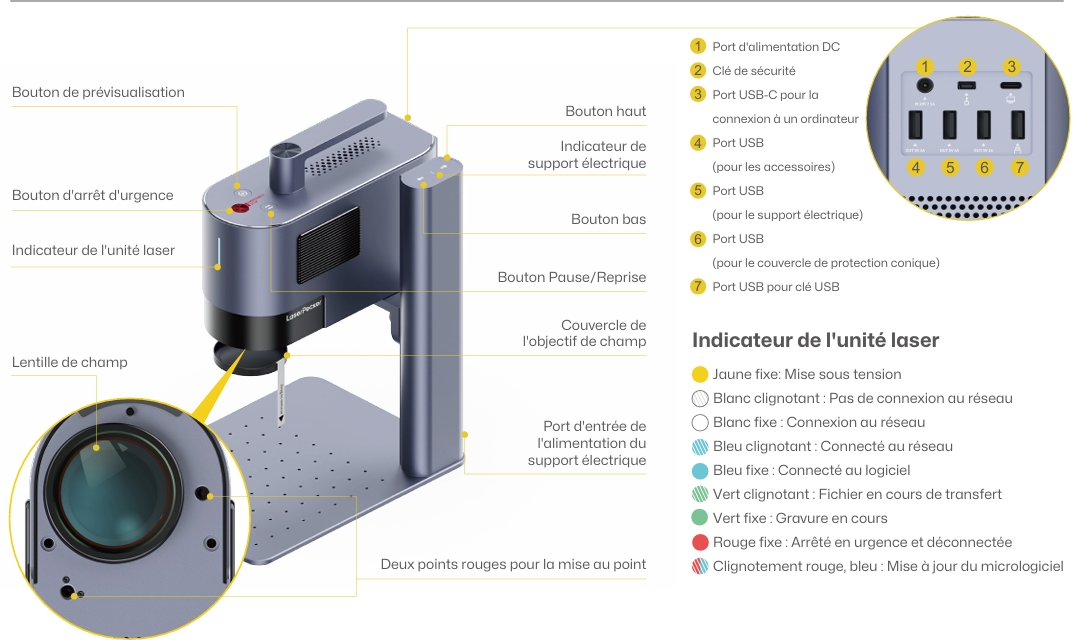

LaserPecker LP5 Component Introduction

LaserPecker LP5 First Use

#1 Quick Assembly before Using the LP5

1.1 Electric Stand Assembly

Step 1:

Use the Hex key H2.5 to install the 4 pieces of M4x10 screws at the bottom of the Base Plate to secure the Electric Stand.

Step 2:

Attach the Laser Unit to the Electric Stand by turning the knob counter-clockwise.

Step 3:

It is recommended to level the Laser Unit before using. If it is not leveled, the Laser unit can be adjusted to a level state by using the H2 hex key to adjust the two holes on the cantilever arm.

See more about how to level the LaserPecker machine's unit

1.2 Conical Protective Cover Installation

Step 1:

Place the Conical Protective Cover below the Laser Unit. Secure the cover to the Laser unit by tightening the 2 screws on top of the cover counter-clockwise. (Always avoid touching the lens)

Step 2:

Attach the front light filter.

1.3 Cable Connection

(Correct Cable Connection for LP5)

Step 1: Connect the power cable and power adapter to a power supply.
Step 2: Connect the Conical protective cover to the port.
Step 3: Connect the USB-A end of the 0.6 m cable to the power output on the Laser Unit.
Step 4: Connect the USB-C end to the power port on the Electric Stand.

1.4 Check the Security Key

Ensure the Security key is inserted properly before use. Please note the machine will not work if the Security Key is not inserted. An error prompt will pop up in the App/Software.

1.5 Install the Pipe

The Protective Cover has a built-in exhaust fan, which can be connected to a pipe or an air purifier with the adapter.

*The air purifier is not included in the package. Purchase one separately if needed.

#2 Download and Install LaserPecker Design Space (LDS)

2.1 LDS App

Search for "LaserPecker Design Space" in App Store or Google Play or visit LaserPecker Design Space(LDS) App to download the app and install it on your mobile phone.

2.2 LDS Software

Visit LaserPecker Design Space(LDS) Software to download the software and install it on your PC.

#3 Connect the LP5 Machine to LDS App/Software

3.1 Connect to App via Wi-Fi

Open the LaserPecker Design Space App, click the "+" in the upper right corner, select the machine model "LP5"

Connect your phone to a Wi-Fi network, then follow the instructions to configure the Wi-Fi network for the LP5 machine. (Ensure both the machine and the phone must be connected to the same 2.4 GHz Wi-Fi network)

The Laser unit indicator is in solid blue if the connection is successful.

1. Both the machine and the phone must be under the same 2.4GHz WiFi network.
2. These steps are for the first-time Wi-Fi network setup or changing the Wi-Fi network.

3.2 Connect to PC Software via the 1.5 m USB cable

Step 1:

Connect the USB-C end of the 1.5 m cable to the USB-C port of the Laser Unit.

Step 2:

Connect the USB-A end to the USB-A port on the computer.

Step 3:

Open the LDS software click "Connect the Device" in the upper right corner click "USB" and choose your LP5 machine

3.3 Connect to PC Software via Wi-Fi

Step 1:

When setting up the Wi-Fi network for the first time, you must connect the machine to a computer using a USB cable. This USB connection allows you to configure the Wi-Fi settings on the machine.

Step 2:

Once the cable is connected, go to the machine settings page in the upper right corner of the software.

Step 3:

Select "Wi-Fi Setting" and follow the instructions to configure the WiFi network for the LP5 machine.

Step 4:

When the Wi-Fi is successfully configured, please click the "Connect to Wi-Fi" button (make sure to disconnect the USB cable before clicking the button).

Step 5:

Click "Connect the Device" in the upper right corner, then click Wi-Fi and choose your LP5 machine

1. Both the machine and the phone must be under the same 2.4GHz WiFi network.
2. These steps are for the first-time Wi-Fi network setup or changing the Wi-Fi network. If not, go straight to Step 5.

#4 Use the LP5 Machine

4.1 Create Project/Import Project from USB Flash Drive

You can create your own designs using LDS

LP5 also offers a new way to start a project by importing it from a USB flash drive. After inserting the flash drive into the machine, the project files (.lpb) on the drive can be selected using the PC software or mobile App to preview and engrave.

4.2 Set parameters

As usual, you need to set the engraving or cutting parameters via LDS software/app to achieve the desired effect.

4.3 Focusing

Dual Red Spots Focusing for LP5:

Place the material on the Base Plate. Initiate the preview mode or turn on the red dots focusing mode in the machine settings through App or PC software to observe the two spots. Adjust the height of the Electric Stand until the two red spots coincide, and the focus is successfully set.

4.4 Preview

LP5 now offers three preview modes: Rectangle Preview, Outline Preview, and Center Point Preview. These modes provide enhanced visibility into the engraving area, allowing for better understanding of the workspace.

4.5 Engrave/Cut

After previewing and confirming the engraving area, tap Confirm to begin the engraving and cutting process.

*Emergency Stop

If errors or machine faults occur during material processing, press the emergency stop button to disconnect and stop processing.

Quick Start Guide - Begin Your First Engraving with the LP5 Machine Using Flash Drive

1. Connection

Access the "Settings" on your mobile device.

Select a Wi-Fi network and enter the password to connect your mobile device to it.

Ensure that the Wi-Fi network operates on the 2.4GHz frequency band, as both the machine and your mobile device must connect to the same 2.4GHz Wi-Fi network.

Then open your LDS app on your mobile device and click the "+" in the upper right corner

Select the machine model "LP5" and follow the instructions to configure the WiFi network for the machine.

The Laser unit indicator is solid blue if the connection is successful.

2. Import Project from USB Flash Drive

Insert the USB Flash Drive into the LP5 machine

Open LDS App User "Files in USB"

Choose the file you want to engrave

3. Parameters Setting

Since the parameters have been preset, simply click "Next" at this step.

4. Focusing and Previewing

The recommended focal length is 152 mm (±2 mm)

Remember to remove the front light filter while previewing and put it back before starting engraving.

5. Engrave

Click "Start" to begin engraving

6. Final Result

LaserPecker LP5 User Manual

Download PDF Files of the LaserPecker LP5 User Manual in multi-languages

LaserPecker LP5 Specifications

FAQs for LaserPecker LP5

What accessories can the LaserPecker LP5 work with?

The LP5 works with the following accessories:
Slide extension - expand the working area;
Rotary extension - irregular cylinders and objects from 1 mm to 145 mm in diameter;
Air Purifier; Safety Enclosure; Cutting plate; Powerpack Plus.

What is the laser type of LaserPecker LP5?

Equipped with dual laser sources, LP5 has 20W fiber and 20W blue diode laser. It can engrave almost ALL common materials during daily usage. Diode lasers perform best on wood, dark acrylic, leather, slate, glass, ceramic, etc., while fiber lasers can engrave clearly on all-metals(stainless steel, aluminum, gold, silver, iron, platinum) and plastic.

Is the camera included in any LP5 Bundle?

The camera module is NOT in any current LP5 bundles. It comes with the Safety Enclosure. If you want to use the camera module function, you will need to purchase our Safety Enclosure separately.

How's LP5's Performance on metal? Can it cut metal?

LP5 can perform deep engraving, 3D grayscale embossing and even metal cutting. It can cut 1 mm brass, 1 mm stainless steel, 1 mm aluminum sheet and 1 mm titanium sheet.

What is the difference between LP5 and LP4?

LP5 -
Most efficient and powerful engraving on almost all materials: LP5 has both 20W Fiber and 20W Diode Laser with its super speed 10000mm/s, 120 mm x 160 mm (Basic)/160 mm x 300 mm (with the Slide Extension) engraving area.
20-watt brings enhanced engraving capabilities, enabling high-contrast markings, 3d grayscale embossing, and ultra-precise metal cutting. LP4 -
The LP4 features a dual laser system, combining the 450nm diode laser and 1064nm infrared laser. Up to 4000 mm/s speed, 160 mm x 120 mm (Basic)/160 mm x 300 mm (with the Slide Extension)engraving area.

What Software does LaserPecker LP5 use?

The LaserPecker LP5 is compatible with LaserPecker Design Space (LDS) App/Software as well as Lightburn.

What are the pulse durations for the two laser sources on the LP5?

The LP5 features two laser sources, each with different pulse characteristics:

The 1064nm fiber laser is a pulsed wave laser with a pulse duration of 80-110ns.
The 450nm blue diode laser operates as a continuous wave laser, so it doesn't have a pulse duration.
